XREAL xbx a01+ frame design reference model

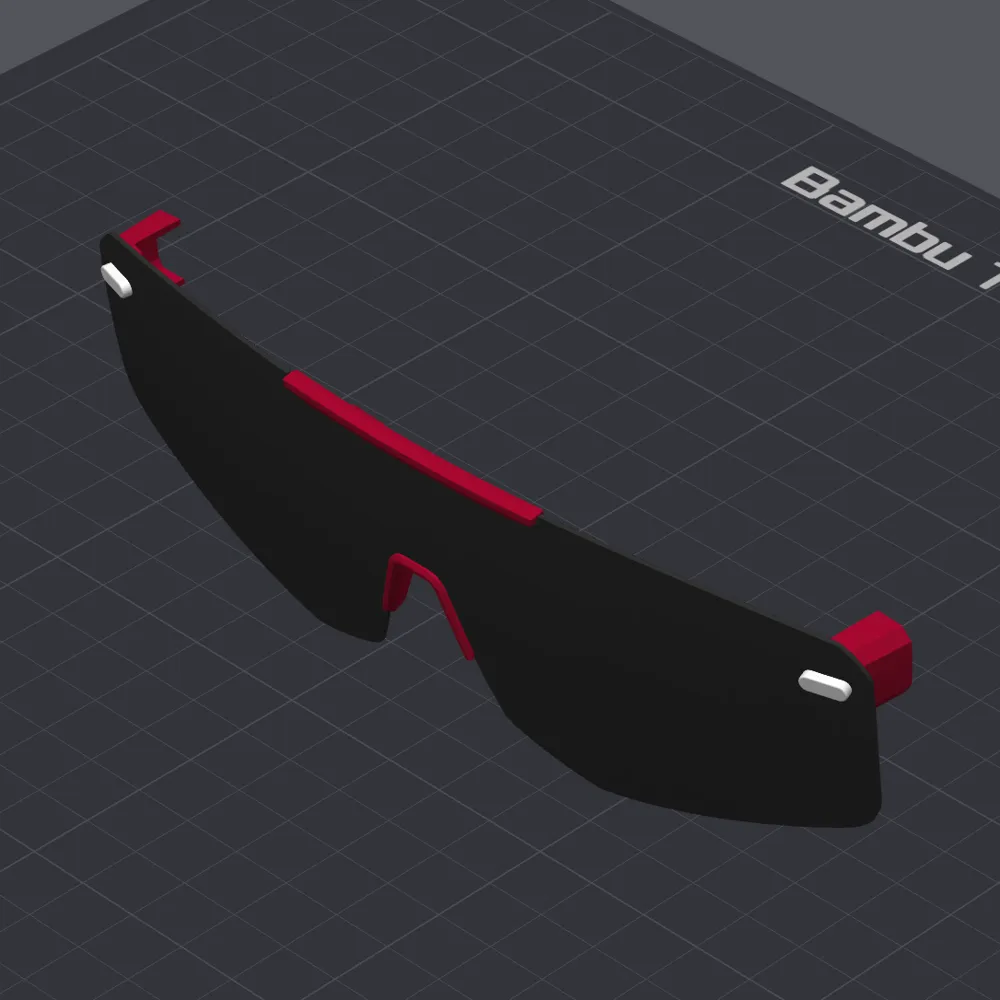

This is a reference model file for the xbx a01 front frame. The image shows how the parts are color-coded in the slicer — just to give you an idea of how the pieces fit together.

Feel free to use this STP file as a starting point and tweak the design to suit your own needs.

This version is a split/separable design. The main components are: left and right lens clip holders (white), the front frame slots that connect to them (red), mounting screws (white), the center lens clamp with a pin joint (red), and reference lenses (black).
