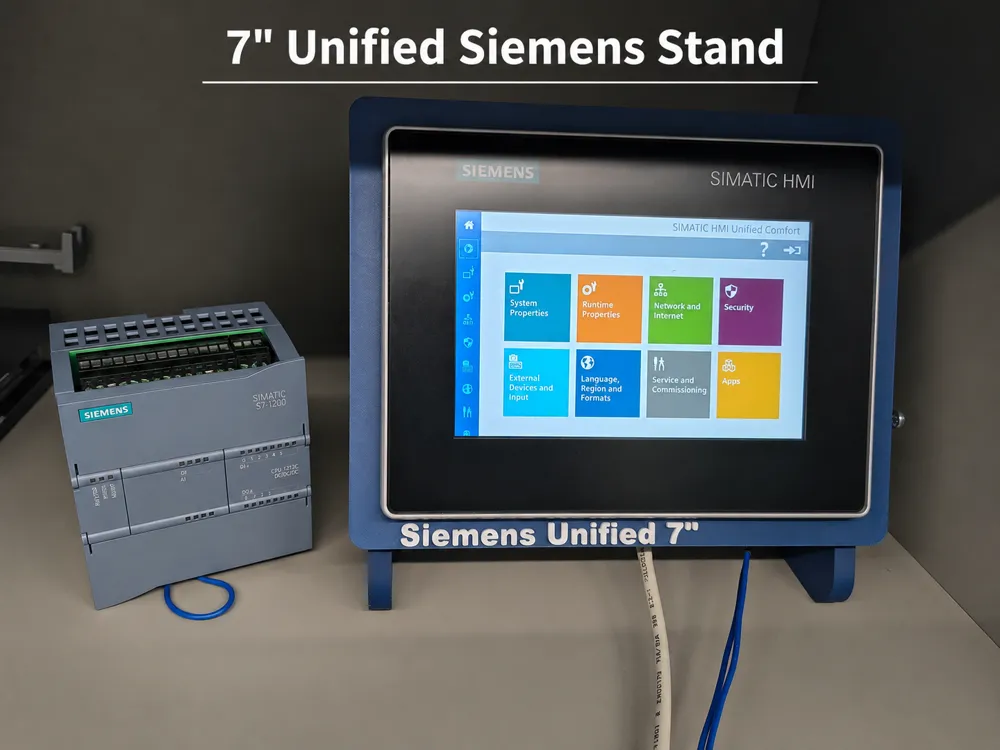

Simple and sturdy 7" Unified Panel Stand

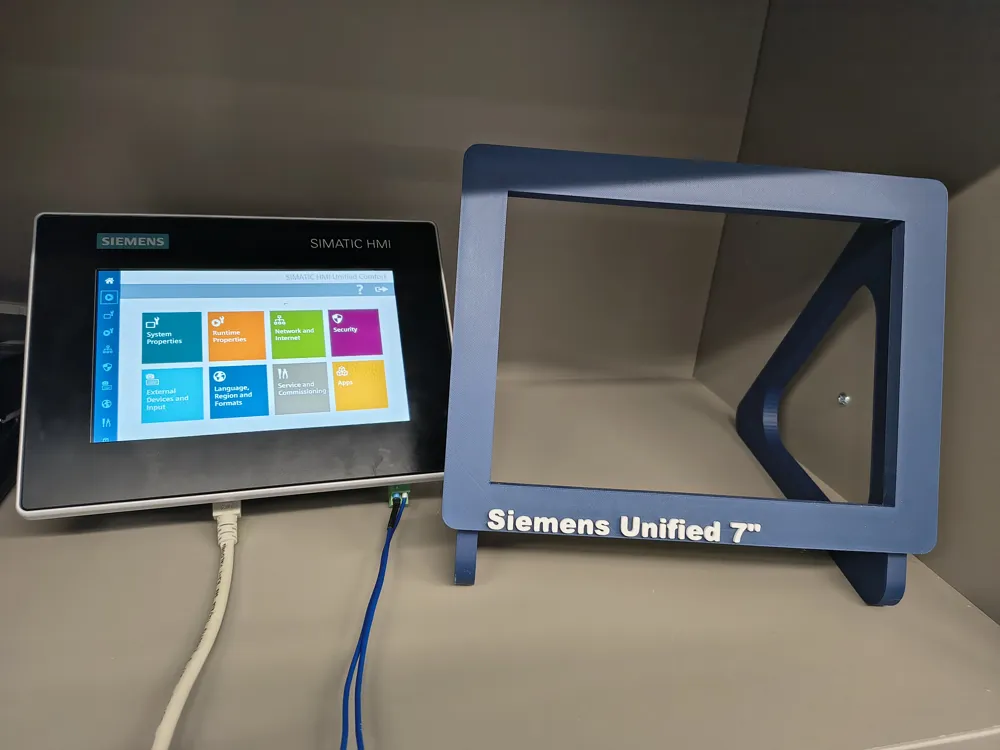

This stand consists of only three printed parts: one frame and two feet, making it quick and easy to assemble.

For assembly, press four Ruthex M4 Short threaded inserts into the frame. The two feet are then secured using four M4×10 screws, creating a sturdy and durable stand for your Siemens Unified 7" HMI panel.

Assembly

Print 1× frame and 2× feet
Install 4× Ruthex M4 Short threaded inserts

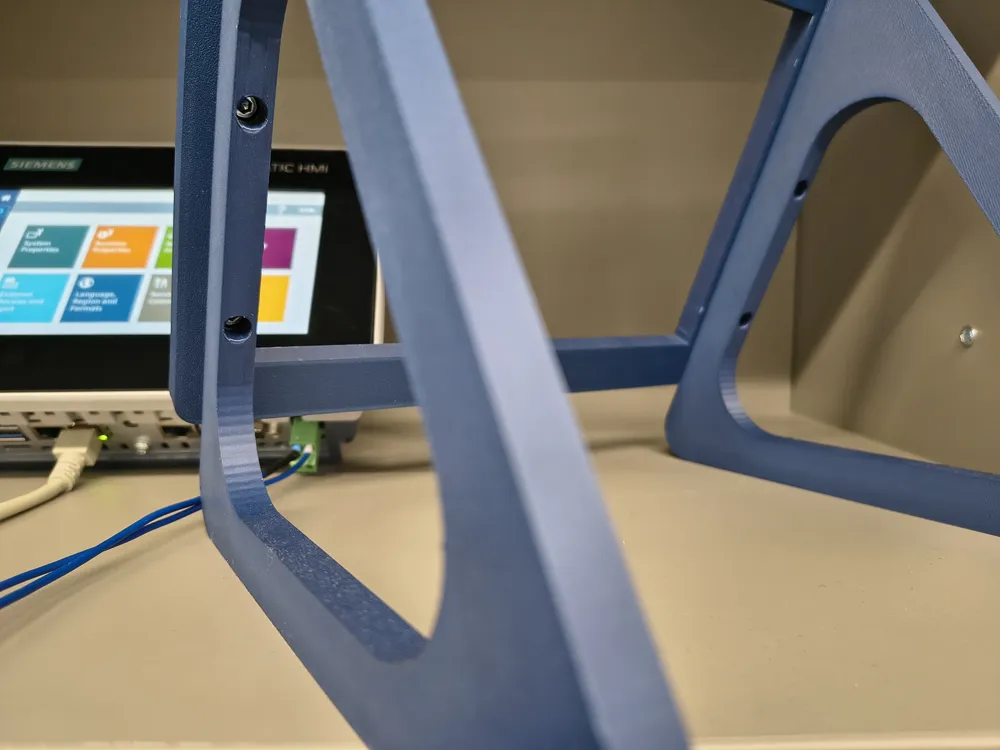

Fasten the feet with 4× M4×10 screws

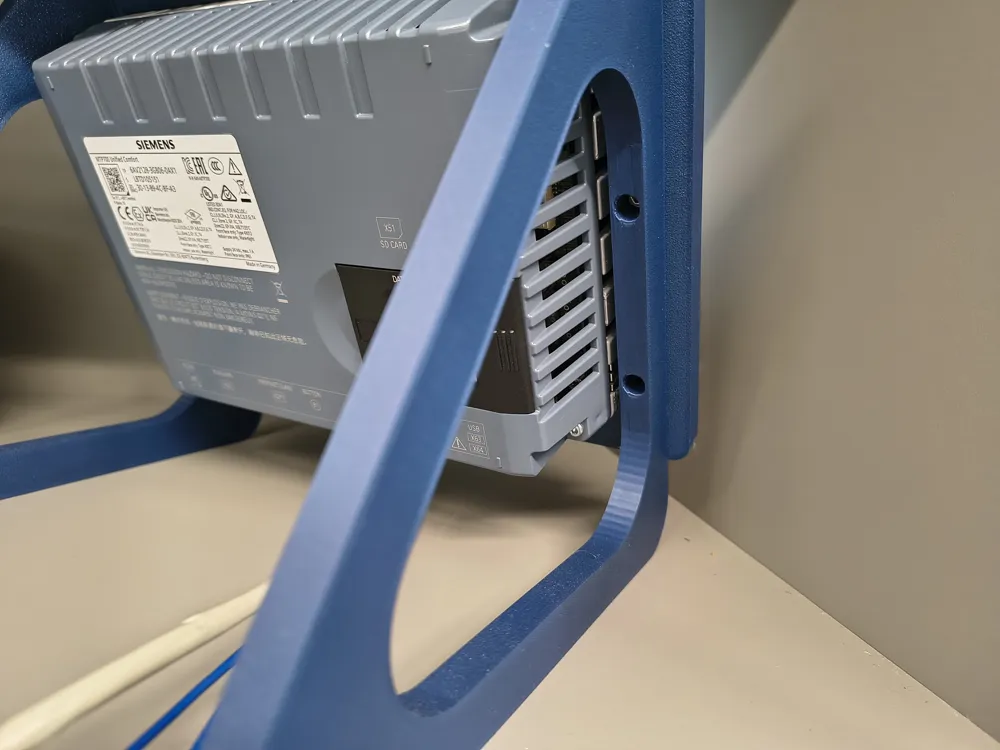

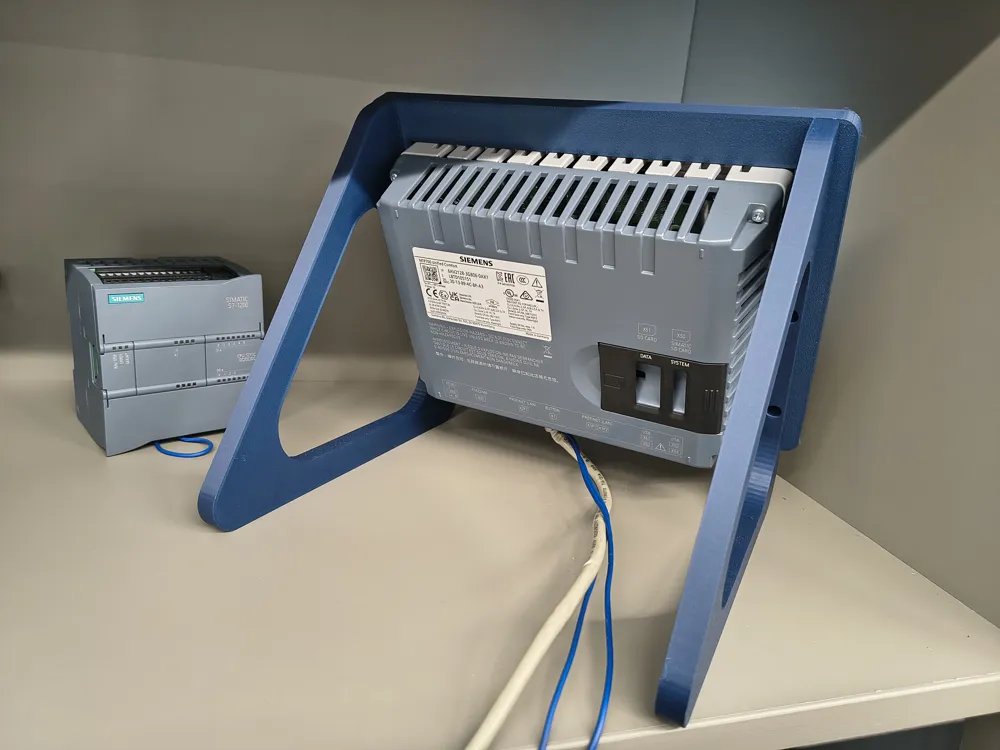

Mount your Siemens Unified 7" panel

The design is intentionally minimal, requires only a few hardware components, and provides a stable stand for everyday use.
