TPU Headlight Replacement for Begode T4

Print Profile(1)

All
A1 mini
X1E
X1
P1S
H2D
P1P
H2S
X2D
H2D Pro
P2S
A2L
A1
X1 Carbon
H2C

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.6 h
1 plate

Open in Bambu Studio
Boost
1
0
0
1
0
1
Released

Description

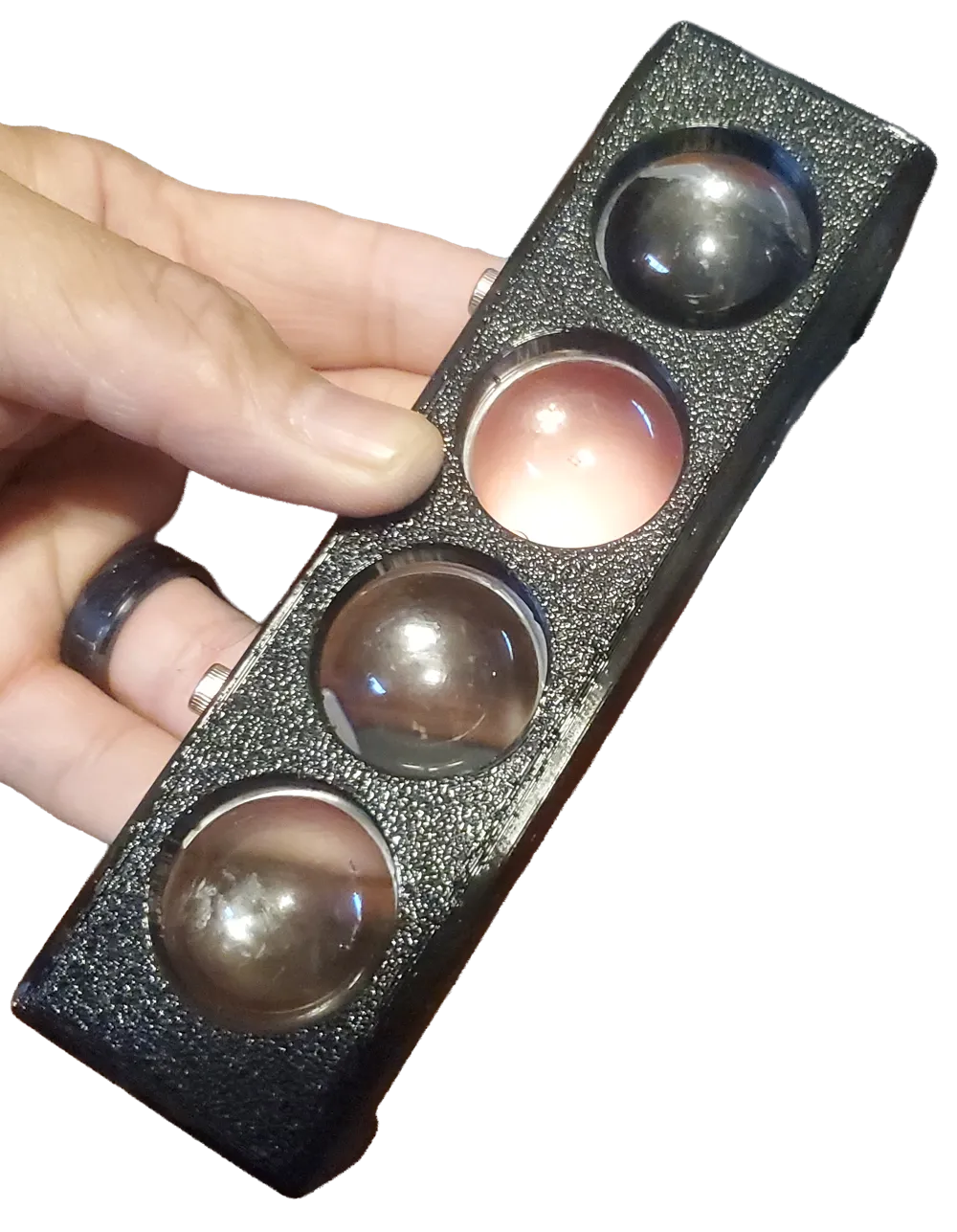

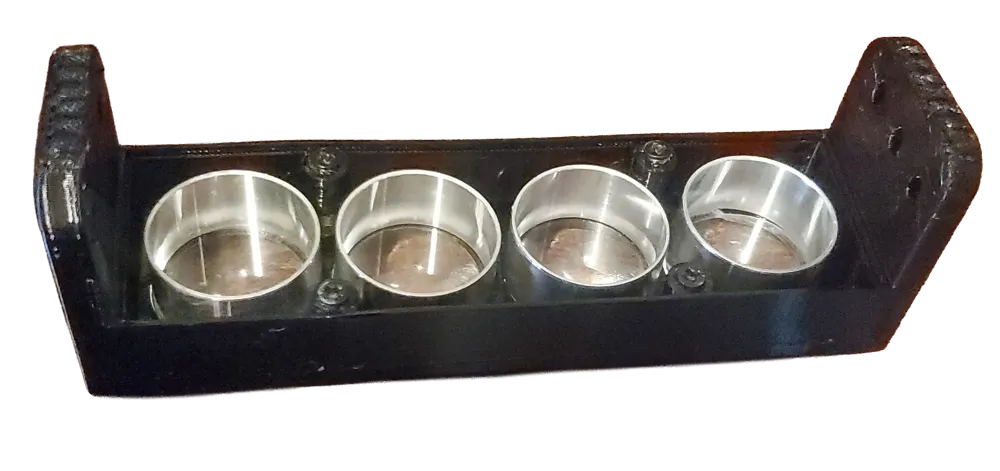

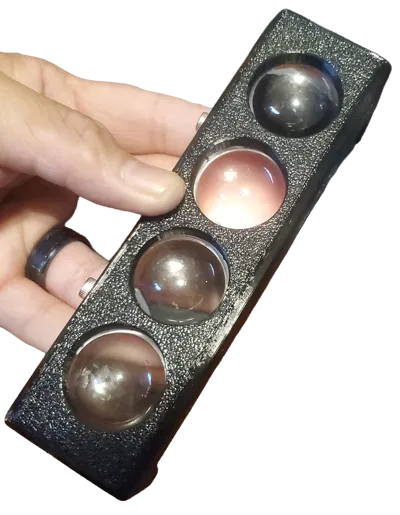

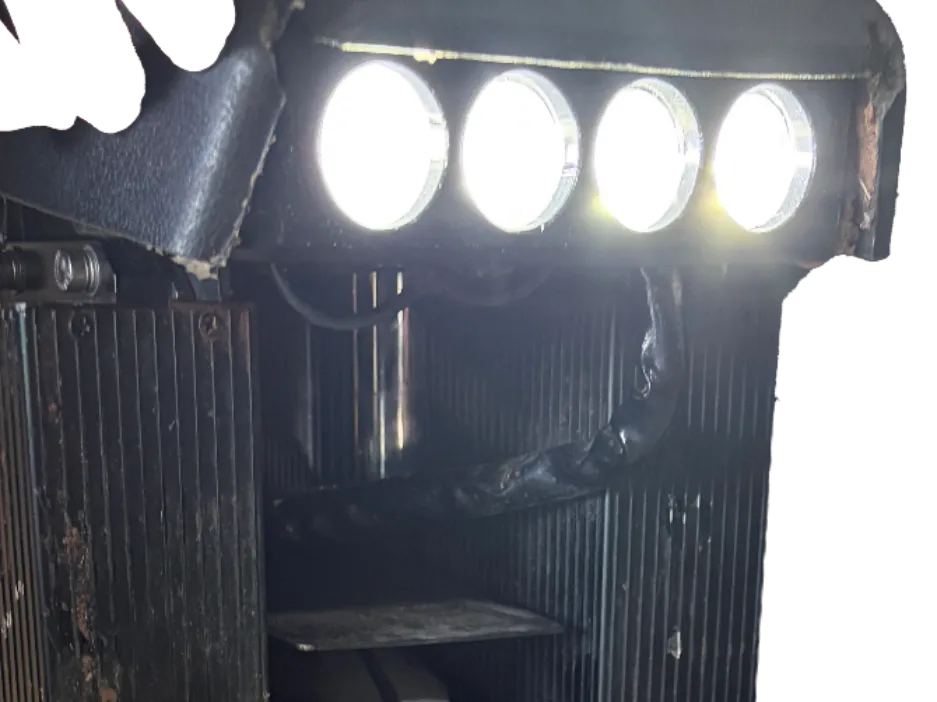

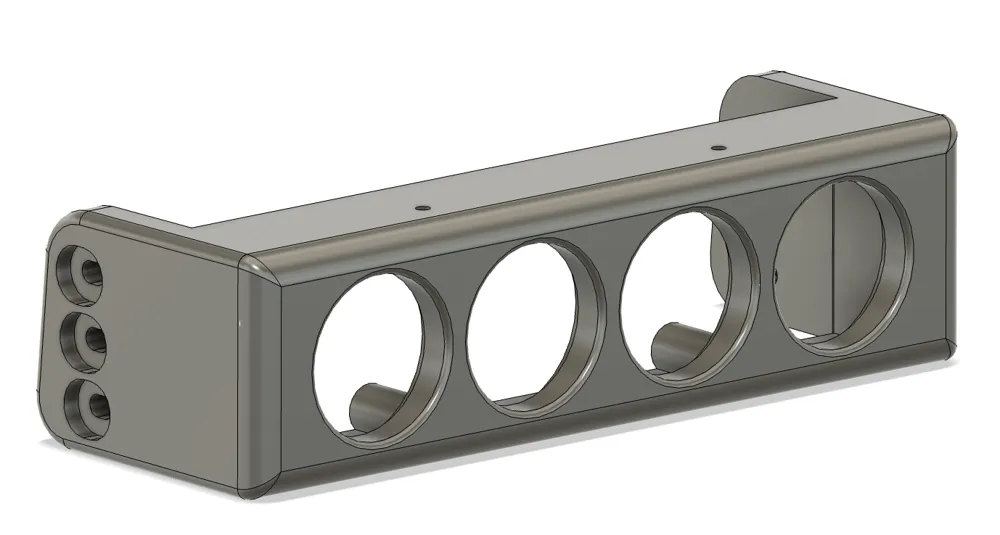

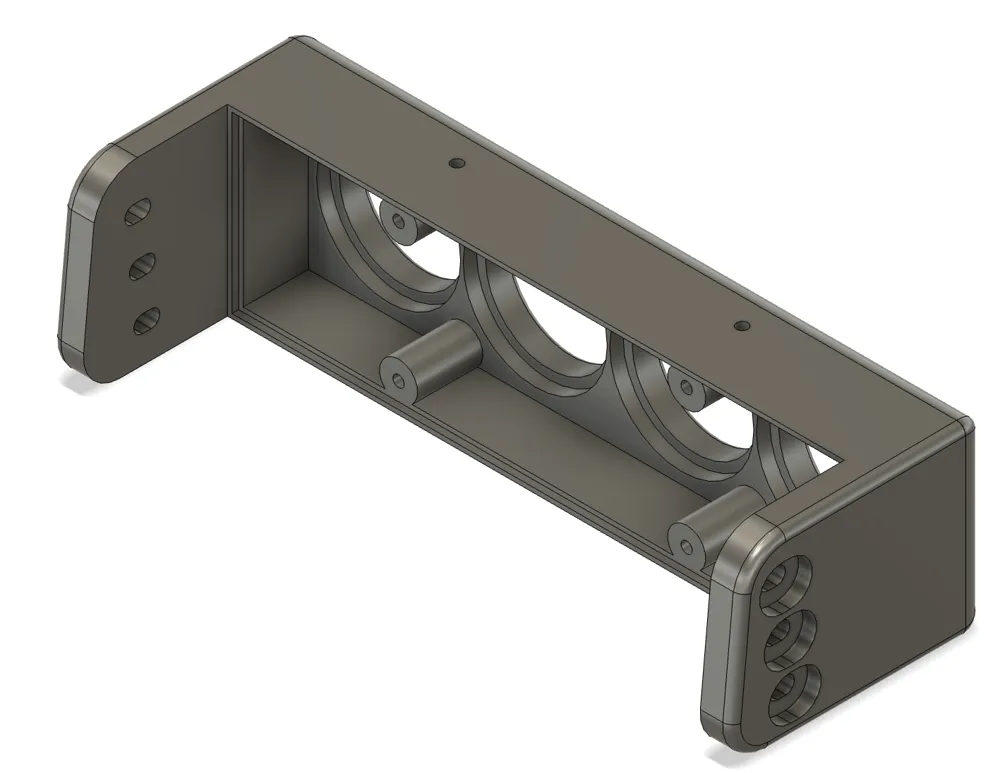

This is a heavy-duty, beefed-up replacement headlight housing for the Begode T4 electric unicycle. I designed this after a friend's son broke theirs, opting for TPU to give it maximum impact resistance.

Hardware & Assembly:

  • Threaded Inserts: While you can thread directly into the print, using heat-set inserts is highly recommended for durability. You will need:
    • 6x M3 inserts for the back bolts.
    • 2x M4 inserts for the top.
  • Sealing: I designed this around using a liquid sealant for the lenses rather than the stock O-rings, though the original O-rings should still fit if you prefer them.

Note: While you could probably print this in rigid materials like PETG or PLA, TPU is strongly recommended for its flexibility and bounce during crashes.
