Magnetic Stirrer (B-ZC002 Version)
Print Profile(1)
Description
The previous magnetic stirrer was quite popular, and I also had the B-ZC002 mystery box from the store, which contained a small motor. I used it to make another stirrer, reducing the battery to one cell. The hardware only requires 4 3*8 screws (or it can be used without them for fixation). For materials, please refer to the pictures and the instructions for my other stirrer. Assembly is as follows:

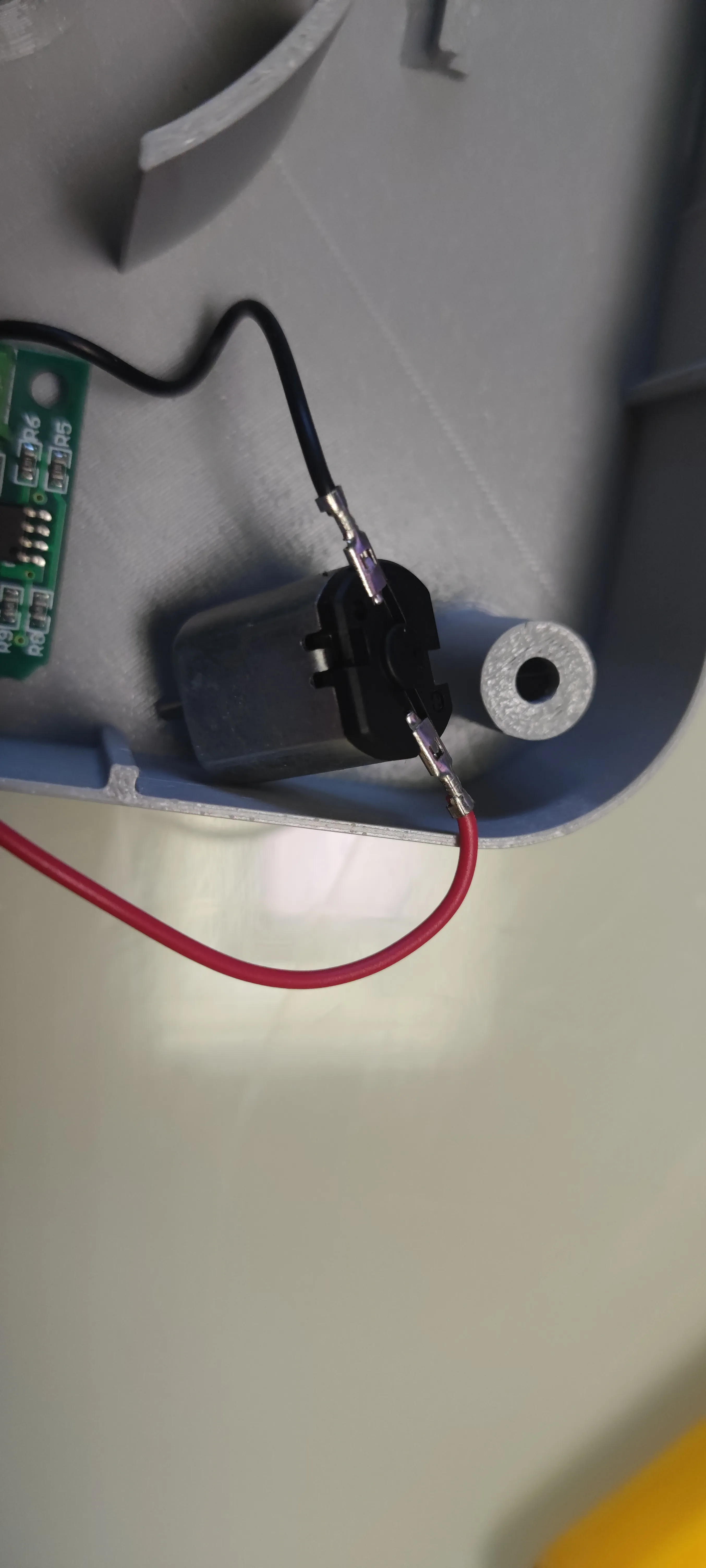

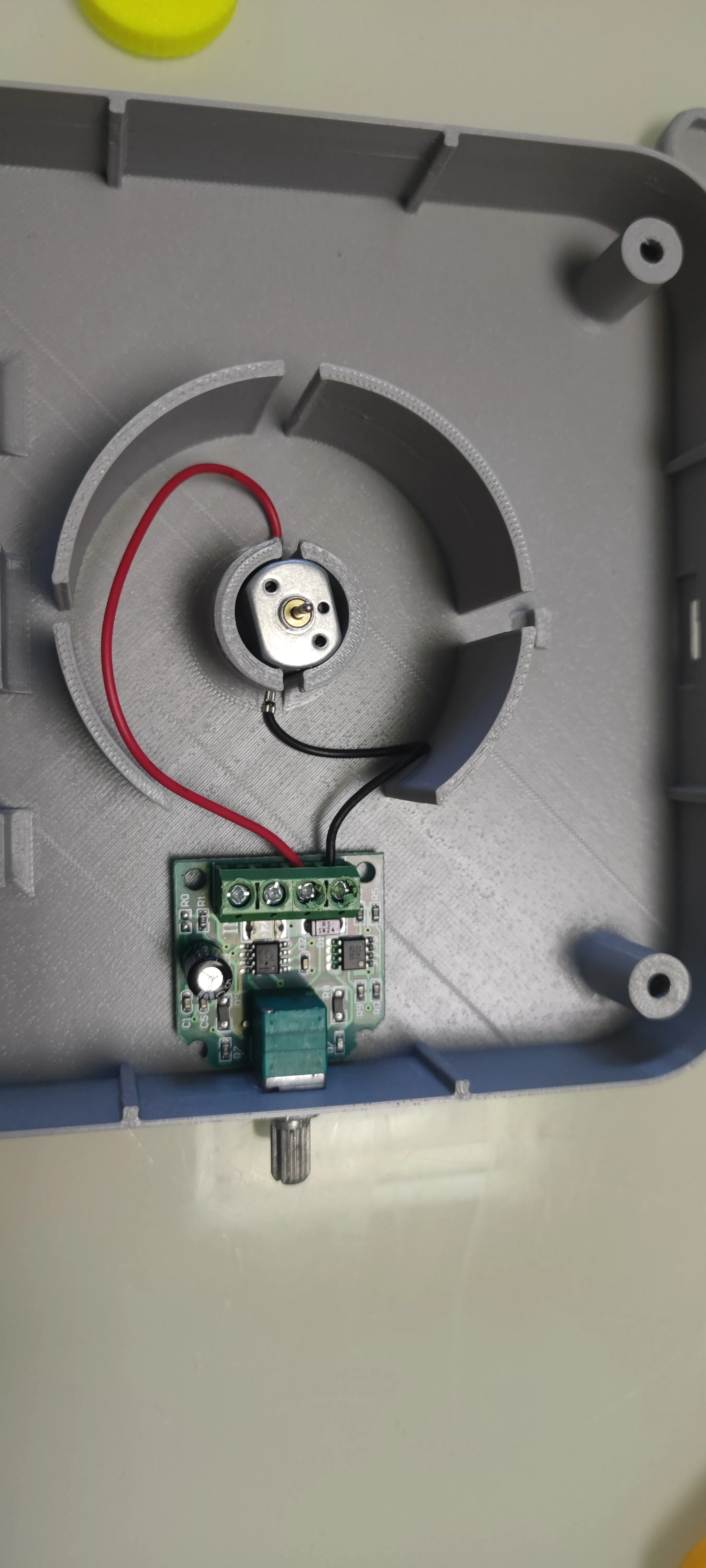

Bend the two pins of the small motor 90 degrees and connect the wires from the mystery box. Place the motor into the holder and tighten the top cover to secure it.

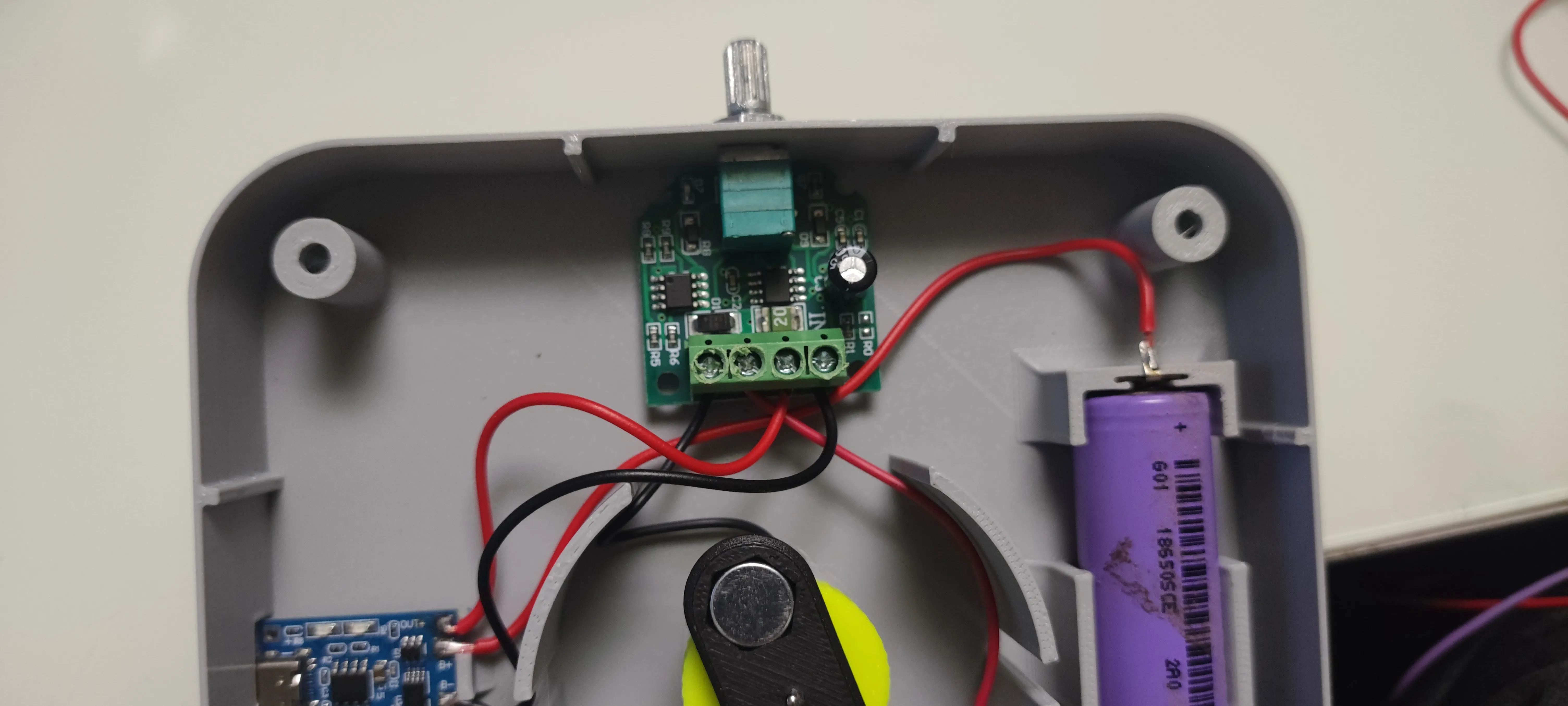

Insert the speed control board, connect the wires, and secure it.

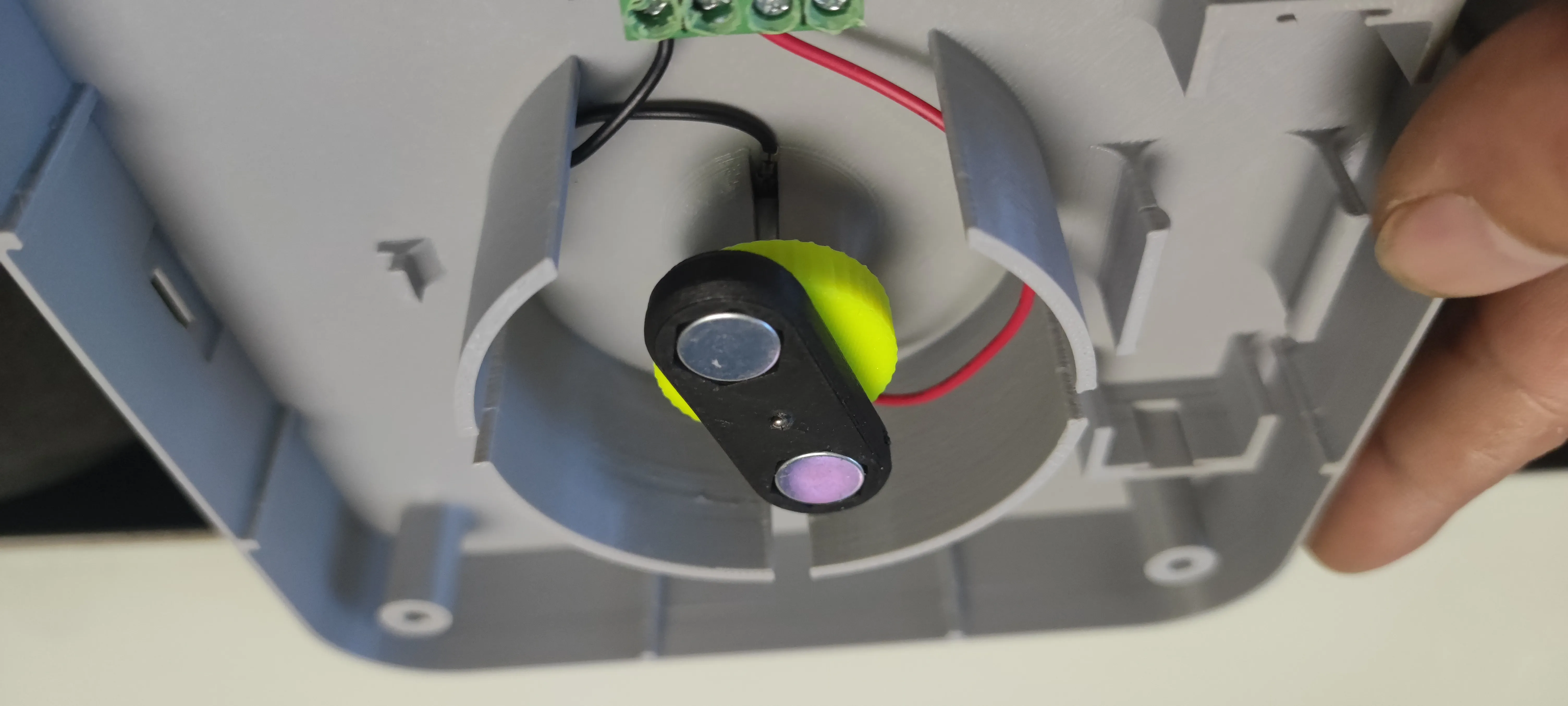

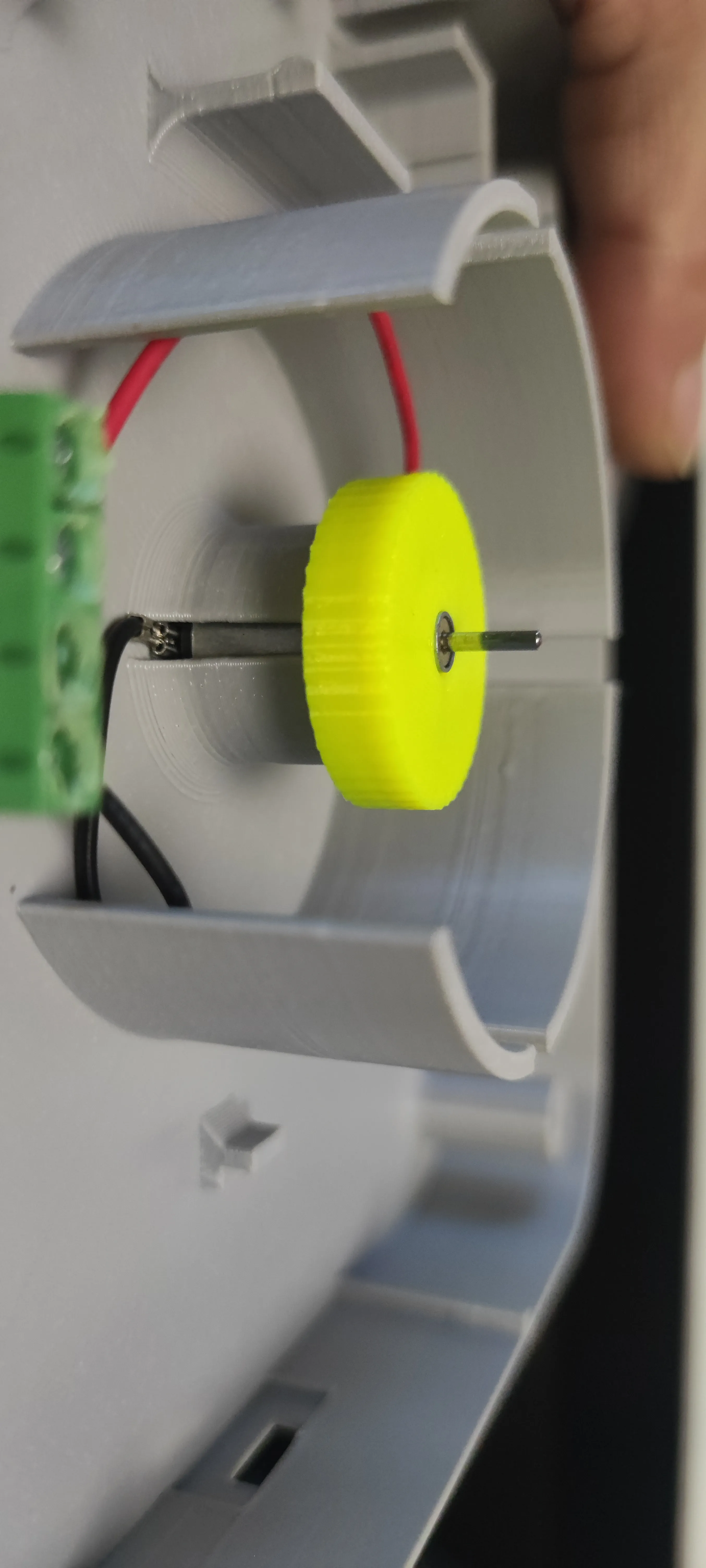

Install the magnetic rotor. If it's too tight, you can slightly heat the motor shaft or press it in firmly. If it's too loose, add glue.

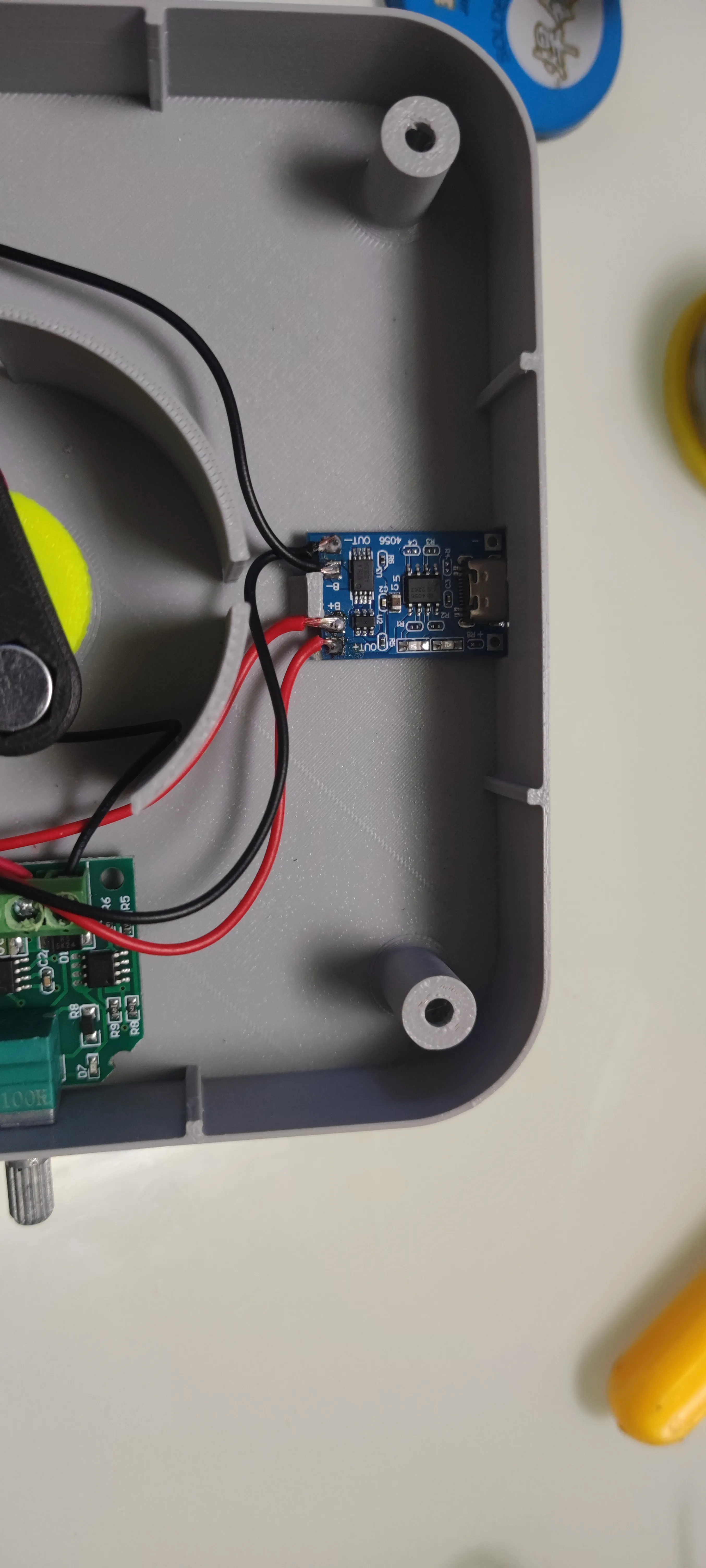

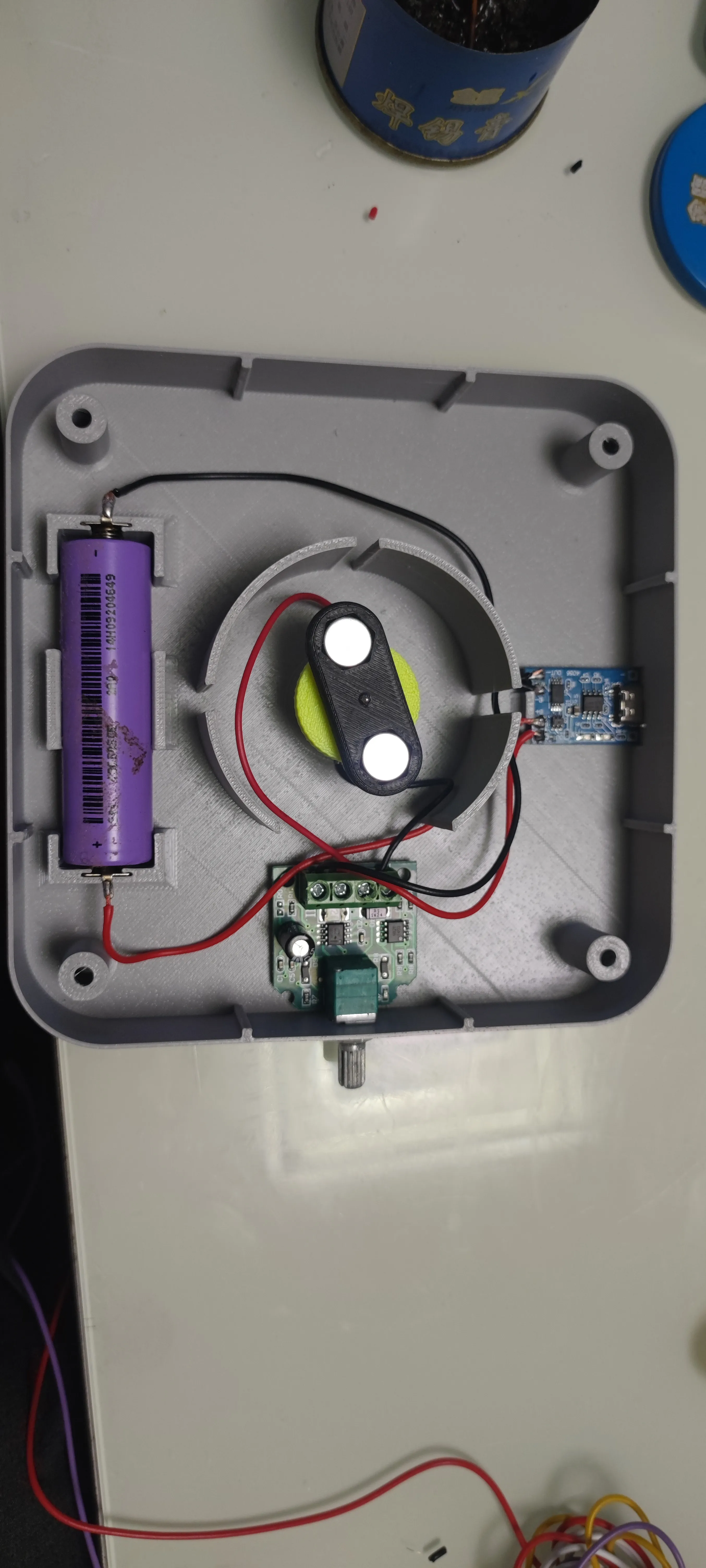

Place the battery spring contacts from the mystery box into the battery holder. The wiring is shown in the picture and is very simple.
