Arduino Uno & 16x2 I2C LCD Holder

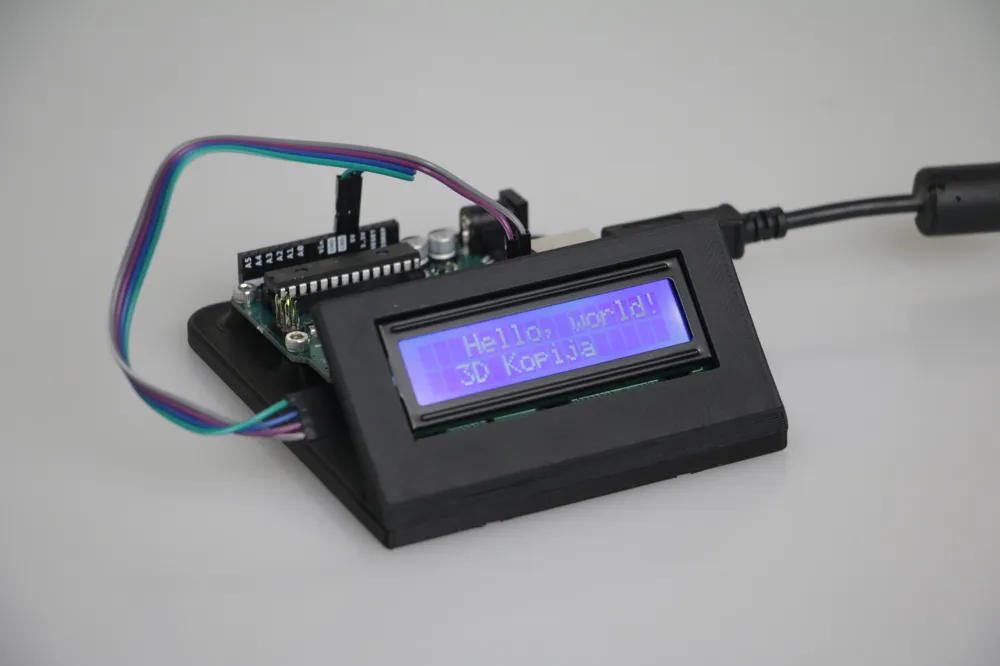

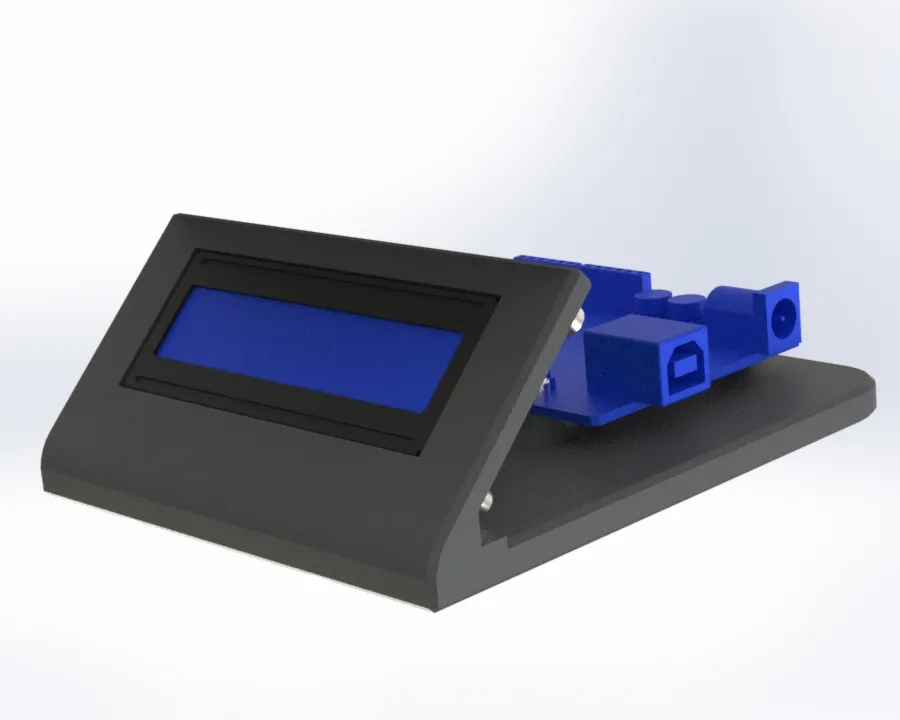

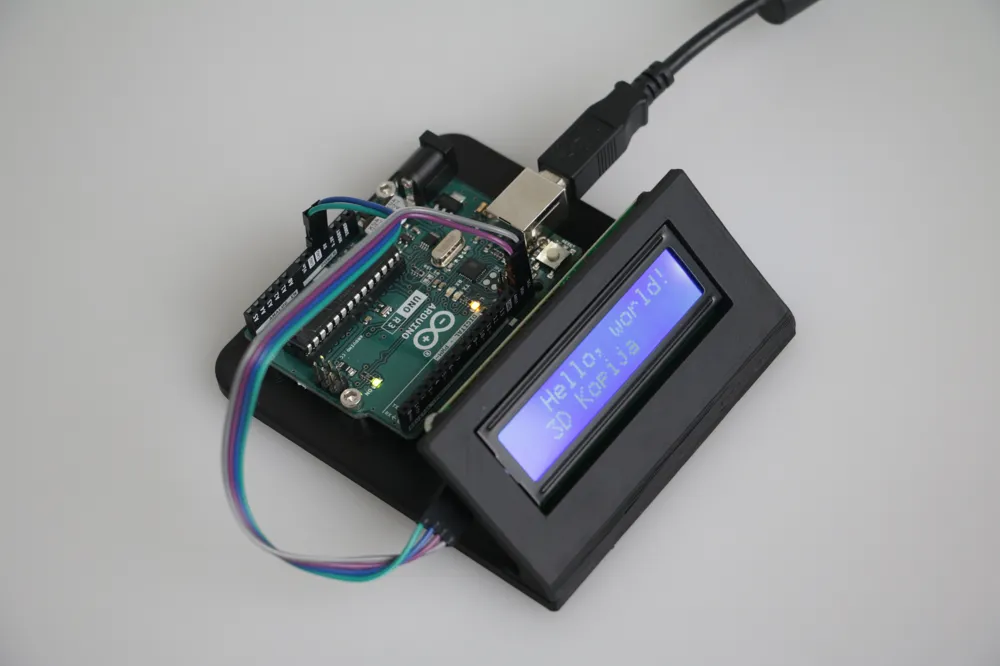

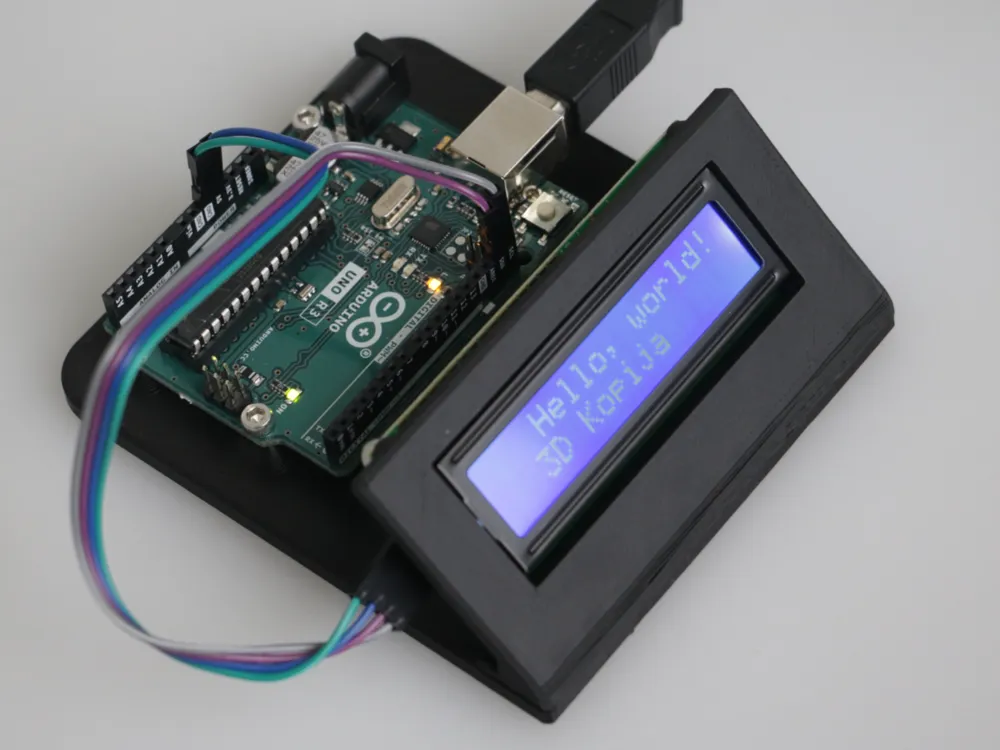

A compact holder that combines an Arduino Uno and a 16x2 I2C LCD display into a single unit, keeping both components aligned and secure. Designed with rapid prototyping in mind, it makes it easy to test, wire, and demo Arduino-based projects without loose parts or improvised mounting.
Print settings: Printed in PLA.
Hardware required:
- 8x DIN 912 M3 x 8mm socket head cap screws
- 2x ISO 7047 M3 x 8mm countersunk screws

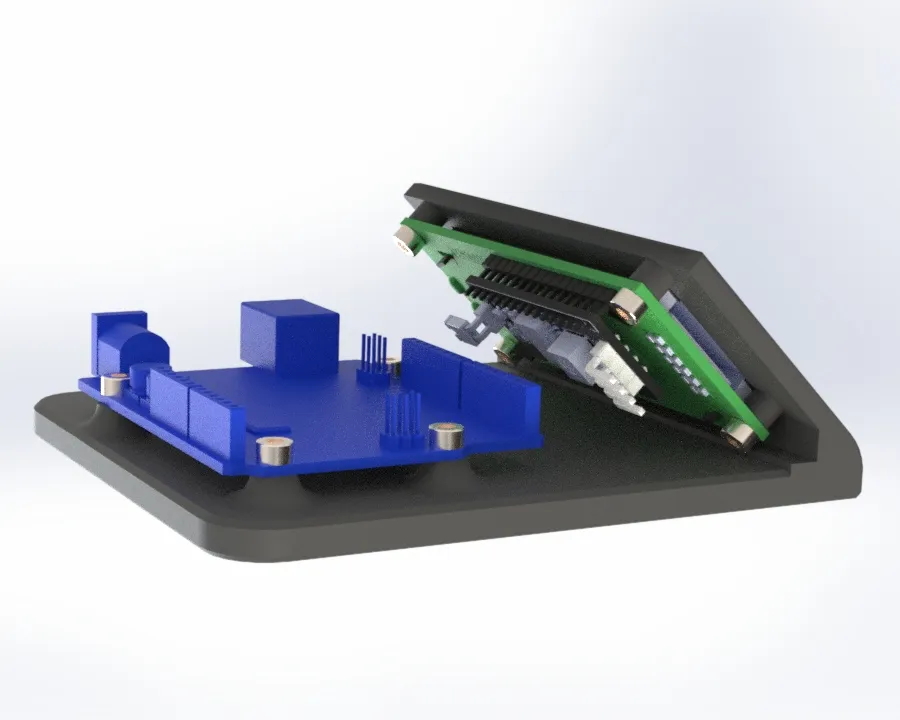

Assembly: The DIN 912 screws secure the Arduino Uno and the LCD holder to the base plate, while the 2x ISO 7047 countersunk screws attach the LCD holder to the base plate itself. Together they form a single rigid assembly, ideal for breadboard-free testing, workshops, or quick project demos.
