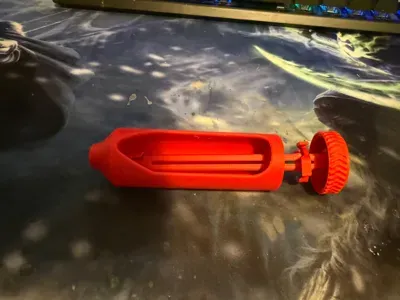

Ratcheted Toothpaste Tube Squeezer

I loved the concept behind Luke's 3D's original model but it didn't fit my daughter's toothpaste. I also found the model quite hard to assemble as the tolerances were tight and there was little to no horizontal expansion (elephant's foot) compensation built in.

So while I was lengthening the model I decided to make the following improvements:

• Increased shaft and body length by 10mm
• Increased tube slot width on the shaft and body slightly
• Added chamfer to all surfaces that touch the build plate to compensate for horizontal expansion
• Added a bump on the shaft to prevent the tip from coming out while removing the tube
• Stiffened up the ratchet arms
• Improved aesthetics (subjective :))
• Less post processing is required for assembly

NOTE: You need to remove the support material from the bottom of the main tube in order for the ratchet mechanism to work correctly.

Assembly instructions:

1. Insert the shaft into the knob
2. Slide the ratchet, flat side down, onto the shaft.

3. Insert the shaft into the body
