Universal Mud Flap Extension for Cars
Print Profile(0)
Description

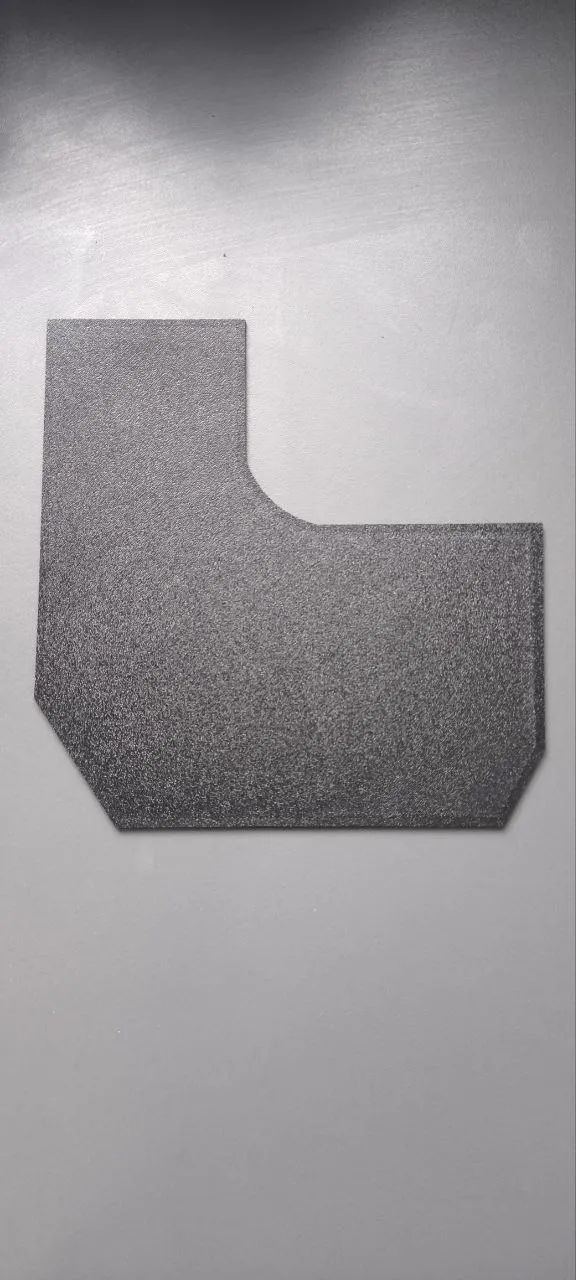

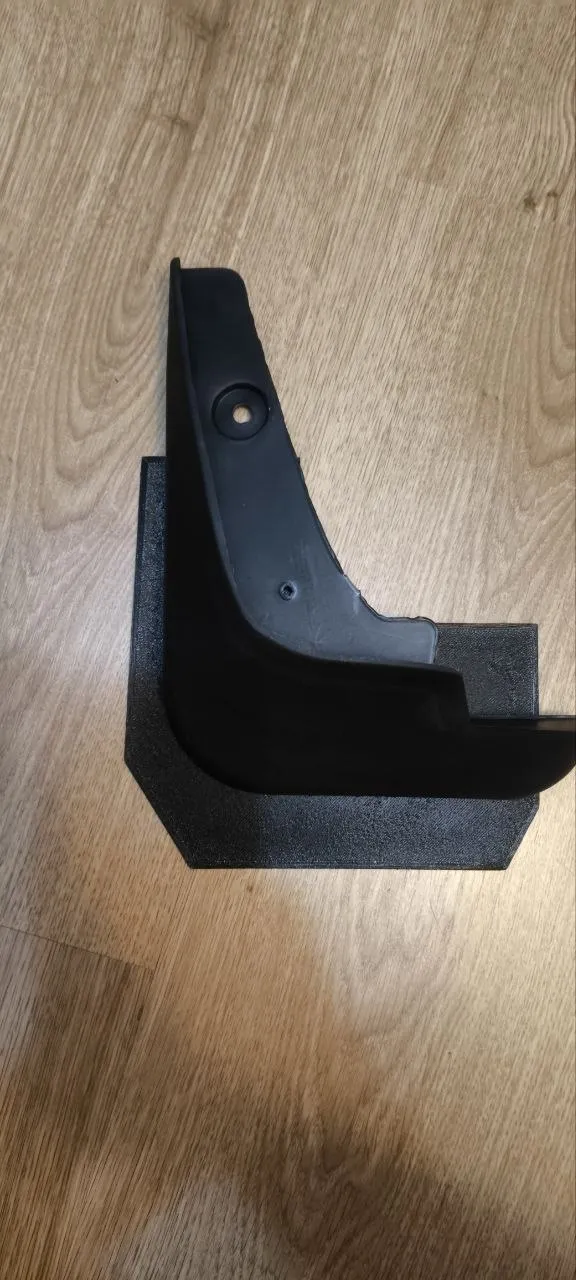

Universal Mud Flap Extension for Cars (Designed for Chevrolet Cruze)
This is a universal mud flap extension designed to provide additional protection against mud, water, stones, and road debris. The model was originally created for the Chevrolet Cruze, but its simple shape makes it suitable for adaptation to many other vehicles with similar mud flaps.

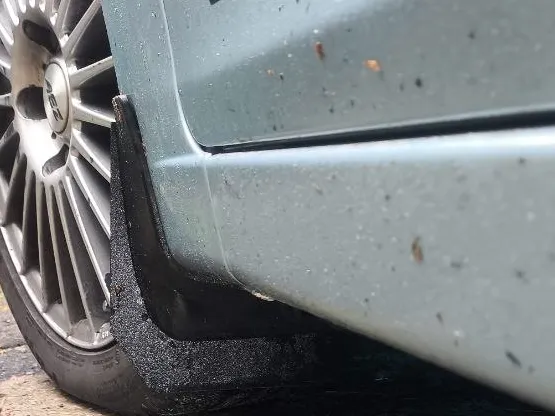

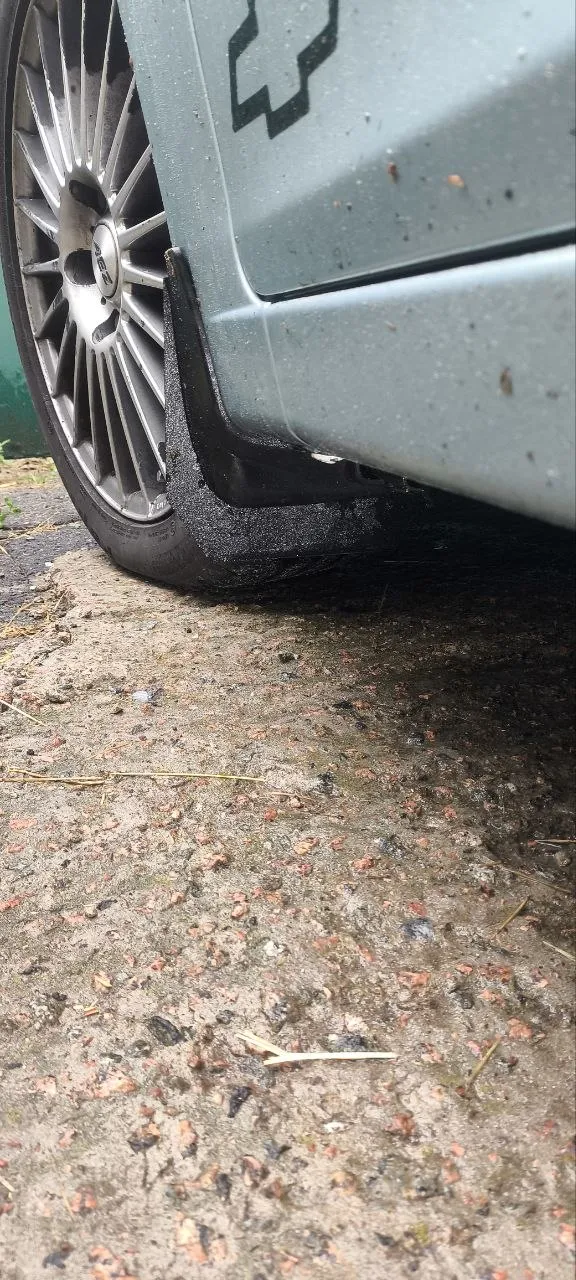

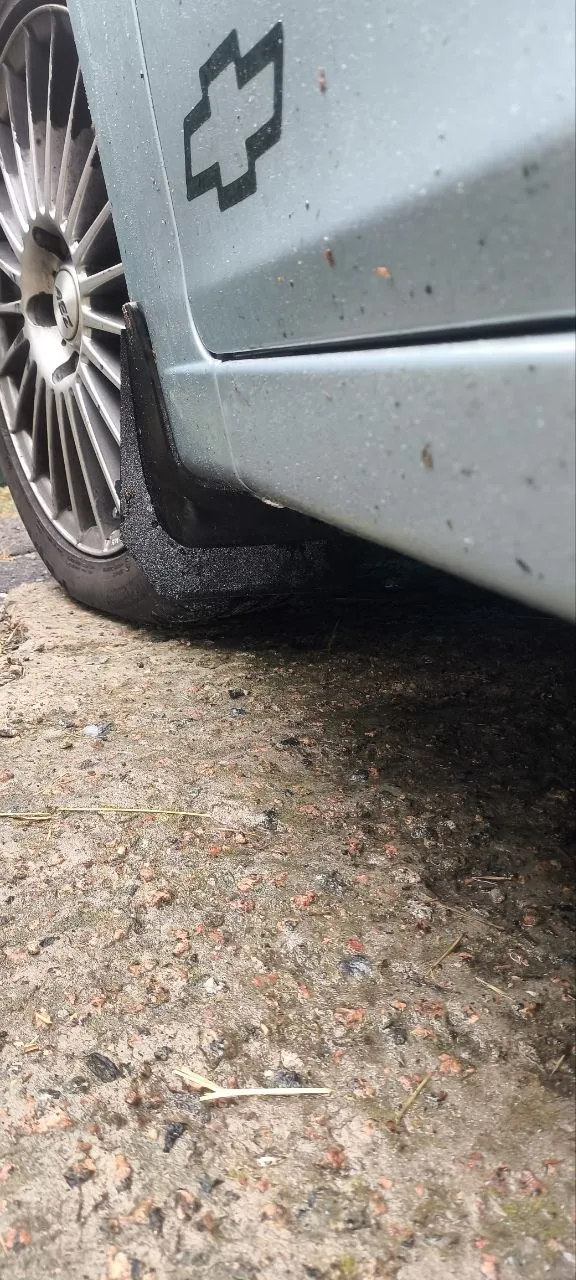

The extension increases the coverage of the factory mud flap, helping to keep the lower body panels and rocker panels cleaner while reducing paint damage caused by gravel.
Features
- Universal design
- Originally designed for Chevrolet Cruze
- Easy to customize for other vehicles
- Strong and lightweight
- Perfect for 3D printing without supports (depending on orientation)
Printing
Recommended material:
- PETG (recommended for outdoor use)
- ASA (best UV and heat resistance)
- ABS (optional)
- PLA is not recommended for long-term outdoor use.
Suggested settings:
- Layer height: 0.2 mm
- 4–5 walls
- 30–40% infill (Gyroid or Grid)
- 4 top/bottom layers
Installation
The extension can be attached using:
- Stainless steel screws
- Automotive clips
- Double-sided automotive tape (for light-duty applications)
Depending on your vehicle, minor drilling or trimming may be required.
Compatibility

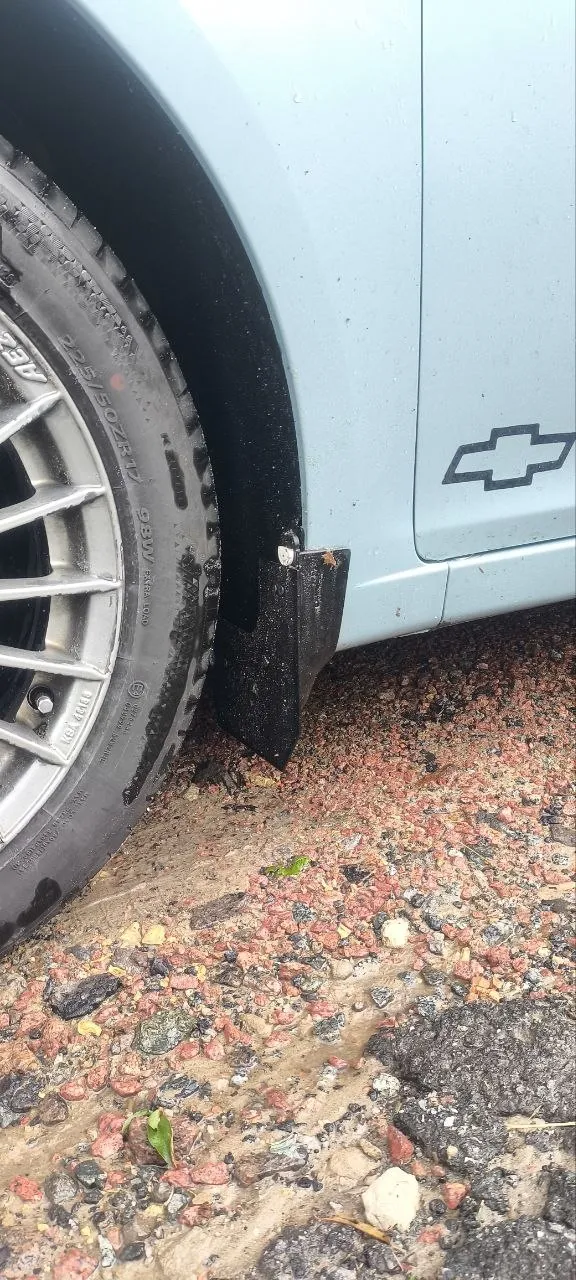

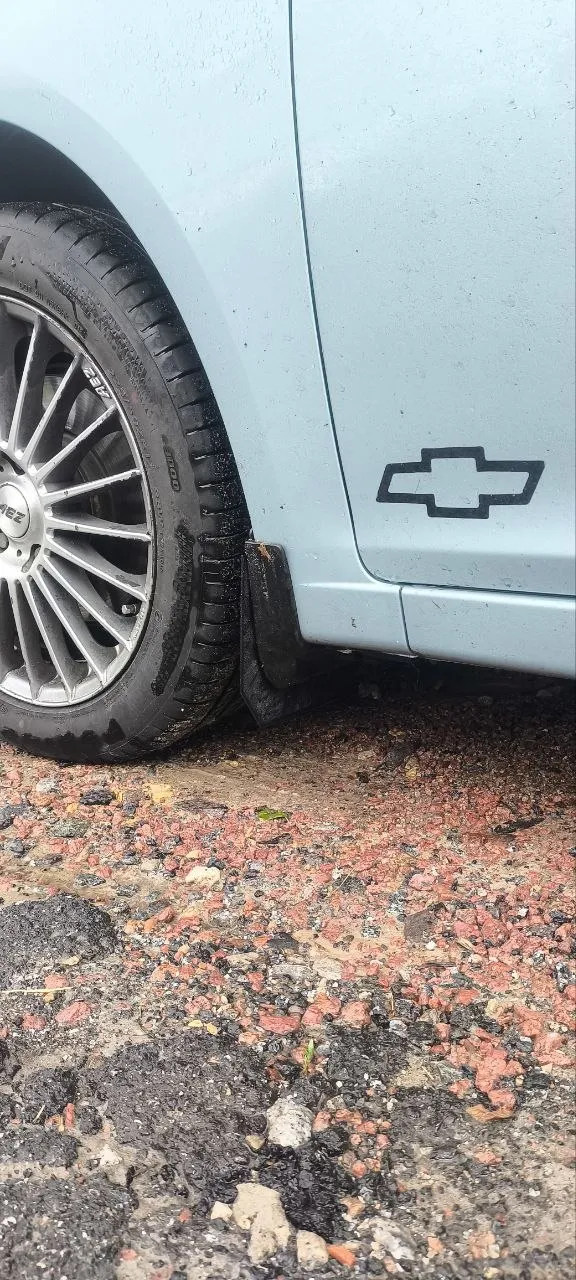

Designed and tested on:
- Chevrolet Cruze
May also fit other vehicles after minor adjustments. Please compare the dimensions with your original mud flaps before printing.
If you adapt this model to another vehicle, feel free to share your results!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
