Strong 45° Inside Corner Bracket (M5 / #10 Screw)
Print Profile(2)
Description
A simple, strong inside corner bracket designed for general-purpose fastening.
The model is optimized for M5 socket head screws (or equivalent SAE hardware) and prints in a very strong orientation, placing the layer lines in the ideal direction for resisting loads.
Features
- Designed for M5 hardware
- Strong print orientation
- Counterbored screw holes
- Prints without supports
- Easy and fast print
- Can be uniformly scaled to fit other screw sizes (M4, M6, etc.)
Specifications

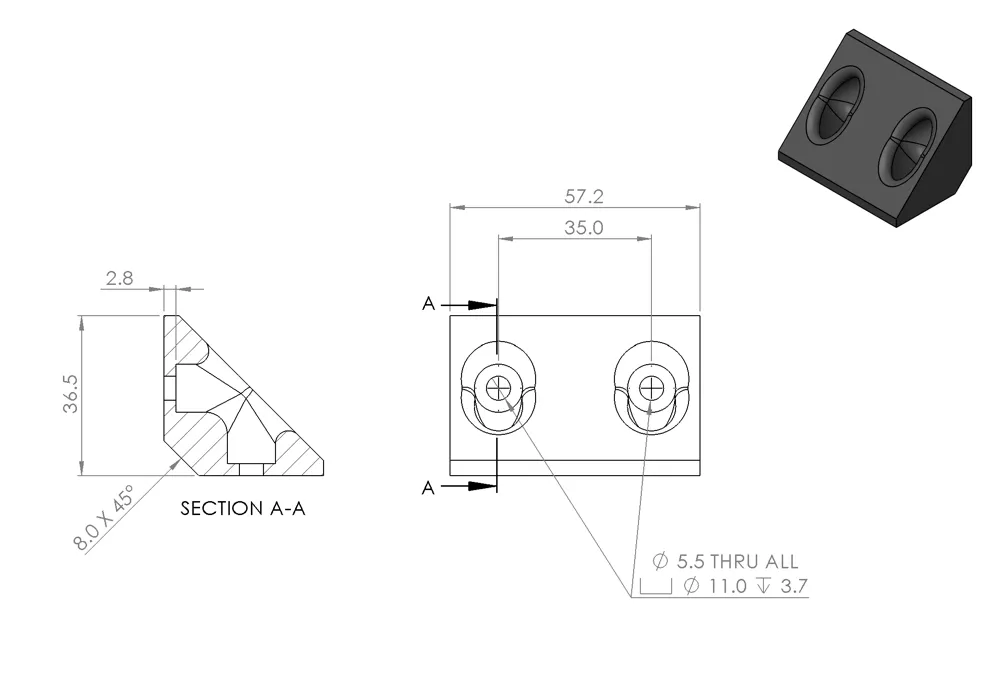

- Overall width: 57.2 mm
- Height: 36.5 mm
- Angle: 45°
- Through hole: Ø5.5 mm
- Counterbore: Ø11 mm × 3.7 mm deep
Print Statistics
- Print time: 36 min 49 sec
- Filament: 16.65 g (5.49 m)
Printing Notes

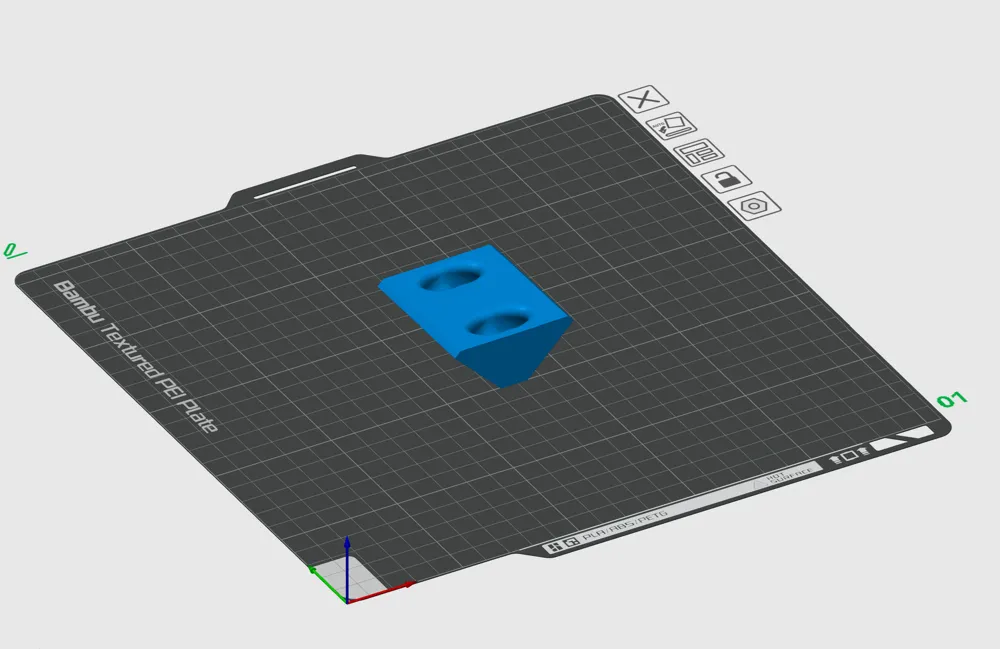

- Prints flat on the build plate.
- No supports required.
- PLA, PETG, ABS, or ASA all work well depending on the application.
Strength
This bracket was intentionally oriented so the layer lines provide excellent strength for typical corner mounting applications. For maximum strength, use 3–5 walls and 25–40% infill.
