Minimalist 3-Tier Organizer / Display Stand
Print Profile(1)
Description
Boost Me (for free)
Help me achieve my dream of getting an H2S printer! Every boost brings me one step closer. Thank you! 🙏

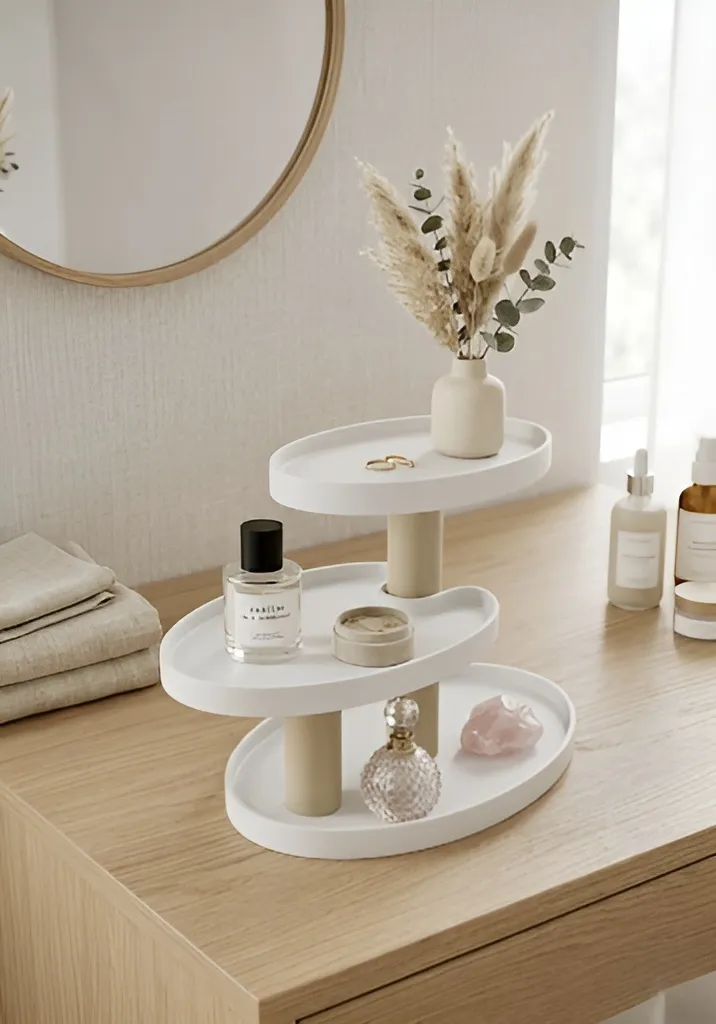

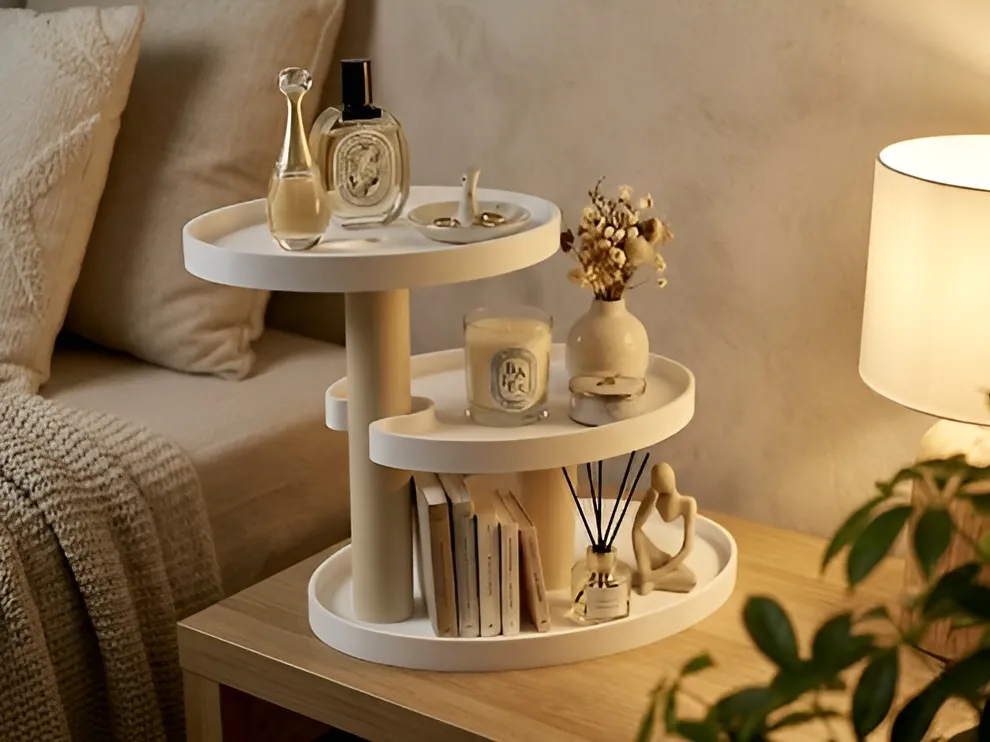

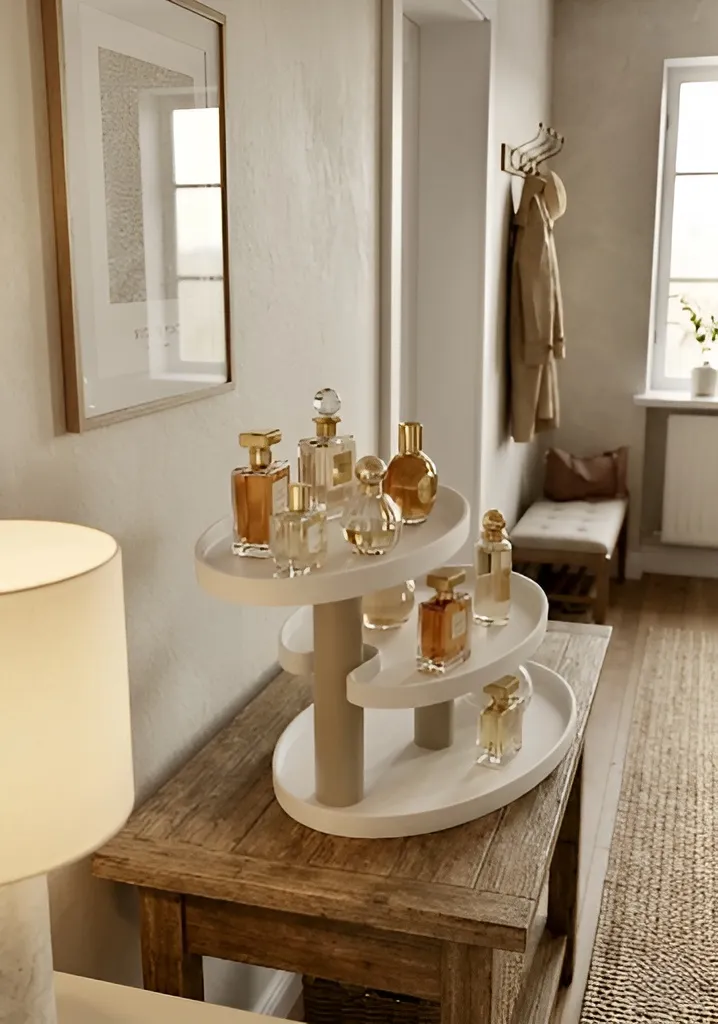

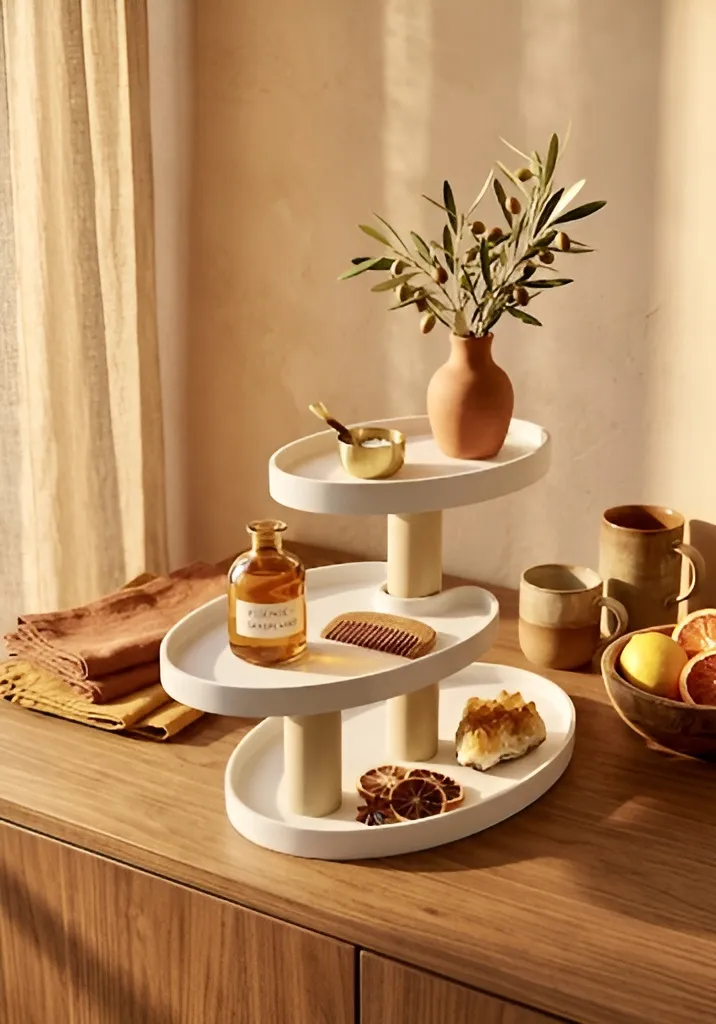

A modern 3-tier organizer for perfumes, jewelry, cosmetics, candles or decorative accessories. Inspired by Japandi and minimalist interior design, this display stand combines elegant aesthetics with practical storage while remaining easy to print and assemble.
The sturdy screw-together construction with brass heat inserts provides excellent stability and allows the organizer to be disassembled if needed.
Supports approximately 1 kg per shelf with evenly distributed weight.
Printing
Print the following parts:
- 1× Bottom Base
- 1× Middle Shelf
- 1× Top Shelf
- 1× Large Pillar
- 1× Small Pillar
- 2× Top Caps
Print Settings
- Layer height: 0.20 mm
- Material: PLA
- Supports: Not required
- Brim: Not required
- Infill: 15–20% Gyroid or Grid
Hardware Required

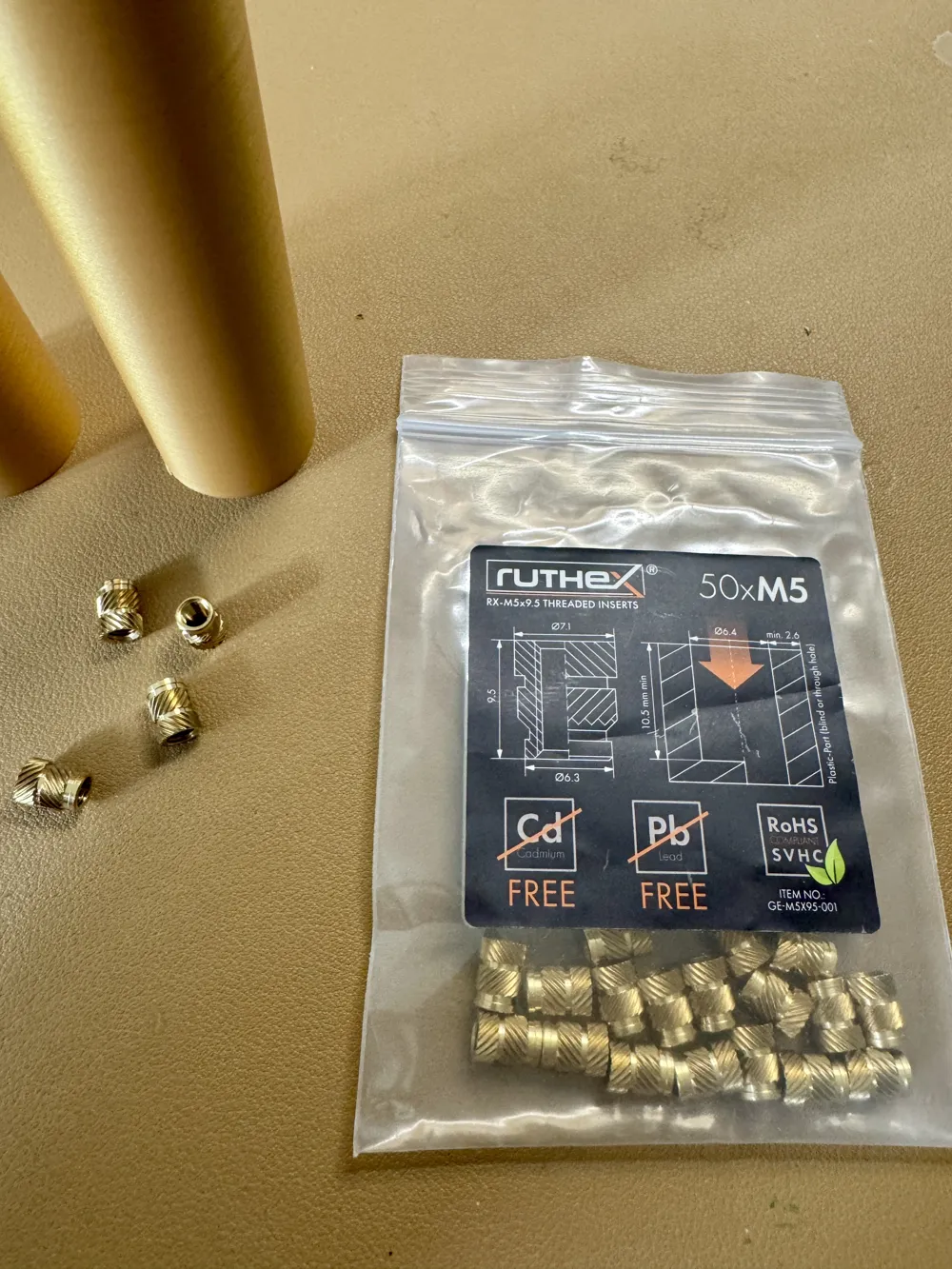

- 4× M5 × 9.5 mm brass heat inserts
- 4× M5 × 16 mm socket head cap screws (Allen)
Note: The printed caps are specifically designed to fit over counter head screws.
Assembly

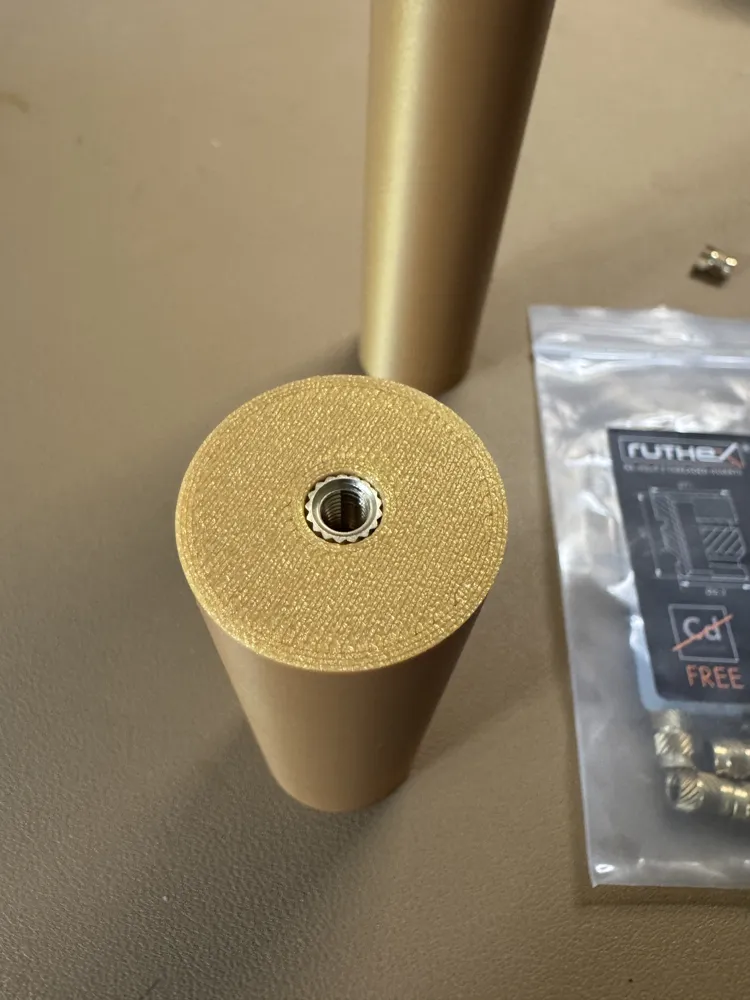

- Install one M5 × 9.5 mm heat insert into each end of both pillars (4 total).
- Attach both pillars to the bottom base using two M5 × 16 mm socket head cap screws from the underside.
- Attach the middle shelf to the shorter pillar using one M5 × 16 mm socket head cap screw.
- Attach the top shelf to the taller pillar using one M5 × 16 mm socket head cap screw.
- Press the two printed caps into the top openings to conceal the screw heads for a clean finish.
Assembly takes approximately 2 minutes.
Bill of Materials
| Item | Quantity |
|---|---|
| Bottom Base | 1 |
| Middle Shelf | 1 |
| Top Shelf | 1 |
| Large Pillar | 1 |
| Small Pillar | 1 |
| Top Caps | 2 |
| M5 × 9.5 mm Brass Heat Inserts | 4 |
| M5 × 16 mm Socket Head Cap Screws | 4 |

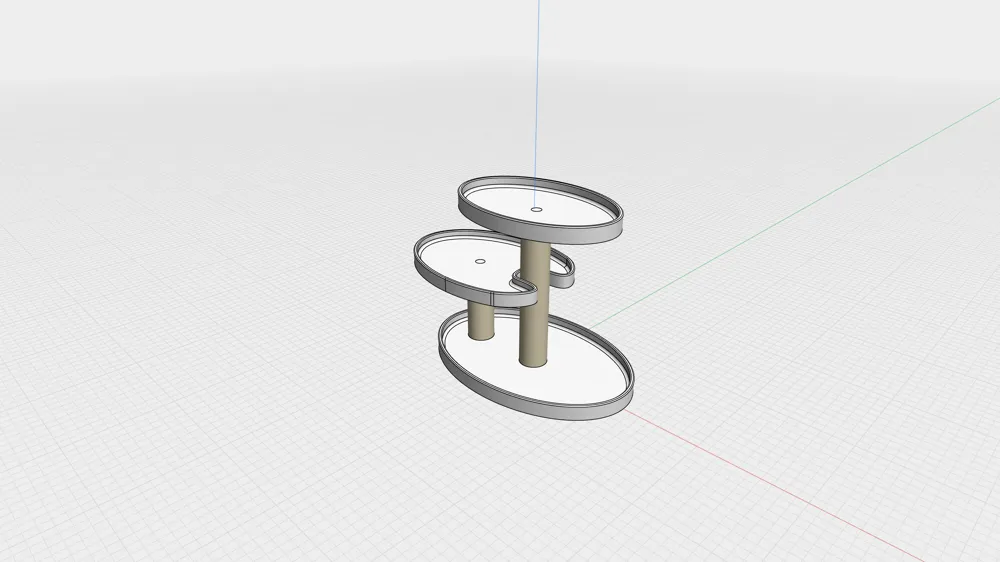

Dimensions
- Bottom shelf: 240 × 160 mm
- Middle shelf: 187 × 139 mm
- Top shelf: 180 × 120 mm
- Shelf spacing:
- Bottom → Middle: 100 mm
- Middle → Top: 79 mm
Notes
- Designed for PLA.
- Indoor use only.
- Maximum recommended load: 1 kg per shelf (evenly distributed).
- Keep away from direct sunlight and high temperatures when printed in PLA.
- Decorative items shown in the photos are not included.
If you enjoy this model, I'd really appreciate a ⭐ rating and a photo of your print. Happy printing!
