Custom Letter Bracelet Bead Generator

Create a whole custom bracelet bead set in one download. Enter up to 12 bead

labels, choose cube, coin, or barrel beads, set the size and hole diameter, then

pick raised or recessed lettering.

Make personalized letter beads for friendship bracelets, craft projects,

classroom name strings, zipper pulls, gift tags, and keychain accents. This

parametric OpenSCAD generator creates a full batch of matching beads with

adjustable size, thickness, stringing hole, and per-bead face lettering, so you

can generate a complete name/word bracelet instead of downloading each letter as

a separate file.

Features:

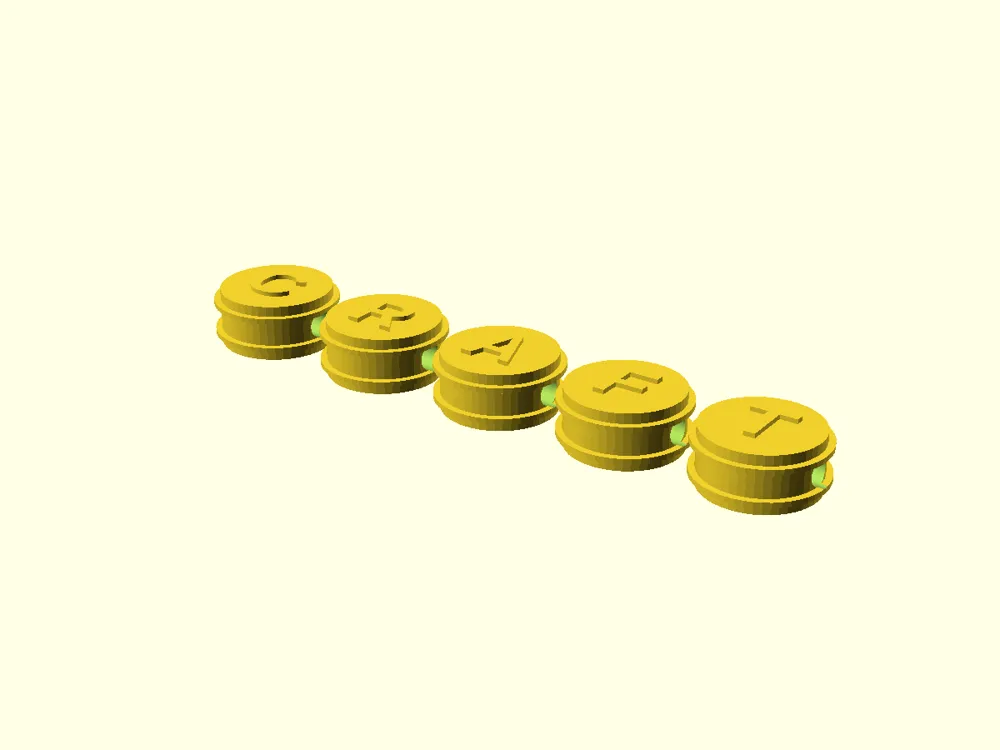

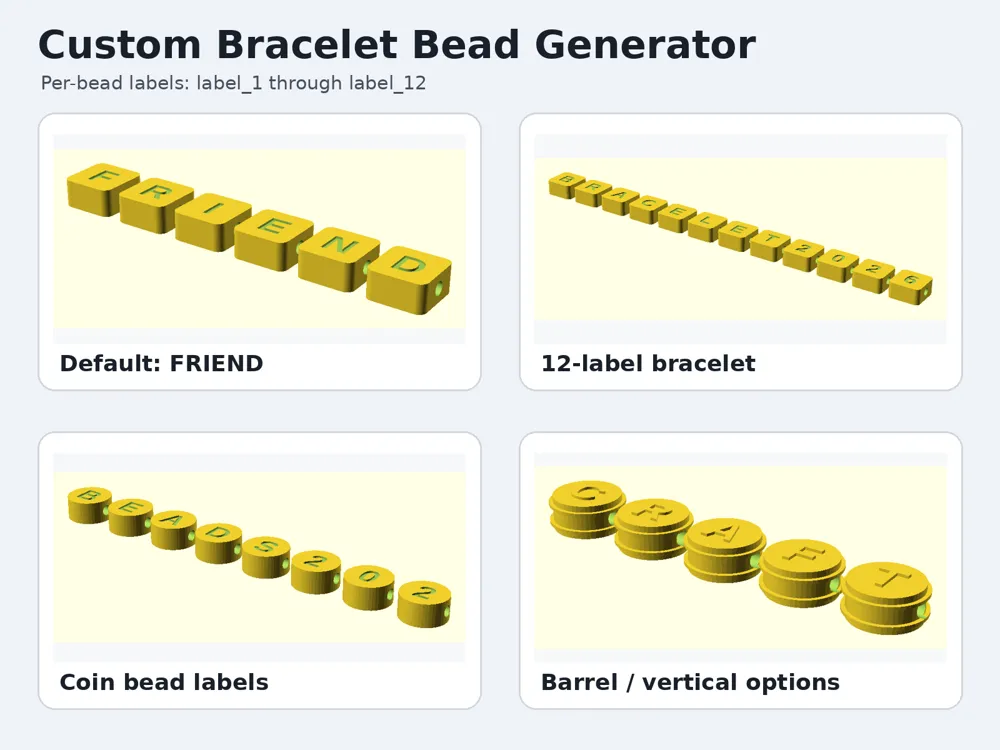

- Cube, coin, and barrel bead styles.

- Adjustable bead size, thickness, bead count, and spacing.

- Up to 12 separate label fields, one per bead.

- Horizontal side-stringing hole by default for classic bracelet-bead layouts.

- Optional vertical hole mode, offset below the letter, for name-string or tag

  layouts.

- Raised or recessed label text.

- Optional back-side label.

- Rounded cube corners and optional barrel rib detail.

- Cutaway preview mode for checking hole and label depth.

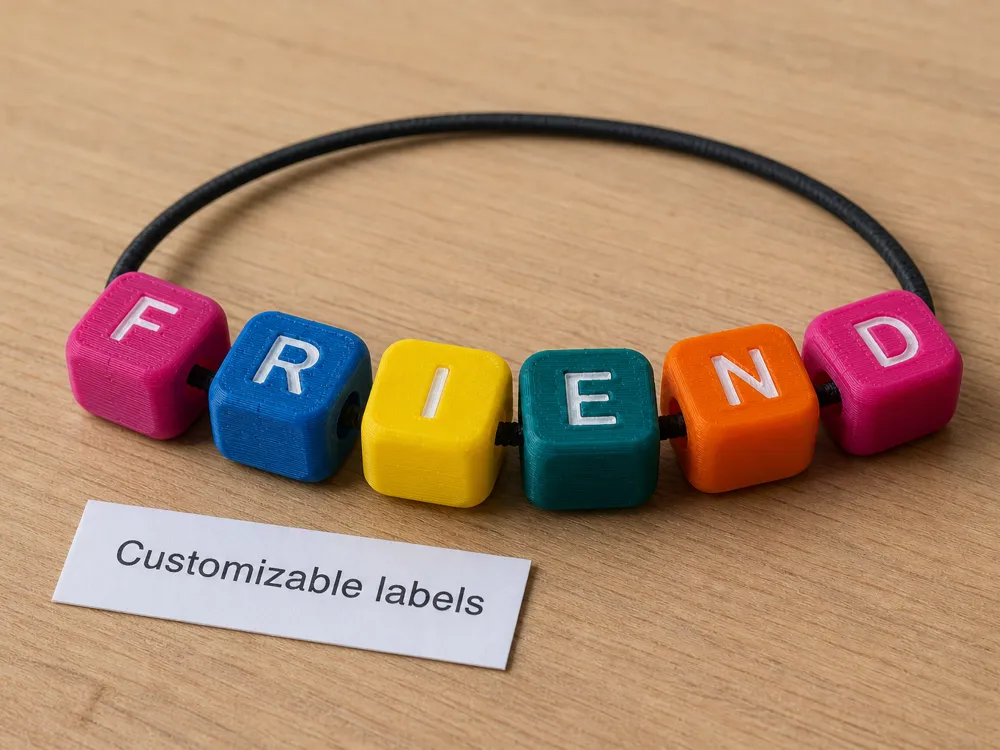

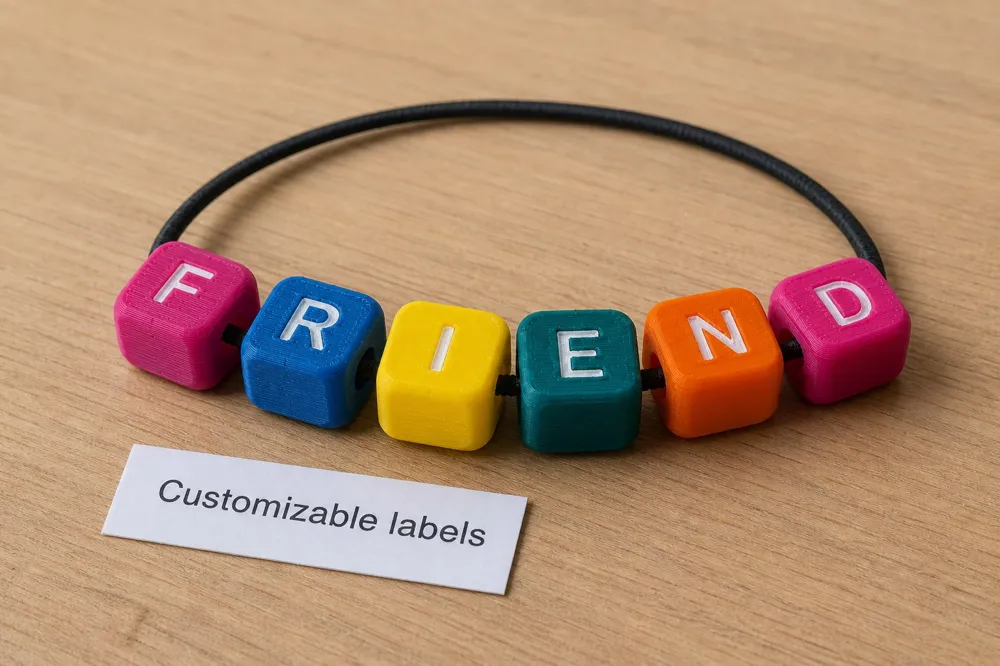

The default prints a small `FRIEND` bracelet-bead set with horizontal

side-stringing holes. The default 3 mm holes bridge cleanly on normal tuned

printers, so it can print without supports while looking more like classic

bracelet beads. For bracelet stringing, test your cord/elastic against

`hole_diameter`; different filaments and printers can make small holes tighter

than expected.

Safety note: these are small parts. Not for children under 3, and not for any

use where broken or loose beads could become a choking hazard.

Customization Notes

- `bead_style`: choose cube, coin, or barrel.

- `bead_count`: number of beads in the batch, up to 12.

- `bead_size` / `bead_thickness`: bead face size and height.

- `hole_diameter`: string/elastic hole size. Increase for fuzzy cord or printers

  that close small holes.

- `hole_orientation`: horizontal is the default for classic side-stringing;

  vertical is available for top/bottom stringing or tag-style use.

- `hole_y_offset`: moves the vertical hole away from the label when vertical

  mode is selected.

- `label_1` through `label_12`: text for each bead. One letter per bead works

  best; short symbols or numbers also work.

- `label_style`: raised lettering is easiest to see; recessed lettering gives a

  cleaner engraved look.

- `show_back_label`: duplicates the label on the back face.
