H2 Series Cable Management with Track Switch Mounting
Print Profile(2)
Bill of Materials
- Magnet 18mm x 5mm x 4: https://amzn.eu/d/03aU1Zj0
Description

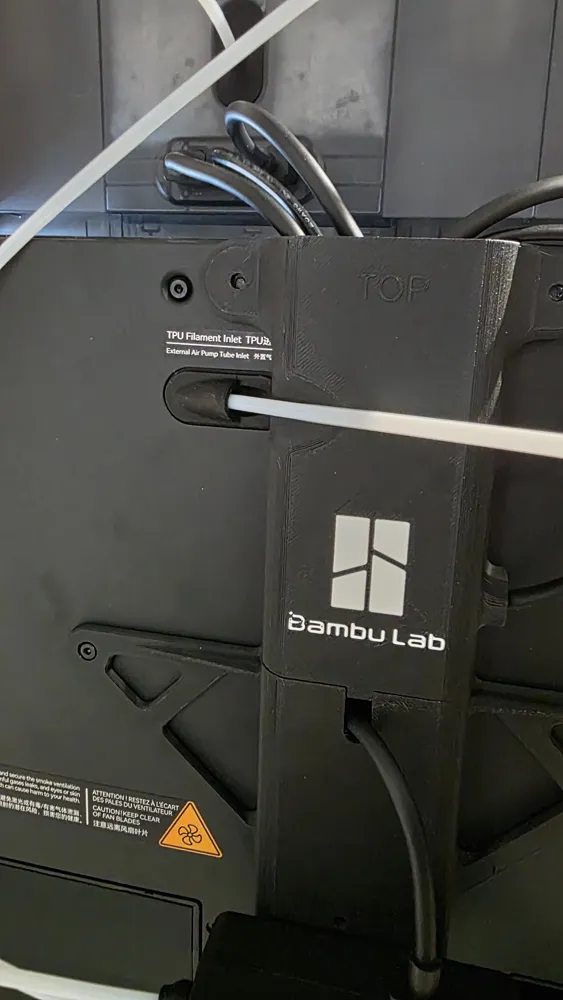

Cable management system for the H2 series

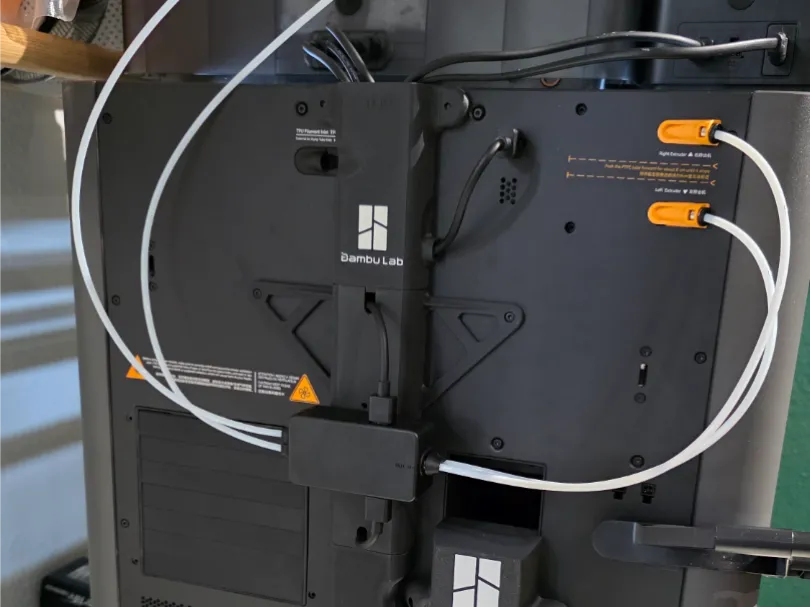

It provides space for multiple 6-pin cables, as well as power cables for multiple AMS units, and routes them together to the bottom end of the printer. A mounting option for the Track Switch, including elegant cable routing, has also been integrated

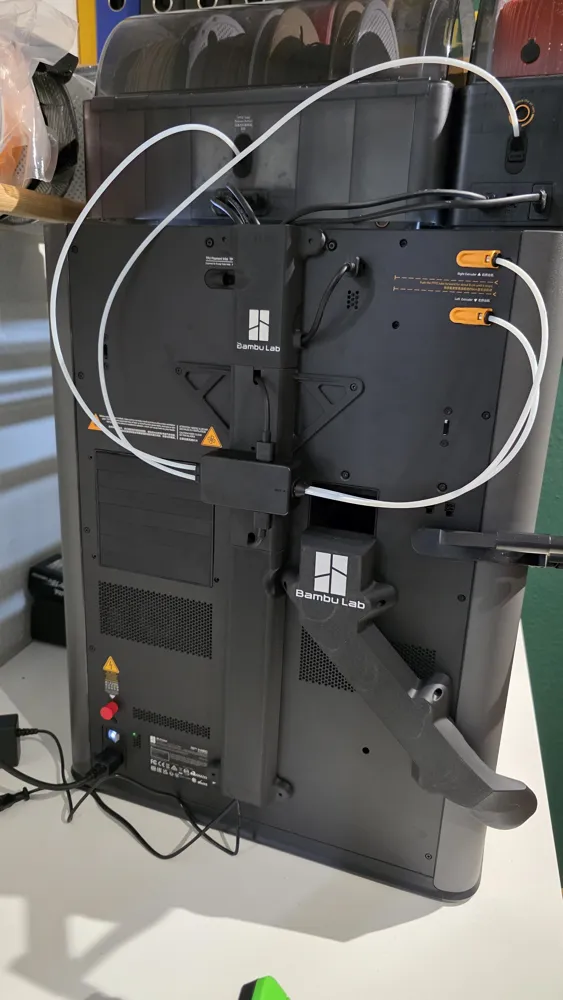

It makes the back of the printer look clean and tidy

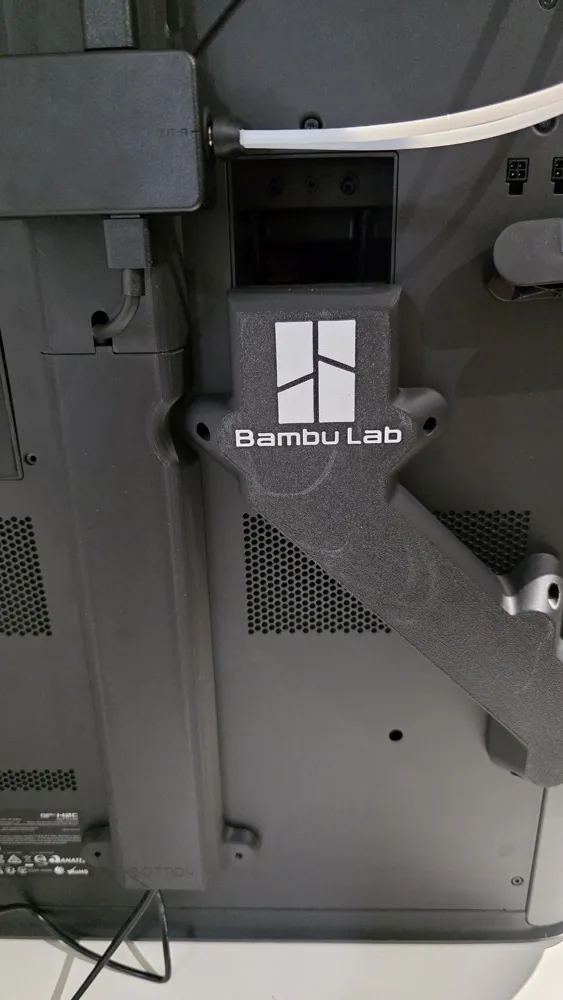

The bottom part has been uploaded with and without a cutout
The version with the cutout works with the poop chute from Speed Designer: https://makerworld.com/en/models/1306598-h2d-h2s-h2c-poop-chute#profileId-1340055

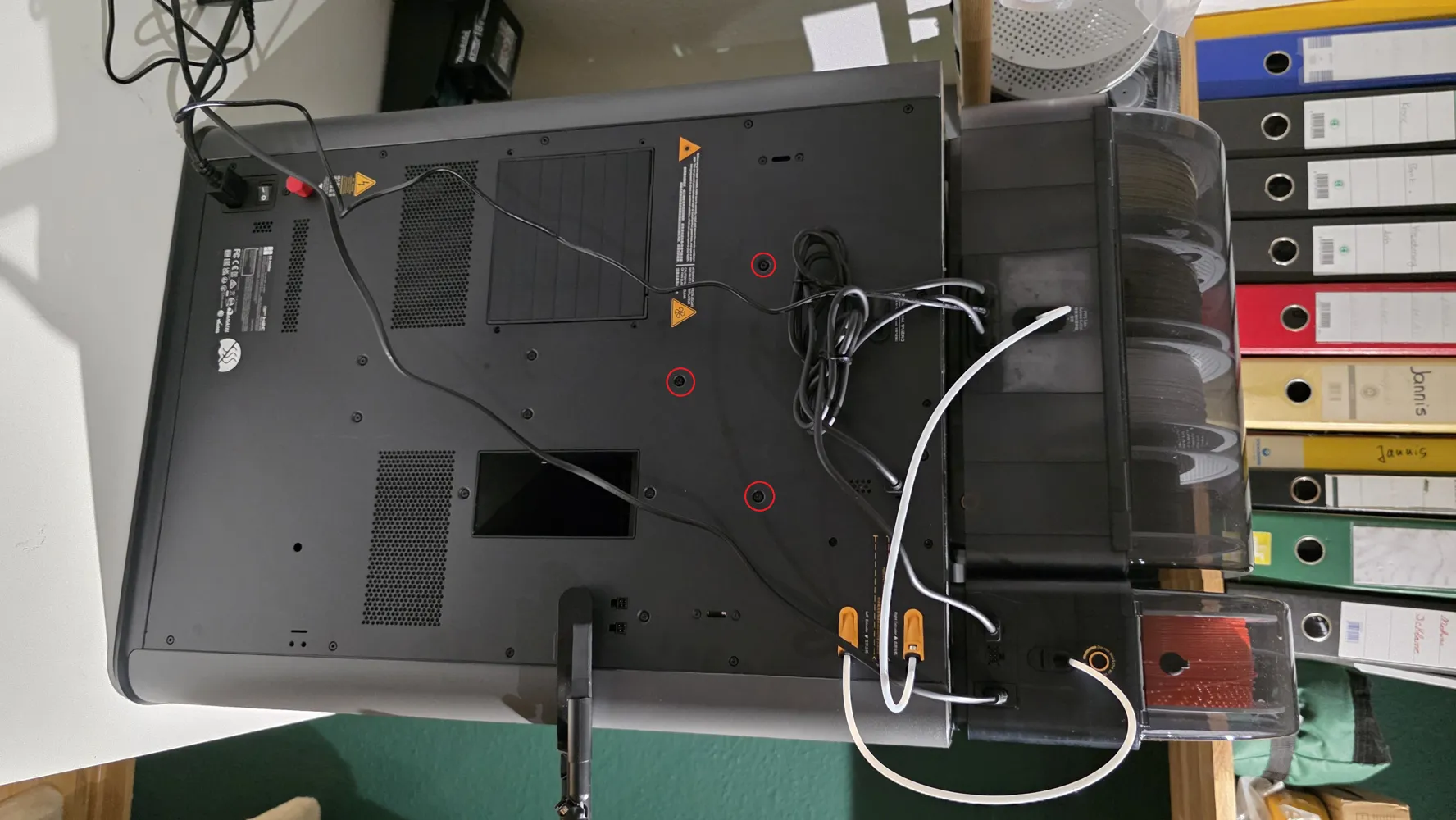

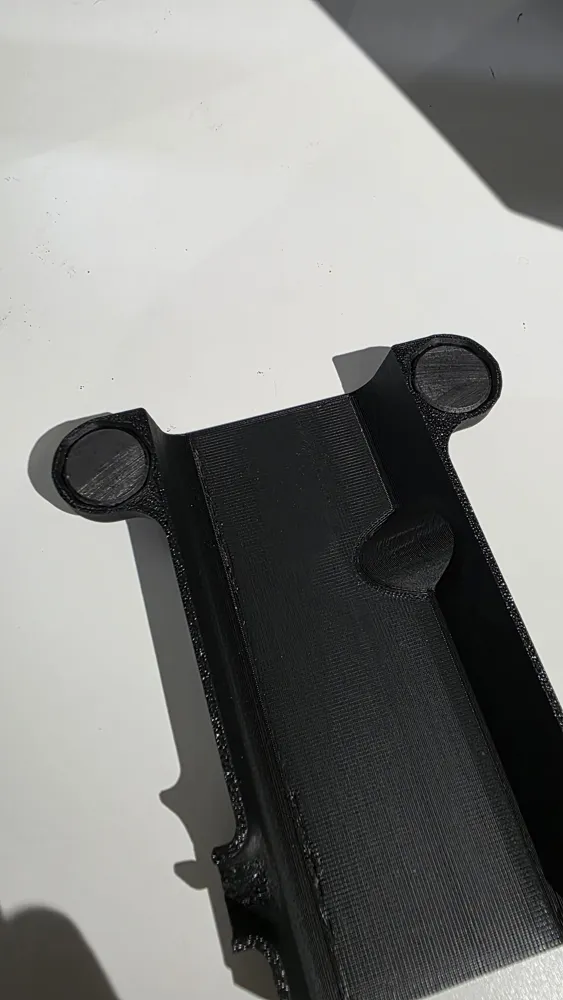

Only 4x magnets of 18x5mm size are required for mounting. For screwing, either the original screws from the back panel or the slightly longer ones included with the Track Switch are used
