Bluetooth Radio Mod for GM Delco AM Radio
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill ASA
Designer
1 h
1 plate
Open in Bambu Studio
Boost
0
0
0
0
0
0
Released
Description

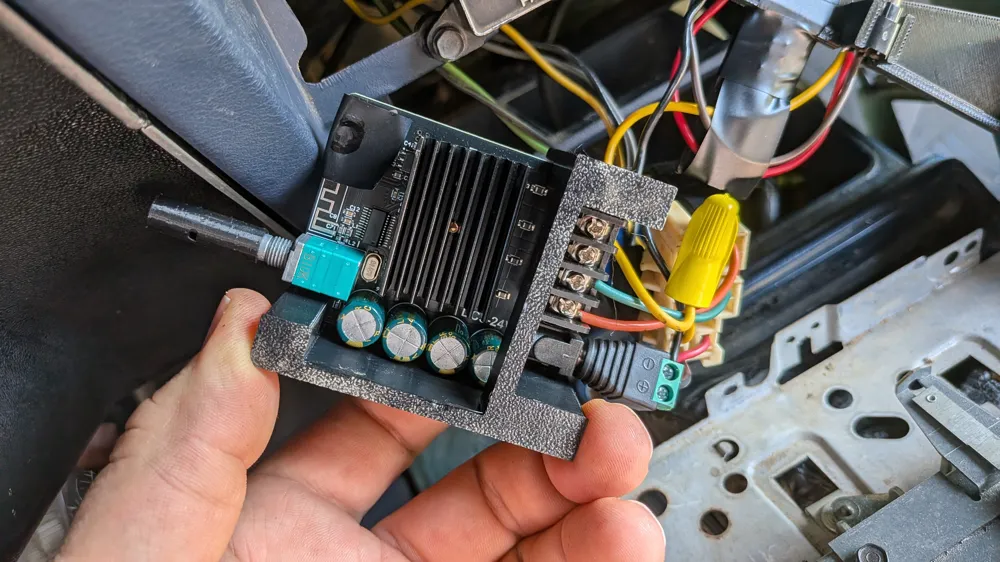

This project is designed to work with parts from the original GM Delco AM Radio and this Bluetooth Amplifier Board.

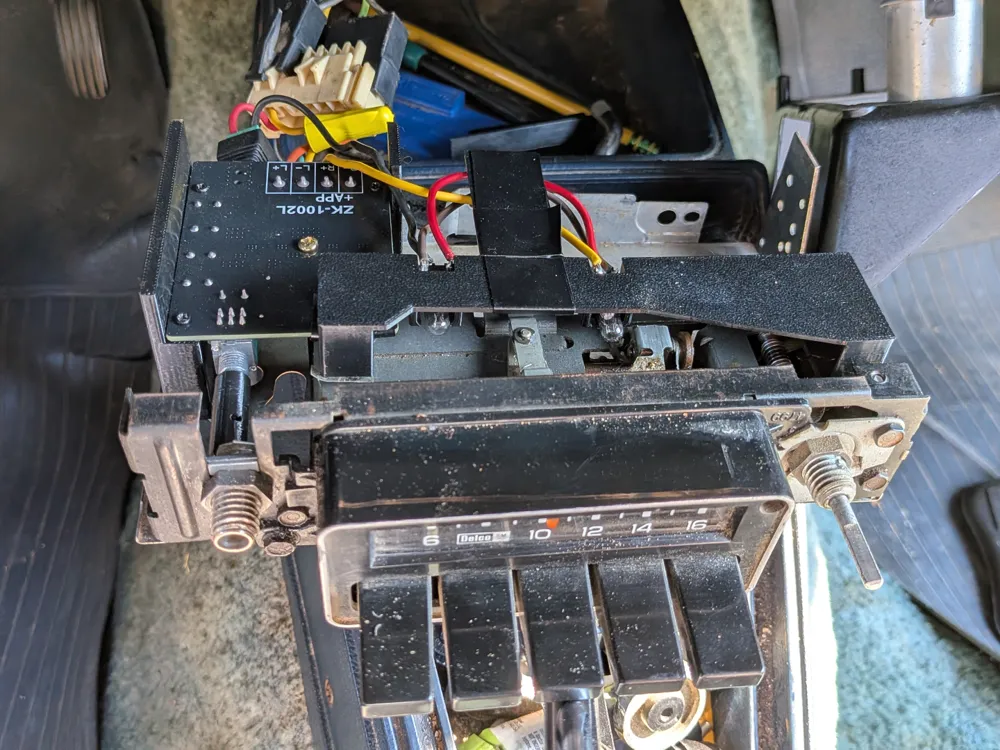

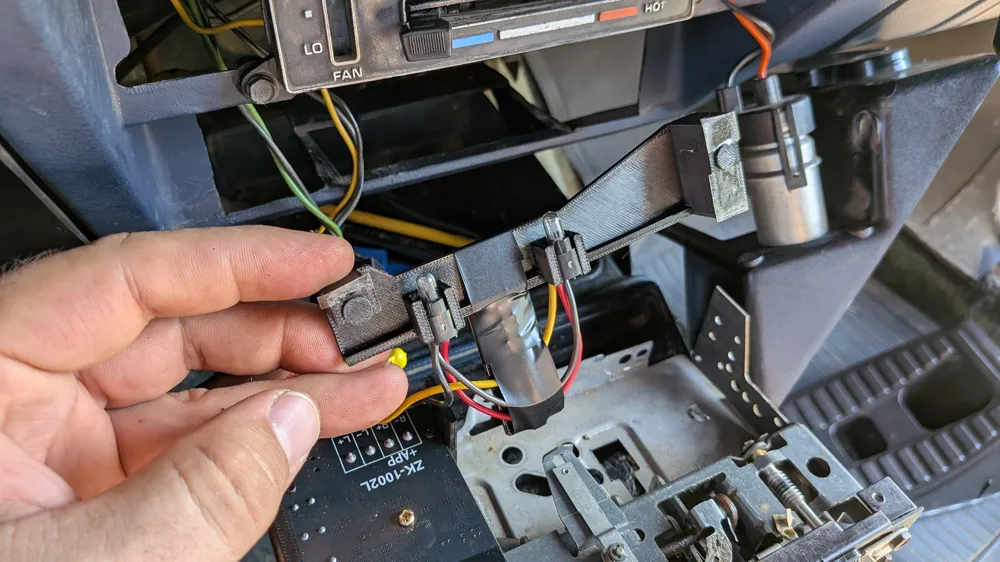

You will need to remove the original AM circuit board and rewire the speakers to the Bluetooth amp. You can remove the lights from the circuit board of the old AM radio and mount and rewire them on the 3D printed bracket so the radio will still be backlit.
This modification leaves the mechanical tuner untouched, so it will still look functional even though the tuner has been removed.
I printed mine in PETG but I recommend ASA.
