Heavy Duty Adjustable Bevel Square
Print Profile(1)
Description
Why pay 41 Euros for a brand name adjustable square when you can print a heavy-duty, job-site ready version for pennies?

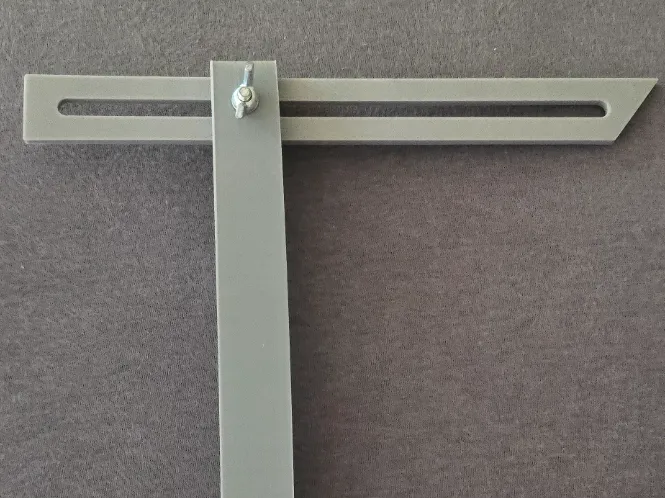

This is a premium, professional-grade adjustable bevel square (Winkelschmiege) designed for tilers, carpenters, and DIYers who demand flawless precision without the absurd price tag. It allows you to easily measure, lock, and transfer any custom angle or bevel directly onto your material. When not in use, the measuring blade folds completely flat into the handle for safe and compact storage.
The Wolf Click Hybrid Design Philosophy:
Most 3D-printed tools fail on real construction sites because plastic threads strip or snap under pressure. This tool features a robust hybrid design. It uses a standard metal carriage bolt embedded directly into a custom anti-slip locking hex pocket. This allows you to crank down the metal wing nut as hard as you need to lock the angle permanently, with zero risk of stripping the printed components.
Hardware Needed:
- 1x Standard Carriage Bolt (Śruba zamkowa)
- 1x Matching Wing Nut (Nakrętka motylkowa)
- 1x Washer (Podkładka)
Key Features:
- Perfect Flush Folding: The blade retracts 100% inside the handle body for easy carrying and protection.
- Rock-Solid Locking: Hexagonal bolt pocket prevents any rotation or slipping when tightening.
- Job-Site Tough: Thick, heavy-duty walls designed to survive drops on concrete or tiles.
- 100% Support-Free: Optimized flat geometry prints perfectly on any standard bed without wasted material.
