🐙 Tiefling Eldritch Warlock (Void Tentacles) - 32mm Base Scale

"The pact is sealed. From the depths of the Far Realm, the void answers his call."

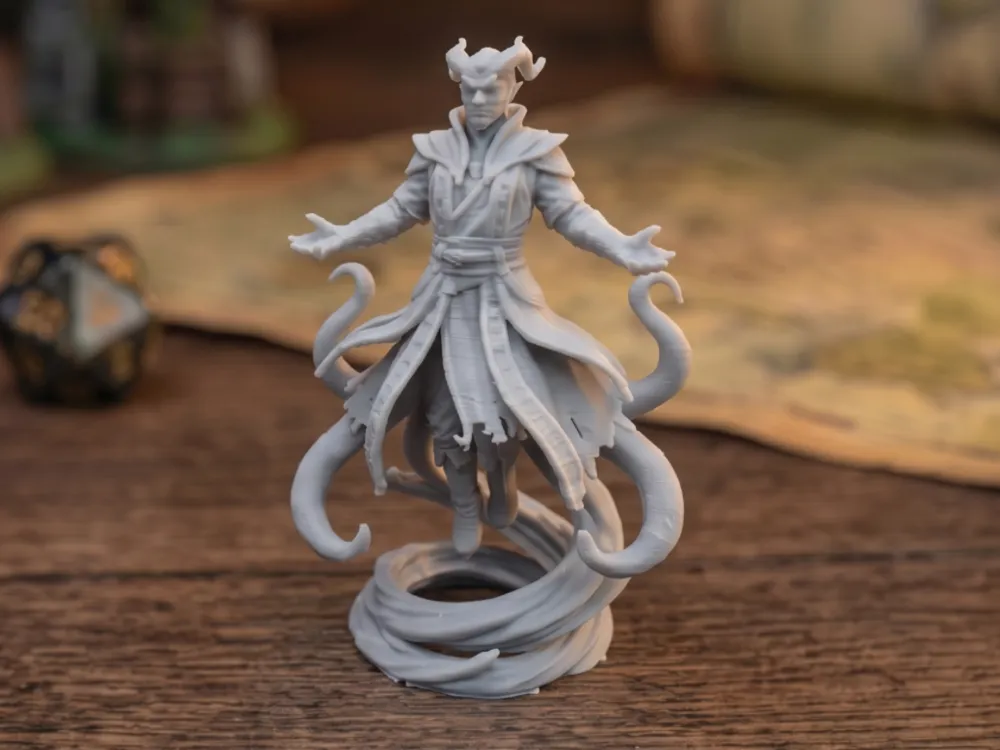

Bring a powerful, dark spellcaster to your next tabletop campaign. This premium Tiefling Eldritch Warlock is depicted levitating mid-cast, channeled by a swirling vortex of summoning energy and massive void tentacles erupting from below. The figure features sharp fiendish horns, outstretched spellcasting hands, and highly detailed, tattered two-layer robes flowing dynamically in the arcane wind.

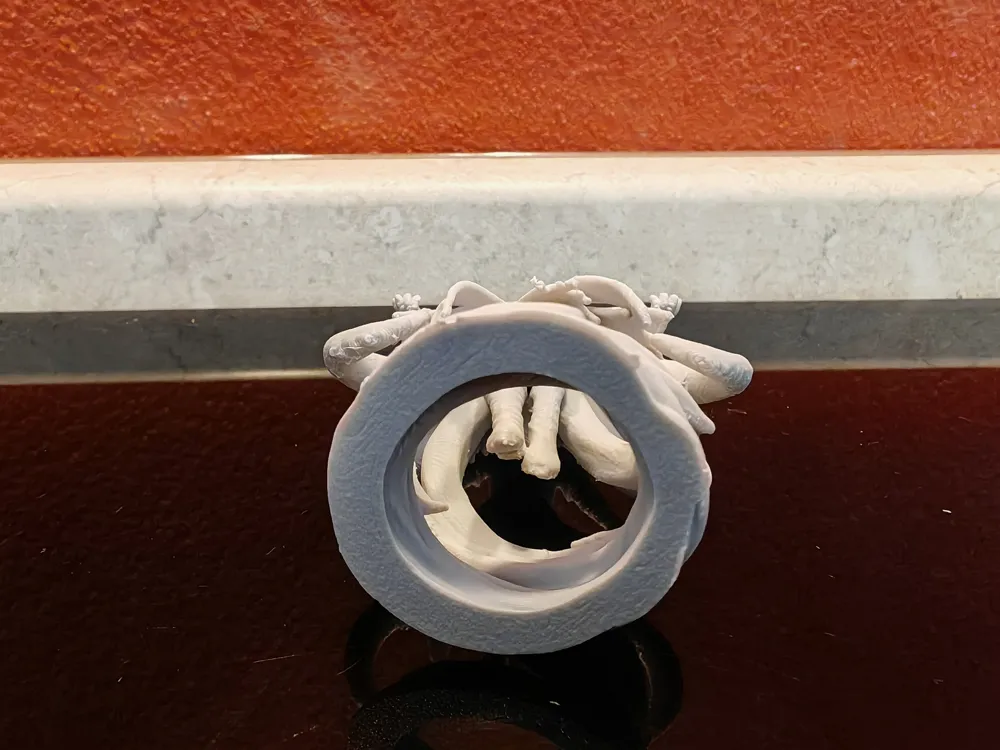

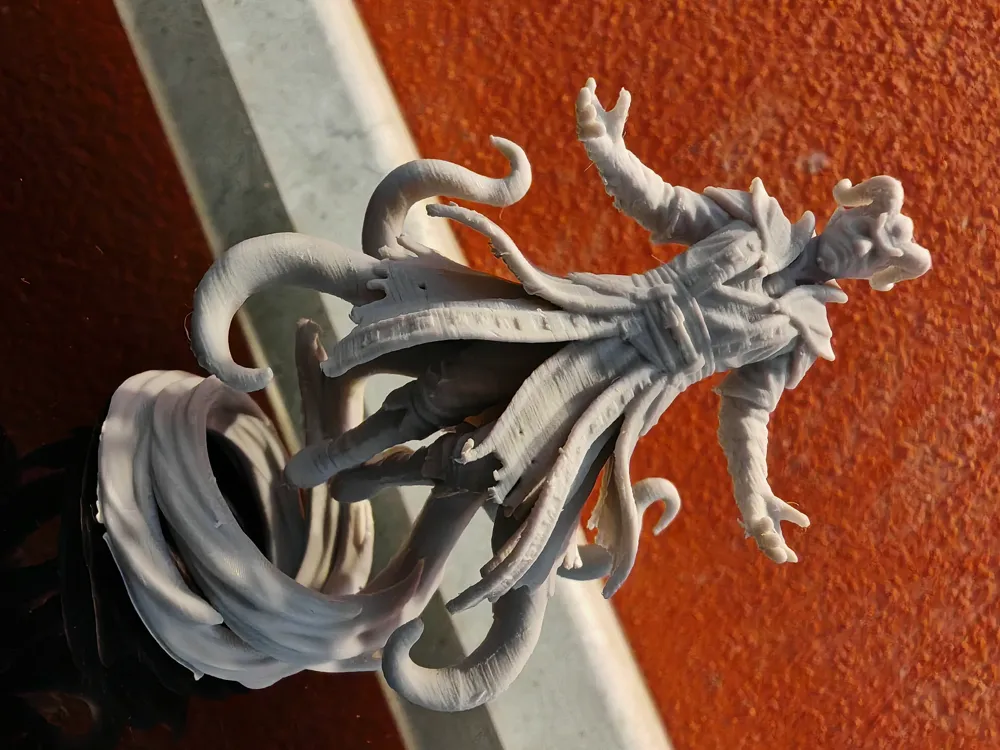

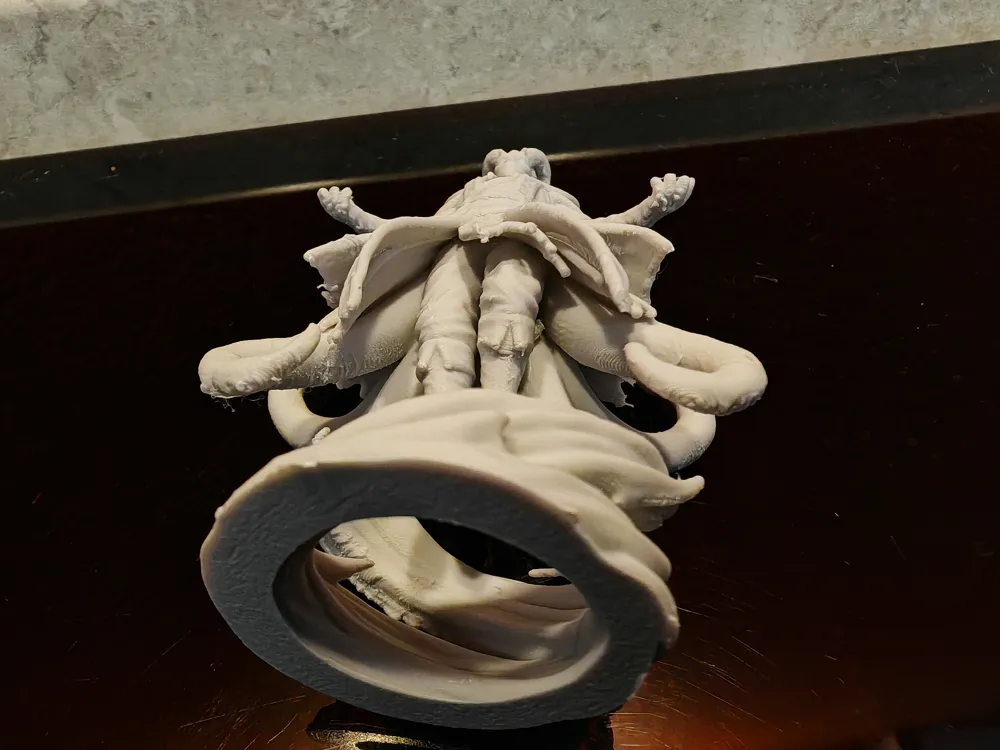

Standing at 66mm tall on an irregular 31mm hollowed display base, this model is scaled perfectly to serve as an elite player character, boss, or mysterious adversary for high-stakes encounters.

📐 Advanced Model & Slicer Optimization

  • Mesh Hardened: The original geometry has been meticulously edited in Blender to artificially thicken and reinforce structural weak points, ensuring maximum durability at this miniature scale without sacrificing details.
  • Layer Height: 0.08mm (Highly recommended). The ultra-fine layer resolution is essential to capture the clean facial features, horn ridges, and the complex drapery of the inner clothing layers.

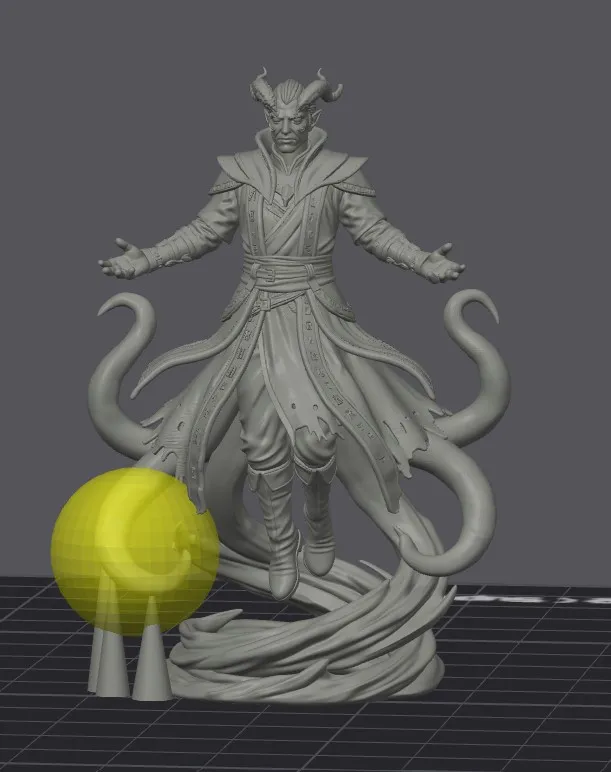

  • 🧠 Exclusive 3MF Slicer Tuning: To prevent a fatal overhang collapse on the lower sweeping tentacle loop, the provided .3mf file features custom-built primitive modifier blocks. Three structural cone pillars are pre-rendered into the layout to guarantee a perfect anchoring platform, combined with a local spherical speed modifier that automatically throttles print speeds down in the high-stress overhang zone for flawless execution.

🛠️ Expert Support Cleanup Guide (30-Minute Run)

🧹 CLEANUP NOTE: This is a highly advanced and technical print. Due to the complex, hollowed-out lower vortex and floating limbs, expect around 30 minutes of precise post-processing using a patient, experienced hand.

  • 👗 The 2-Layer Robes (Maximum Danger Zone): Unlike most miniatures where the pointy extremities are the main concern, the primary risk here lies within the dual layers of the flowing vestment. Dense tree supports will nest inside the narrow gaps between the inner tunic and outer cloak. Do not pull supports out horizontally. Use a fine dental tool or thin metal hook to split the support cores internally, applying light downward leverage away from the fabric seams to avoid cracking the ankles or the staff joint.
  • 🦑 Floating Tentacles & Horns: The outer horn tips and twisting tentacles look delicate but are structurally sound thanks to the custom Blender optimization. Clear the outer tree branches first to gain full visibility before tackling the internal robe cavities.

📂 Browse All My Miniatures HERE 👇 and HERE 👇







Boost Me (for free)

❤️ Support My Work If this model was useful to you, please consider giving it a **Boost**! 🚀 It helps me buy more filament to test and design new functional parts. *Happy Printing!*

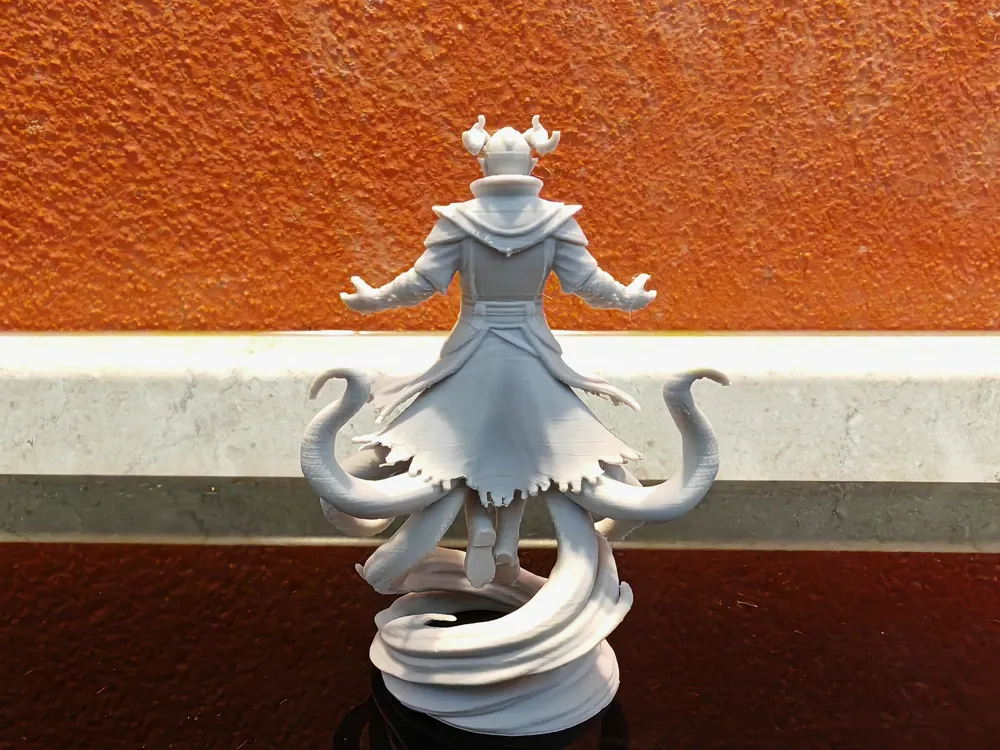

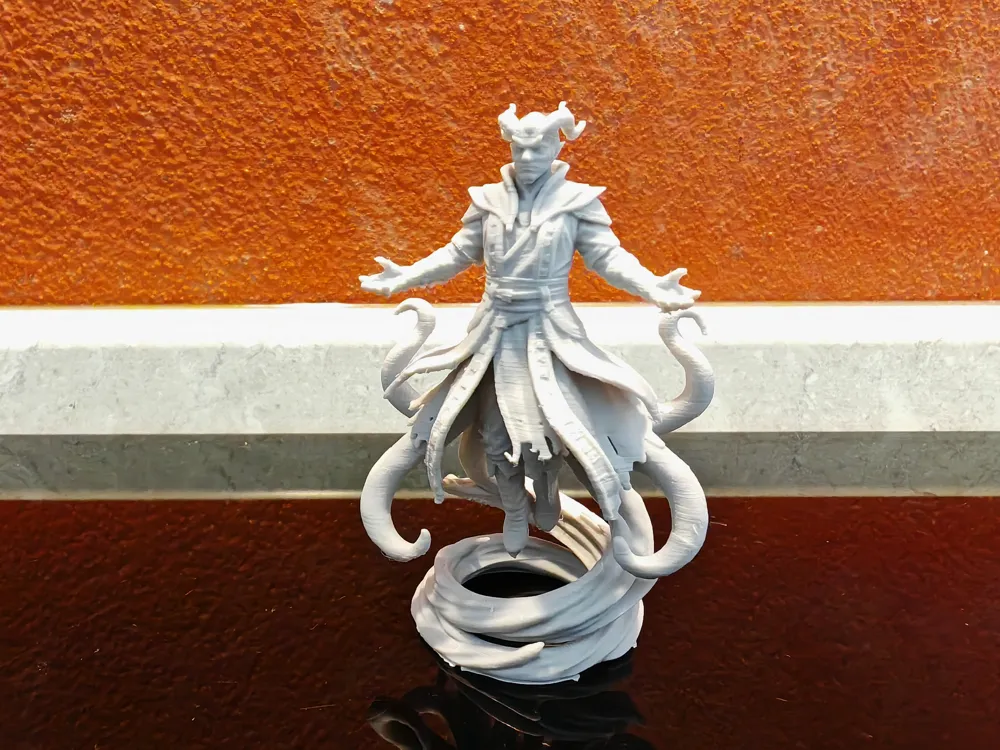

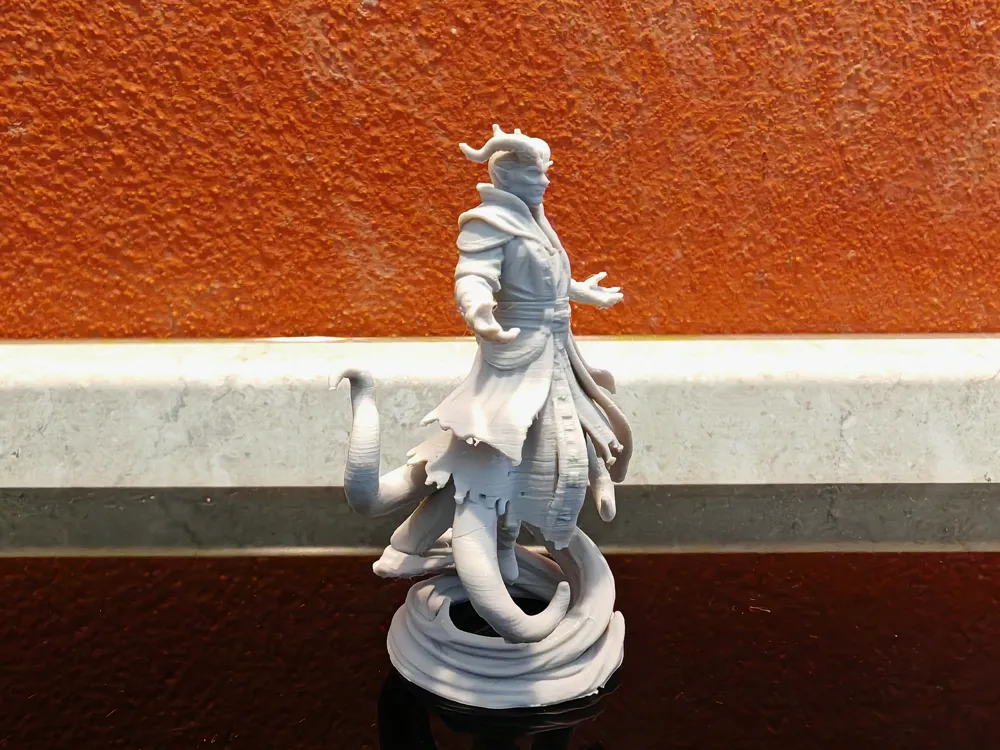

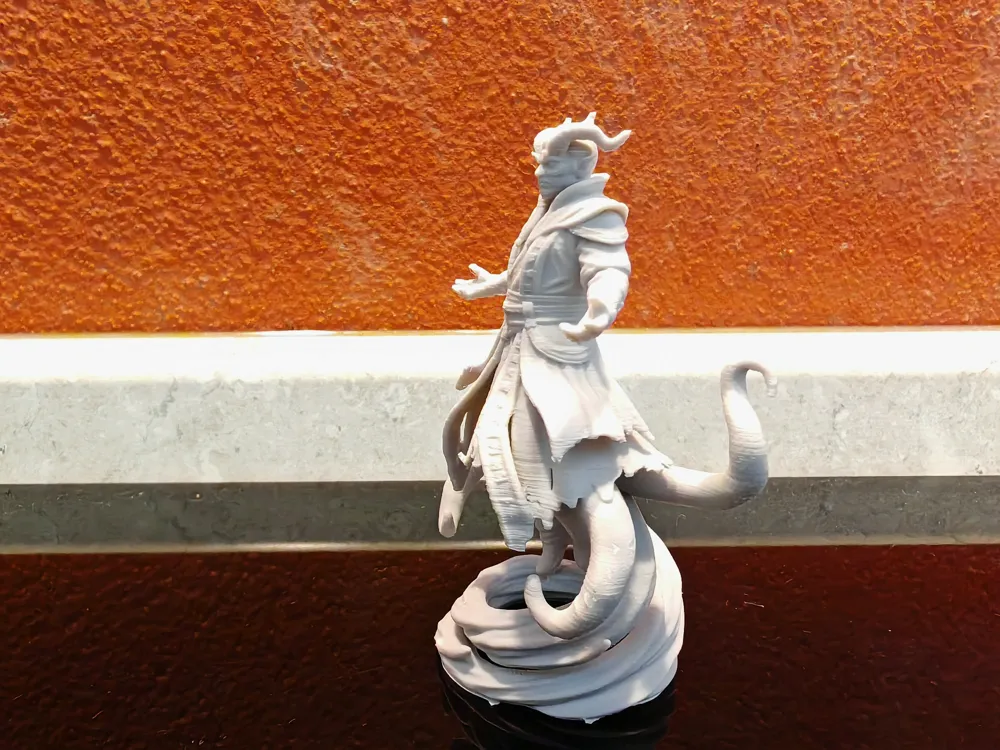

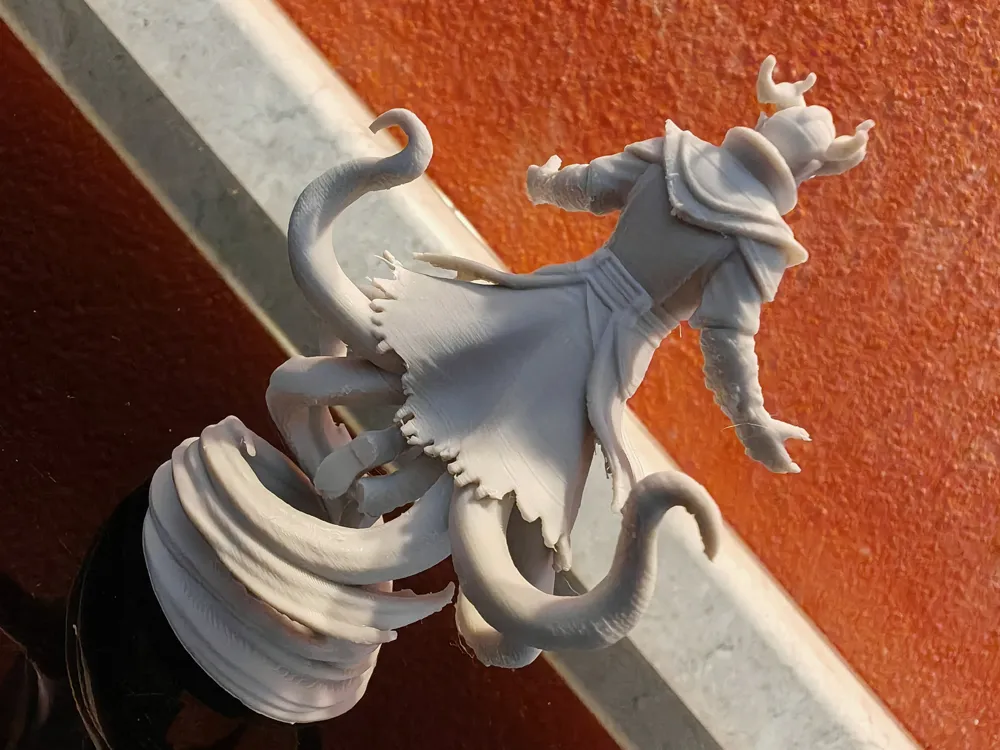

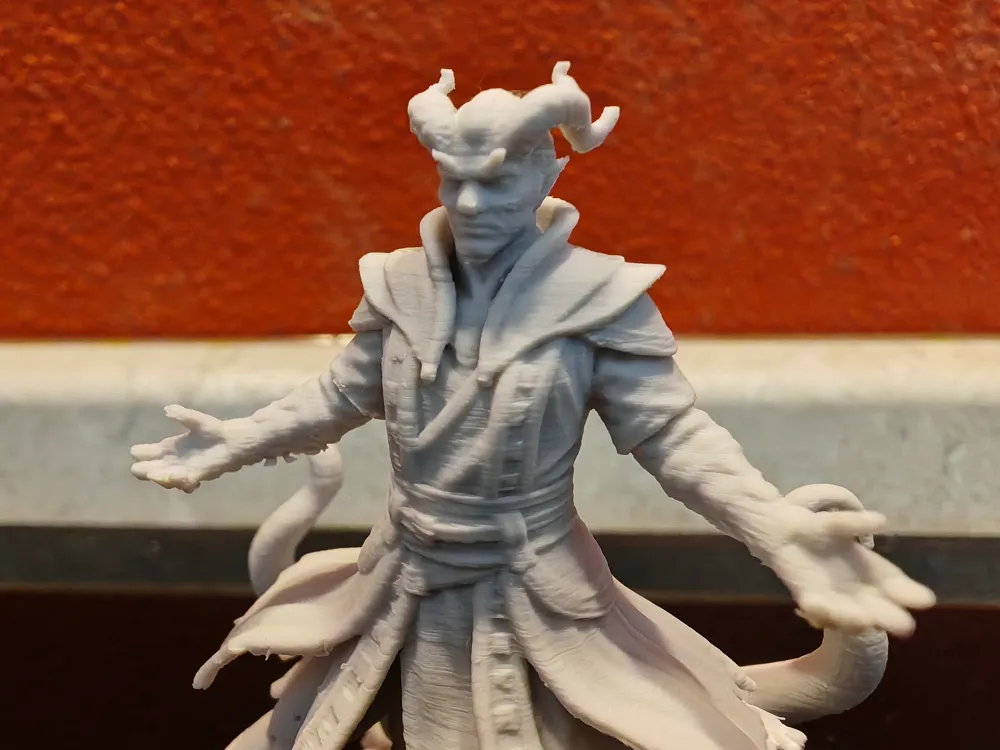

Technical & Creative Note: This design is based on an AI generation that I have manually refined and tested on FDM prints to ensure printability and quality. The featured photo is of the actual physical print. I’ve included AI-colored renders only as a visual reference for those who wish to paint the miniature.
