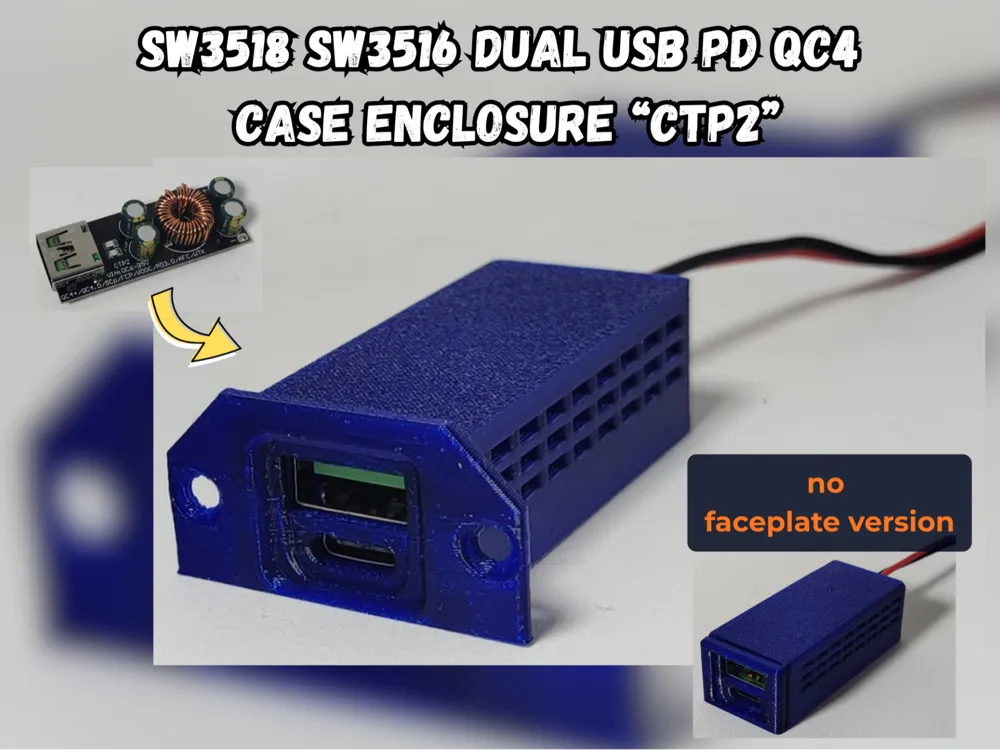

SW3518 SW3516 Dual USB PD QC4 Case Enclosure CTP2
Print Profile(3)
Description
⚡ Compact Enclosure for SW3518 / SW3516 Dual USB Buck Module ("CTP2") Protect and mount your high-power dual USB-C and USB-A fast charging module. Designed specifically for the popular SW3518 / SW3516 step-down boards found on AliExpress. Perfect for custom power banks, DIY automotive integration, or desk power hubs.
🔋 Charging Protocols & Compatibility:
- Fully compatible with USB PD (Power Delivery) for fast charging modern devices.
- Supports QC4.0 / QC3.0 (Quick Charge) protocols via both USB ports.
🗂️ Available Print Profiles (Choose your style):
- Cover Only: The standard top part of the enclosure.

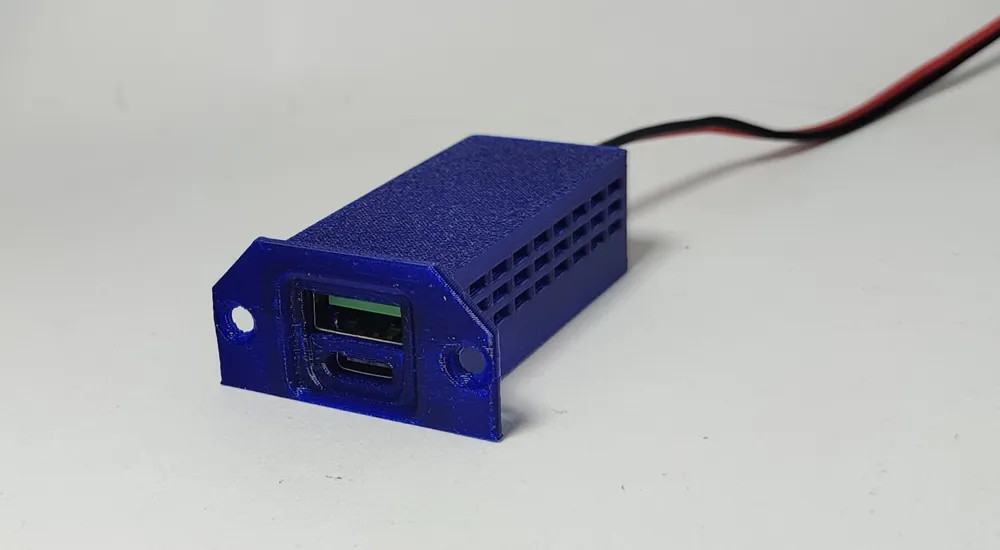

- Box with Screwable Faceplate: Perfect if you want to secure the front panel.

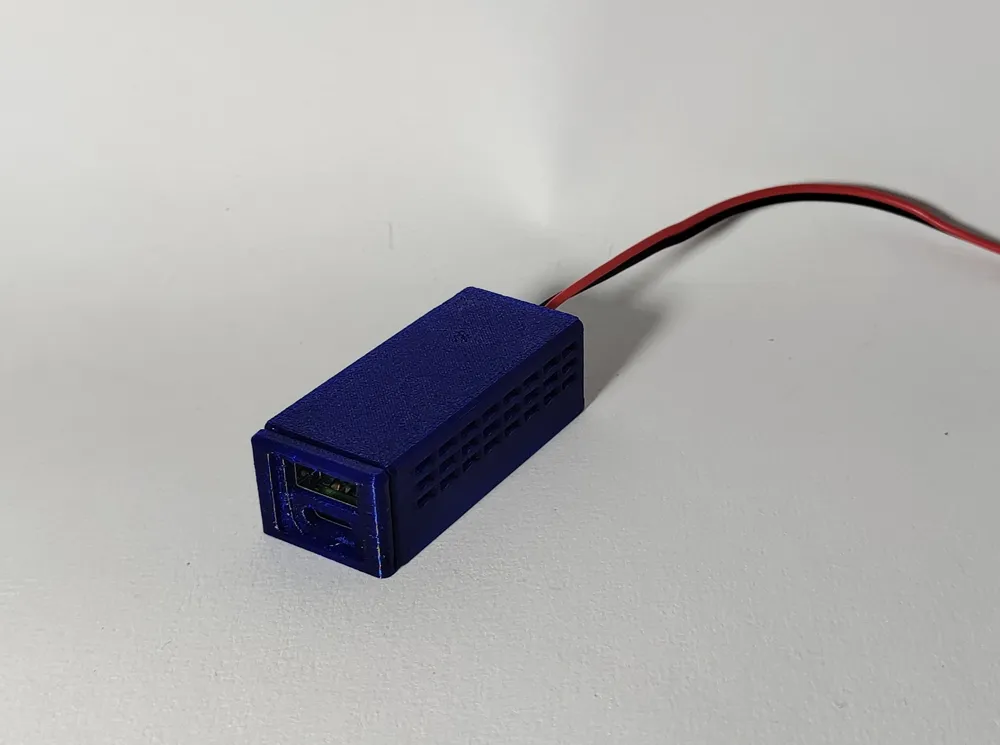

- Box without Faceplate: Cleaner, minimalist option for direct integration.
🛠️ Hardware Required:

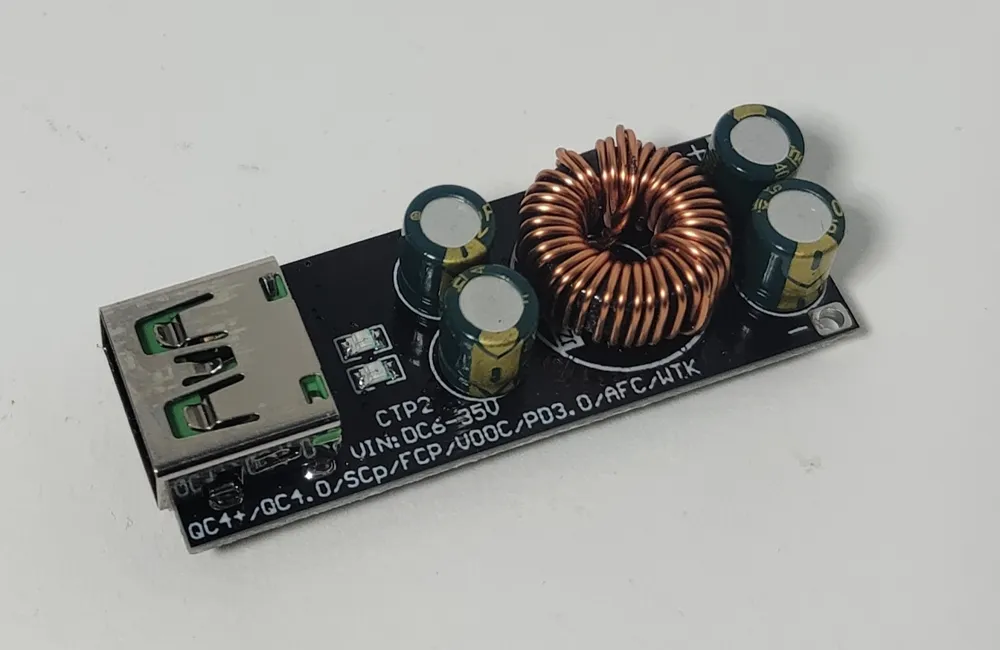

- Module: 1x SW3516 or SW3518 Dual USB PD board “CTP2” (🔗Get Them AliExpress-Link)
- No screws or inserts needed for the main case! It securely closes using 4 built-in snap-fits.
🖨️ Recommended Print Settings:
- Material: PETG (Highly recommended and tested! Avoid PLA as it will warp in hot environments). ABS/ASA can also be used.
- Wall Loops: 2 perimeters (Tested and sufficient for this design).
- Supports: Yes (Tree supports recommended for the clean USB connector overhang).
🔗 Compatibility: Fits the standard "QC4.0 QC3.0 USB Type-C Step Down Buck Boost Module CTP2" (See link below): https://fr.aliexpress.com/item/1005002460569356.html
