Retro Game Console Housing
The SSD1306 LCD unit used in this device seemed slightly larger than the size I had conventionally used in my series of works.
I measured it; it was a 26.4mm*26.4mm board, so I designed it to fit this.
I learned the shape from the album cover art by a great techno music artist and made it into a housing that accommodates Arduino and LCD.

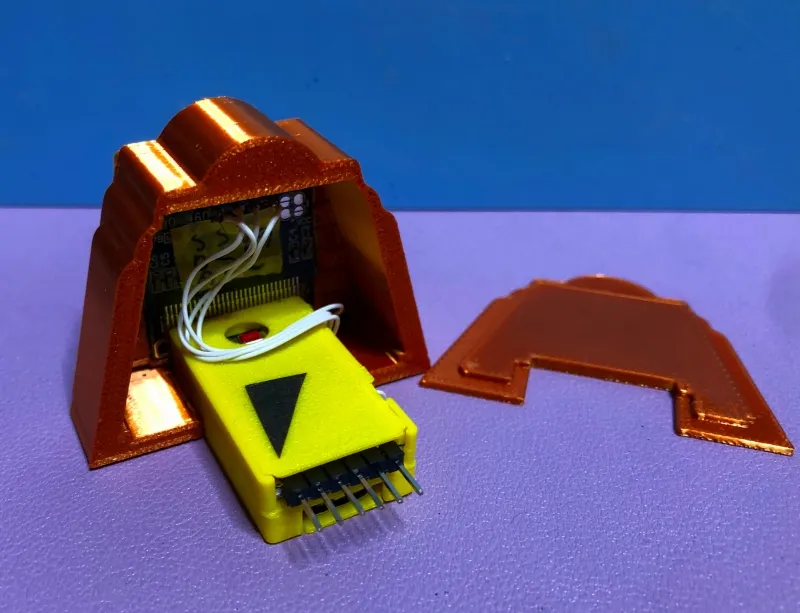

The microcontroller board storage section can accommodate two types of boards.

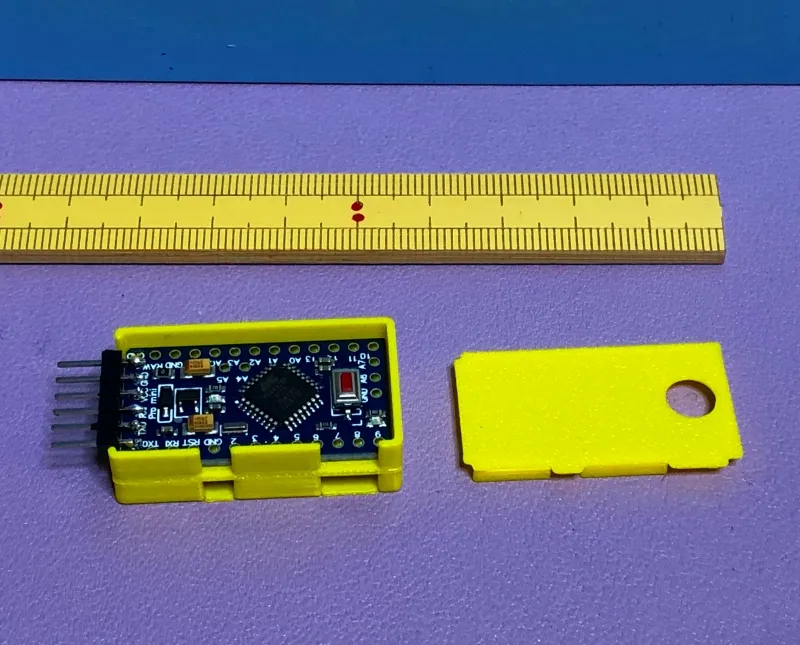

Top: Arduino Pro Mini (Example of use: for emulators or BASIC, etc.)

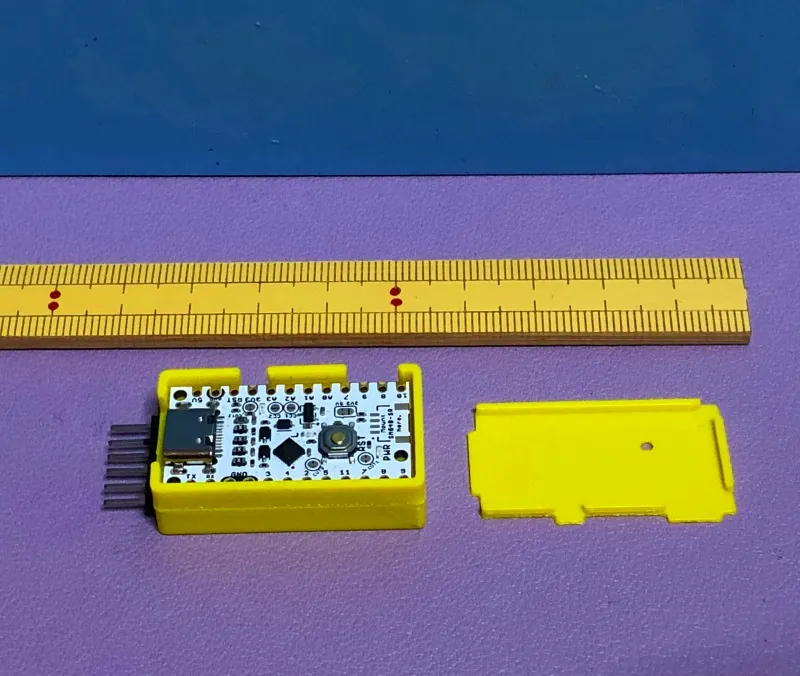

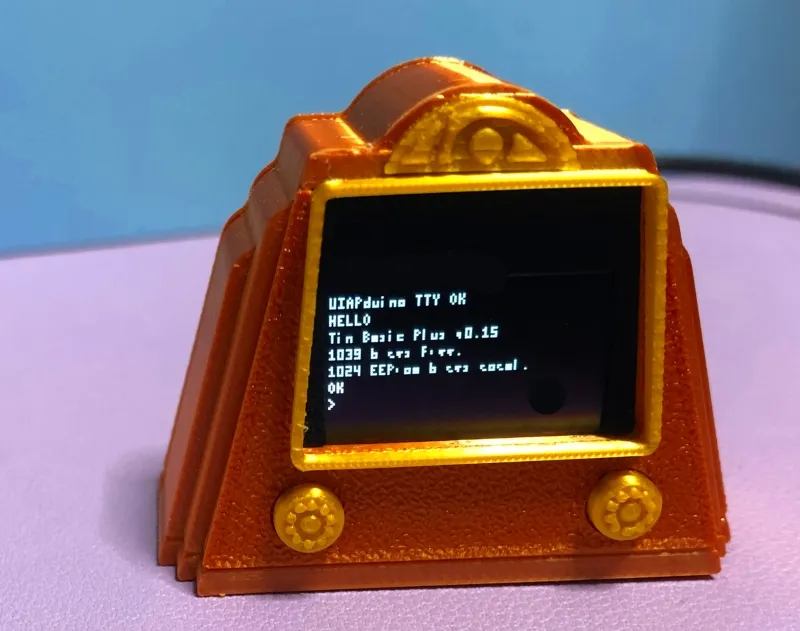

Bottom: UIAPduino (Example of use: connected to LCD for TTY reception only)
Please assemble by referring to the images.
Regarding the joining of parts, use adhesive for all parts except the UIAPduino lid (Styrene-butadiene rubber adhesive recommended).
It is not a problem if the microcontroller board storage section is not used.
Designed for OLED 128x64 LCD panel.
*In the author's previous series, the available parts were measured at 24.8mm width and 26.8mm height,
but the item obtained this time was slightly larger, so it has been adjusted for 26.4mm width and 26.4mm height.
If it is still tight, absolutely do not force it in.
It will break, so please stop using it.

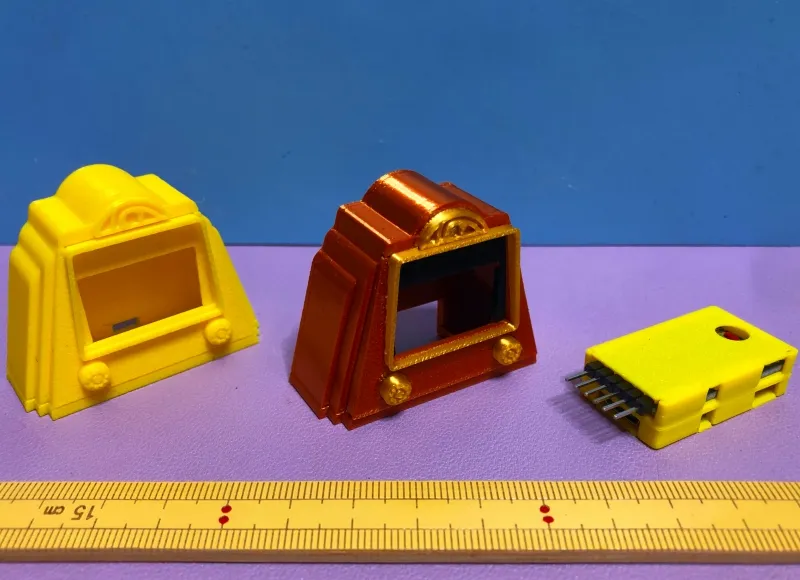

If you print in multiple colors and combine them, you can create a colorful machine.
With the current structure, it is not possible to install PSWs that send software triggers.
A small piezo can be attached to the back of the display unit.

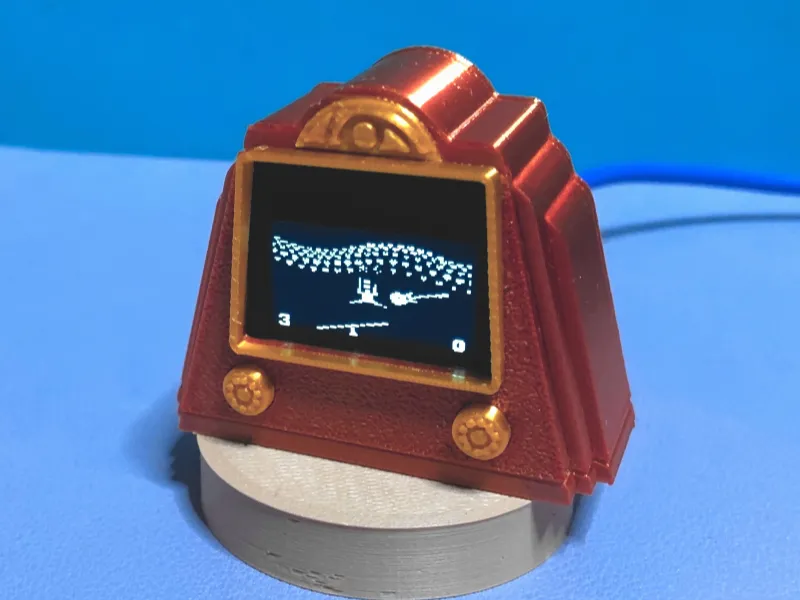

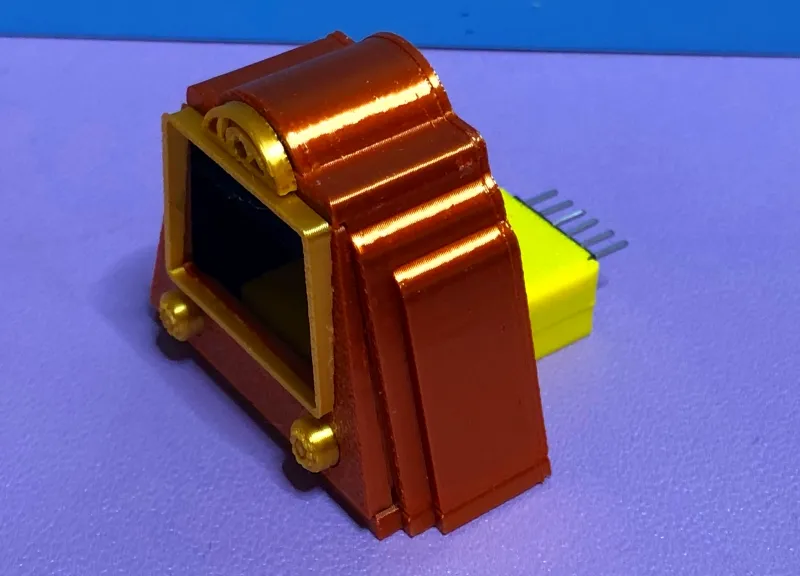

In the example photos, the board and LCD are actually assembled and photographed.
Please prepare the parts and software yourselves.
This guide is only for the housing.
We cannot be held responsible for accidents or damage caused by using this housing.
Please use it at your own risk.

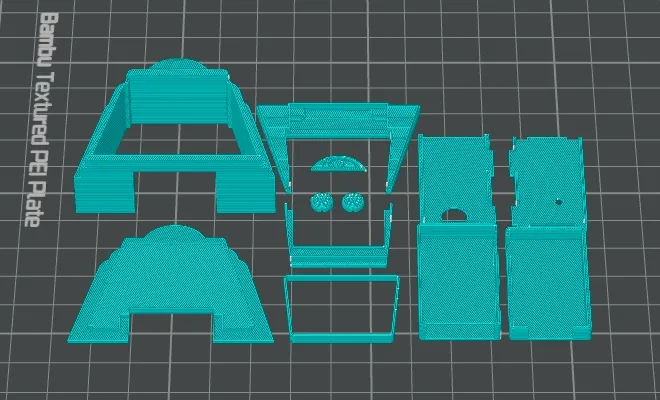

Short print time with a 0.4mm nozzle, no supports required.
A 0.2mm nozzle will result in a more detailed finish.
What is UIAPduino Pro Micro CH32V003 V1.4?
It is an inexpensive microcontroller board using the CH32V003 microcontroller.
Both software and hardware are open source.
