VIOFO A229 / A239+S+T Rear Dashcam Mount

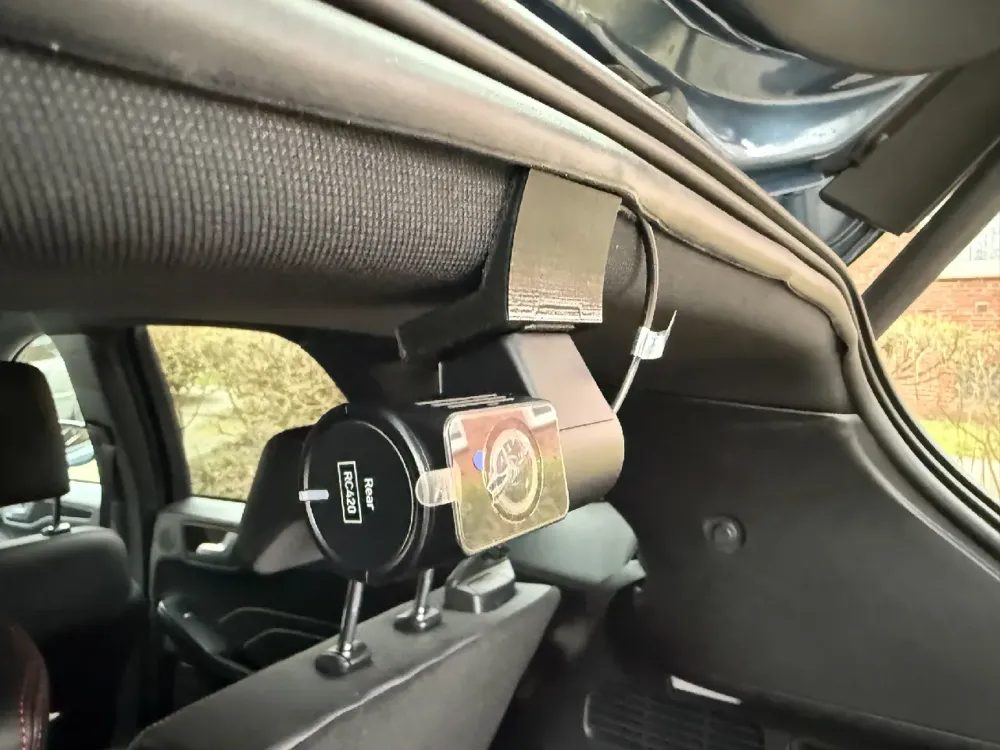

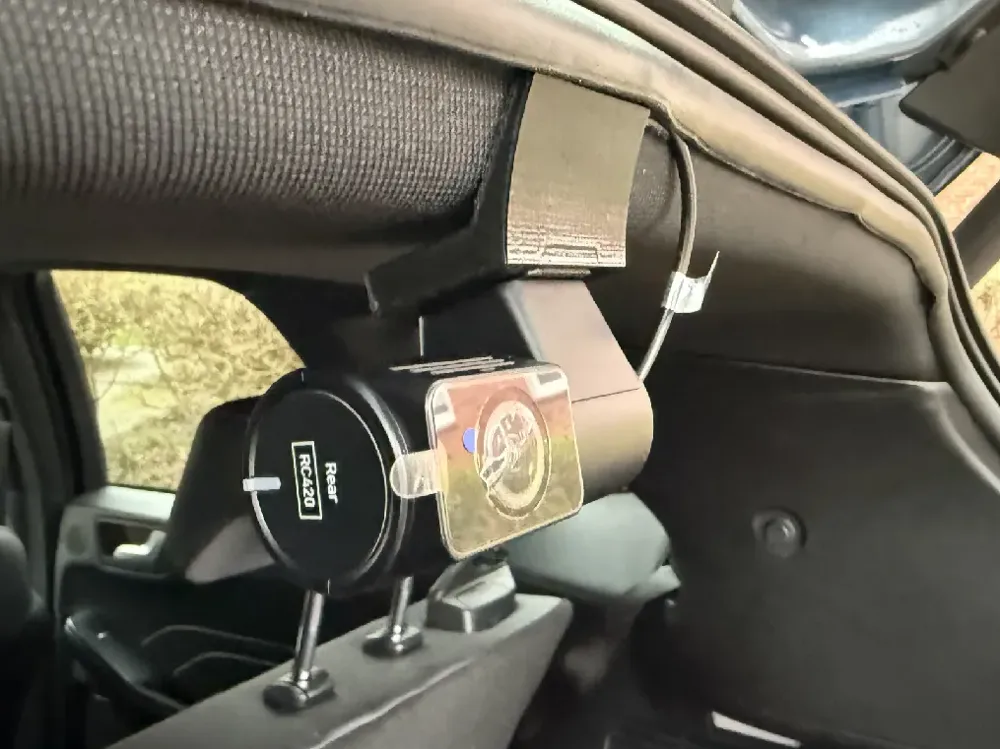

Hey, i upgraded my Dashcam to a VIOFO A329 and now the original design doesnt fit anymore. So i re-designed the clip with a mount for the new rear cam.

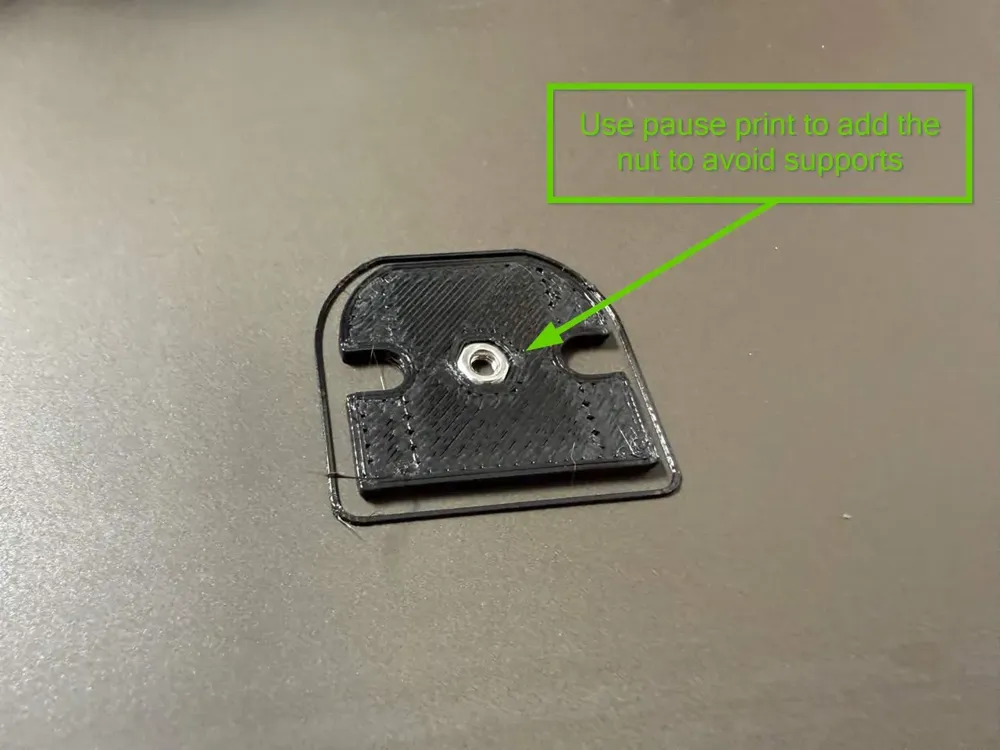

Now you can screw the Dashcam directly to the clip for extra strong stabilty. Just use a M3x6 bolt and a M3 nut. Use a pause in the print to insert the nut to avoid printing it with supports. Works great.

Step-by-Step:

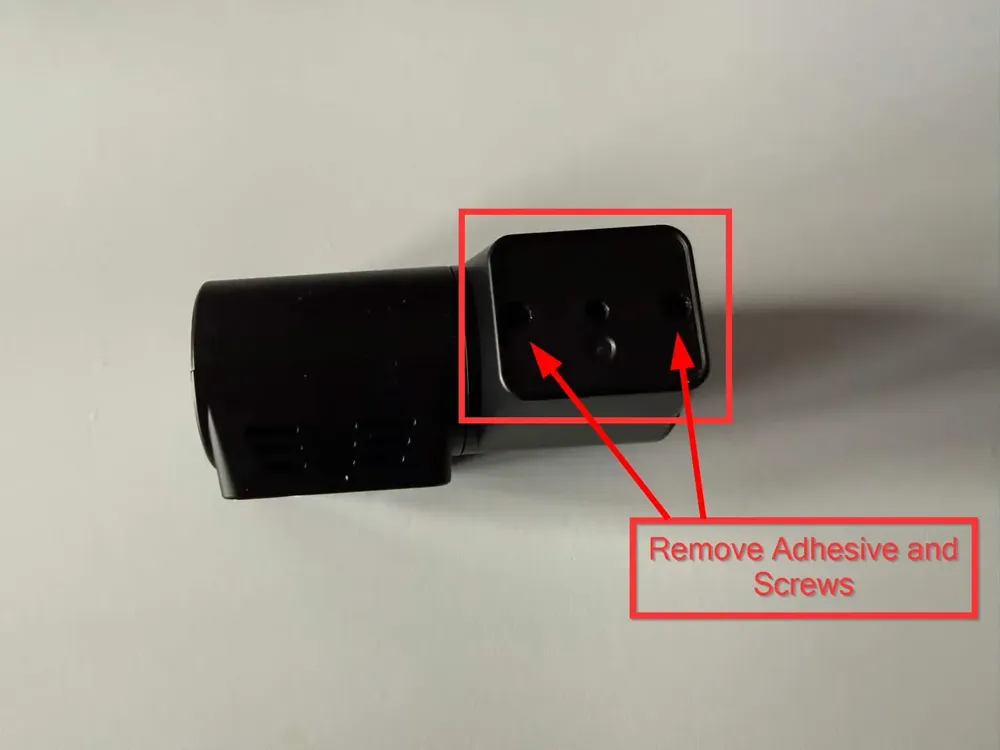

1. Remove the original adhesive tape from the cam
2. Remove the two screws to dismount the cap from the cam

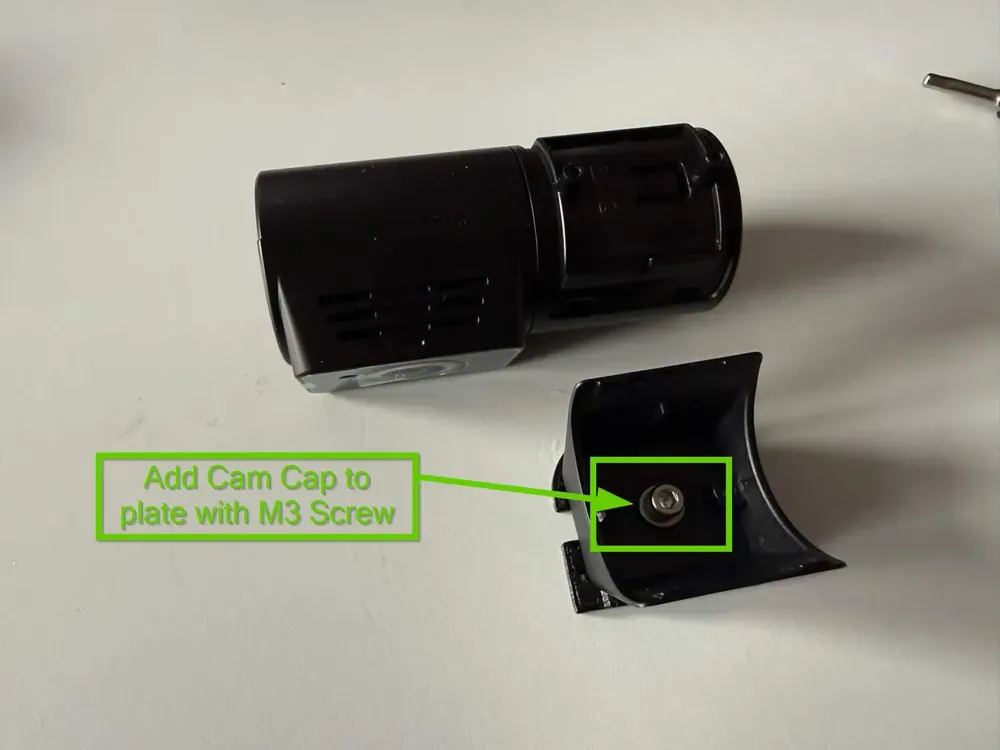

3. Use a M3x6 screw to secure the original cap to the clip (The cap is asymmetrical. Make sure it is oriented correctly)

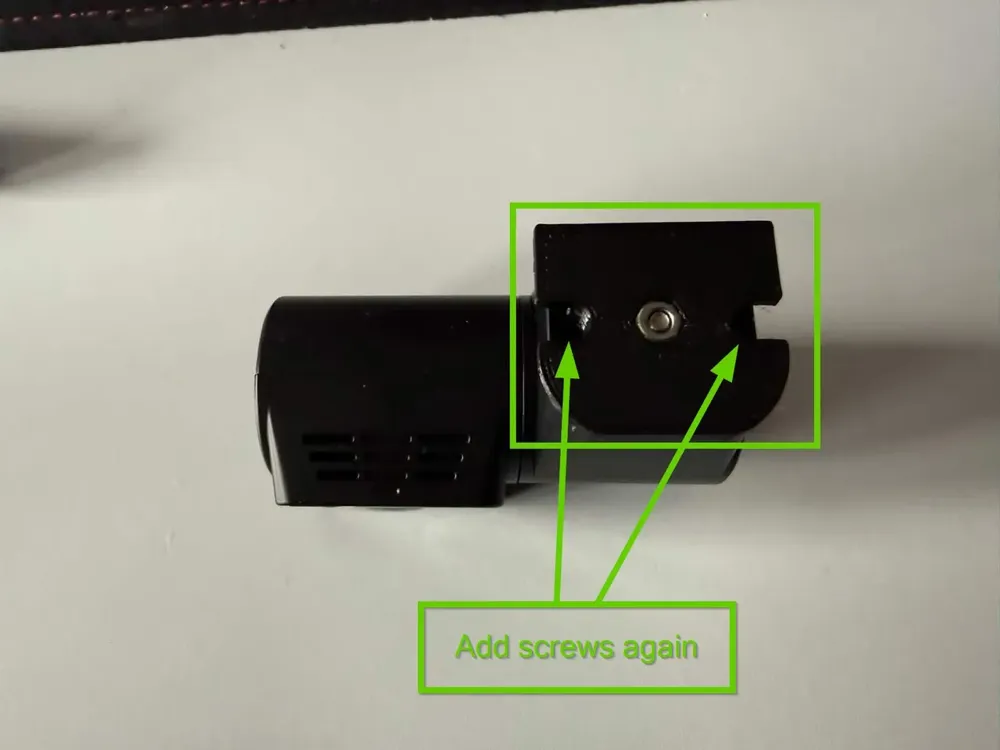

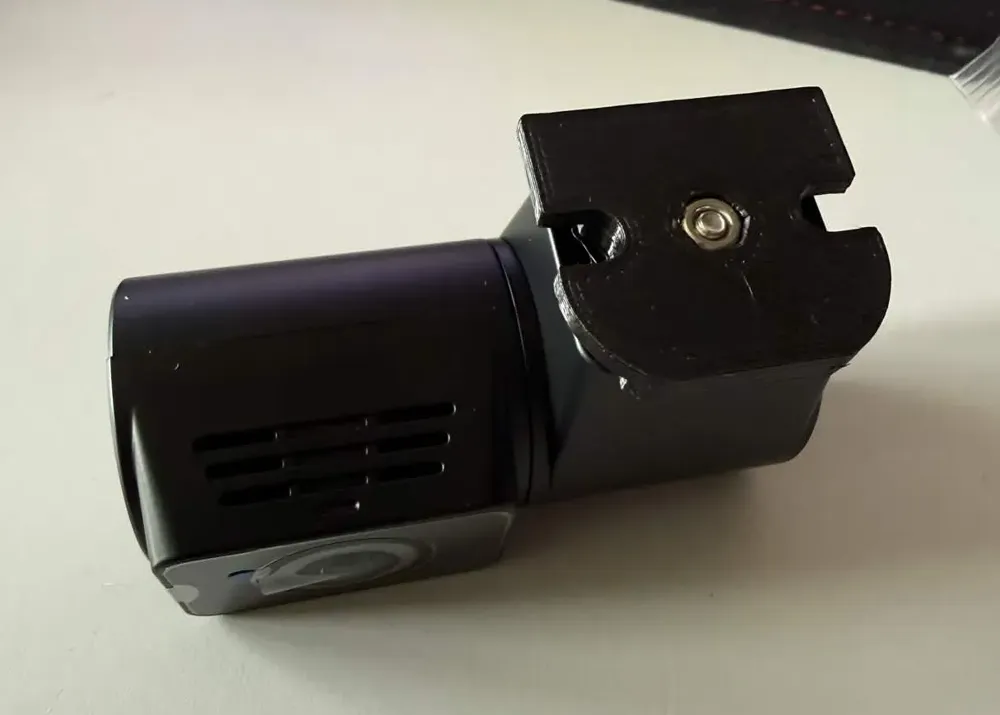

4. Secure the original cap to the cam again

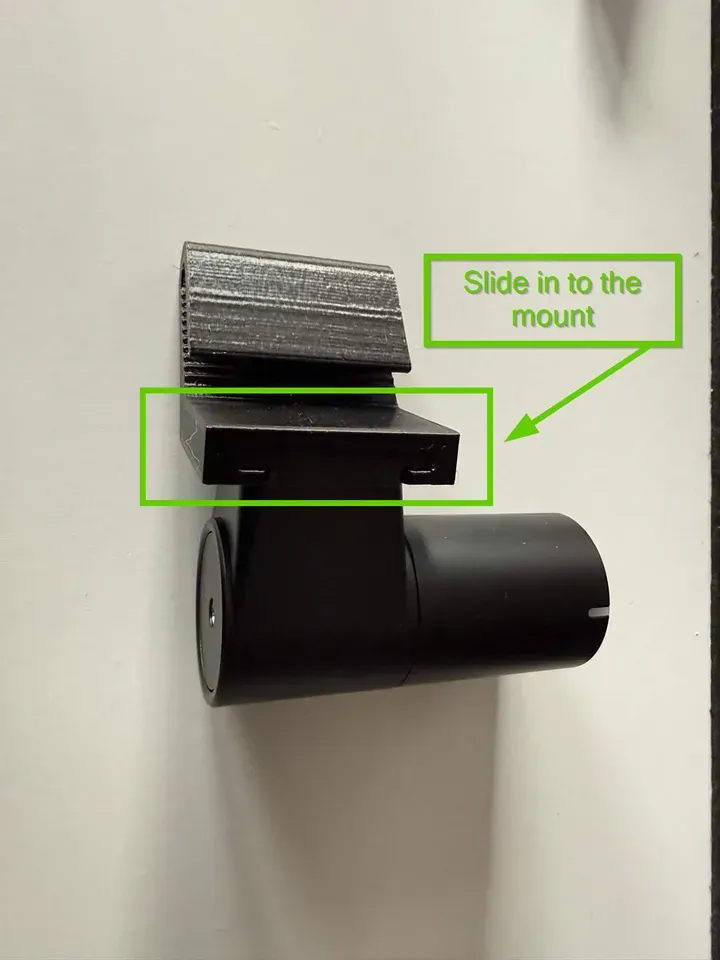

5. Now you can just slide in the new cam to the mount from my original design

Optional you can just stick it with the M3 adhesive tape.

In the print profile you find two plates for each clip version.
