Competitive Recurve Archery Finger Tab

I recently started learning archery and designed this model based on the finger tab I bought, to use as a spare finger tab

Currently, only size S is available, which is for children and teenagers. An adult version has not yet been made

For printing, I recommend using stronger filament. I used PLA-CF, but you can also use PETG, PETG-CF, or ABS type filaments

The model that grips the finger between the index and ring finger can also be printed with TPU for more comfort, but I haven't printed it with TPU yet

The model files include two parts for cutting the finger tab leather. The longer one is for the inner leather, requiring softer leather, and the shorter one is for the outer leather, requiring harder leather

These two parts do not need to be installed after use. Only the parts shown in the image below actually need to be installed

I don't have a very sharp knife, so my cuts are particularly ugly, please ignore them

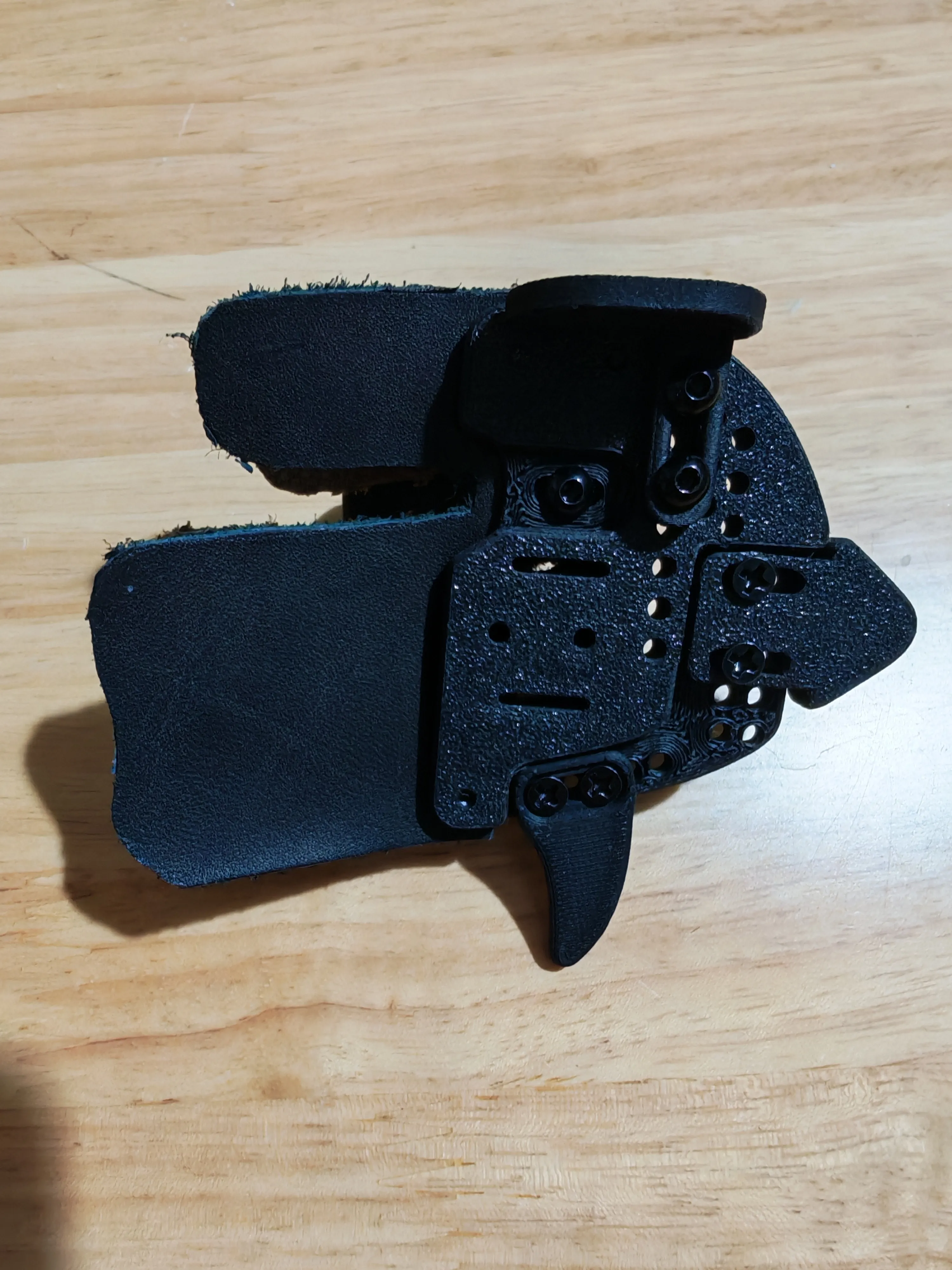

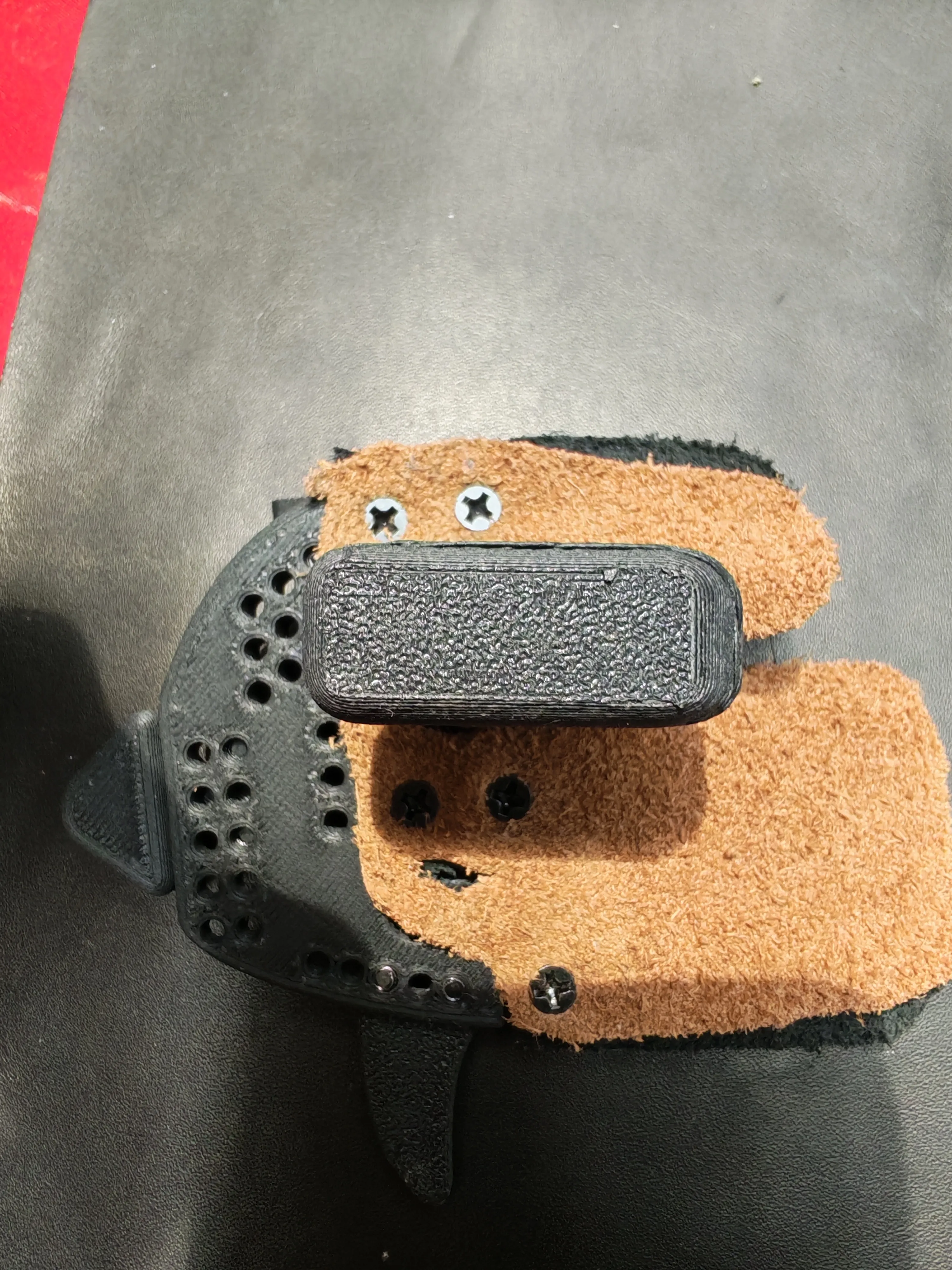

The screws used are all M3. Five M3*6 screws are used on the back to secure the leather

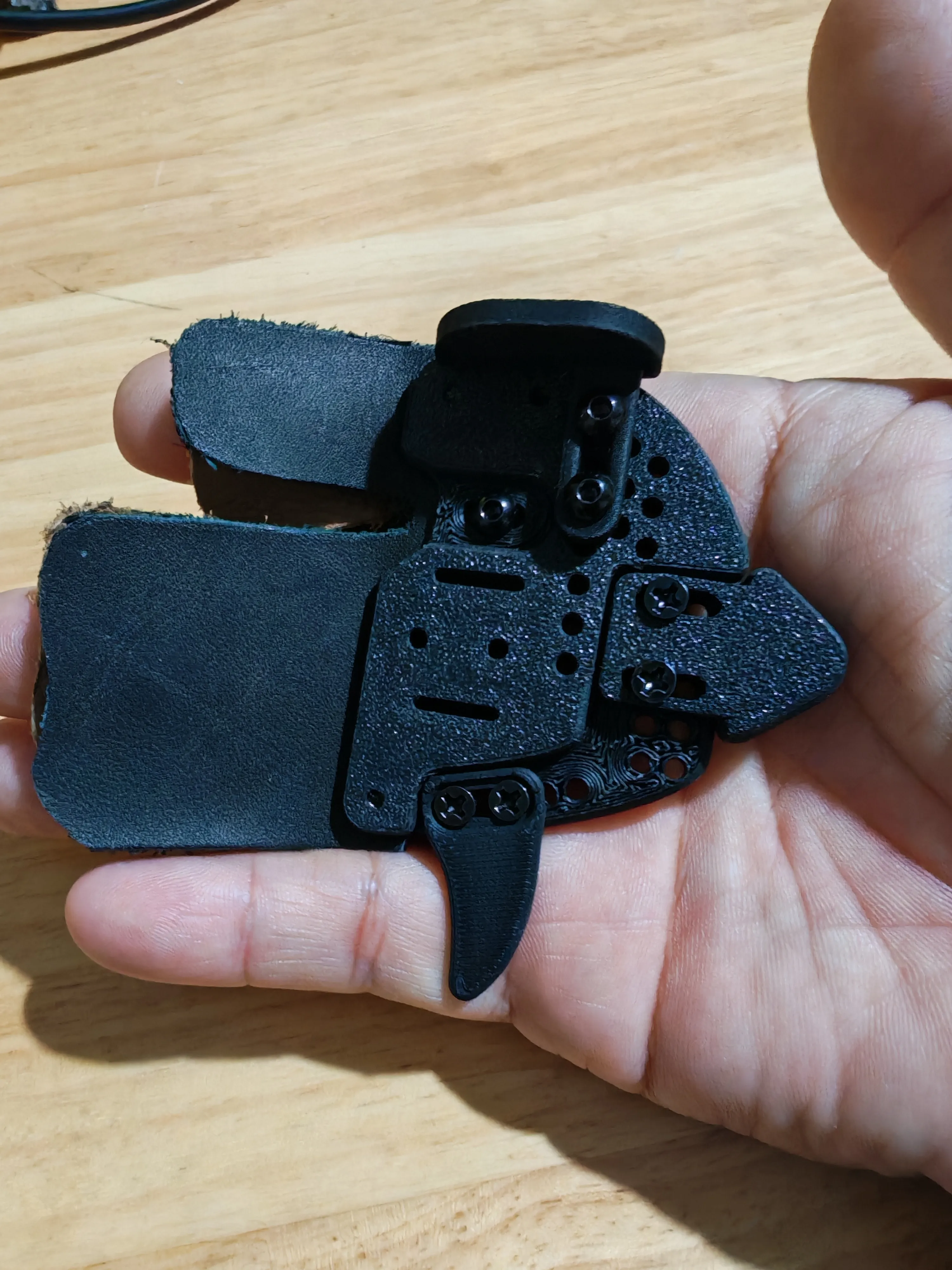

Front

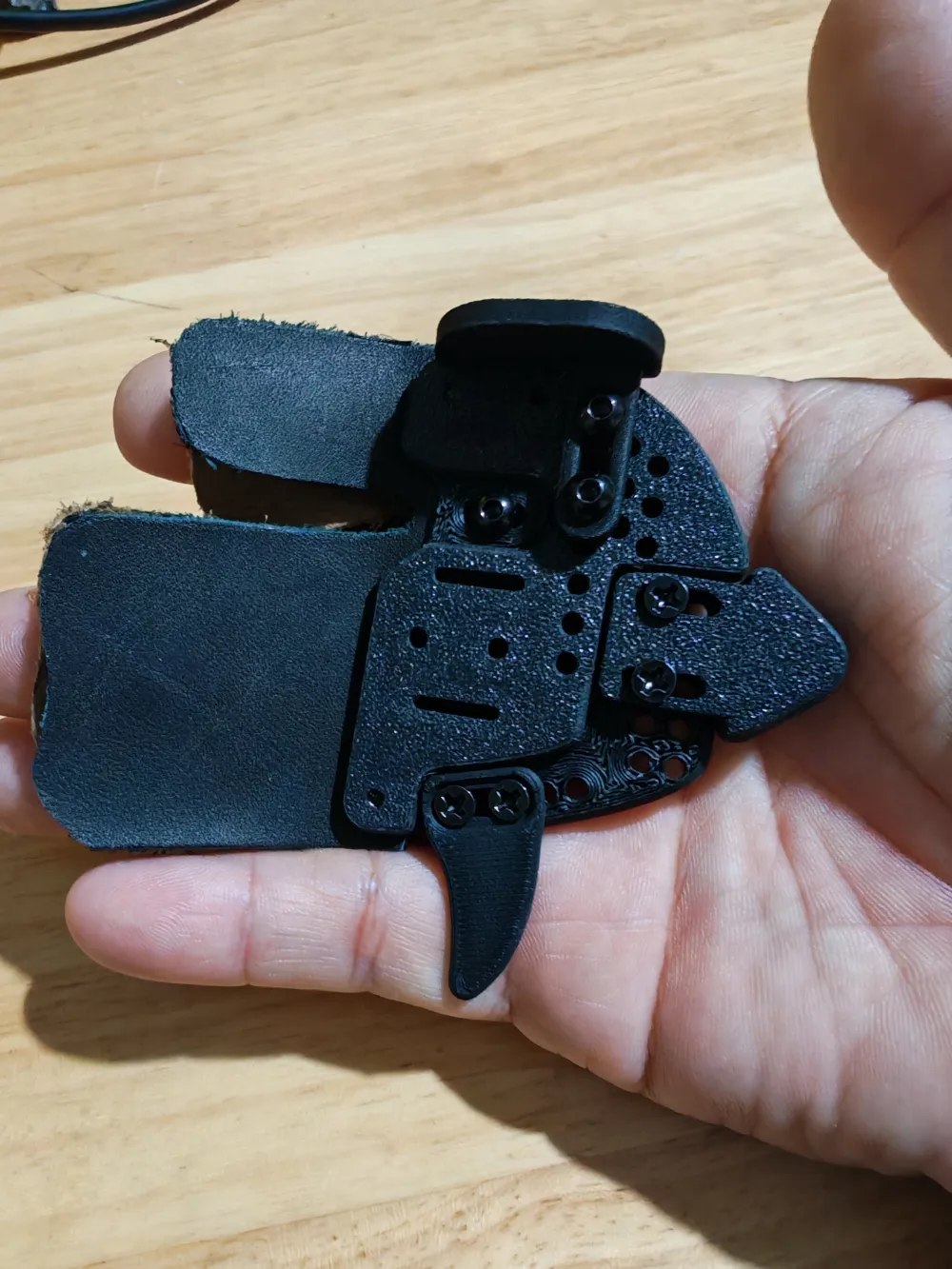

Four M3*6 screws are used on the bottom, and three M3*8 screws are used on the top

The two elongated holes on the model are for threading a rubber band through to tie it to the finger. Archery enthusiasts will naturally understand how to use it. I haven't installed it yet because I don't have a suitable rubber band
