Josh Gore Works Solo 80 Loudspeaker
Print Profile(1)
Bill of Materials
- Mark Audio CHR-70 Full Range Speaker x 2:
- #10 Flat Head Wood or Plastitite Screw 3/4in Long x 28:
- 6ft 18 Gauge Speaker Wire x 1:
- Speaker Binding Terminals x 4:
- 4.5in Schedule 40 PVC Tube 4.5in OD 4in ID 33.25in Long x 2:
- Rubber Feet with Screws x 4:
- Auto Sound Dampener 1 yard x 1:
- 12x12 1/2in thick Plywood, Metal, MDF, Metal Or printed Base. x 4:
- 32oz Polyfill x 1:
Description

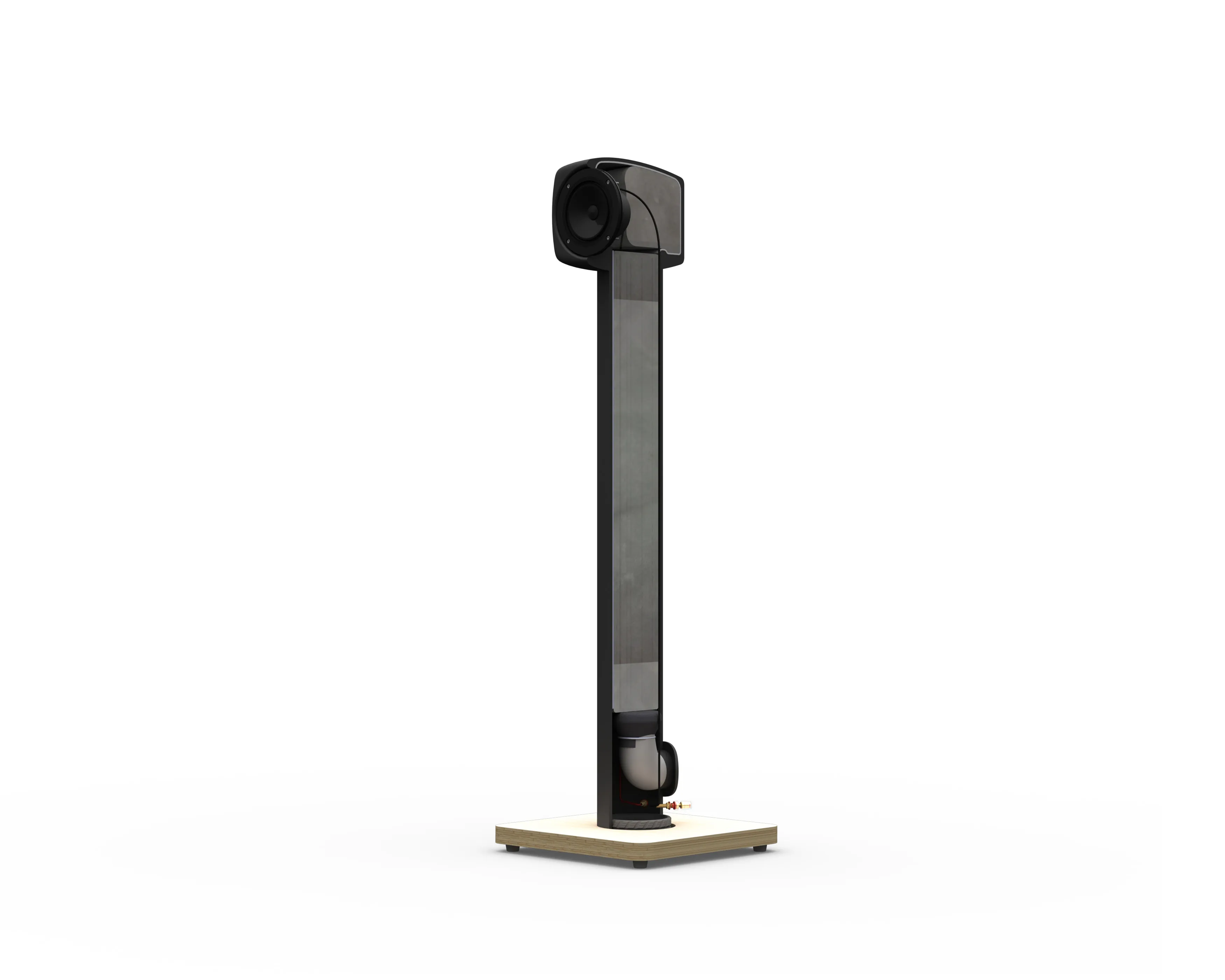

Josh Gore Works – Solo 80 4" Full-Range Transmission Line Floorstander

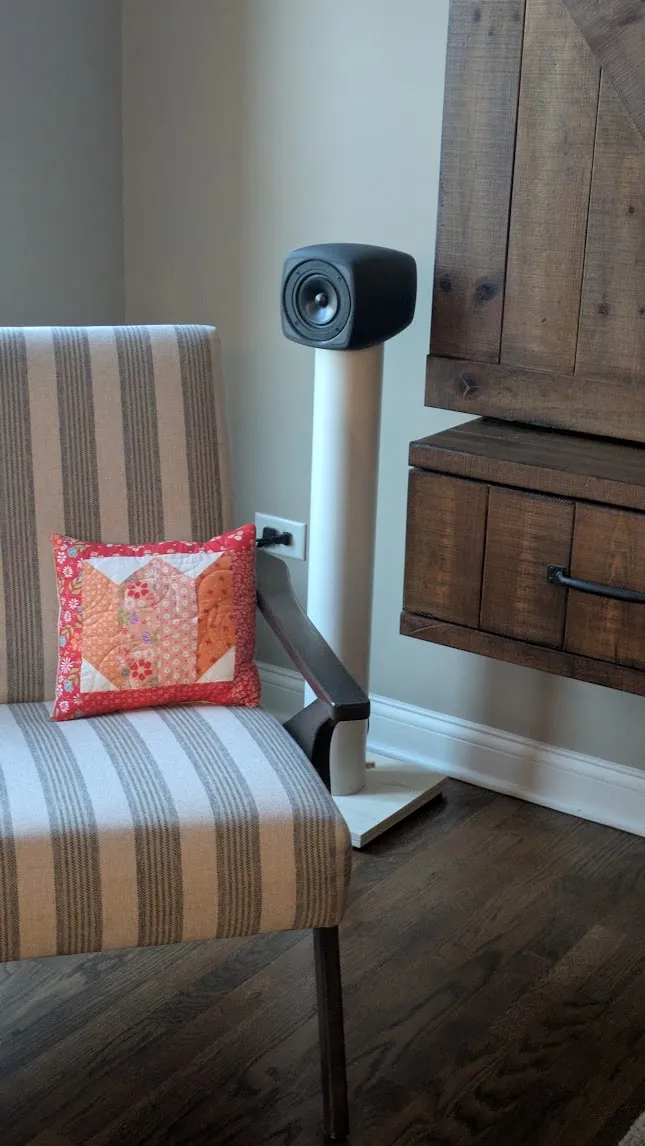

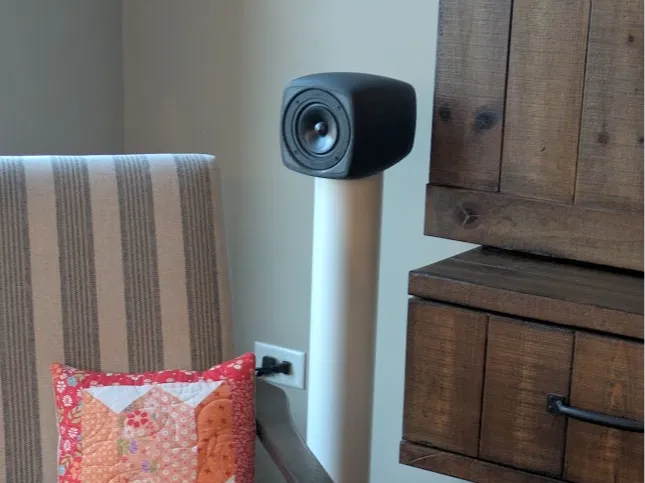

The Solo 80 is a tall, slim floorstanding speaker built around the Mark Audio CHR-70 full-range driver in a Mass Loaded Transmission Line (MLTL) enclosure. It was designed for near-field listening at moderate volumes, using a long PVC column as the acoustic transmission line.

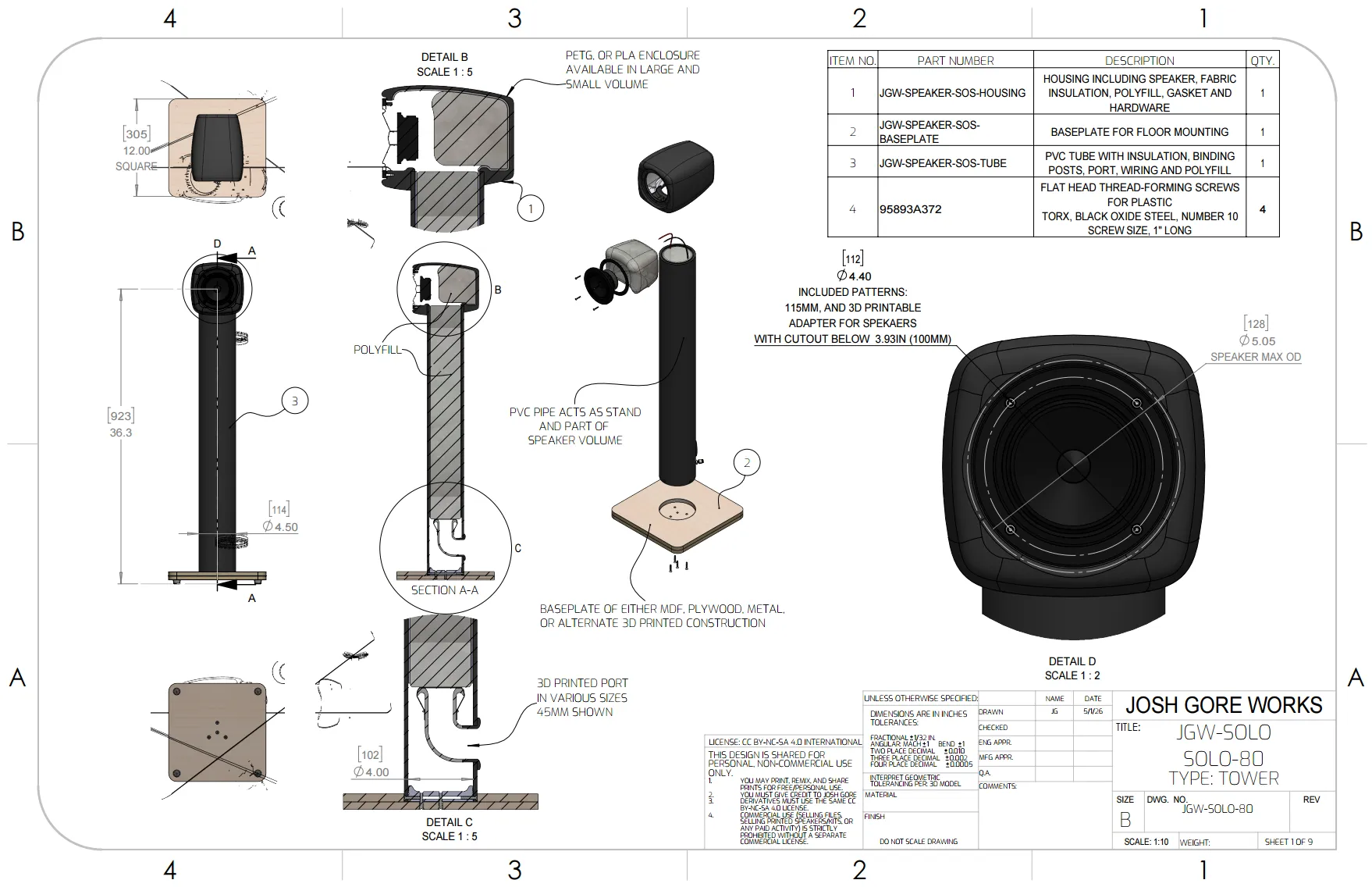

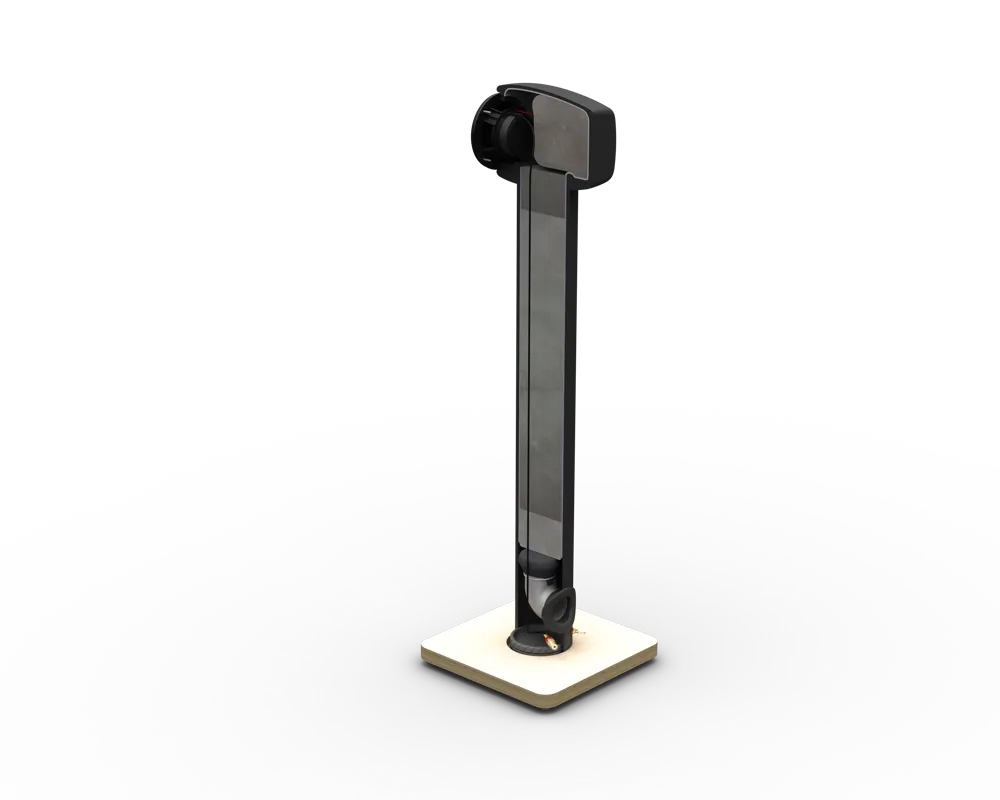

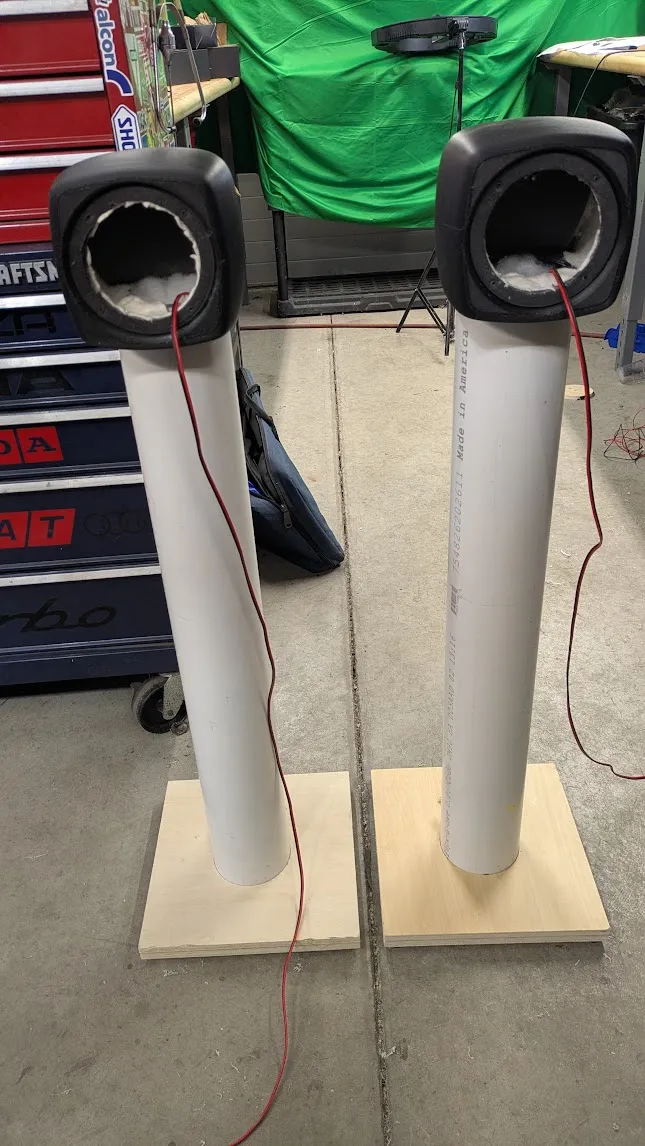

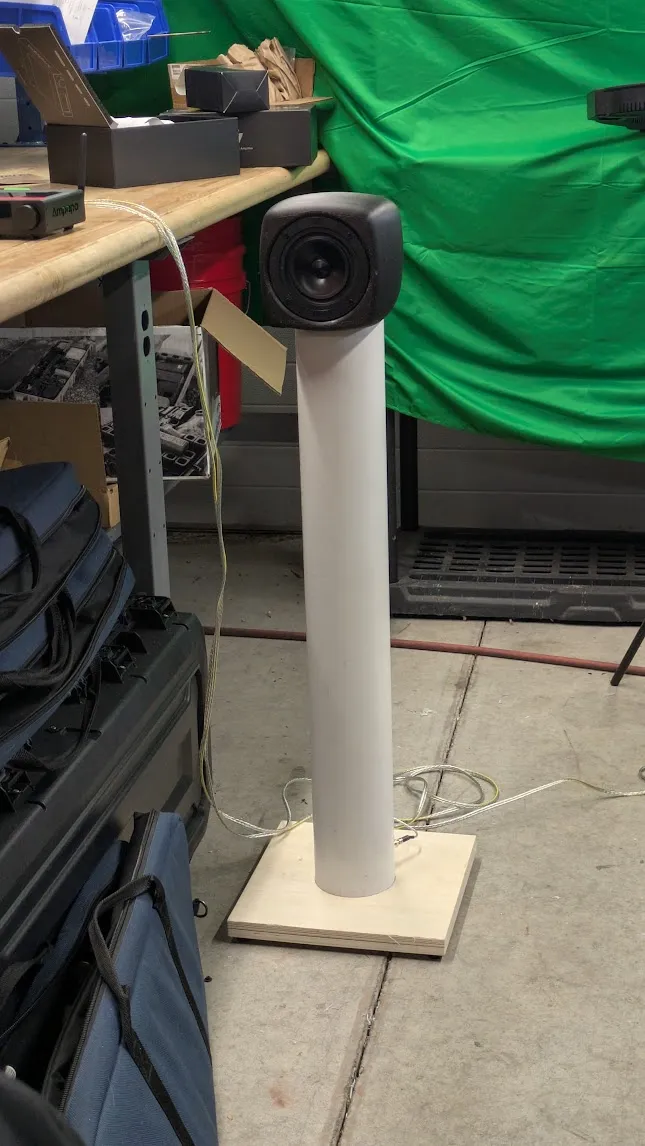

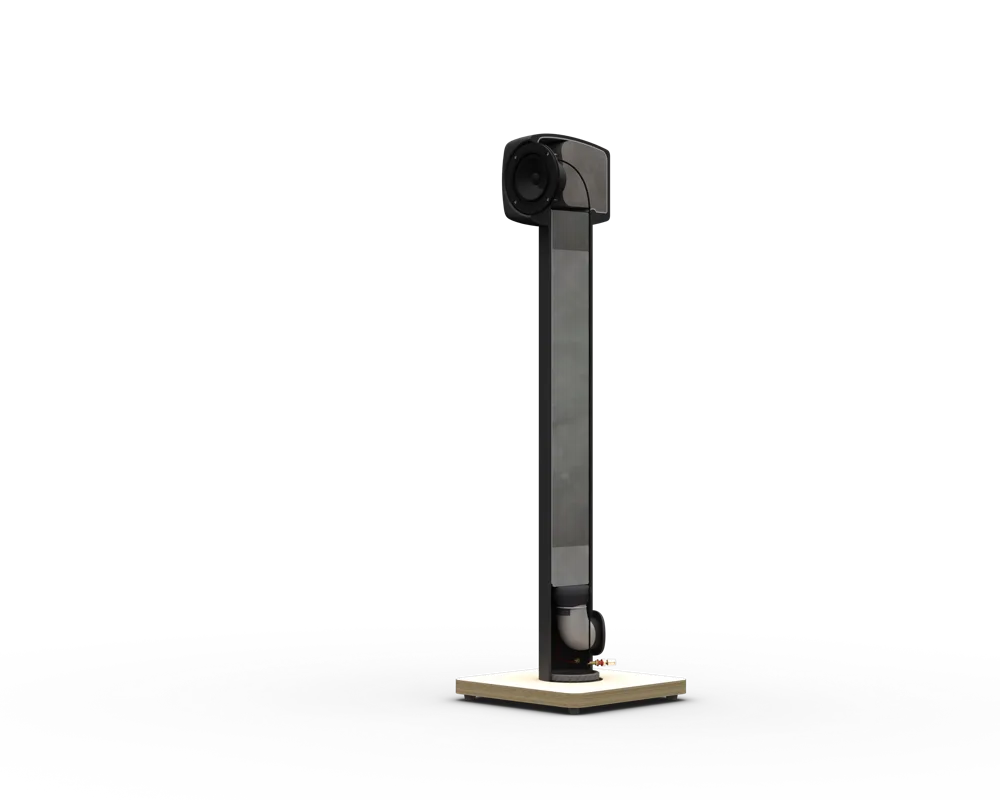

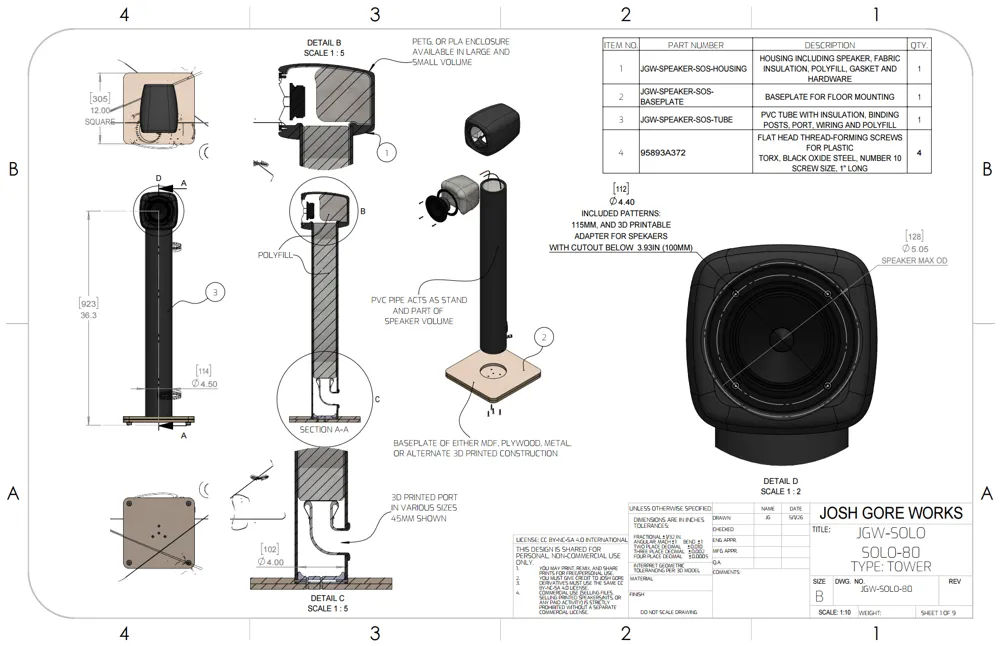

The enclosure consists of a 4" Schedule 40 PVC tube that serves as the main acoustic line, with internal damping. A 3D-printed port is located at the base of the line. The top section is 3D printed in PETG/CF, and the design includes a wooden base for stability. The speaker operates without a crossover for full-range use. Easily powered by 5w Class A or 50w AB and Class D amplifiers and easily tuned by changing tube length, acoustic dampening, and analog or digital filtering.
Construction Highlights
- Tall PVC column functioning as the acoustic transmission line
- Mass-loaded port at the base of the line
- 3D-printed PETG/CF top section
- Wooden baseplate for stability
- No crossover – pure full-range operation
