Foldable wall-mounted laundry drying rack
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 40% infill
Designer
9.2 h
5 plates
Open in Bambu Studio
Boost
10
26
2
0
8
0
Released
Description

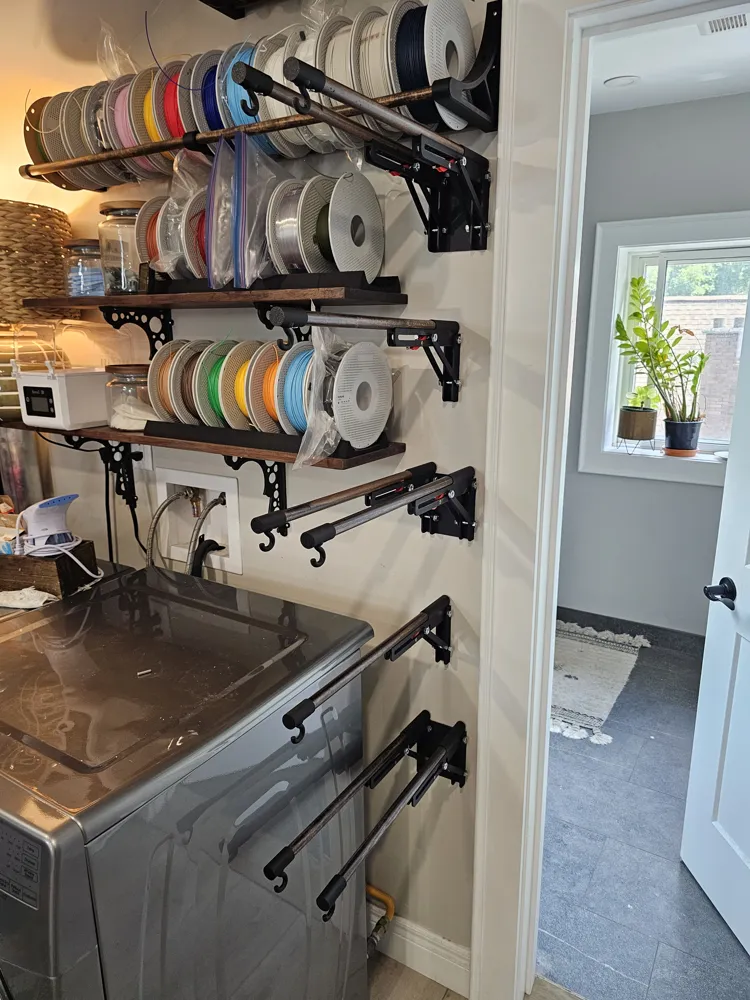

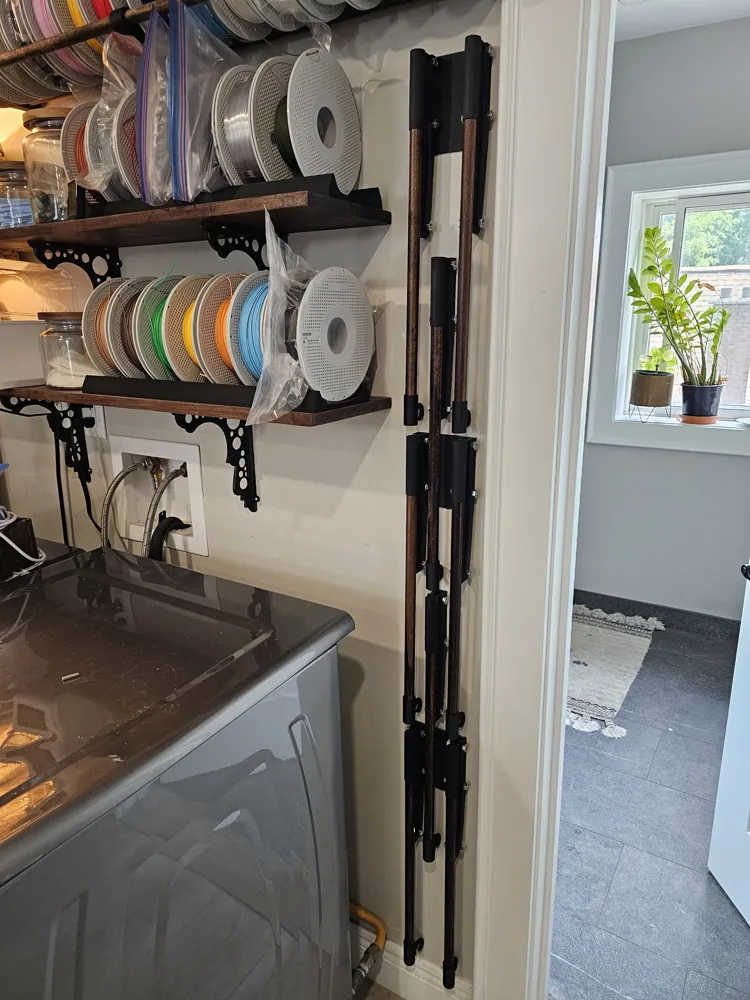

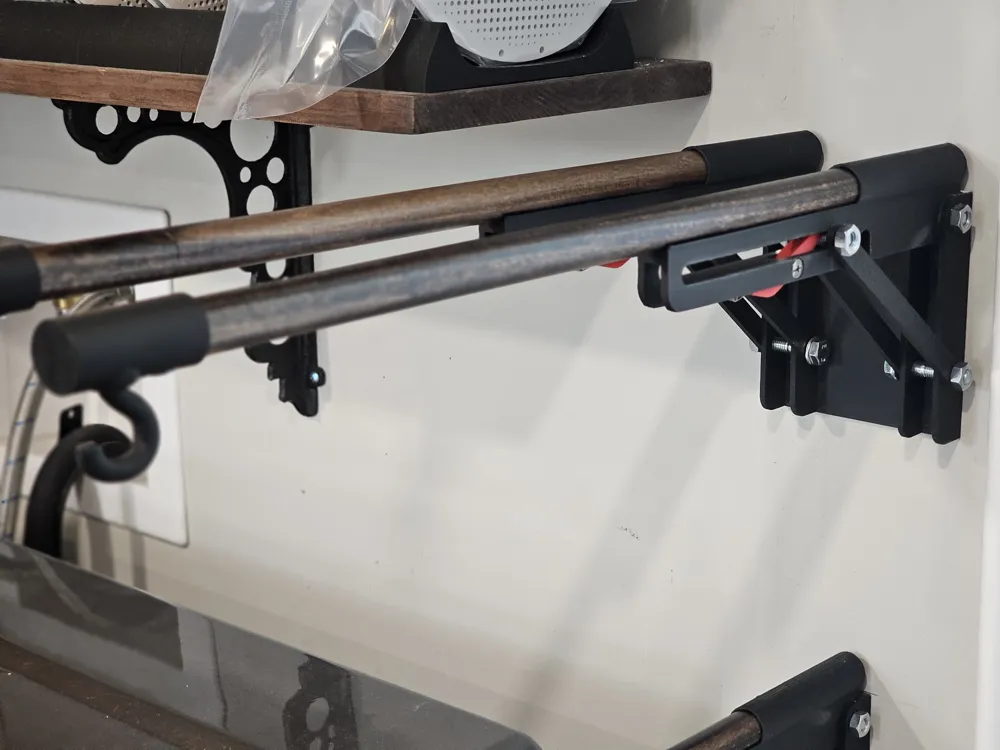

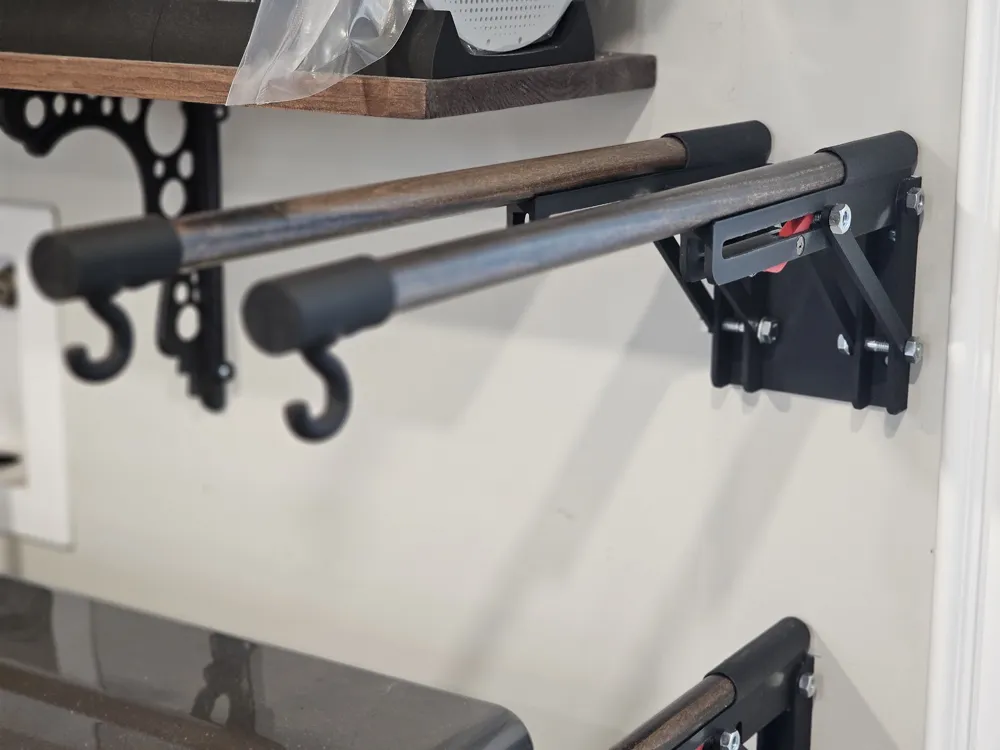

Foldable wall-mounted laundry rack designed to fit in slim vertical space. Auto locks in place when raised, lowered by holding a spring-loaded trigger.
Required materials (per rod):
- 1x ¾" Wooden dowel (cut to desired length)
- 4x M8 x 30mm bolts
- 2x M8 x 40mm bolts
- 6x M8 hex nuts
- 6x M8 washers
- 1x M4 x 14mm Chicago Screw: https://www.amazon.ca/dp/B0FMKKM1BN?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
- 1x 0.5mm Torsion spring: https://www.amazon.ca/dp/B0C6M9QD8Z?ref=ppx_yo2ov_dt_b_fed_asin_title
- 2x No. 8 ¾" screws: https://www.amazon.ca/uxcell-Screws-Phillips-Stainless-Tapping/dp/B0C3ZNSSHB/ref=asc_df_B0C3ZNSSHB?mcid=73190f04c5c63abd8cdf56cb480b4afe&tag=googleshopc0c-20&linkCode=df0&hvadid=772856579188&hvpos=&hvnetw=g&hvrand=17369886640044409195&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9001011&hvtargid=pla-2448422272475&hvocijid=17369886640044409195-B0C3ZNSSHB-&hvexpln=0&gad_source=1&th=1
