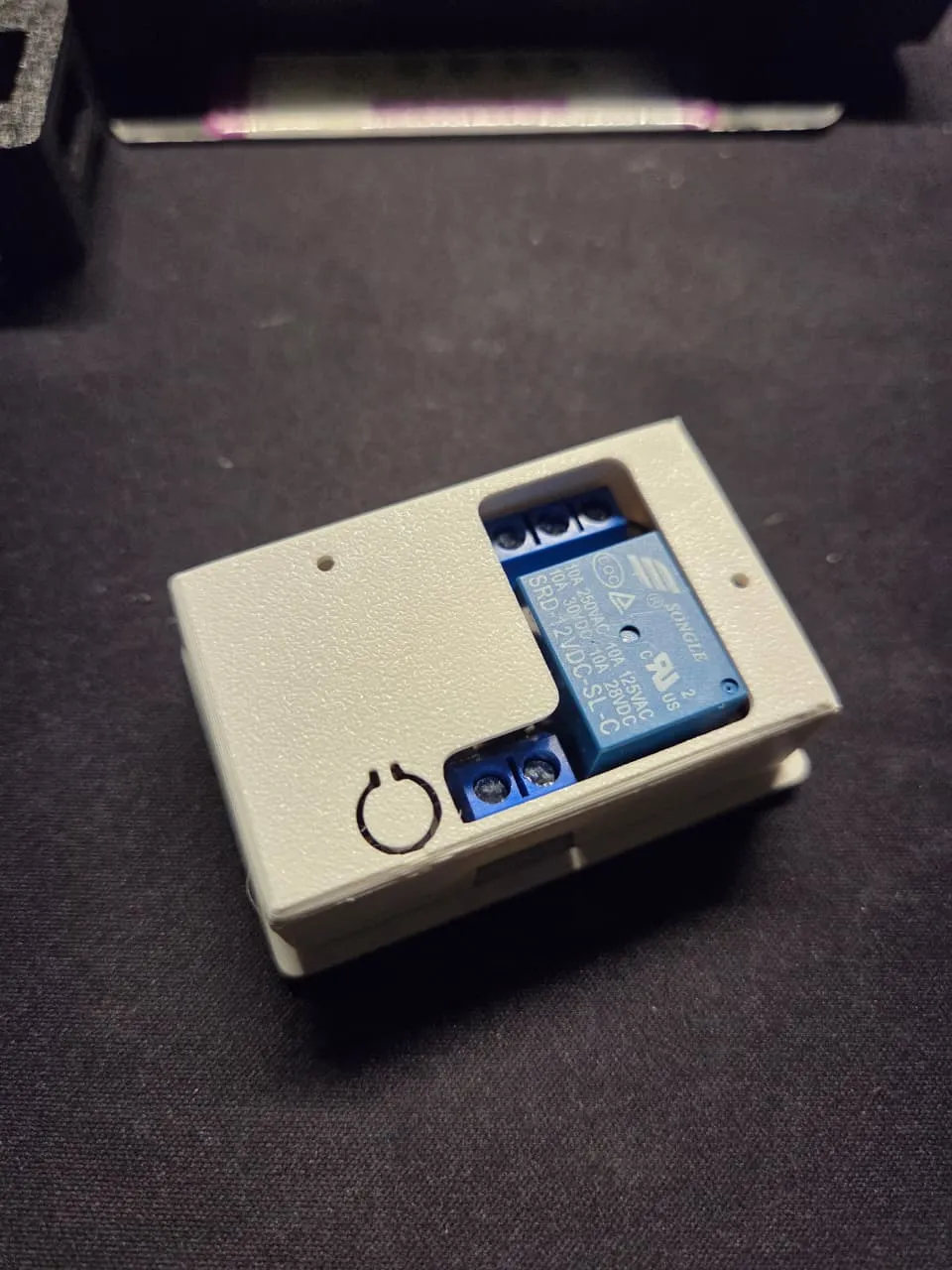

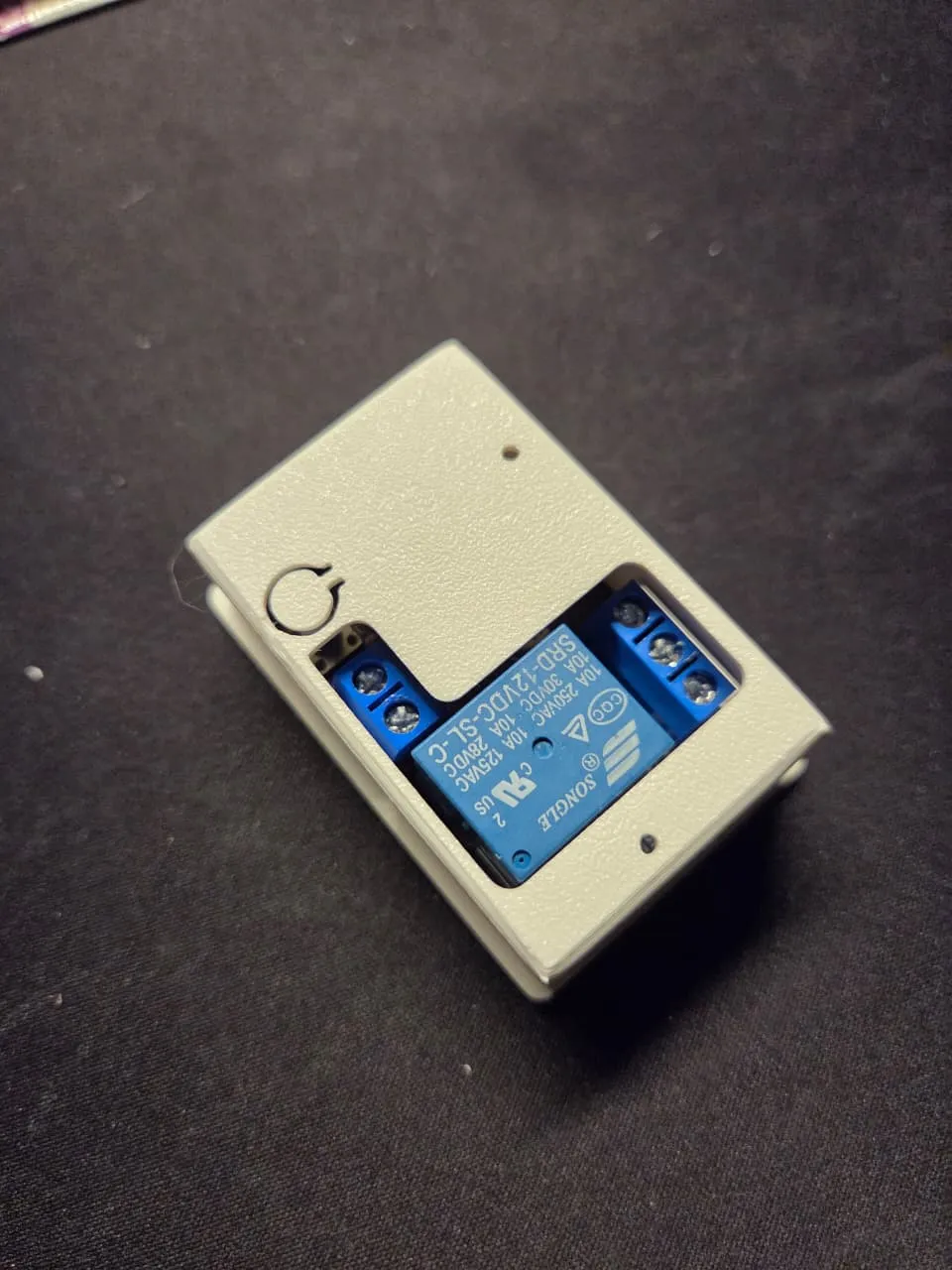

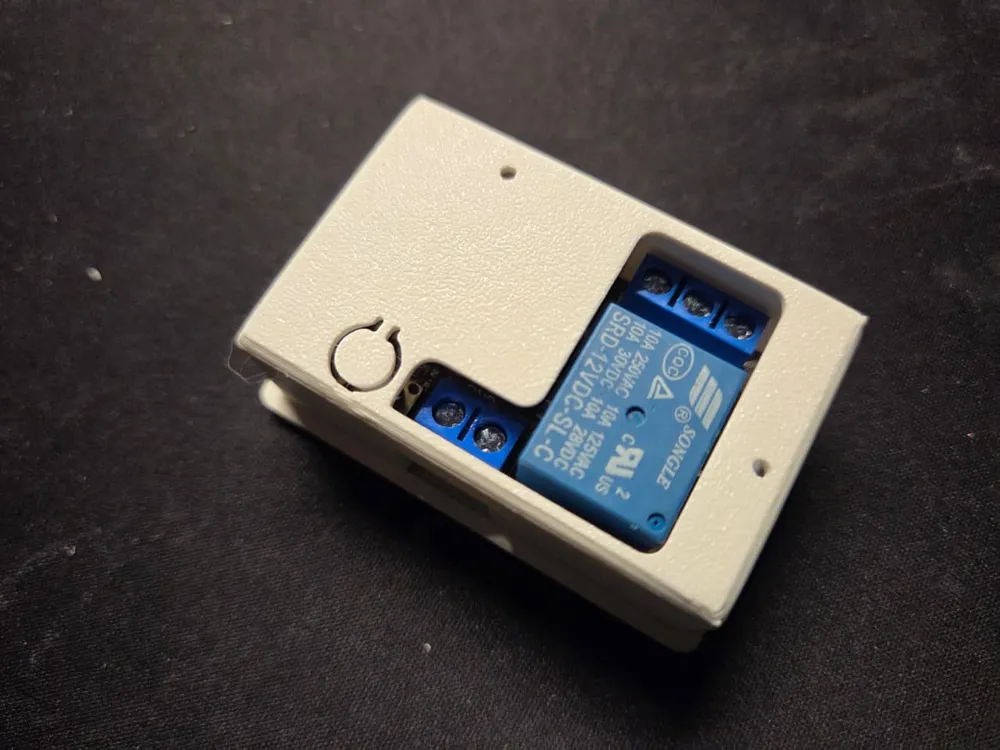

PSF-B01 Enclosure (ESP8285 Wi-Fi Switch Module)

A compact and clean 3D printable enclosure designed specifically for the ITEAD PSF-B01 ultra-low-power single-channel Wi-Fi switch module.

The enclosure helps protect the module from dust, accidental contact, and minor impacts while still allowing easy access to the wiring and push button. The snap-fit lid makes assembly quick and eliminates the need for screws.

Features

• 🔌 Designed specifically for the ITEAD PSF-B01
• 📡 Compatible with the ESP8285-based Wi-Fi switch module
• 🛡️ Protects the PCB from dust and accidental contact

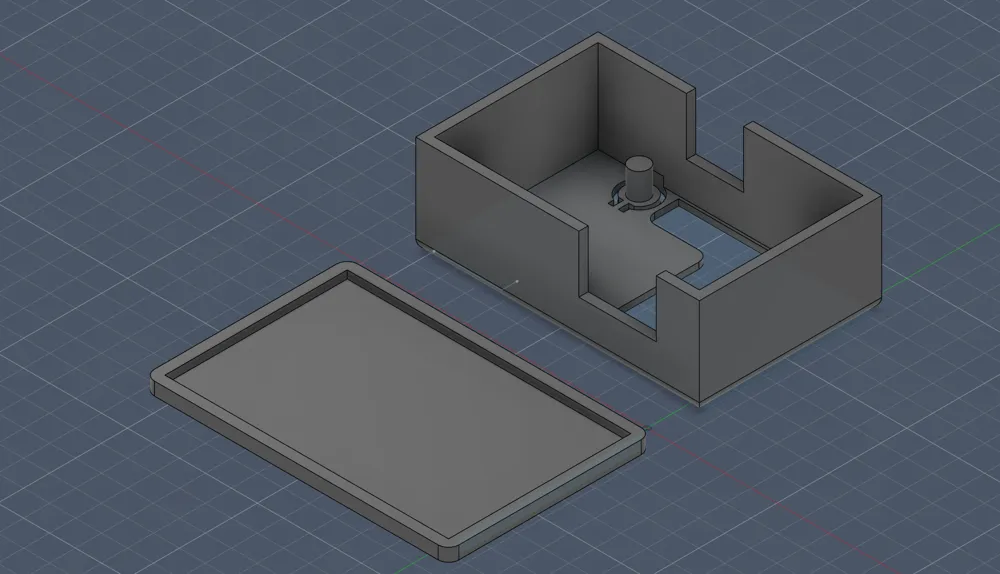

• 🔒 Snap-fit lid (no screws required)
• 🖨️ Easy to print with minimal material usage

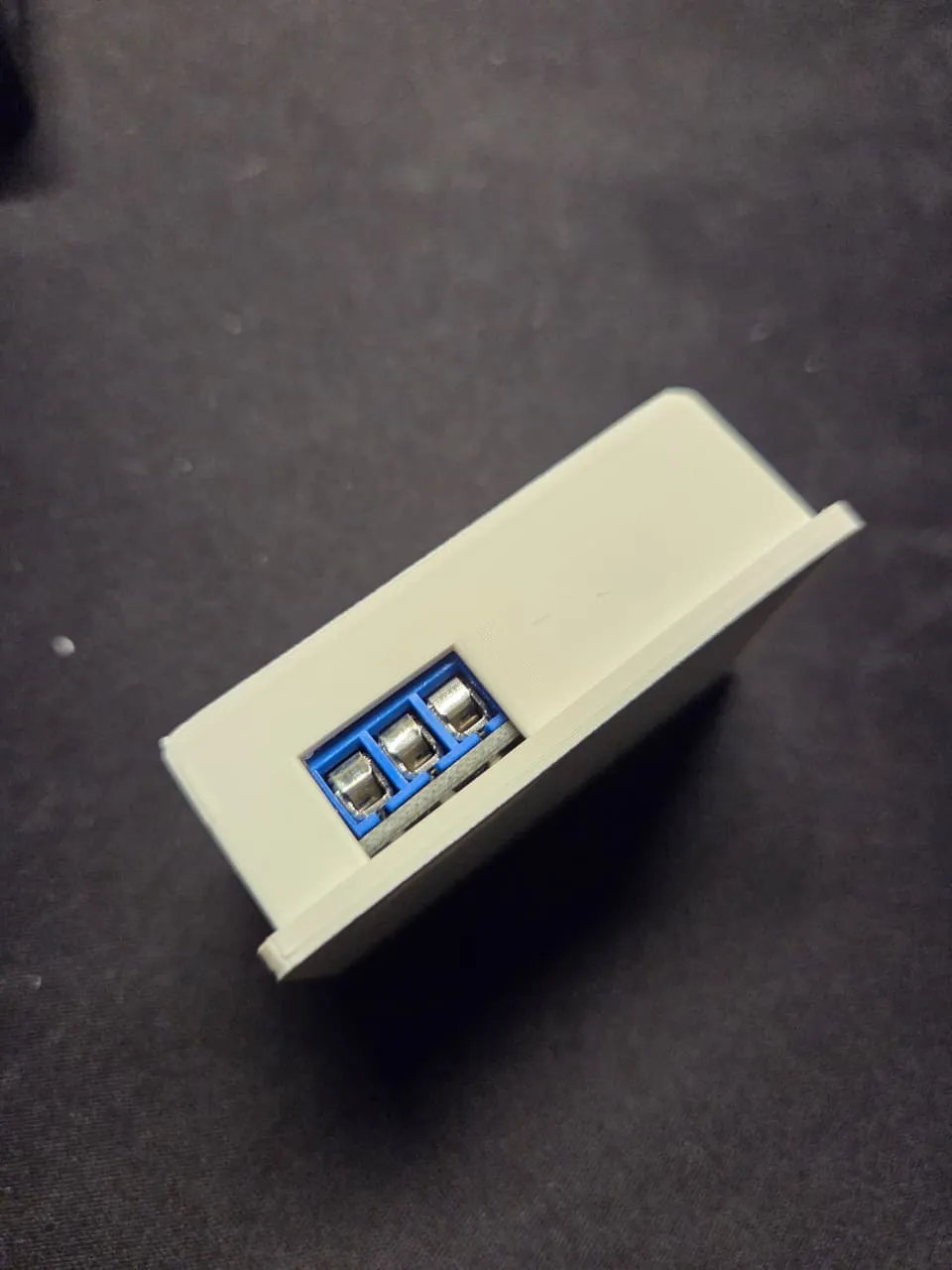

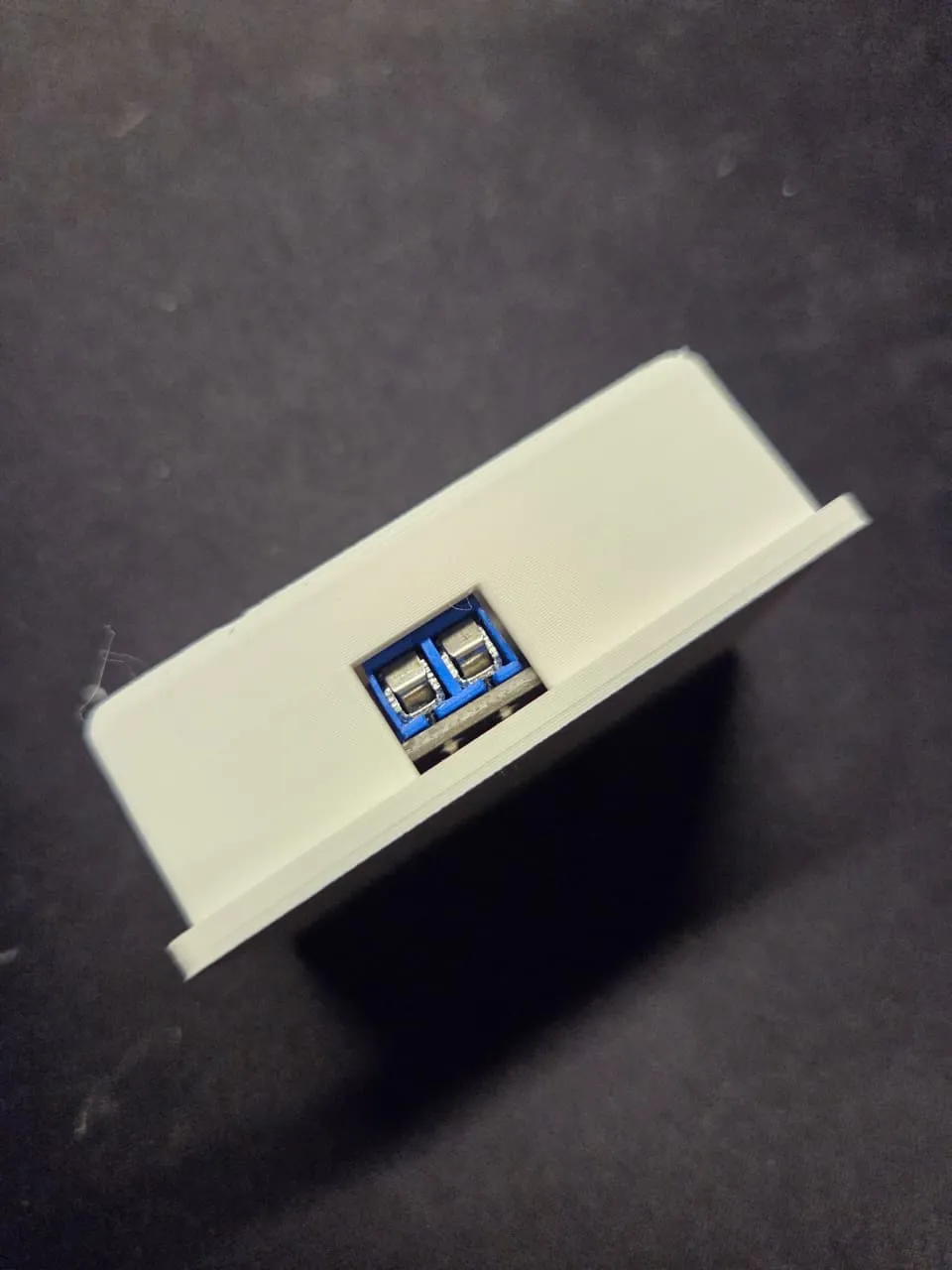

• ⚡ Cable openings for convenient wiring

Printing Recommendations

• Layer Height: 0.20 mm
• Wall Loops: 3
• Infill: 20%
• Material: PLA or PETG
• Supports: Not Required

Assembly

1. Insert the PSF-B01 module into the enclosure.
2. Route the wires through the cable openings.
3. Press the lid into place until it snaps securely.

Compatibility

Designed for:

• ITEAD PSF-B01
• ESP8285-based ultra-low-power single-channel Wi-Fi switch module

Please verify your module dimensions before printing, as hardware revisions may vary.
