ATX Bench Power Supply Enclosure
IP Report
Print Profile(1)
0.2mm layer, 5 walls, 15% infill
Designer
15.8 h
4 plates
Open in Bambu Studio
Boost
3
16
0
0
7
0
Released
Description

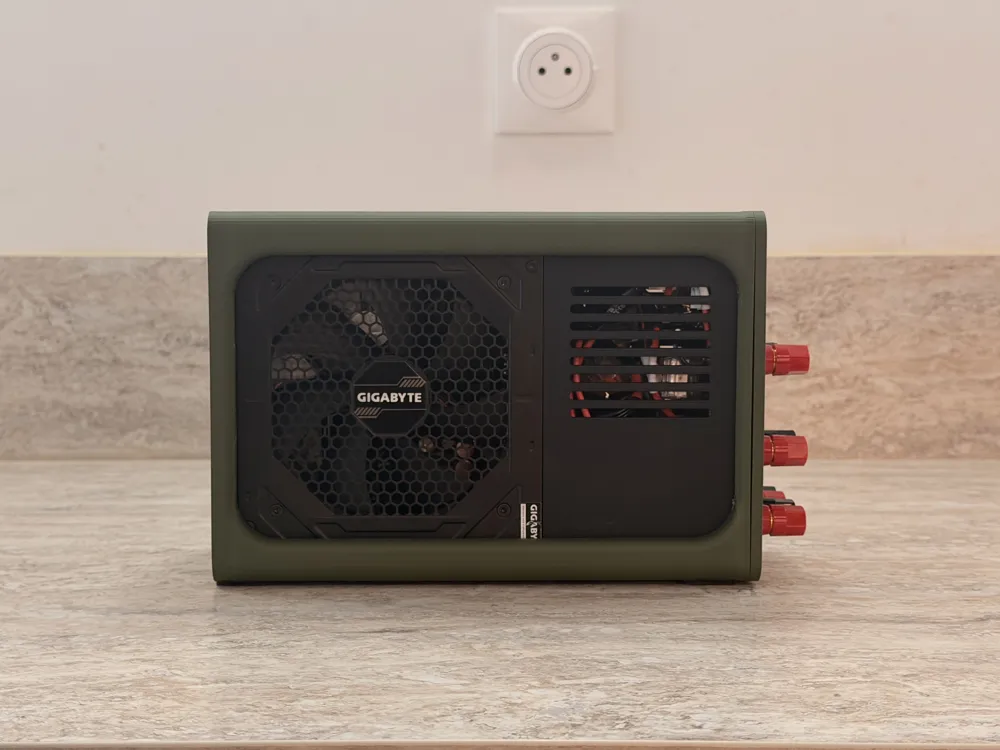

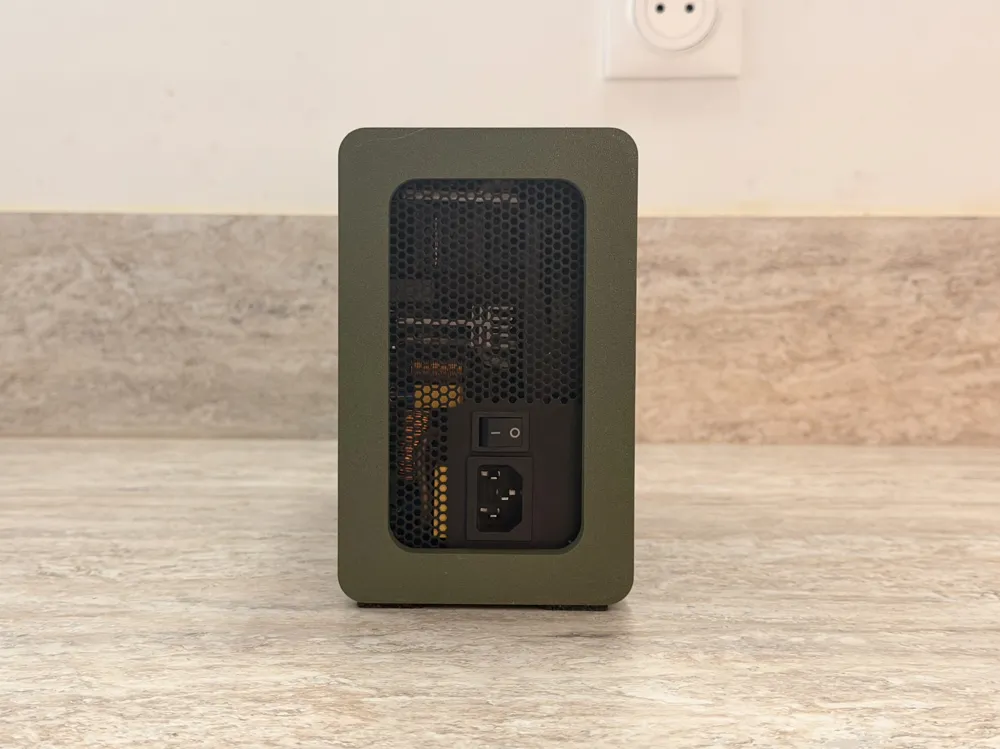

This enclosure converts a modular ATX power supply into a versatile DIY bench power supply. It is designed around a Gigabyte P750GM PSU and provides multiple power outputs for electronics projects, testing, and prototyping.

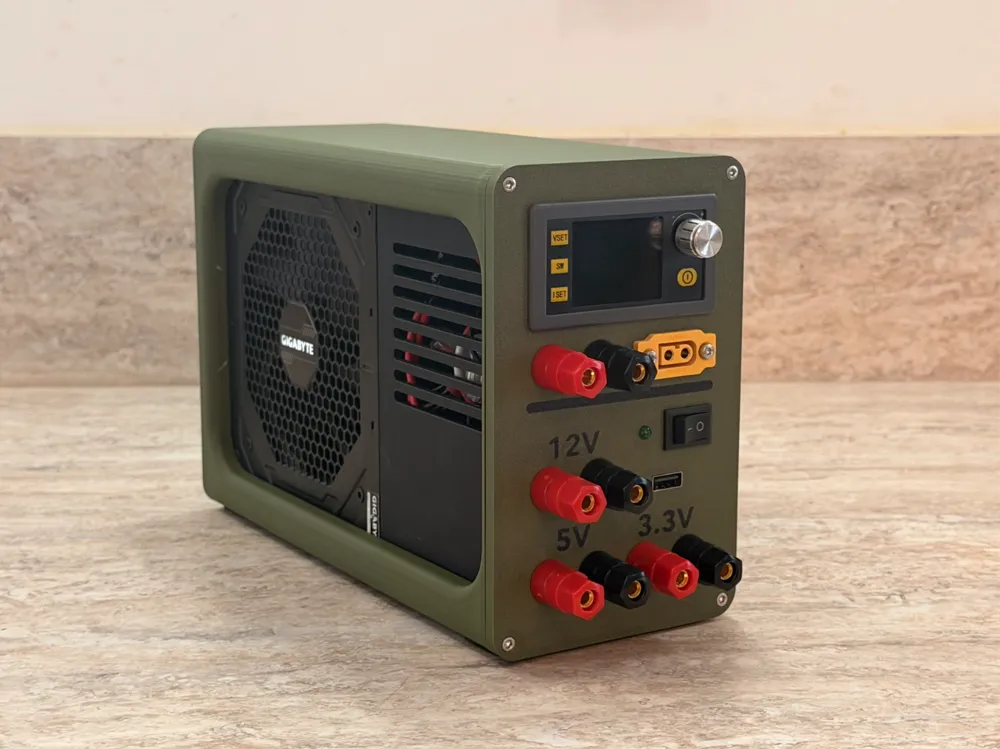

Features:
- Designed for a modular ATX power supply (Gigabyte P750GM)
- Supports a buck-boost module with banana outputs and XT60E-F connector
- Dedicated USB QC3.0 charging output

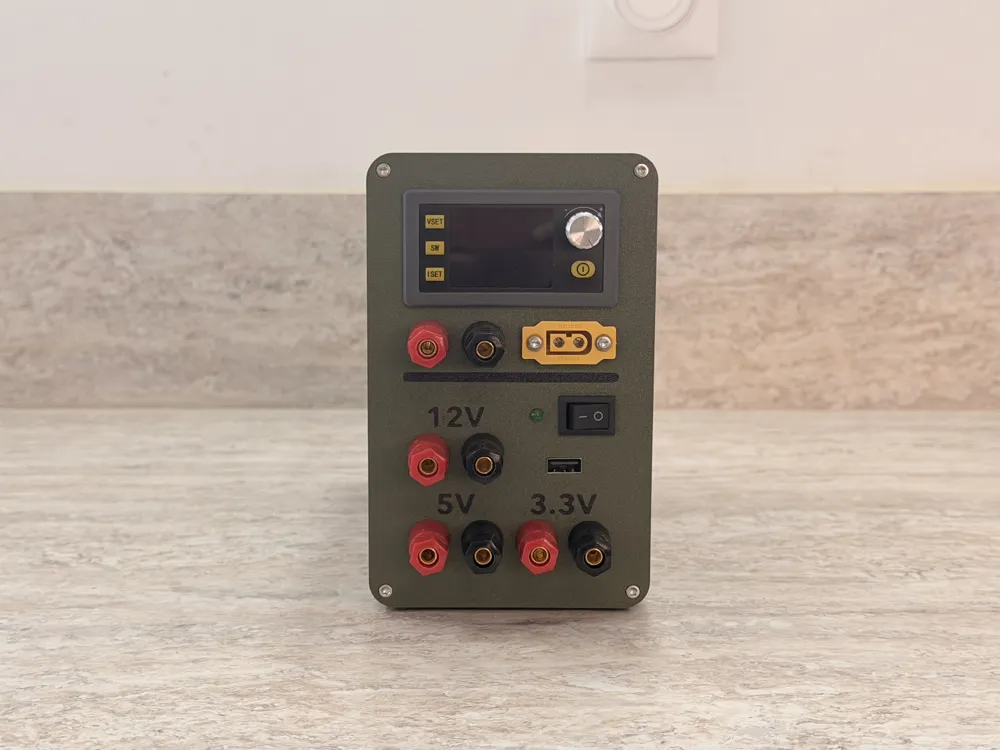

- Separate 3.3V, 5V, and 12V banana terminal outputs
- Front-mounted ON/OFF switch with power LED
- Spacious interior for cable management and optional fuse holders
Bill of Materials (BOM)
| Item | Qty |
|---|---|
| Modular ATX Power Supply (Gigabyte P750GM or compatible) | 1 |
| Buck-Boost Module | 1 |
| USB QC3.0 Module | 1 |
| Banana Terminal Posts | 8 |
| Front ON/OFF Switch | 1 |
| Inline Fuse Holders | 4 |
| M3 Heat-Set Inserts 7 × 5 mm (Front Panel) | 4 |
| M3 Heat-Set Inserts 5 × 4.2 mm (XT60 Connector) | 2 |
| M3 Heat-Set Inserts 3 × 4.2 mm (USB Module) | 2 |
