Customizable 3D layered 2 text generator

🔧 Custom 2‑Layer Text Generator — Clean, Fast, Support‑Free

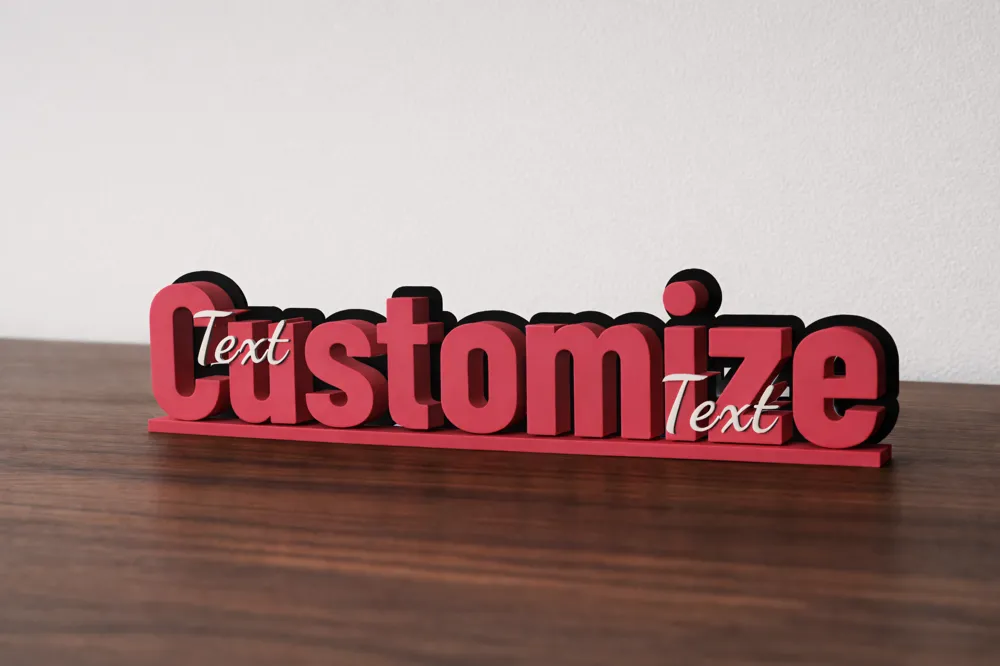

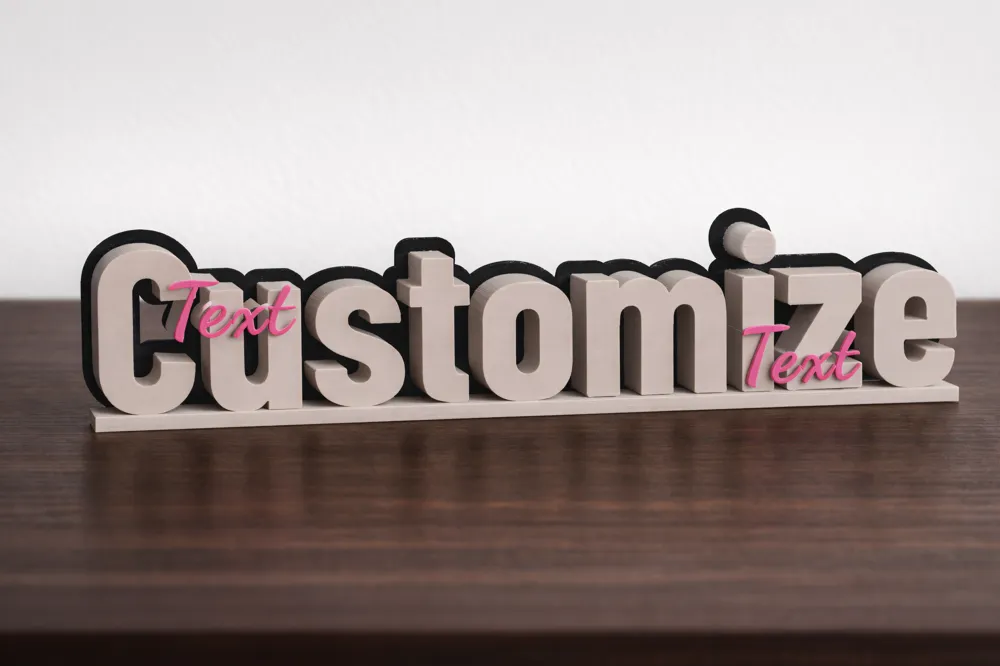

This generator creates a premium two‑layer text design with a bold main word and a cursive overlay, engineered for perfect alignment and crisp multicolor printing. Every element — main text, outline, overlay text, underline, and base layer — is fully parametric and automatically connected through the underlying code structure. Adjust any parameter and the entire model updates instantly with zero manual fixes.

The geometry is optimized for support‑free printing, strong vertical bonding, and a smooth, high‑end tactile feel. Whether you're producing a single decorative sign or batch‑printing personalized tags, this generator delivers consistent, professional results.

🛠️ What can you customize?

✏️ Custom Text & Fonts

Choose any main word and overlay text using built‑in dropdowns that access all installed system fonts. Perfect for combining bold block lettering with elegant cursive accents.

🧱 Custom Borders & Sizing

Add a precise outline to your main text and independently adjust thickness, size, and letter spacing for both layers. The border is generated using automated offset logic for clean, sharp edges.

📏 Dynamic Underline

Enable a smart underline that automatically scales to your main text length. Adjust width, gap, and extra length with intuitive sliders. The underline stays perfectly aligned thanks to parametric length calculation.

🎯 Position Control

Use X/Y offset sliders to position the overlay text exactly where you want it. The generator recalculates all connections automatically, keeping layers perfectly stacked and bonded.

🎨 Easy Multicolor Base Layer

Enable the Base Layer to create a uniform bottom surface (e.g., 4 mm) across the entire model. This makes filament swapping extremely fast and easy — ideal for two‑color or three‑color prints.

⚙️ Automated Parametric Structure

The generator uses a fully modular architecture:

• Each text layer is built as a 2D module
• Borders, offsets, and underline lengths are computed from text size and font metrics
• Base, middle, and top layers share unified Z‑height logic
• All positioning is handled through synchronized translation modules

This ensures every part stays perfectly connected — no floating elements, no misalignment, no manual tweaking. Change the text, size, font, underline, or offsets, and the entire model updates instantly.

🖨️ Print Settings (and Multicolor Guide)

🧵 Material PLA, PETG, Matte PLA (matte white + matte black create a premium contrast)

🧱 Infill - 10%–15% is plenty.

🧱 Walls - 2–3 walls for optimal strength.

✨ Top Surface Finish - Enable Ironing on the highest top surface for a smooth, professional finish on the text.

🎨 Color Swap (Manual Multicolor)

Slice the model normally, then add a Pause at the exact layer where the base thickness ends, Swap filament (e.g., white → black), resume printing, and the unified base layer ensures a perfect color break.

❤️ Share Your Makes

Every print carries a piece of your creativity. If this generator helped you build something unique, upload your photos and show the community what you made.
