<p>0.2 mm BBL Standar</p><p>Soporte de árbol orgánico </p><p>Compensación de contorno x-y 0.5 mm </p>

<p>0.2 mm BBL Standard</p><p>Organic tree support </p><p>x-y contour compensation 0.5 mm </p>

0.2mm layer, 2 walls, 15% infill

ModelWorks3D

Screenshot 2026-07-01 220053.png

<p>I changed a bunch around in the slicer, including the wall settings, print speeds, layer height, and a few other tweaks to help it print cleaner while keeping the print time down. It came out really well on my printer, and it&#39;s a simple but really useful little print that fits nicely and works exactly as intended, so I thought I&#39;d share the profile in case it helps someone else get a similar result. It&#39;s also properly smoothed out, so it fits more securely and air-tight.</p><p>&nbsp;</p><p>Big thanks to the original creator for sharing such a great design!</p>

Wall tuning | Speed tweaks | Better fit

You may create derivative works based on this object, provided that all such derivative works are published exclusively on the MakerWorld platform and include proper attribution to the original creator. You may not share, upload, host, distribute, or publish this object—or any derivative work of this object—on any other digital platform, marketplace, or distribution channel. Commercial use of this object and any derivative works is strictly prohibited. This includes, but is not limited to, selling, renting, sublicensing, or using the object in any context in which you receive monetary compensation or other financial benefits.

This user content is licensed under the MakerWorld Exclusive License.

<h2>Conector Cónico Tipo Árbol con Rosca Interna (9/16-18 UNF 2B)</h2><p>Este modelo es un componente funcional diseñado para actuar como adaptador o conector de acoplamiento en sistemas de distribución de oxígeno a baja presión, humidificadores o flujómetros. Su diseño integra una sección de fijación mecánica mediante rosca interna y una salida de fluido optimizada para mangueras flexibles.</p><h2>      Características de Diseño y Geometría</h2><ul><li><strong>Conexión de Entrada (Rosca Interna):</strong> Diseñado con una rosca estándar <strong>9/16-18 UNF Clase 2B</strong>. La geometría de los hilos está completamente modelada en el archivo para permitir un acoplamiento directo, firme y seguro sobre terminales macho compatibles, garantizando la alineación concéntrica del conector.</li><li> </li><li><strong>Perfil de Salida (Tipo Árbol / Barb):</strong> La sección superior cuenta con una geometría escalonada en forma de cono estriado. Este perfil está diseñado específicamente para facilitar la inserción de tuberías o mangueras plásticas y de silicona, utilizando la propia elasticidad del tubo para crear un sello por fricción que evita desconexiones accidentales bajo presión de trabajo.</li><li> </li><li><strong>Conducto Interno Optimizado:</strong> El núcleo de la pieza presenta un canal continuo y liso que minimiza las restricciones de flujo, asegurando una transición de gas constante y sin turbulencias desde la fuente de suministro hacia la línea de salida.</li></ul>

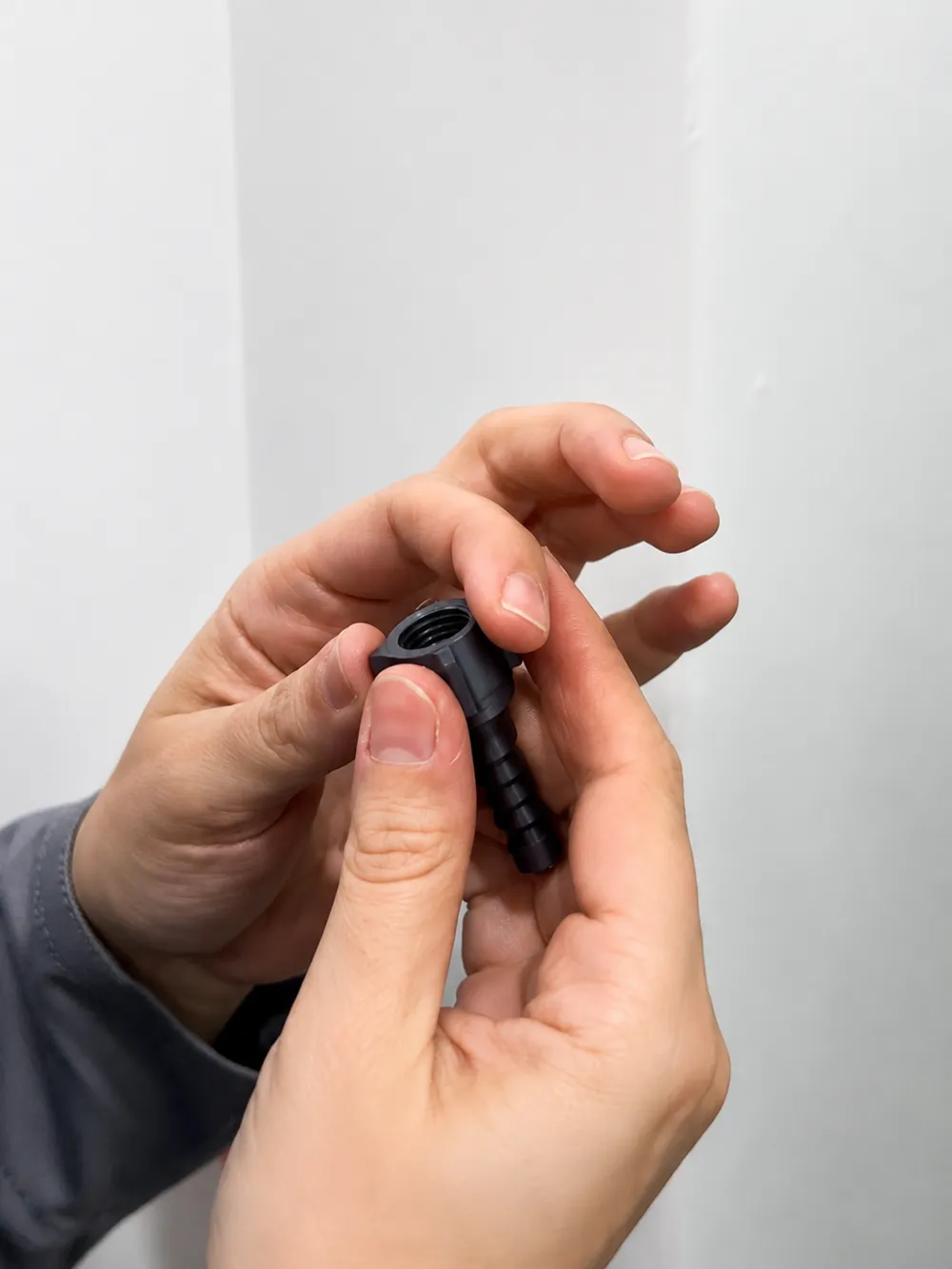

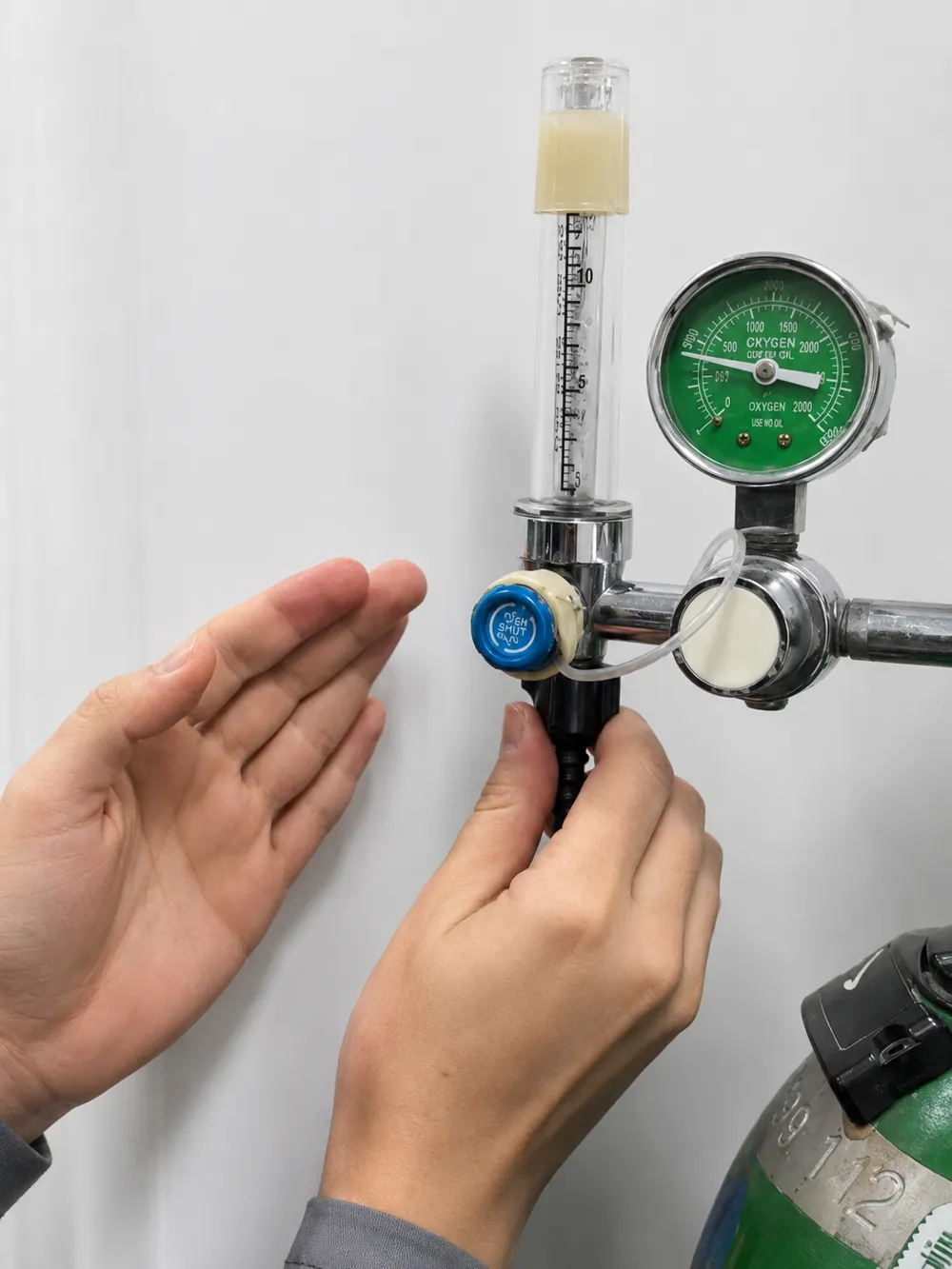

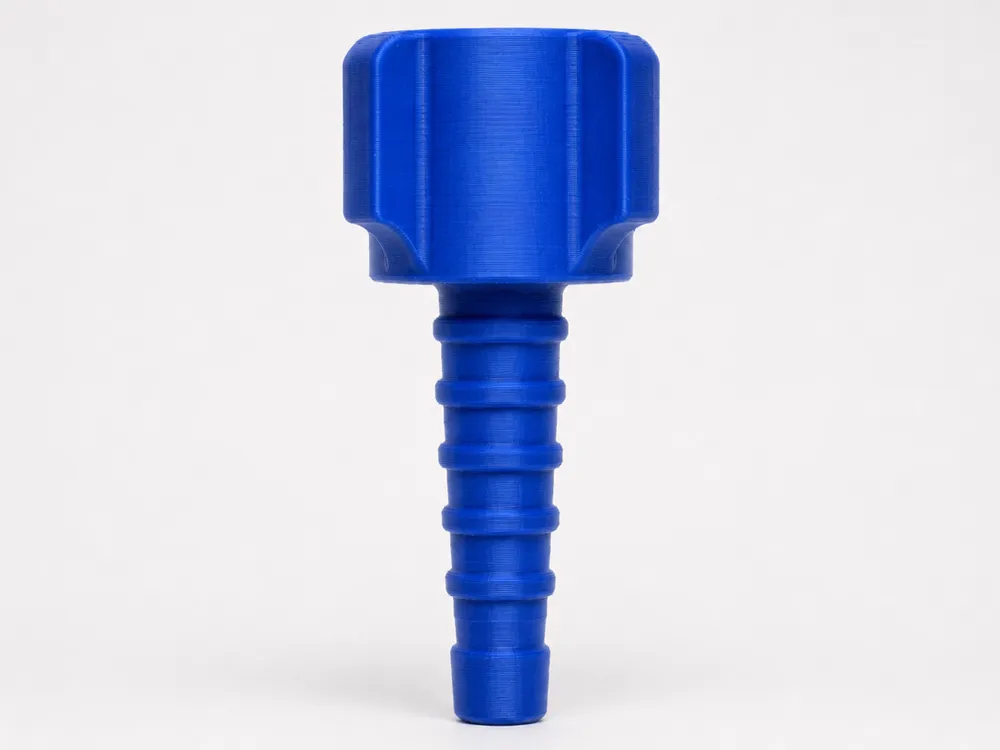

<h2>Tapered Barb Connector with Internal Thread (9/16-18 UNF 2B)</h2><p>This model is a functional component designed to act as an adapter or coupling connector in low-pressure oxygen distribution systems, humidifiers, or flow meters. Its design integrates a mechanical fastening section via an internal thread and a fluid outlet optimized for flexible hoses.</p><h2>      Design and Geometry Characteristics</h2><ul><li><strong>Input Connection (Internal Thread):</strong> Designed with a standard <strong>9/16-18 UNF Class 2B</strong> thread. The thread geometry is fully modeled in the file to allow for direct, firm, and secure coupling onto compatible male terminals, ensuring concentric alignment of the connector.</li><li> </li><li><strong>Output Profile (Barb Type):</strong> The upper section features a stepped geometry in the form of a ribbed cone. This profile is specifically designed to facilitate the insertion of plastic and silicone tubing or hoses, utilizing the tube's own elasticity to create a friction seal that prevents accidental disconnections under working pressure.</li><li> </li><li><strong>Optimized Internal Duct:</strong> The core of the part features a continuous and smooth channel that minimizes flow restrictions, ensuring a constant and turbulence-free gas transition from the supply source to the outlet line.</li></ul>

Print Profile(2)

Description

Tapered Barb Connector with Internal Thread (9/16-18 UNF 2B)

Design and Geometry Characteristics
