Playground Safety Gauges (ASTM F1487, F1918, CPSC)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.2 h
1 plate
Open in Bambu Studio
Boost
0
0
0
0
0
0
Released
Description

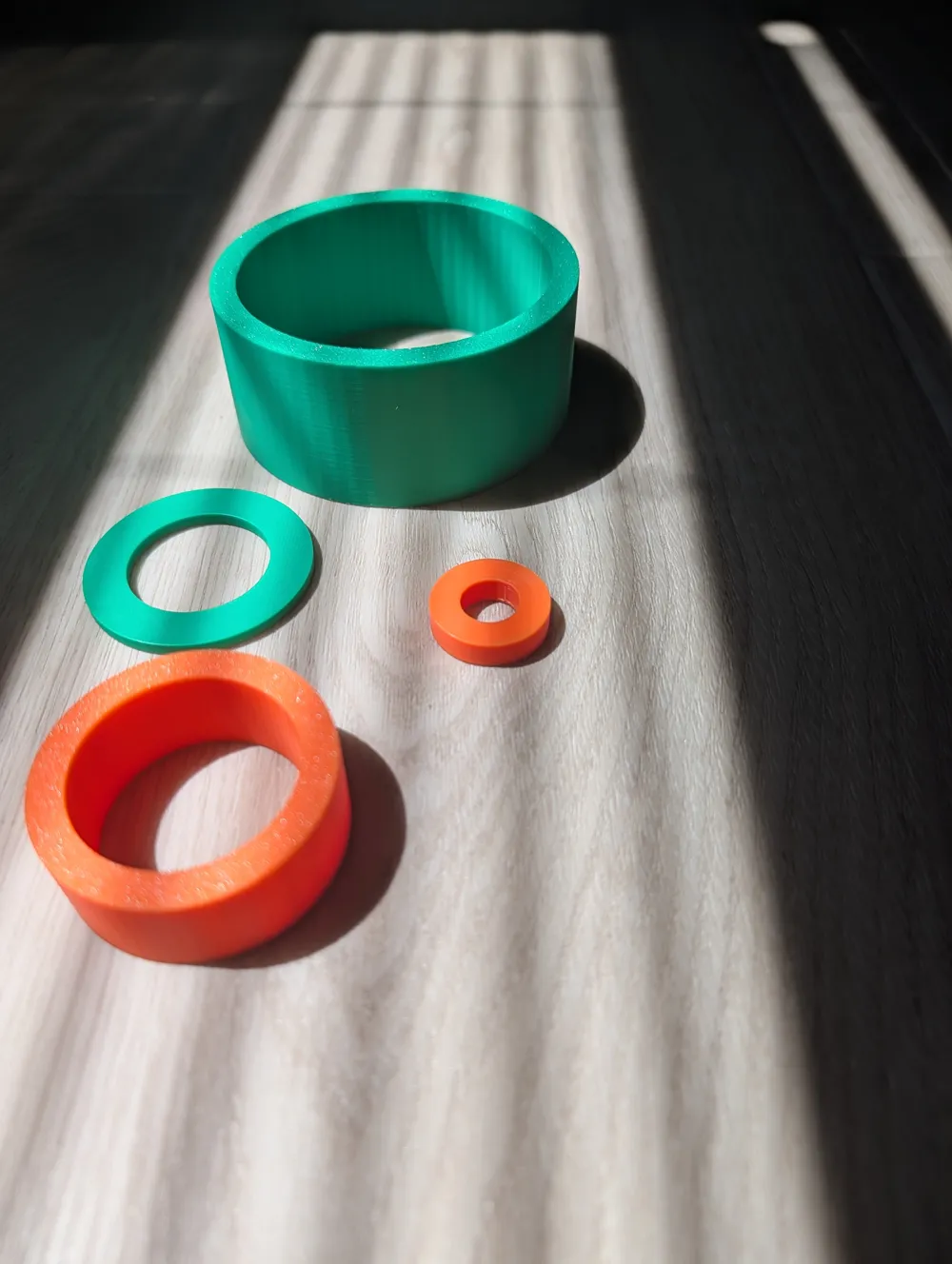

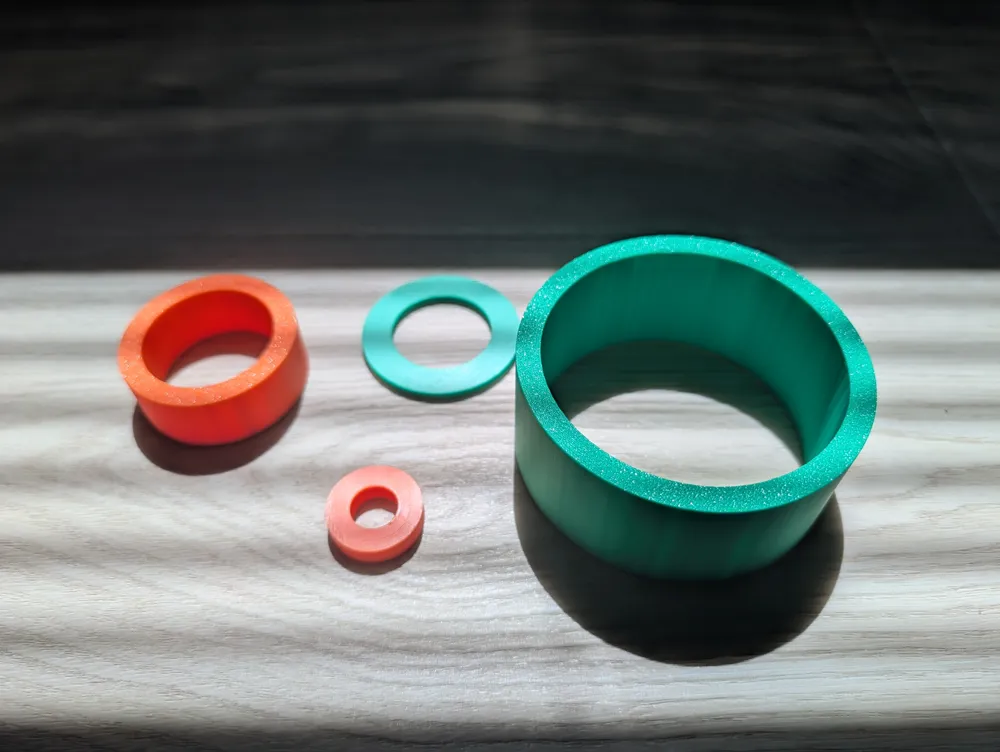

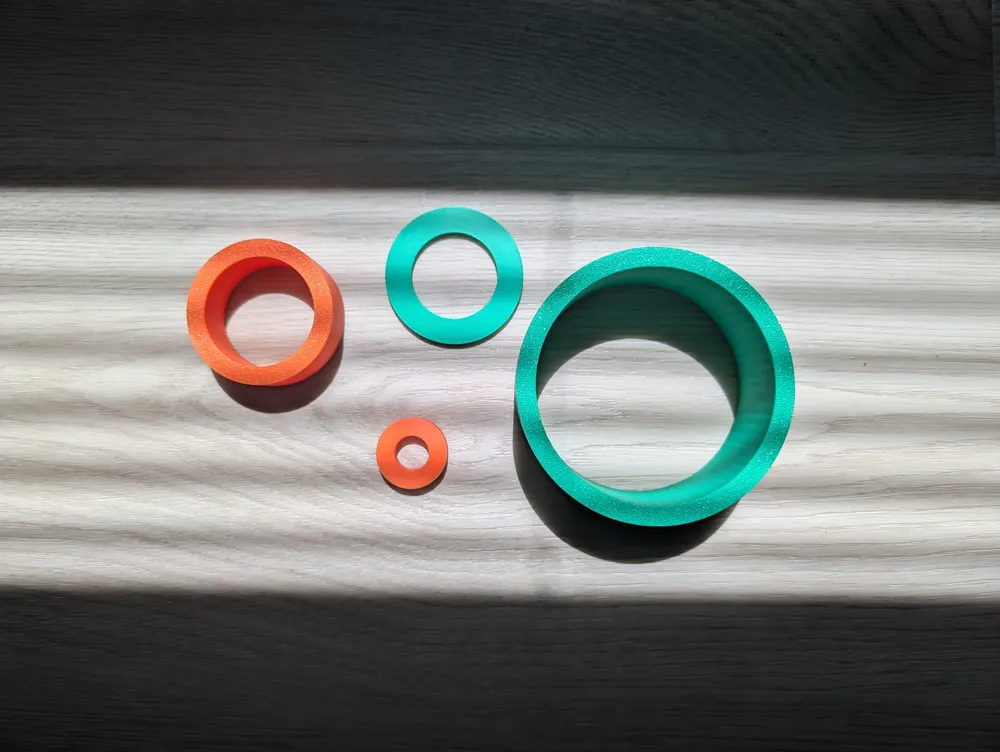

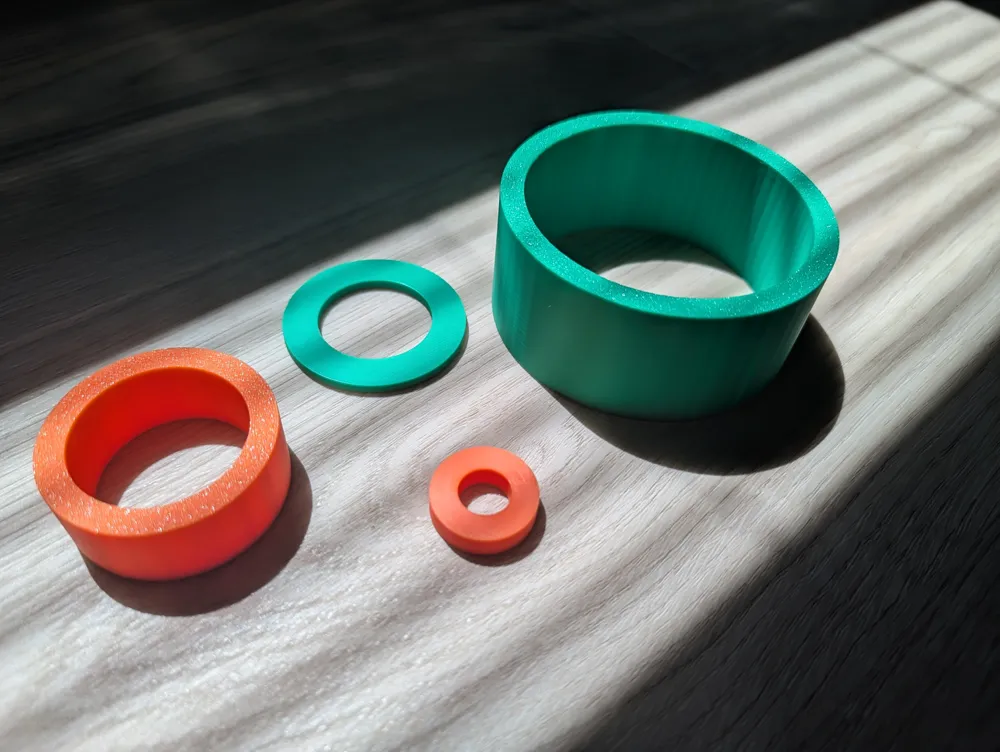

These gauges were designed in direct compliance to design for ASTM F1487, ASTM F1918, and CPSC Playground Safety Handbook, Publication 325.
Consult your ASTM document for use of these test gauges.
| Gauge | Outer Ø | Inner Ø (hole) | Thickness | Wall width* |
|---|---|---|---|---|
| Small | 1.000″ / 25.40 mm | 0.500″ / 12.70 mm | 0.250″ / 6.35 mm | 0.250″ / 6.35 mm |
| Medium | 2.000″ / 50.80 mm | 1.500″ / 38.10 mm | 0.750″ / 19.05 mm | 0.250″ / 6.35 mm |
| Large | 3.500″ / 88.90 mm | 3.000″ / 76.20 mm | 1.500″ / 38.10 mm | 0.250″ / 6.35 mm |
| Flat | 2.000″ / 50.80 mm | 1.250″ / 31.75 mm | 0.125″ / 3.18 mm | 0.375″ / 9.53 mm |
