Acoustic Panel Shelf 48 cm – Modular Shelf
Print Profile(1)
Description
✦ Acoustic Panel Shelf

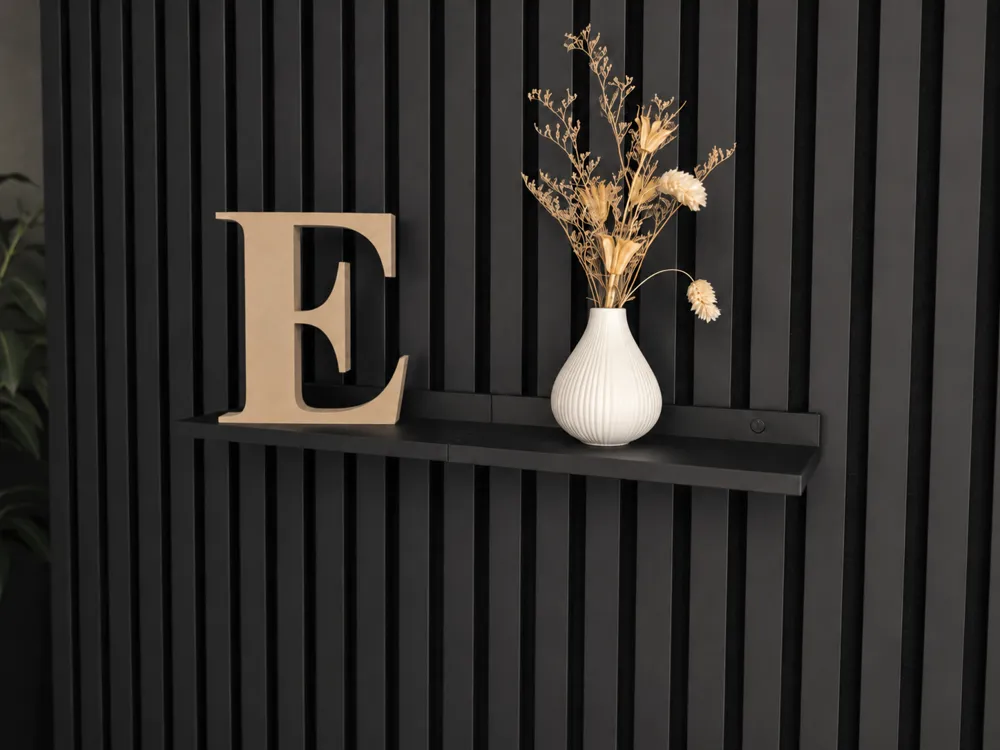

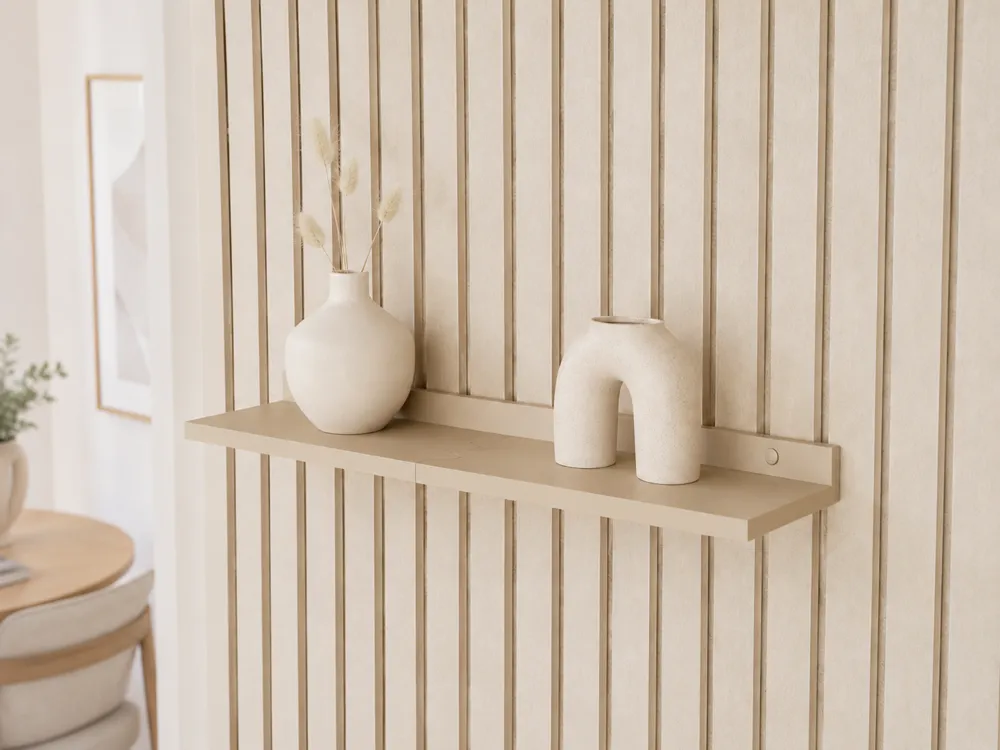

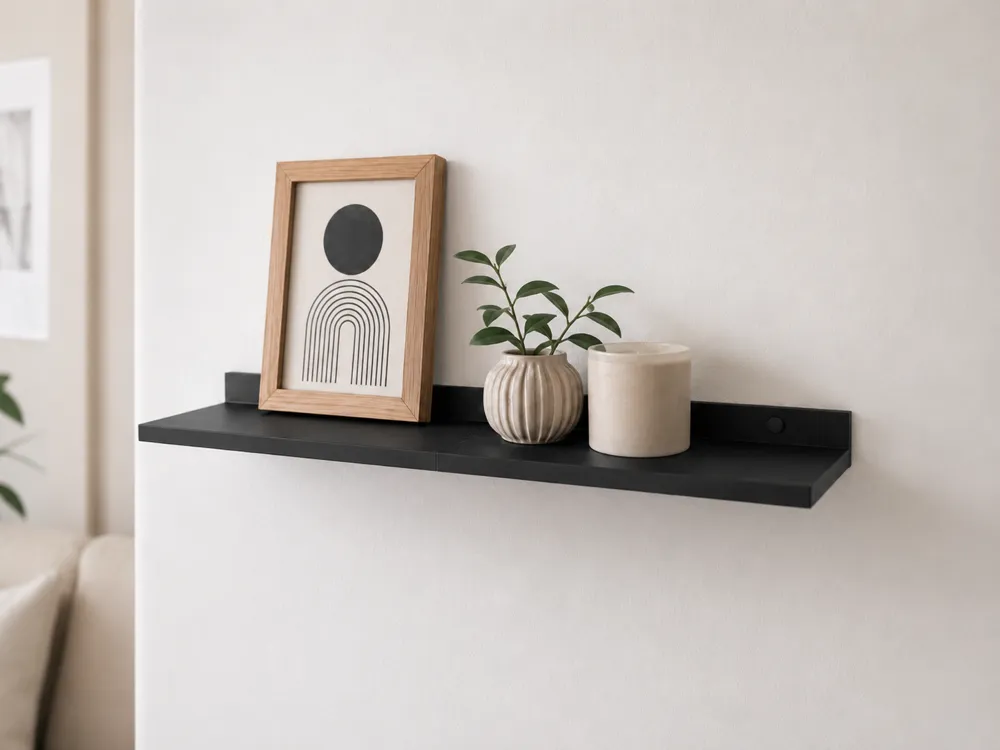

Minimalist 3D-printed shelf for mounting on acoustic panels – perfect for small decorations, vases, picture frames, or lightweight home accessories.

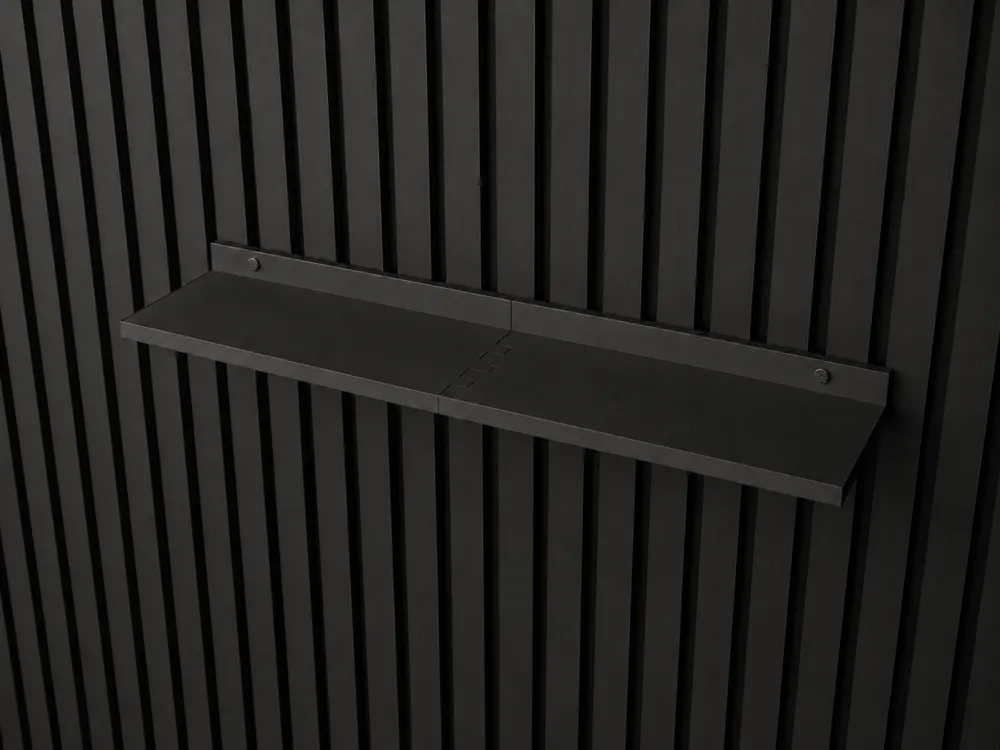

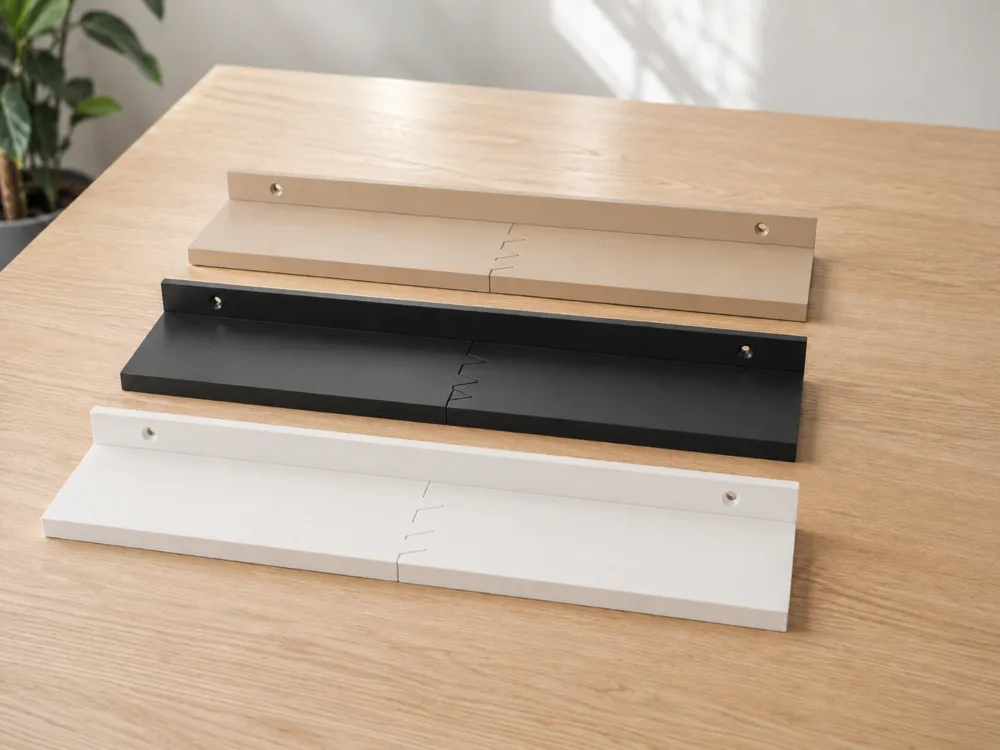

The shelf consists of 2 parts that slide into each other and together form a total length of 48 cm. The connection is deliberately a little tight so that both halves hold as stably as possible after assembly.
Mounting is done via 2 M4 holes in the back panel. The holes are designed with an internal thread so that M4 screws can grip cleanly.
✦ Dimensions & Details
▸ Total length assembled: 480 mm
▸ Material thickness / Shelf board: 10 mm
▸ Back panel height: 20 mm
▸ Total height including base area: 30 mm
▸ Holes: for M4 screws
▸ Distance between drill holes: 400 mm
▸ Construction: 2-part, pluggable / interlocking
▸ Area of application: Acoustic panels, slatted walls, decorative walls
✦ Tested Combination
The shelf was tested on the following acoustic panel:
Acoustic panel black matte 2400 × 561 × 19 mm from toom
For mounting, 2 matching M4 Twist-Lock clips were used:
M4 / M5 / M6 Twist-Lock Mounting for Acoustic Panel on MakerWorld
✦ Note
The shelf is ideal for decoration. Depending on the filament and fastening used, the load capacity may vary. With PLA+ and tight fastening, the shelf can also support heavy vases.
