Wearable Dragon Scale Gauntlet | Highly Flexible and Free

Gauntlet structure source @Miss crow's snack pack

I redesigned the entire exterior model and the rivet model.

I significantly optimized the rivet structure, which increased print success rate and greatly improved assembly success rate.

Tools you need: a pair of flat-nose pliers (using flat-nose pliers to install rivets will save you a lot of time)

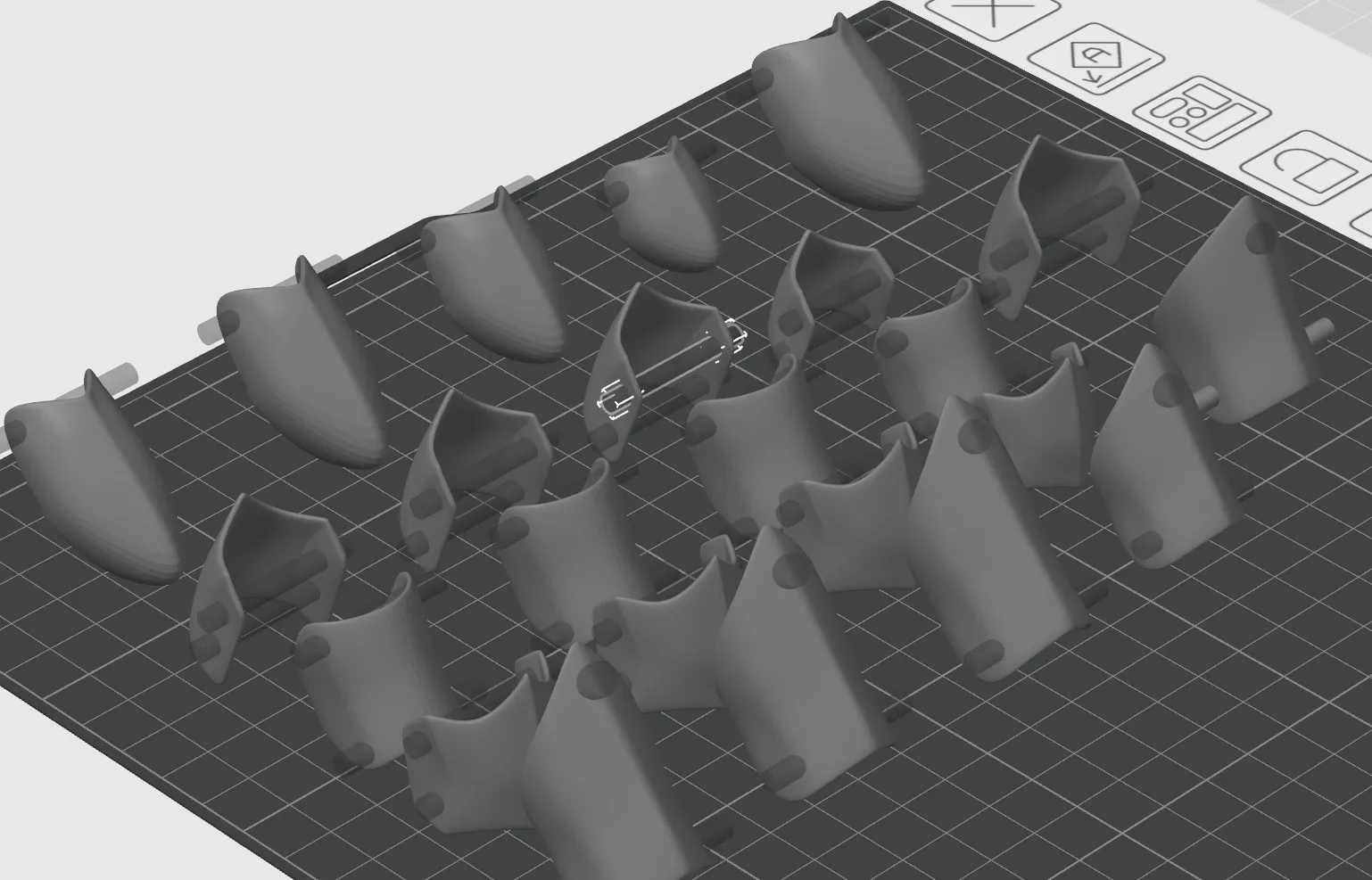

I processed all the armor plates with negative parts, so you can freely adjust the size of the holes.

Please test the fit between the rivets and holes before printing.

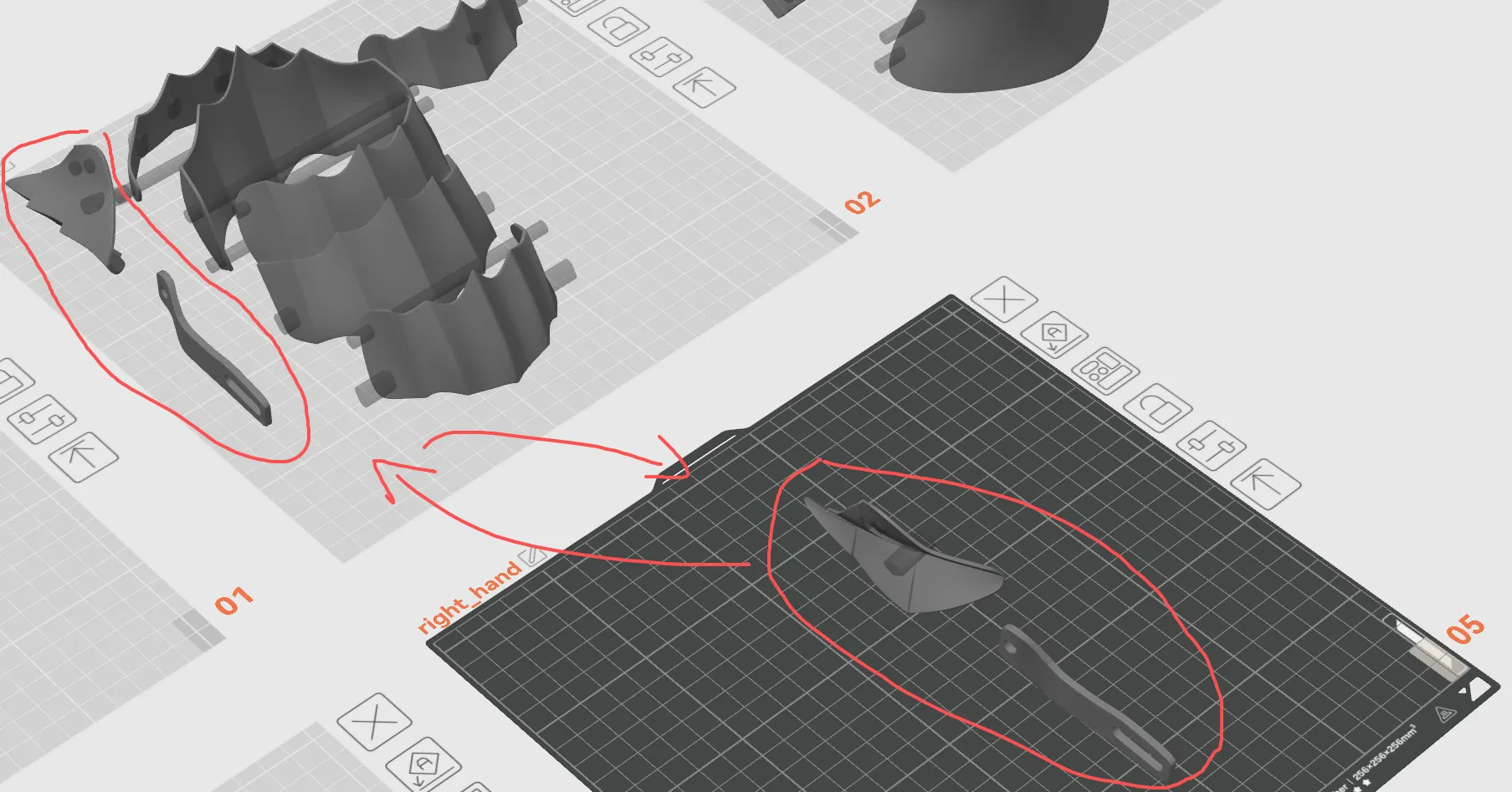

If you need to print the right hand, please print plate 05 and remove the duplicate parts, then repeatedly print plates 01-04. If you only need the left hand, then printing 01-04 is sufficient.

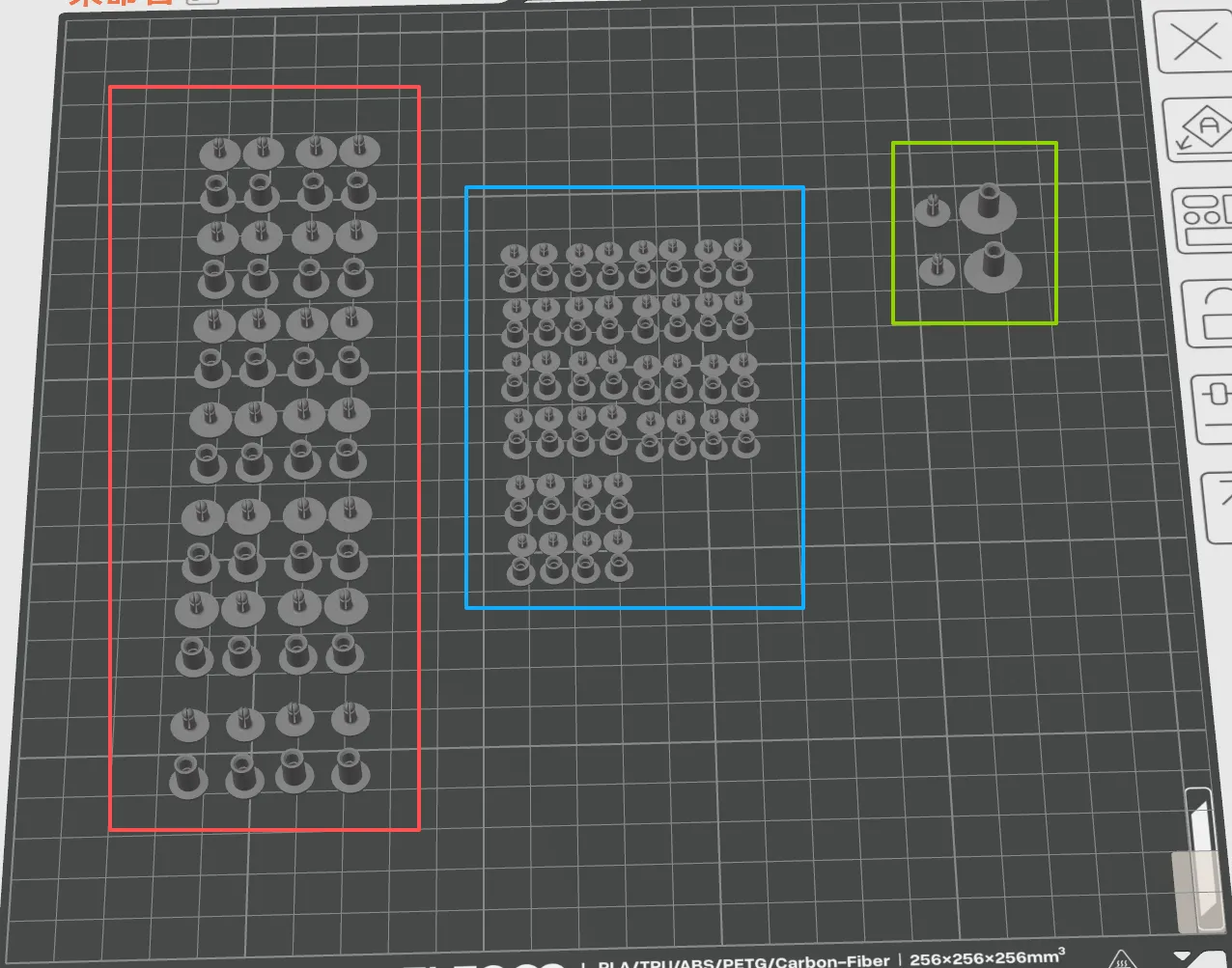

The large rivet on the left is for the large armor plate sections, the small rivet in the middle is for the finger link sections, and the largest rivet on the right is for connecting the thumb to the armguard.

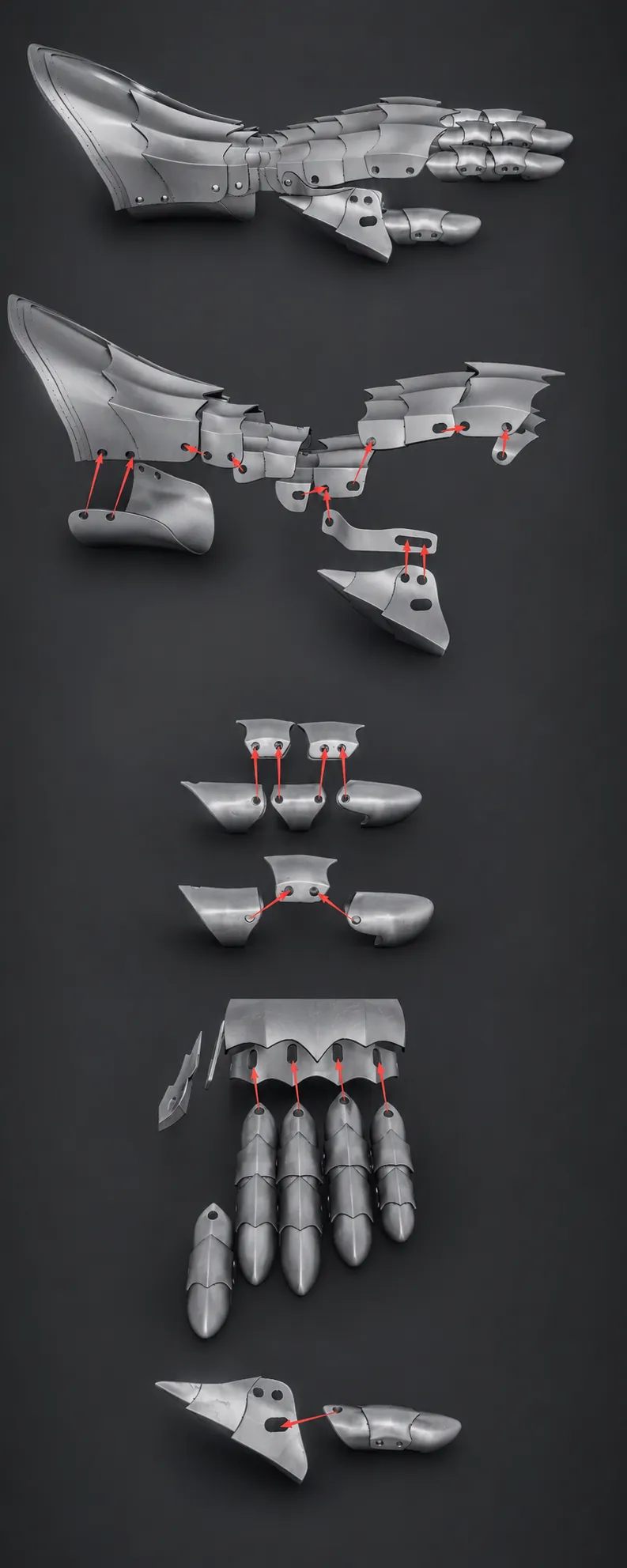

Picture assembly tutorial:
