Gladiator GearWall GearTrack Shelf Brackets
Print Profile(2)
Description

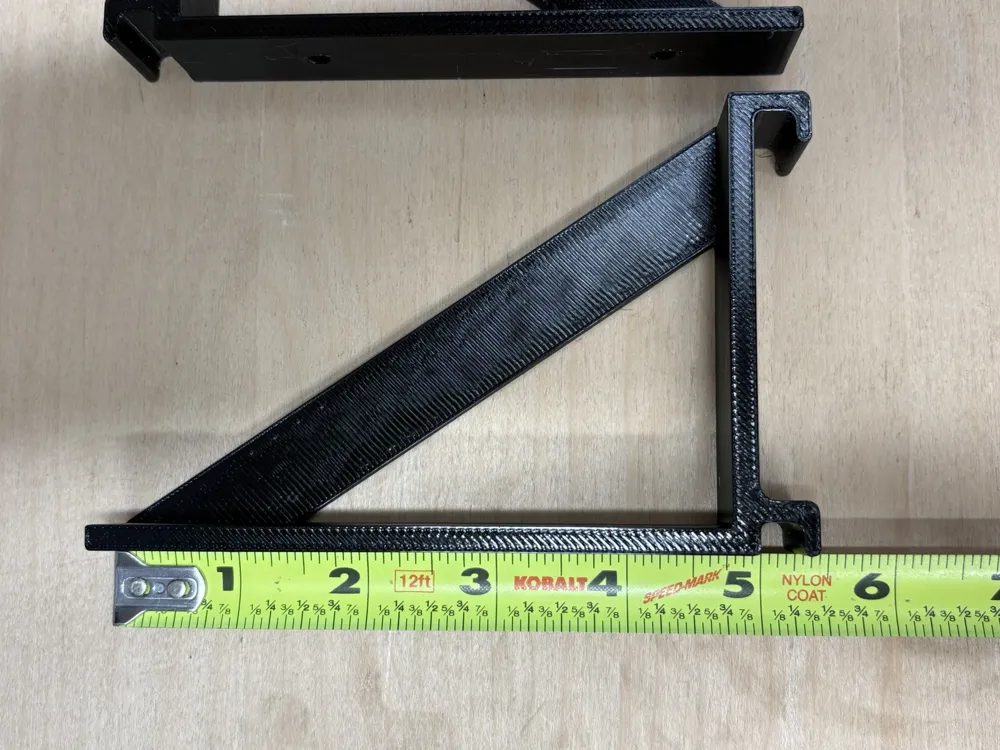

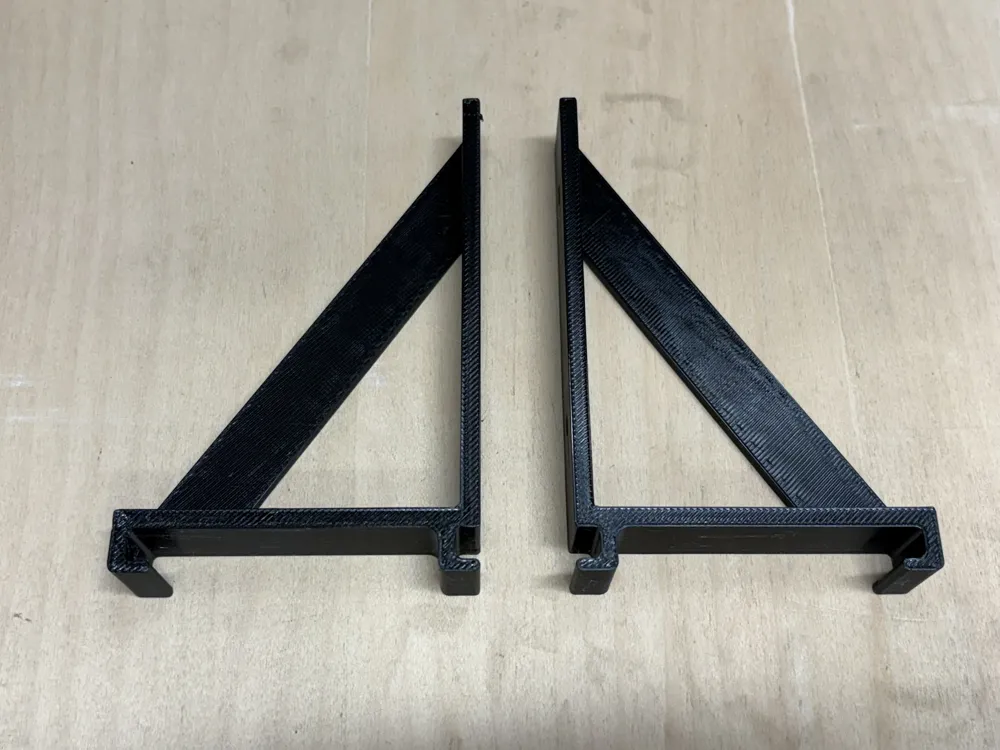

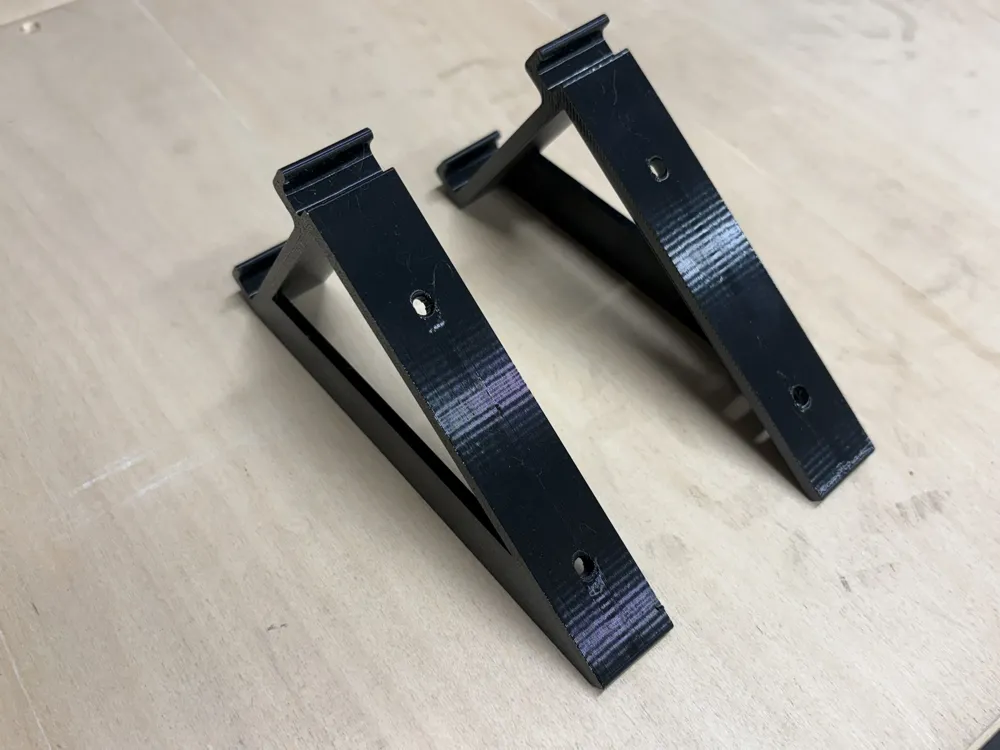

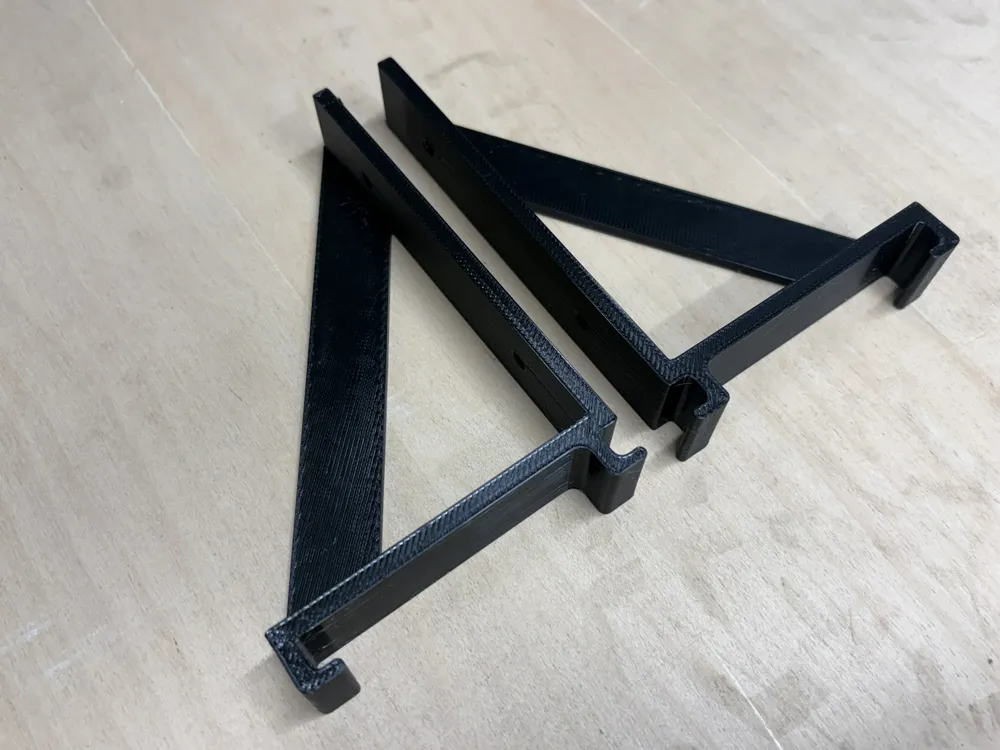

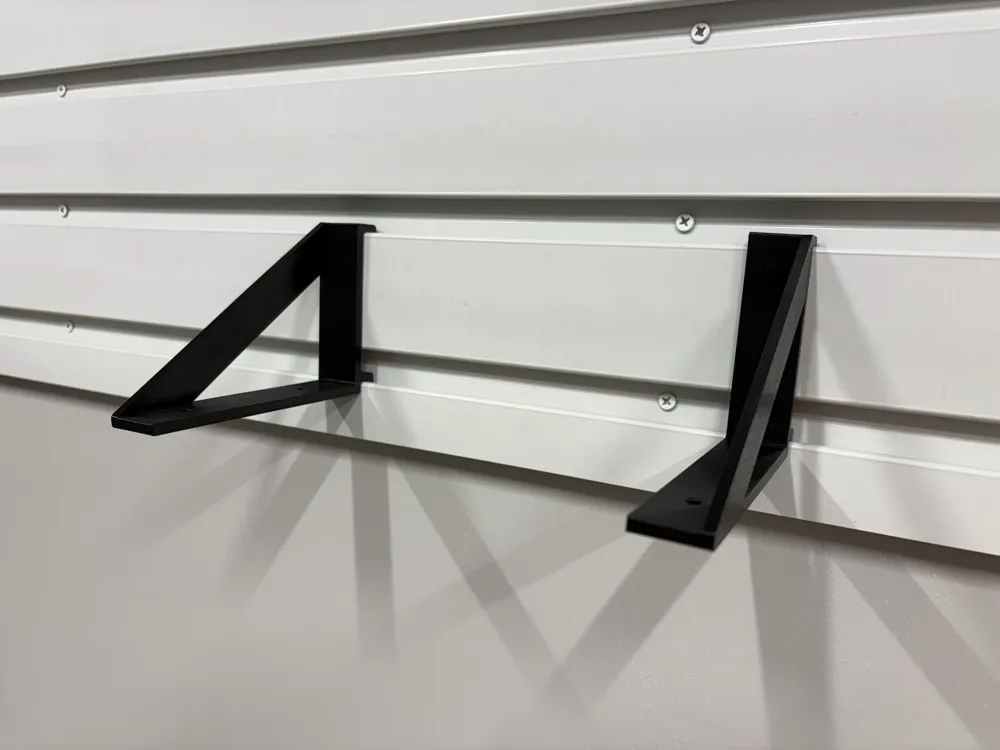

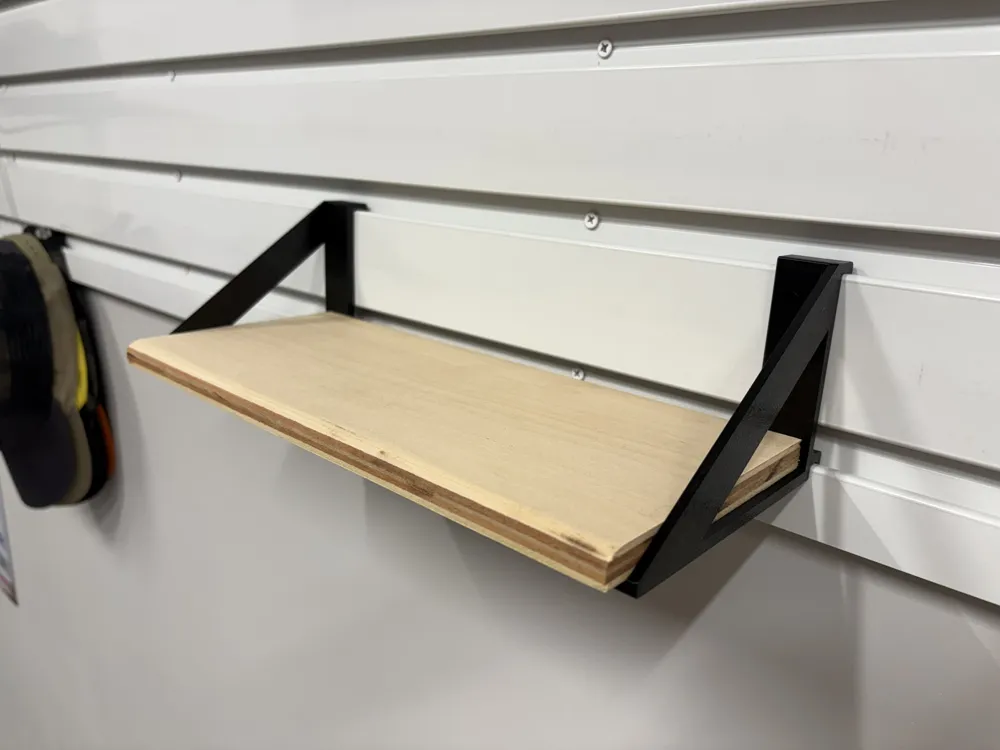

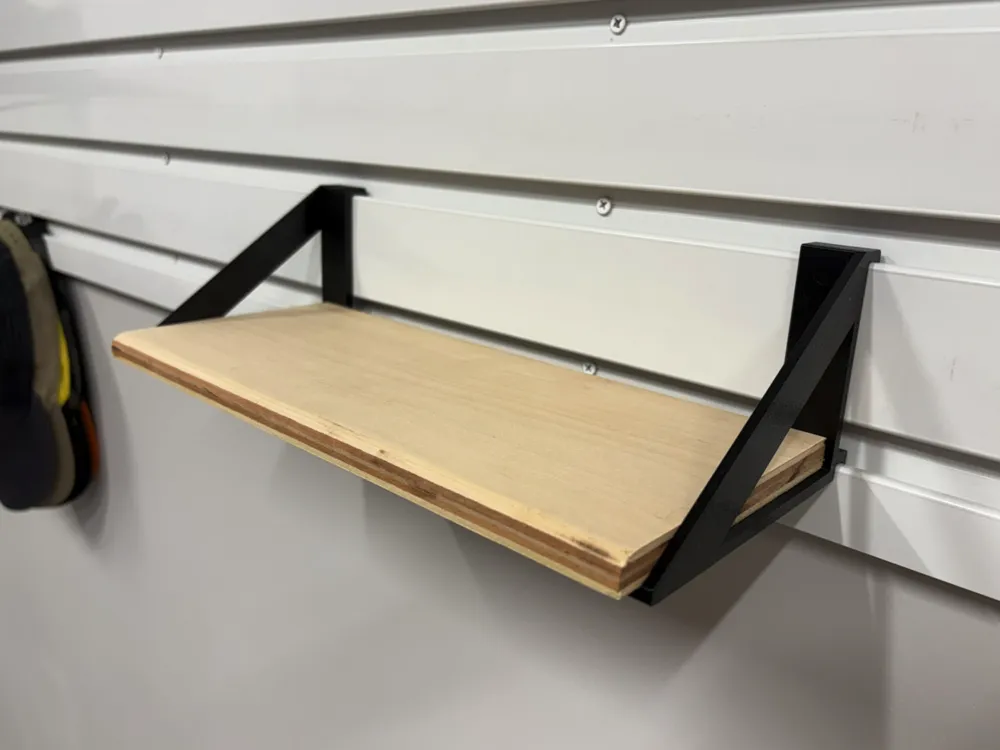

Shelf brackets for Gladiator GearWall/GearTrack slat wall system. Should support shelves 5"-7" deep since the brackets are 4.75" deep, mine are only 5" deep. Unlike most brackets, these brackets support from the side rather than the bottom, maximizing clearance below. Assemble with #8 pan head screws from the hardware store. Brackets will probably fit any slat wall with 3" spacing, but have not tested (leave a comment if you try it). I needed these to clear the mounting screw on the wall, so these brackets do not clip into the top. Once I screwed on a shelf, they were very snug and I am not worried about them coming out. Recommend fitting the bracket to the wall, installing the shelf, and then screwing in place since your wall is most likely not perfectly flat and pre-assembly could cause undo stress on the brackets.
PETG, ABS, or ASA recommended. PLA is strongly discouraged since these brackets will be under constant load and PLA will break over time.
Boost Me (for free)
If you think this is awesome, give it a boost to say thanks. They are very much appreciated. Even if you don't have a boost, please rate the profile. It all helps reward designers. Cheers!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
