Bosch Series 9 & 10 Vacuum Wall Mount Rack

Bosch Series 9 & 10 Vacuum Wall Mount Rack (Without the docking station)

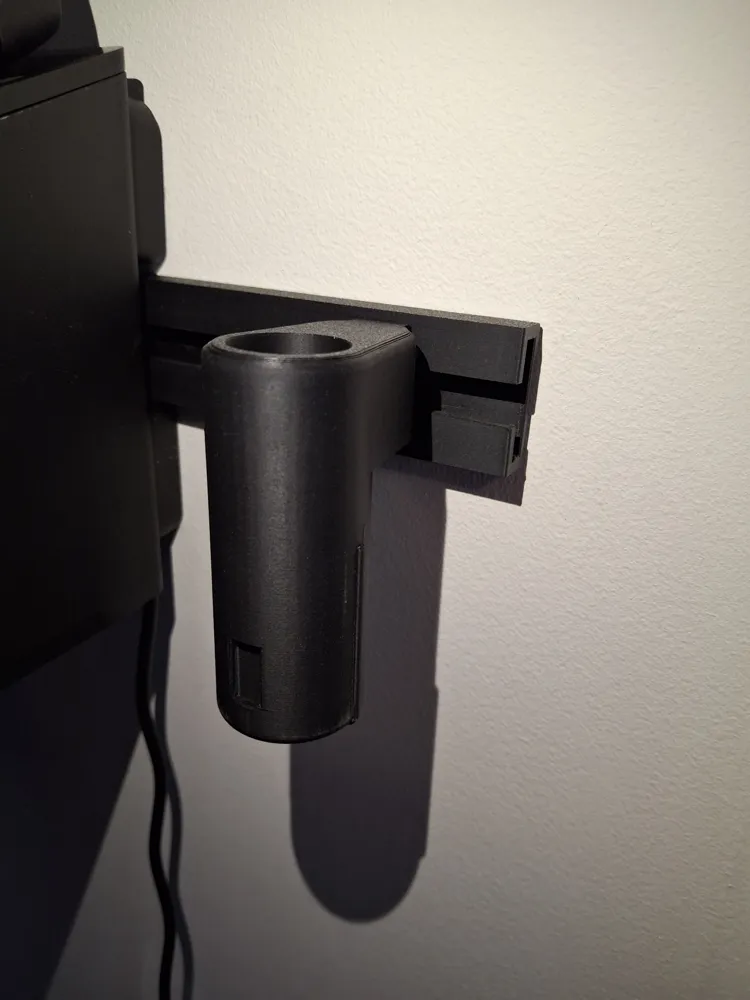

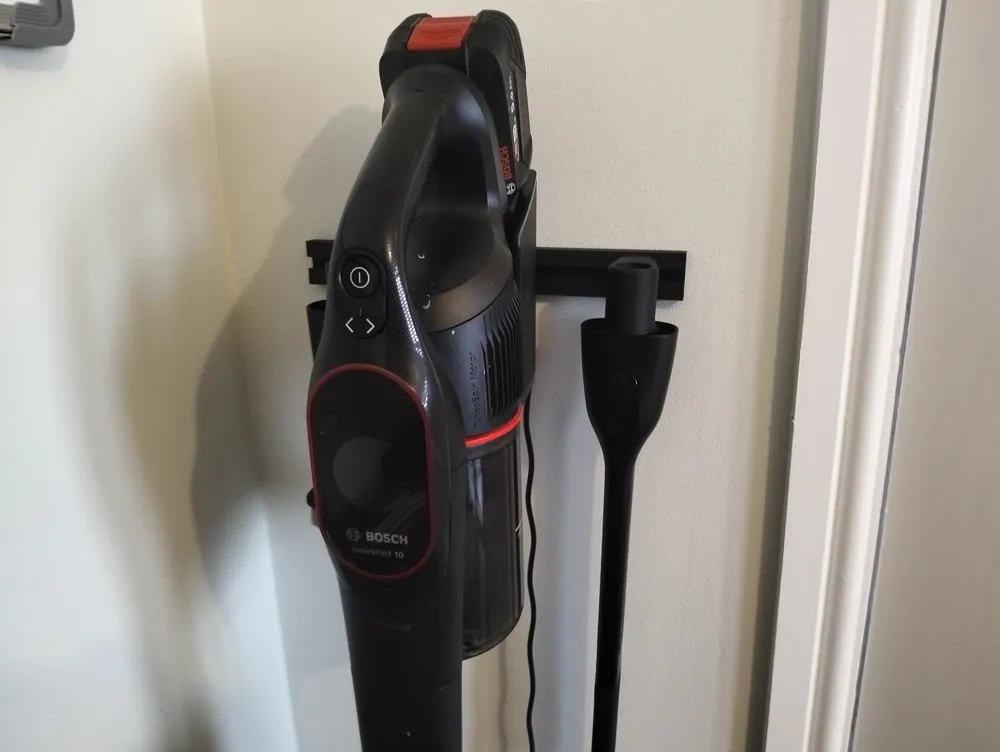

I wanted a cleaner way to store my accessories for my Bosch Series 10 vacuum and keep the most-used accessories in one place, so I designed this wall mount rack with holders.

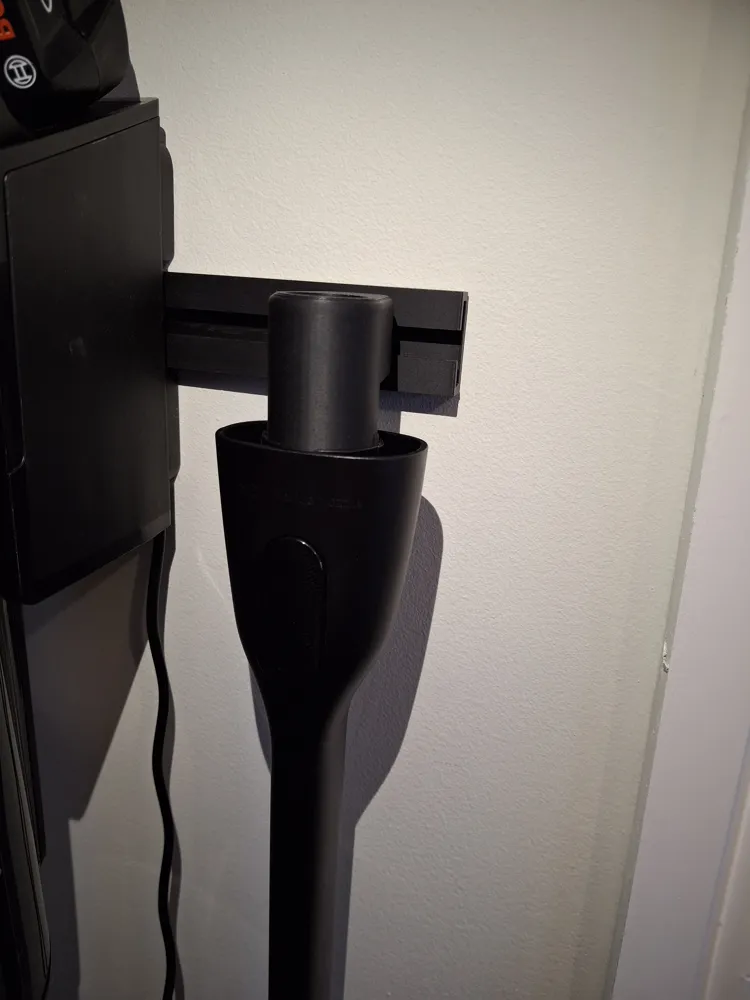

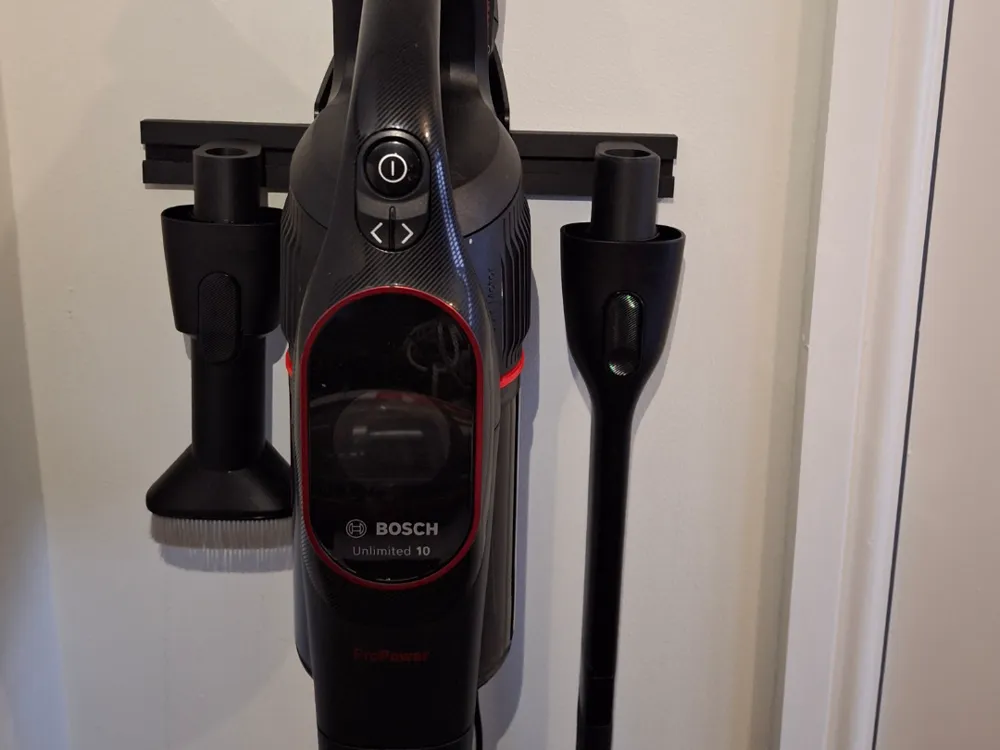

It holds the accessories, making everything easy to grab and put away after cleaning.

If you print it, feel free to post a make, leave a rating, or suggest improvements. I'm always happy to refine the design based on community feedback.

Print Settings
Material: PLA or PETG
Layer height: 0.20 mm
Infill: 20–30%

Mount the rack to a solid wall or suitable wall anchors using screws appropriate for your wall type. You will need 2x bolt with screw M6 L30. The flat nuts are to be installed inside the rack and the screws are to be installed through the docking stations. Make sure it is securely fastened before hanging the vacuum.
