## Recommended Settings  - Material: PLA for indoor household use; PETG for workshop, garage, damp, or warmer environments.- Layer height: 0.20 mm.- Walls: 3 walls recommended; use 4 walls for tougher shop use.- Infill: 15-25%.- Supports: off for the default adapter and wall clip. Optional barb ribs, stop collars, and brush collars may require supports depending on size and slicer settings.- Brim: recommended for tall narrow crevice nozzles or high transition lengths.  ## Orientation  Print the adapter upright with the hose-side connection on the bed and the nozzle pointing upward. This keeps the airflow path vertical and avoids internal supports. The wall clip prints flat on the bed.  ## Fit Tuning  Measure the mating hose or port with calipers. For a male insert, positive tolerance reduces the printed outside diameter. For a female socket, positive tolerance increases the printed inside diameter. Print a short test adapter or use conservative tolerance before committing to very long nozzles.  ## Use Notes  This is a generic measured-dimension adapter. It does not guarantee an airtight seal, pressure rating, or compatibility with any named vacuum system. Add tape, foam, gasket material, or a clamp if your application needs a better seal.

0.2mm layer, 2 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

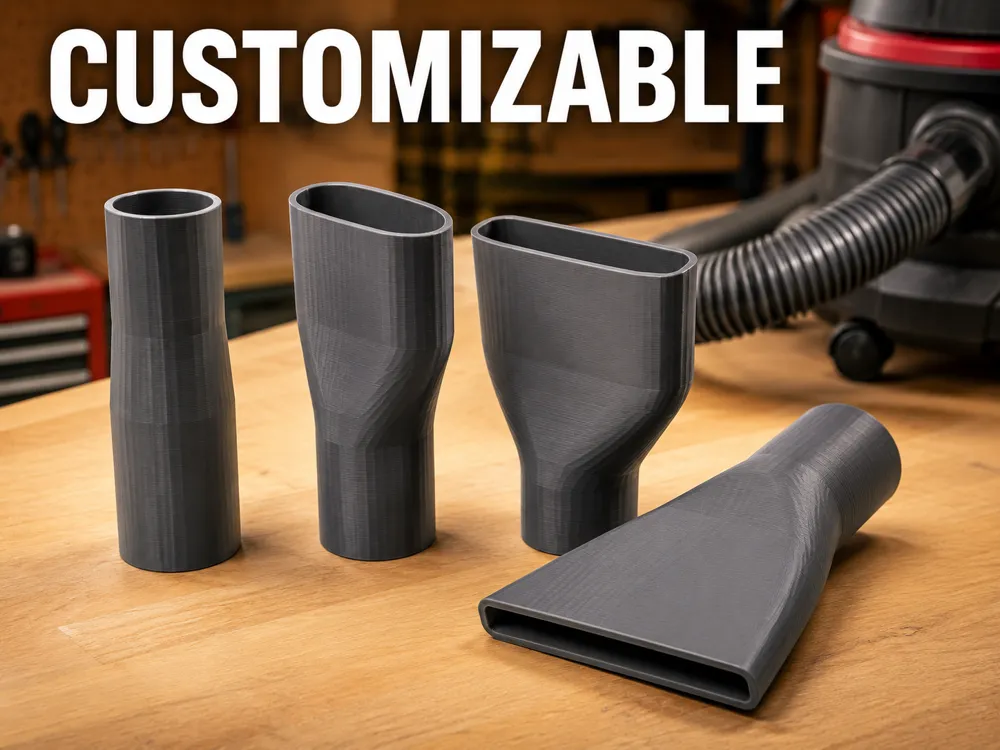

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>If you enjoyed this model, I&#39;d really appreciate a Boost. It helps me create more free designs for the community. Thank you! ❤️</boostcontent></boostme>Customizable vacuum hose adapter and nozzle generator for measured round hoses, flat crevice tips, oval tips, rectangle tips, barb ribs, brush collars, and an optional wall clip.  Create a measured-fit vacuum adapter without hunting for a fixed size. This parametric generator starts from a round hose-side connection and lets you build a reducer, expander, nozzle, or transition into a round, oval, rounded-rectangle, or flat crevice outlet.  Measure the hose, socket, or dust-port diameter you want to fit, choose male insert or female socket mode, then tune the friction-fit tolerance. Add optional shallow hose barb ribs, a stop collar, a raised brush collar for user-added brush strip or felt, or a separate wall clip for storing the adapter near your bench.  The default model is a compact 32 mm male insert with a flat crevice nozzle and support-free retention features left off. It is intentionally generic and does not claim compatibility with any specific vacuum brand or proprietary connector.  Customization Notes  - Use `male_insert` when the printed part should slide into a hose or socket.- Use `female_socket` when the printed part should slide over a hose, nozzle, or dust port.- Increase `fit_tolerance` for a looser fit; reduce it for a tighter fit after test prints.- Use the round outlet for simple reducers/expanders.- Use oval, rectangle, or flat crevice outlets for custom nozzles.- Enable the brush collar when you plan to glue, tape, or clamp a user-supplied brush strip, foam, felt, or seal material around the tip.- Enable `adapter_clip` or `wall_clip` output to print the optional wall-mount storage clip.
