Cup Holder Mazda MX-5 NA/NB (1998–2000)

Description:

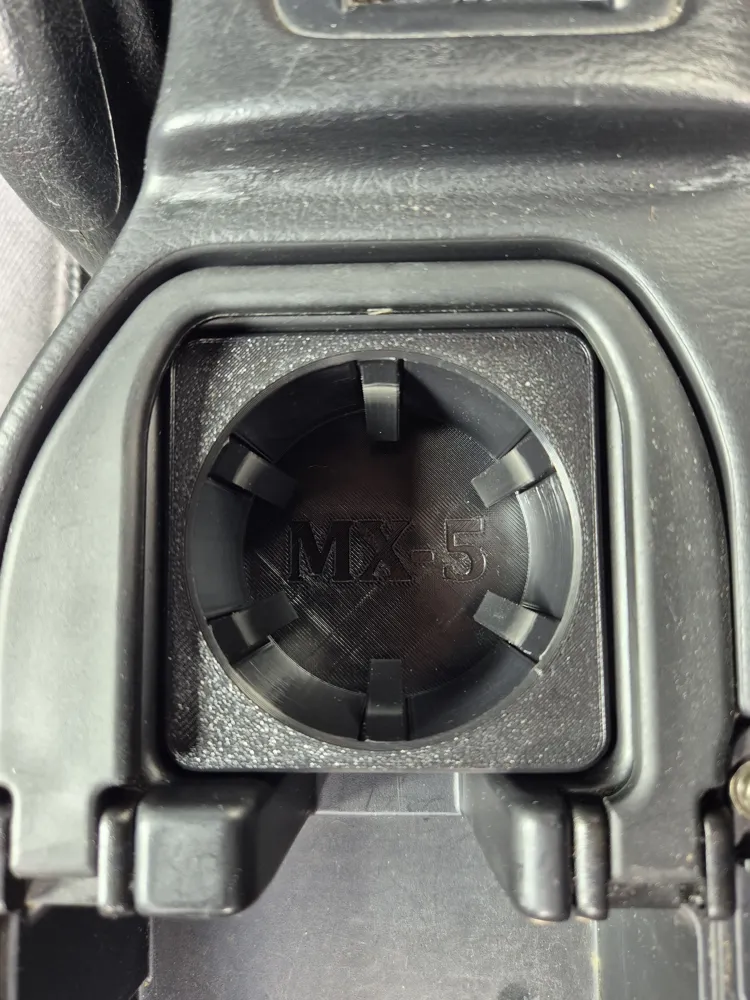

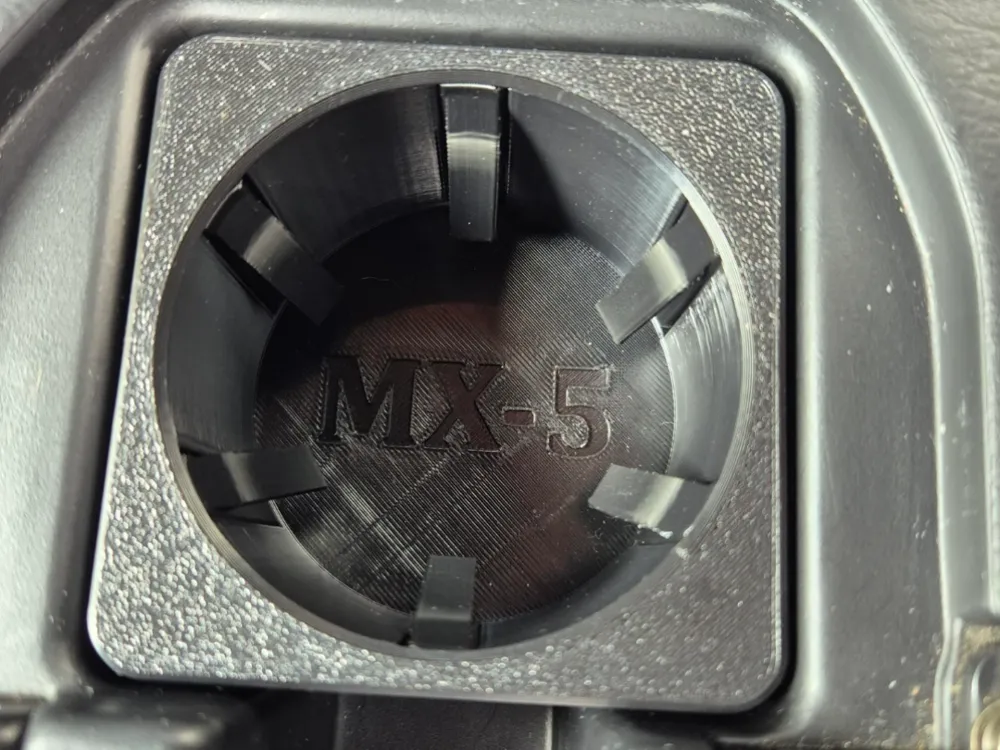

This is a modular cup holder insert designed specifically for the center console of the Mazda MX-5 NA/NB (model years 1998–2000). It provides a practical and secure way to hold cans and similar containers inside the vehicle without permanent modifications.

Main Features:

• Vehicle-specific fit – designed for Mazda MX-5 NA/NB (1998–2000) center console
• Clamp-based retention system – integrated clips hold cans securely in place
• Multi-size compatibility – supports different standard can diameters

• Compatible with foldable armrest – designed so the original center console lid/armrest can still be folded down and used normally



Assembly / Installation Instructions:

1. Insert the clips into the main body
   Push the clips into the slots of the main 3D-printed body until they fully lock in place.
2. Attach the top cover
   Place the lid onto the main body and press it down evenly until it sits flush and secure.
3. Final assembly check
   Make sure all parts are firmly connected and nothing is loose.
4. Install into center console
   Place the fully assembled unit into the vehicle’s center console.
5. Ready to use
   The installation is complete and the cup holder is ready for use with two secure drink positions.

Note:
Please print in ASA or ABS. If you live in a country with warm weather or high interior temperatures (e.g. cars parked in the sun), avoid PLA due to warping. ASA or ABS is recommended for better heat resistance and long-term stability.
