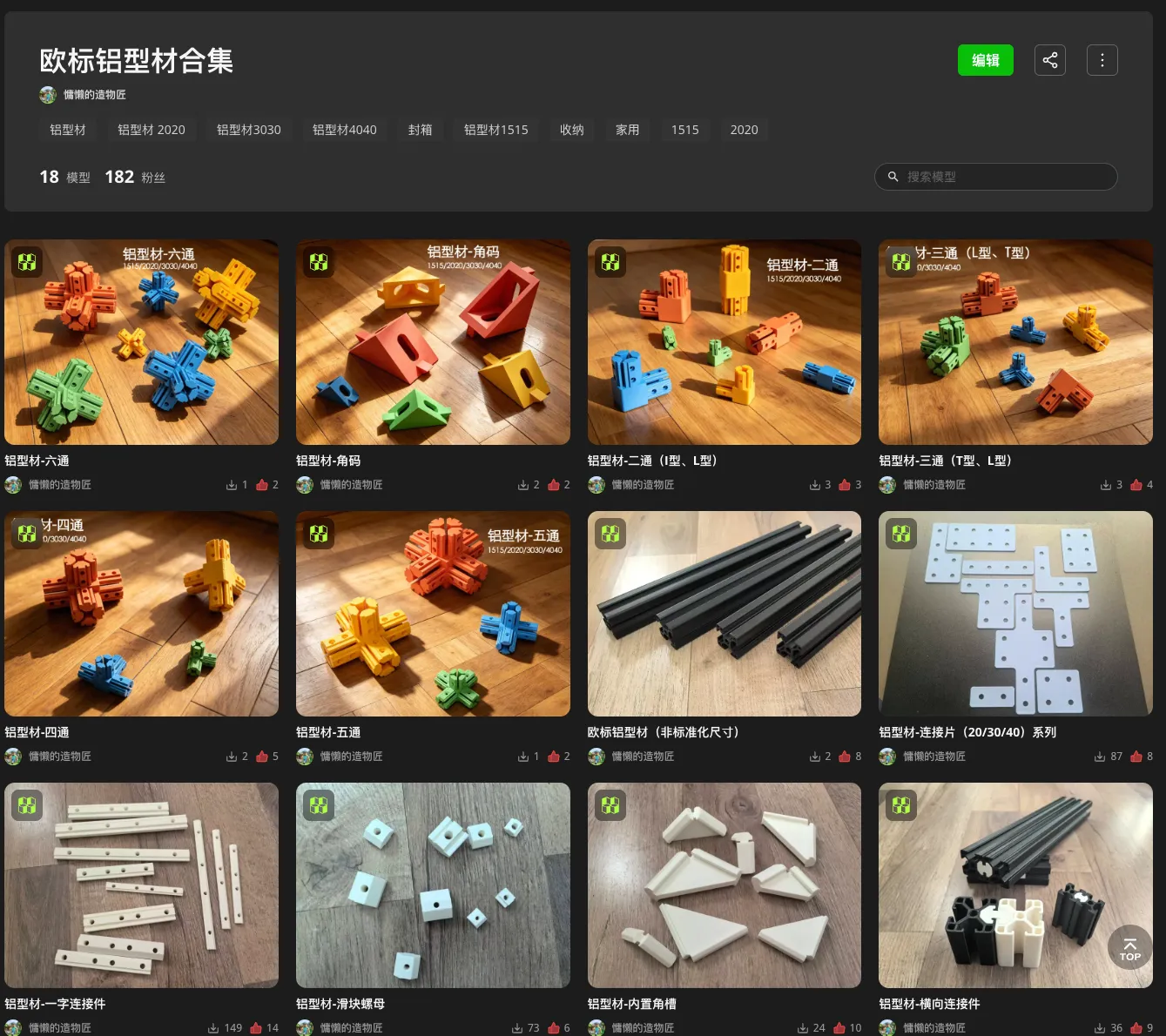

Click to view: Aluminum Profile Accessories Library Collection (Continuously Updated)

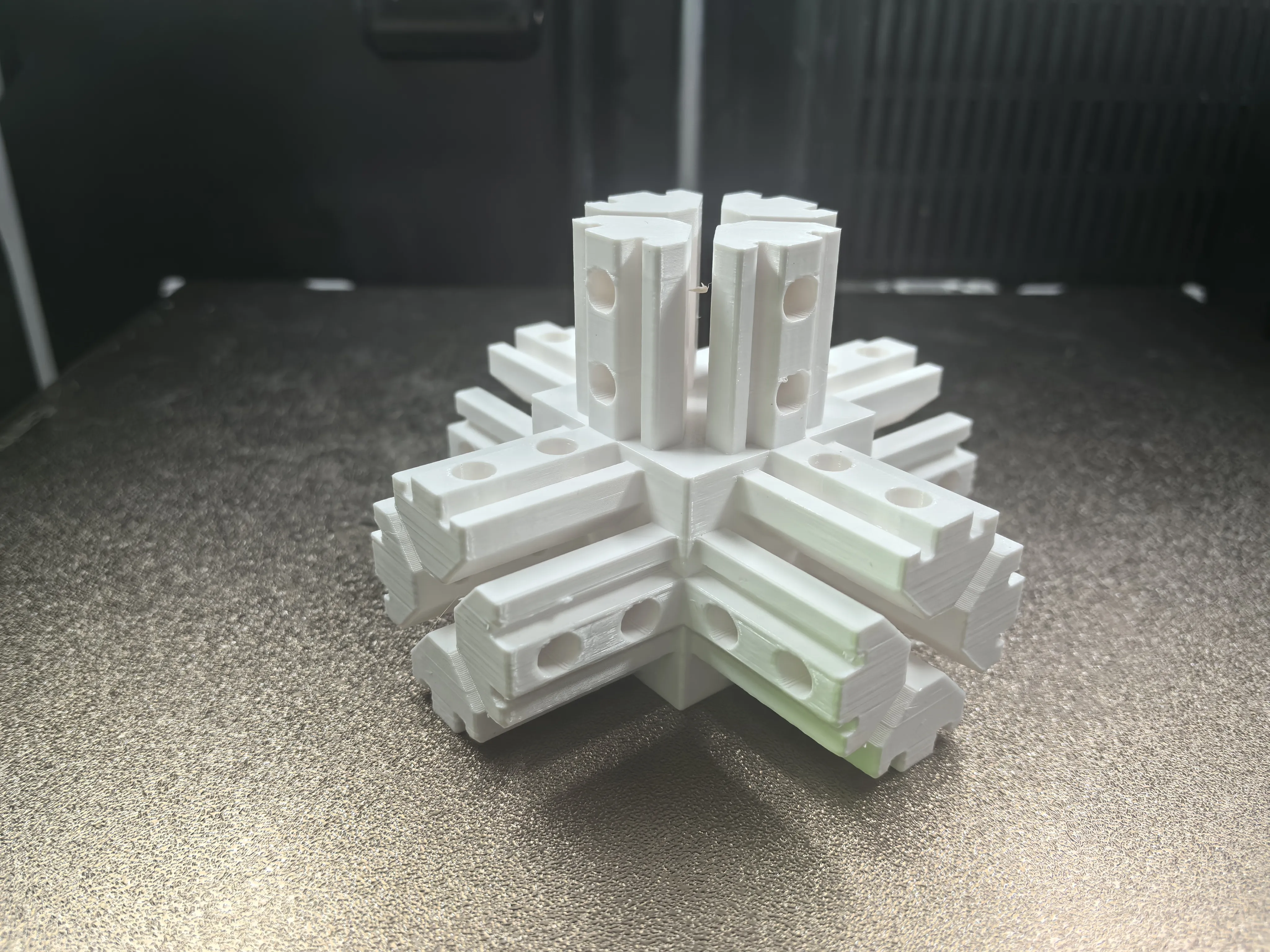

Aluminum Profile - Five-way Connector

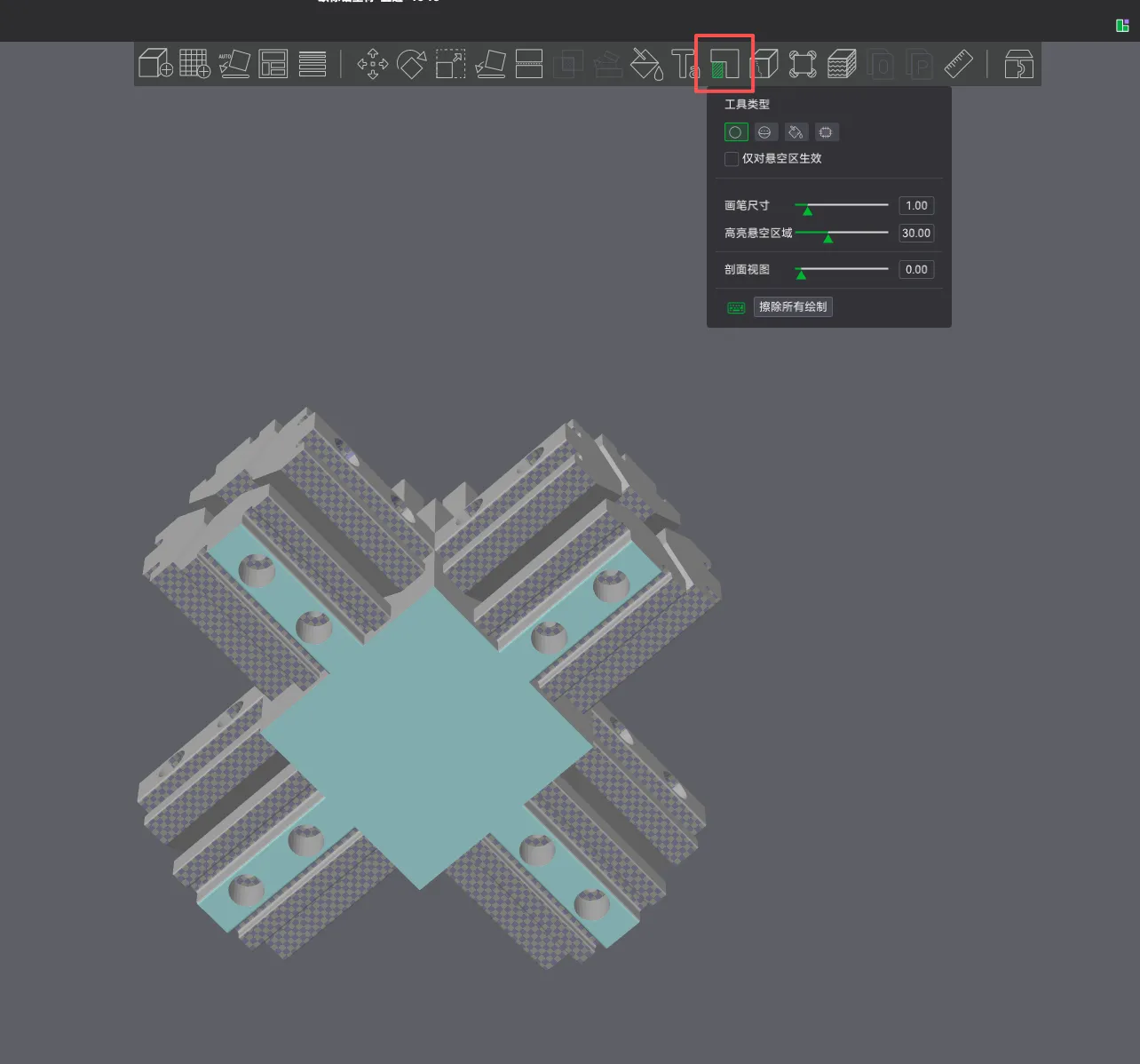

It is recommended that you download the print profile and adjust the support settings yourself through Bambu Studio to ensure the success rate of your print profile
Description:

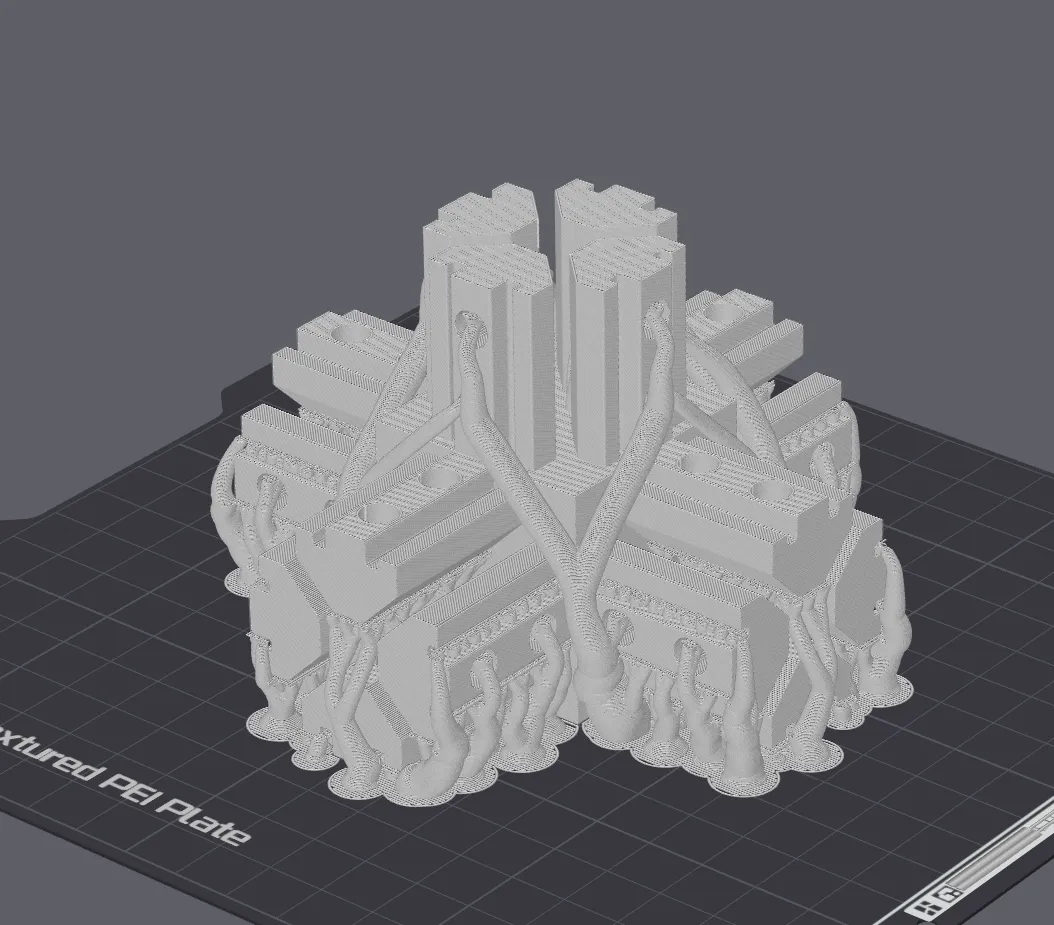

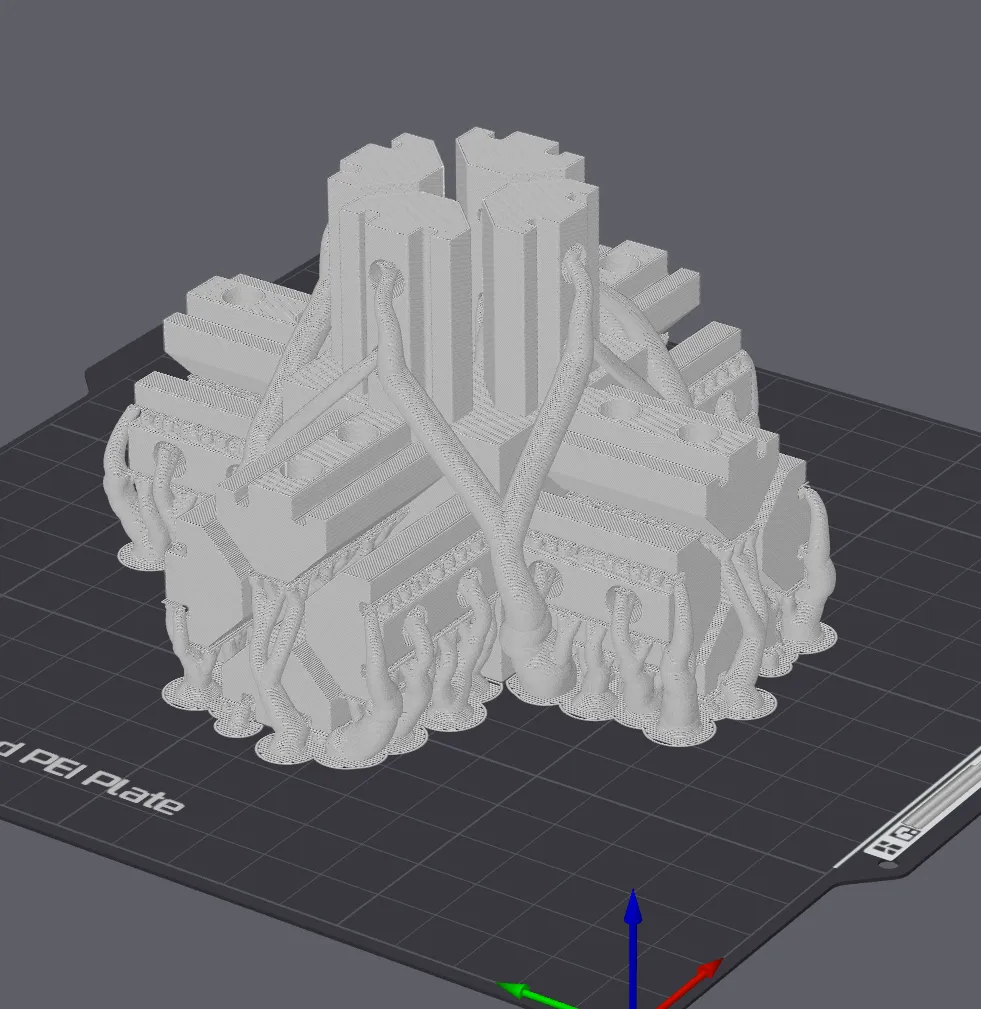

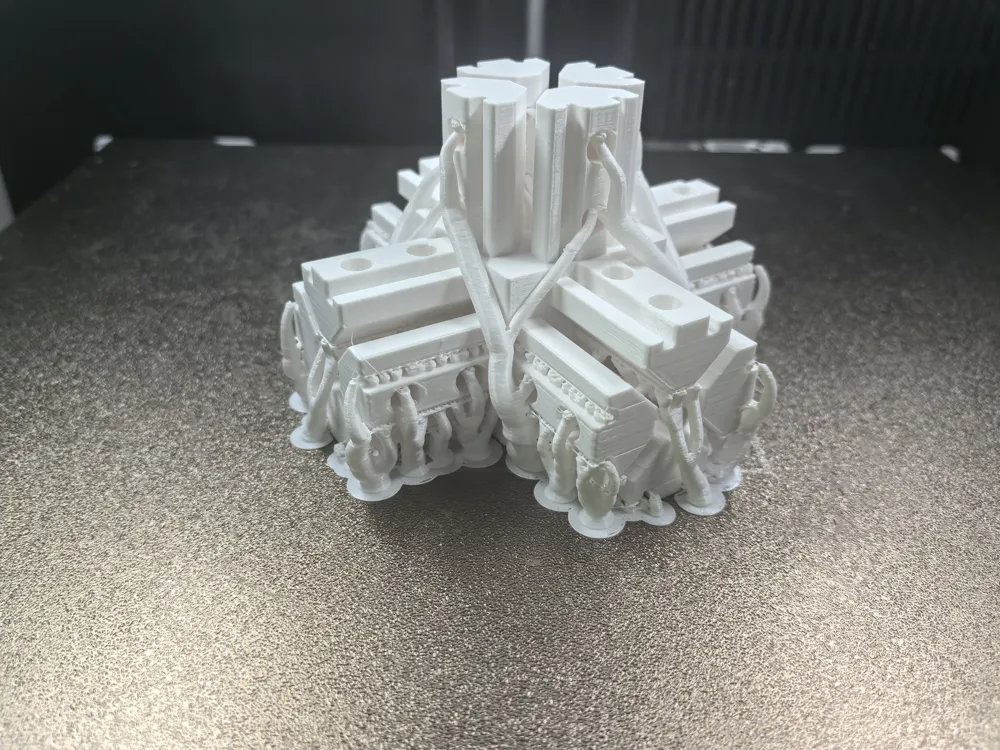

The five-way connector requires supports, and these supports are relatively complex, which can lead to print failures and difficult removal. It is recommended that you download the print profile and adjust the support settings yourself through Bambu Studio

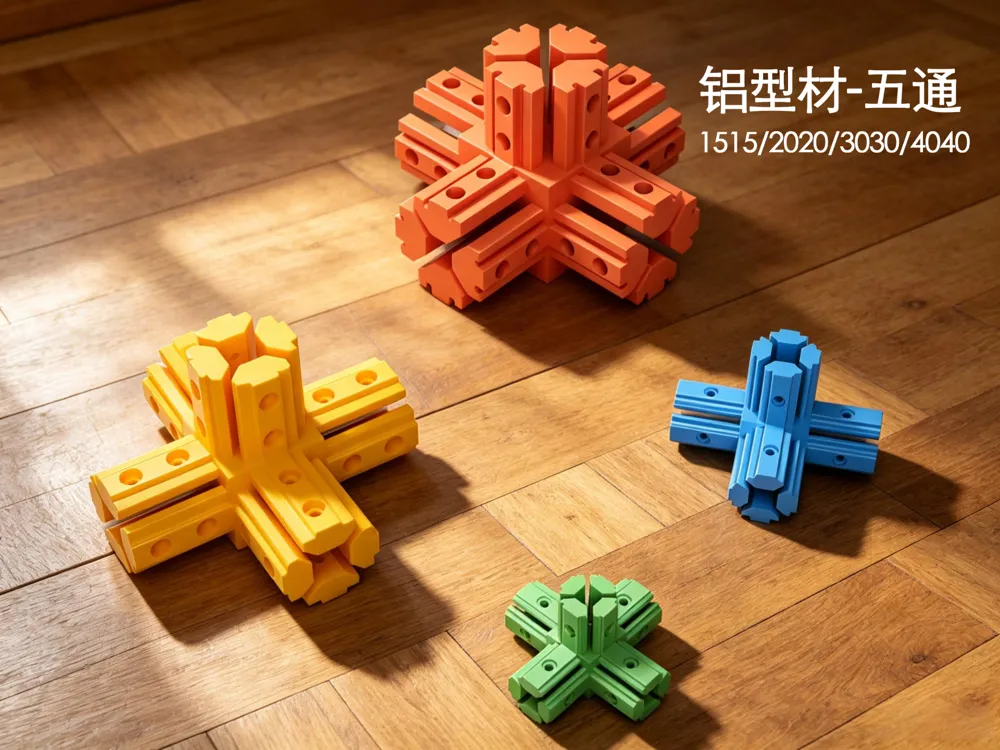

🔩 Compatible Models and Specifications
| Aluminum Profile Size | Recommended Screw | Default Hole Diameter |
|---|---|---|
| 15x15 mm | M2 | φ2.0 |
| 20×20 mm | M2 | φ2.0 |
| 30×30 mm | M3 | φ2.9 |
| 40×40 mm | M3 | φ2.9 |

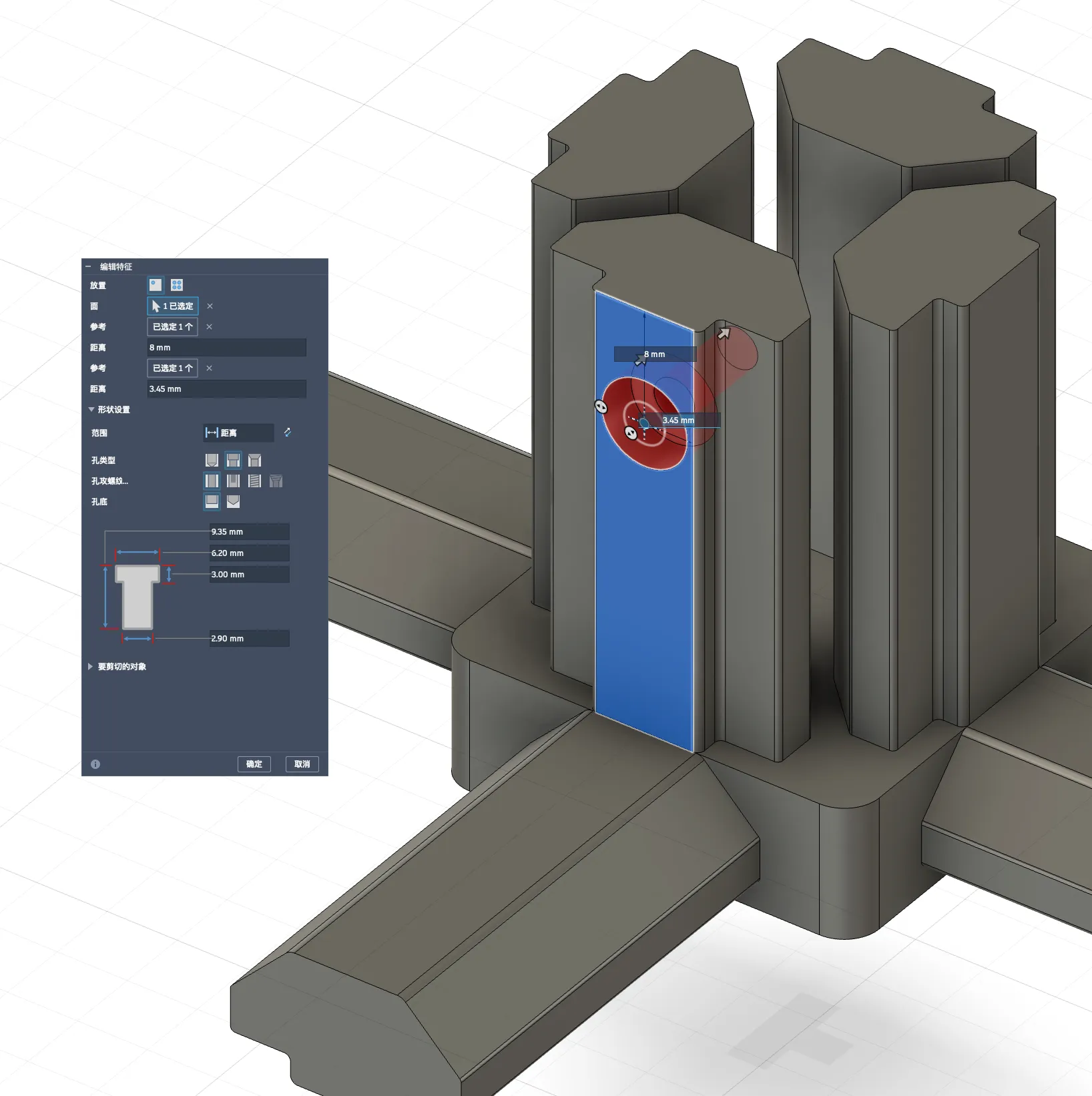

Hole Specifications:

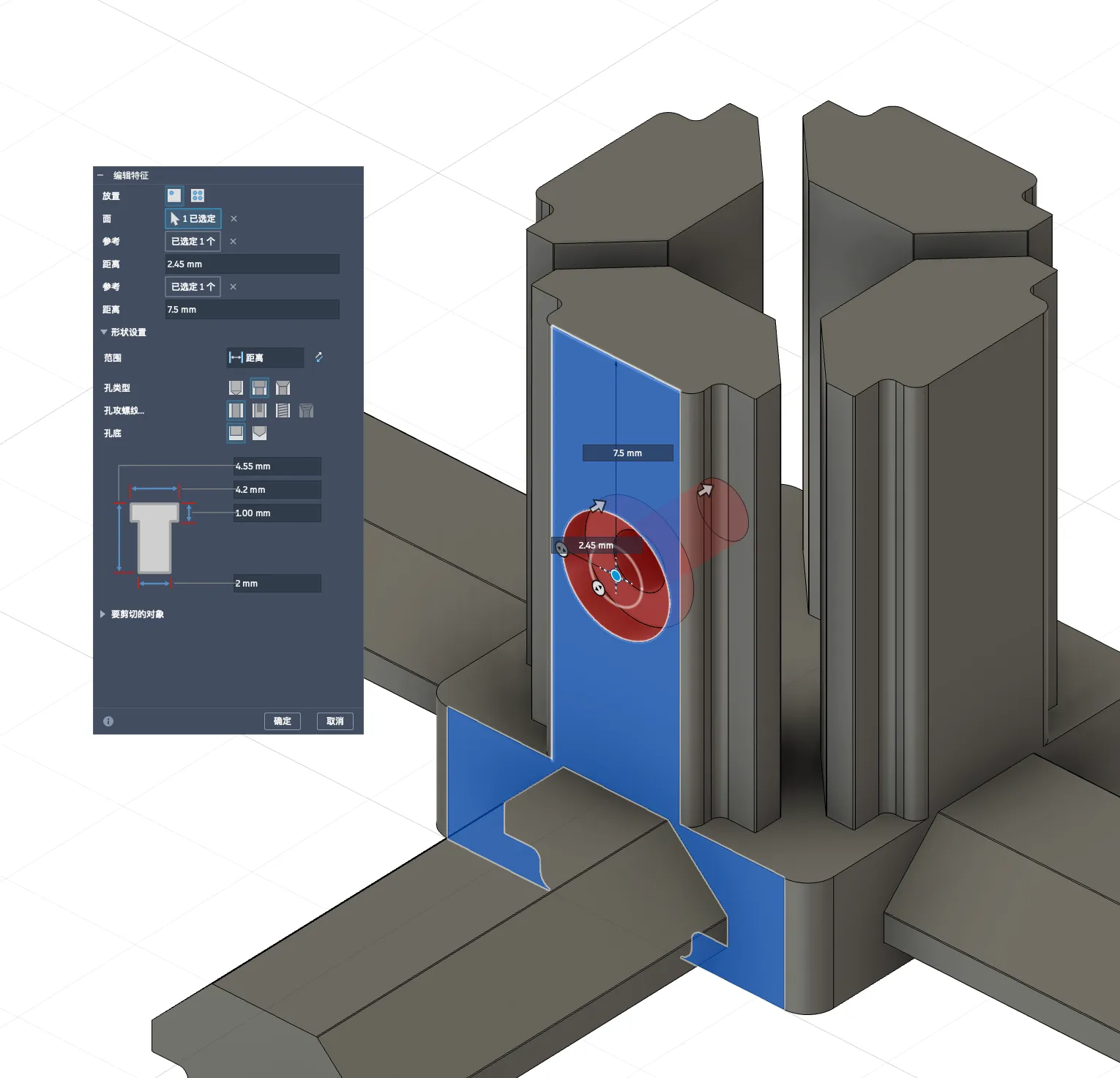

15x15:
- Hole diameter: 2.0 mm
- Hole depth: 4.55 mm (3.55 mm + 1.0 mm)
- Nut specification: M2

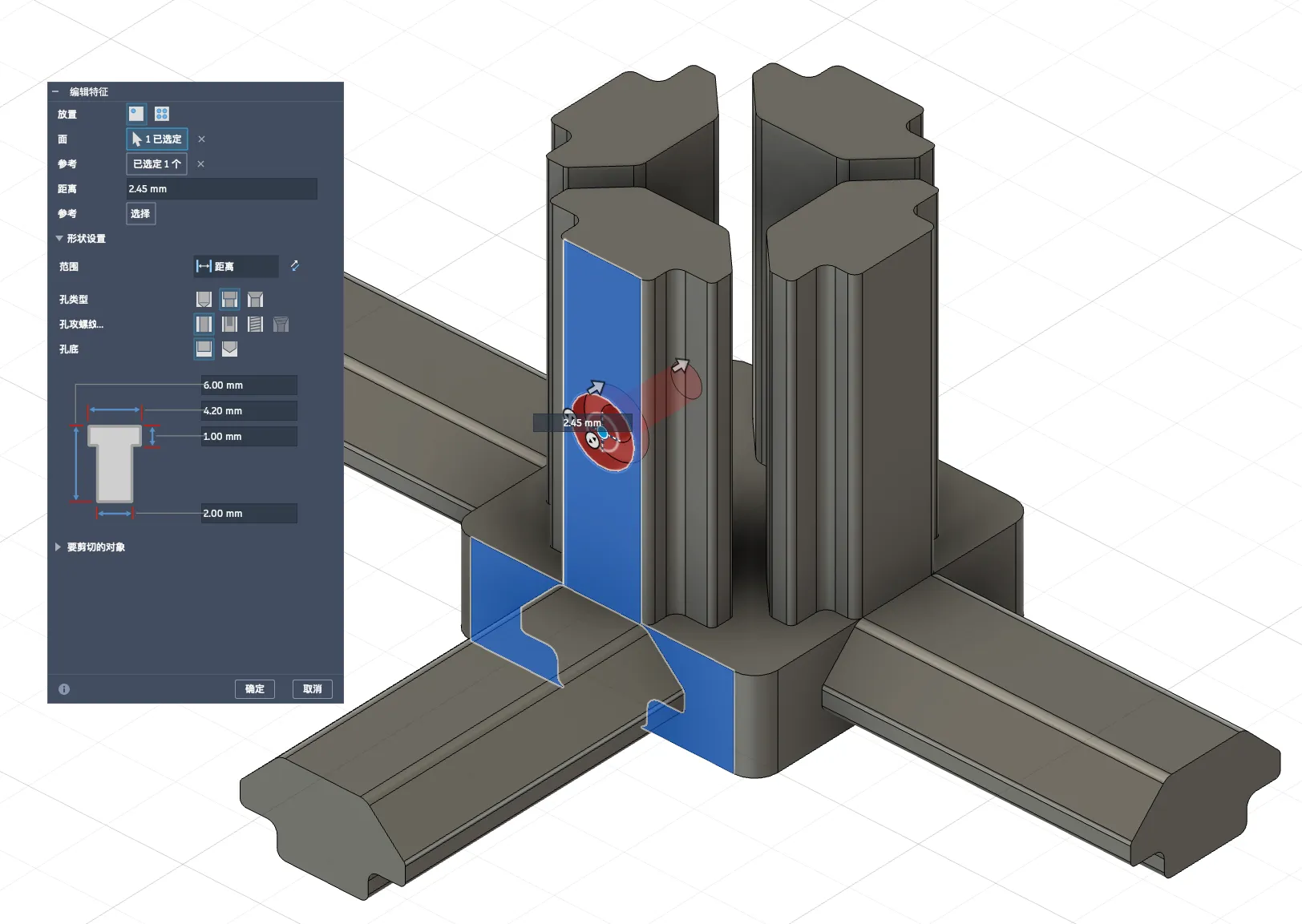

20x20:
- Hole diameter: 2.0 mm
- Hole depth: 6.0 mm (5.0 mm + 1.0 mm)
- Nut specification: M2
30x30:
- Hole diameter: 2.9 mm
- Hole depth: 9.35 mm (6.35 mm + 3.0 mm)
- Nut specification: M3

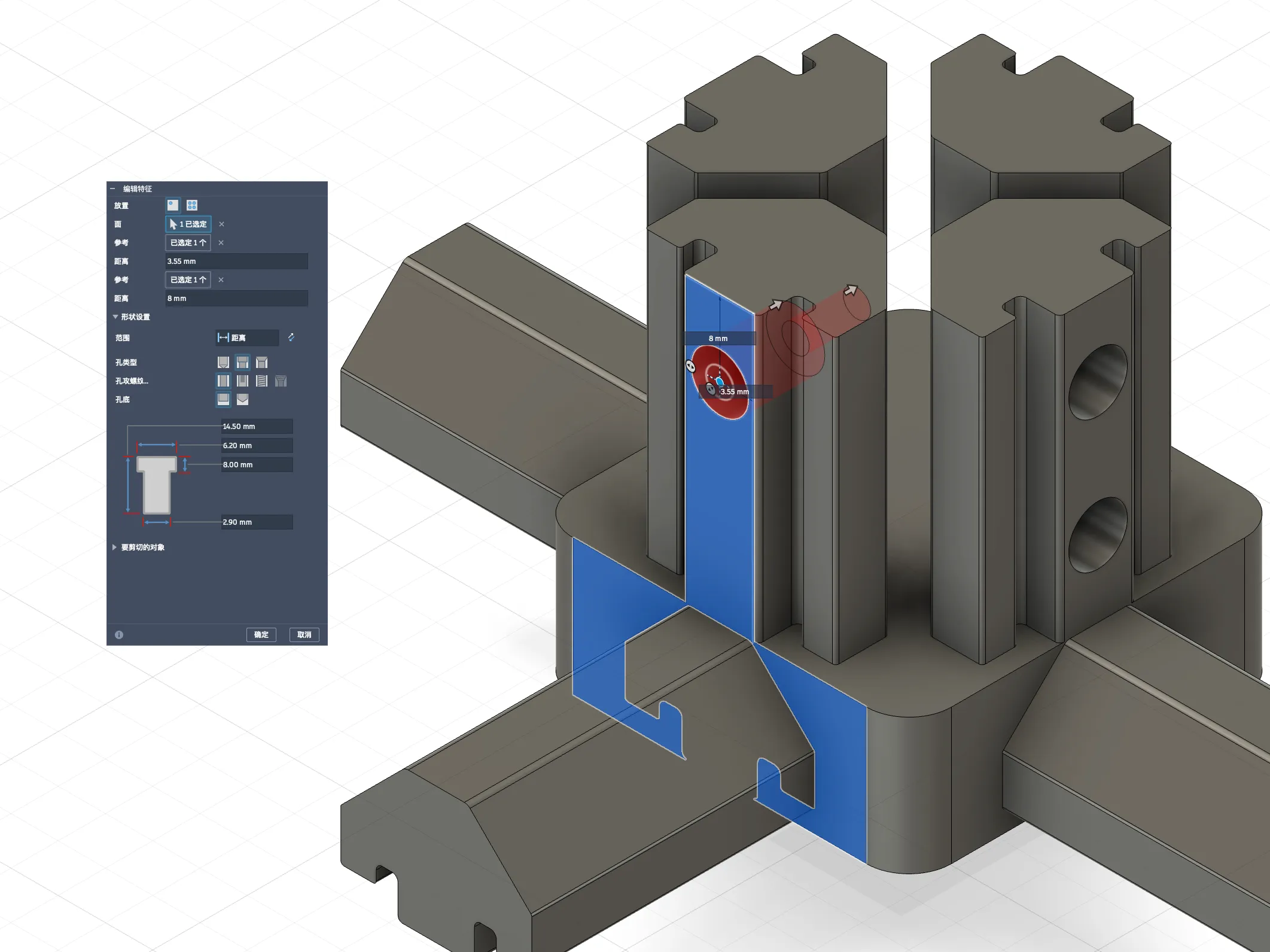

40x40:
- Hole diameter: 2.9 mm
- Hole depth: 14.5 mm (6.5 mm + 8.0 mm)
- Nut specification: M3 (recommended length greater than 9mm)

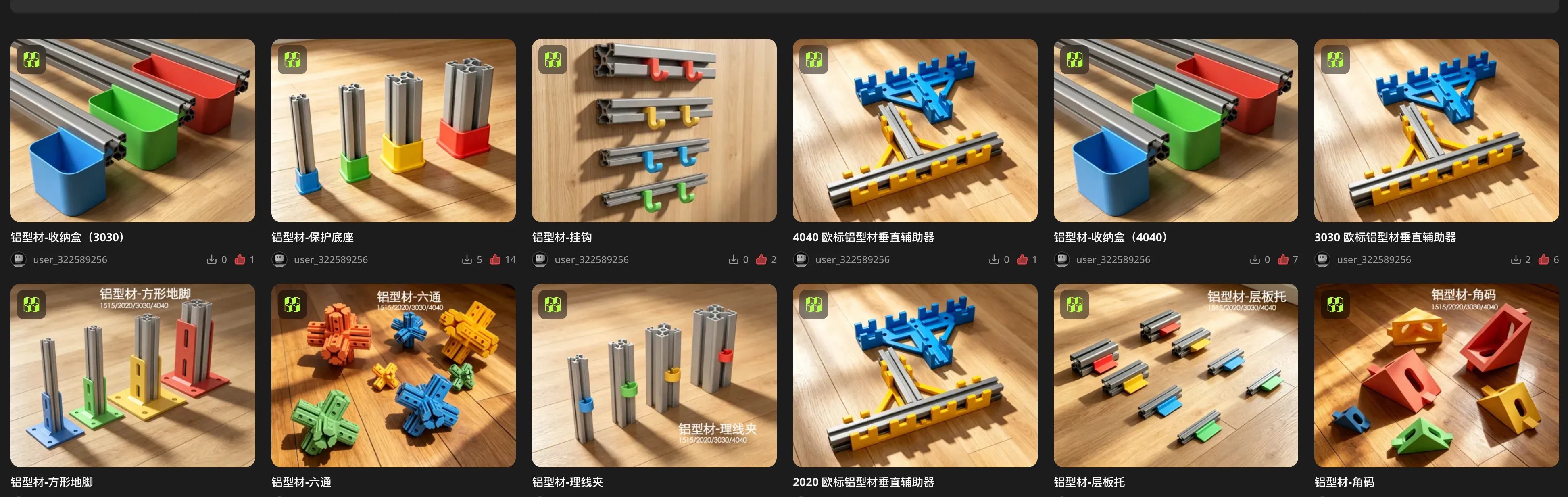

👉Click to view: Collection of compatible aluminum profile accessories library (continuously updated)
