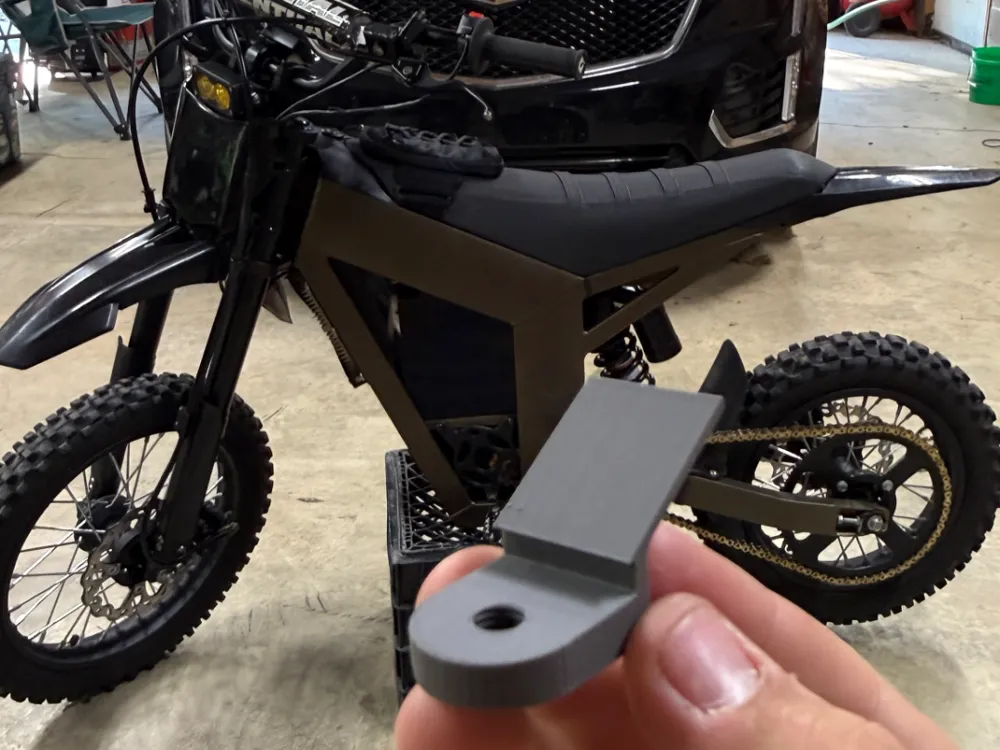

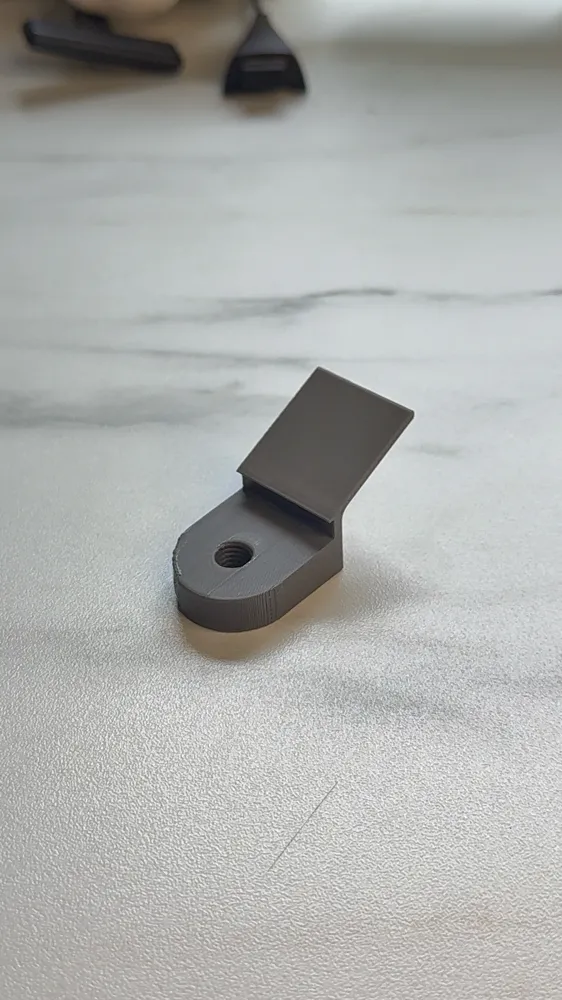

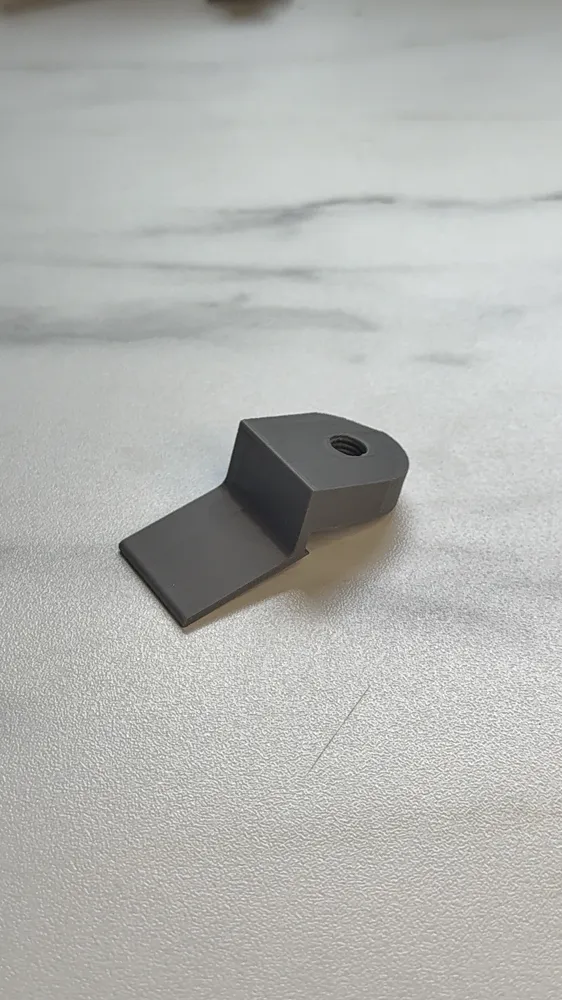

Tuttio Soleil 01 Seat Quick Release
This seat quick release is designed for the Tuttio Soleil 01 to make removing and reinstalling the seat much faster and more convenient. It eliminates the need to repeatedly thread the factory fastener, making battery access and maintenance much easier.
Installation

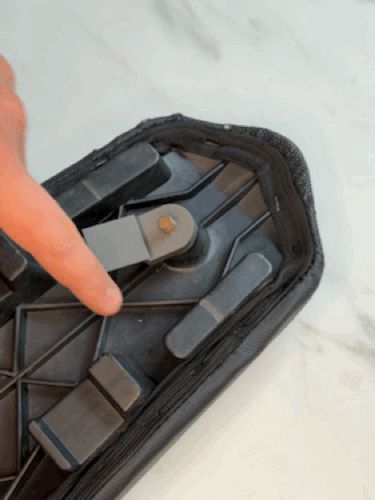

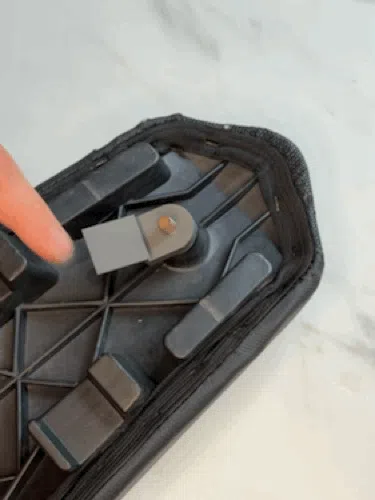

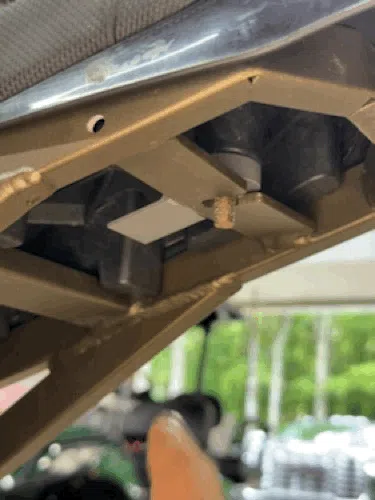

- Thread the quick release onto the seat mounting threads with the lever facing upward.

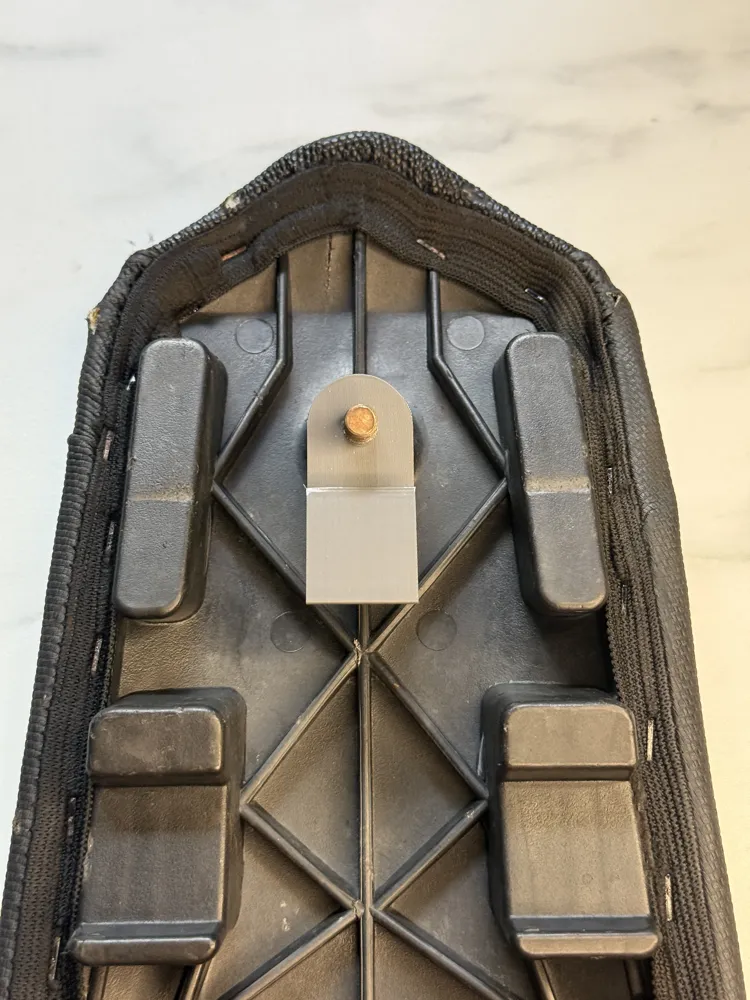

- Rotate the quick release so the flat side of the lever is aligned with the front of the seat.
- Tighten until secure.
Installing the Seat
- Slide the seat as far forward as possible.

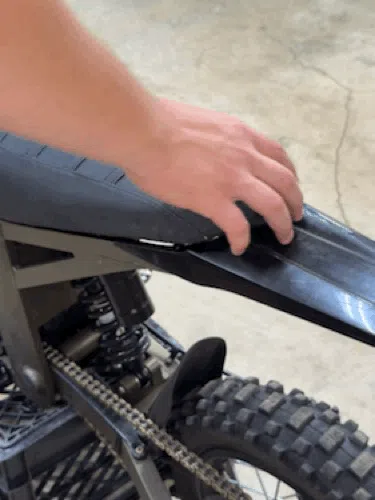

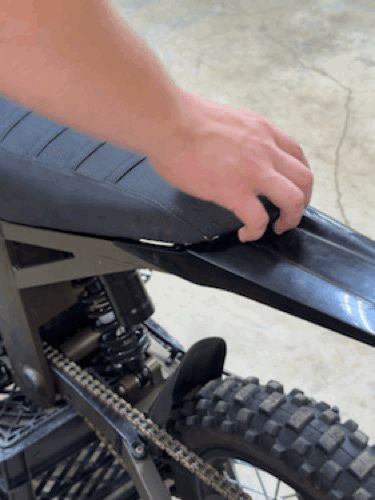

- Push down firmly on the rear of the seat until you hear two clicks.
Removing the Seat

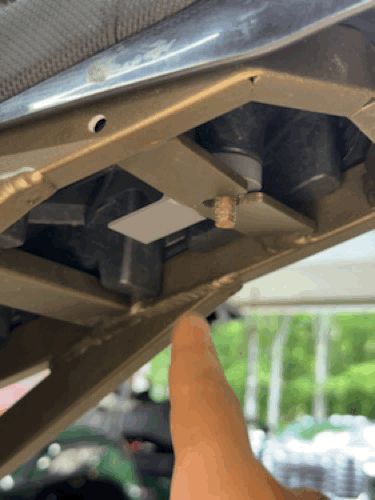

- Push upward toward the seat on the quick release lever.
- Lift the rear of the seat off.
Important: Do not pull outward on the lever when removing the seat. The lever is designed to be pushed upward, and pulling on it may cause it to break.
