Description

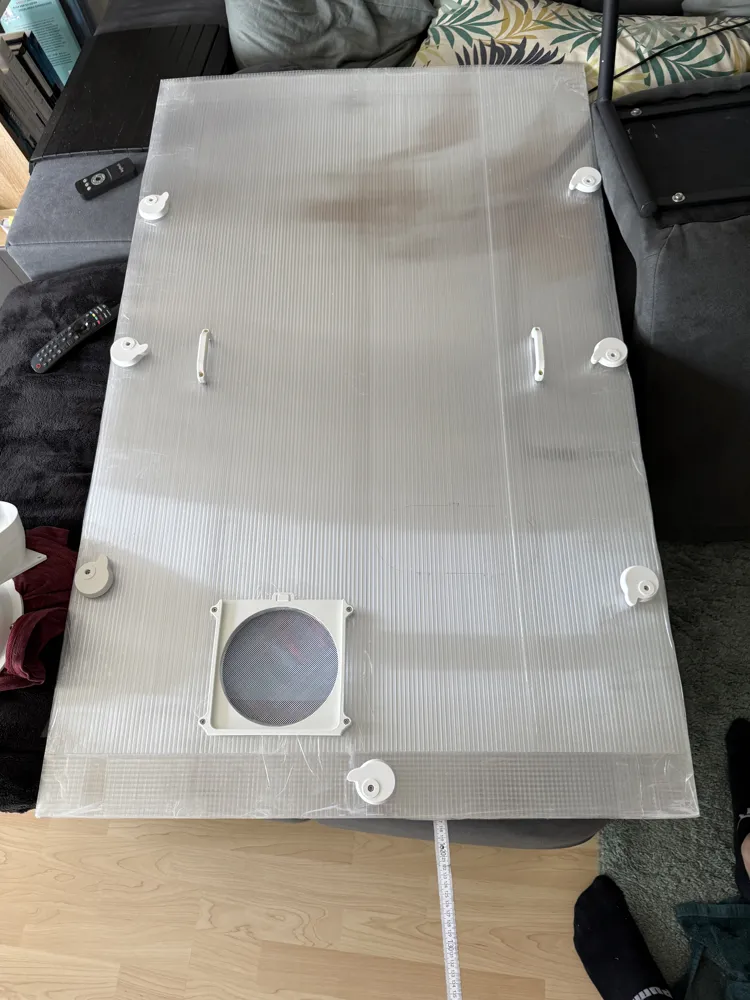

I urgently needed a well-functioning and easy-to-disassemble way to attach my 150mm hose to a window passthrough. Since none of the existing designs really appealed to me, I designed my own
If you want to try your luck with the STL files, go ahead. The 3mf files, however, are specifically for PETG and arranged so that the print will definitely work :)

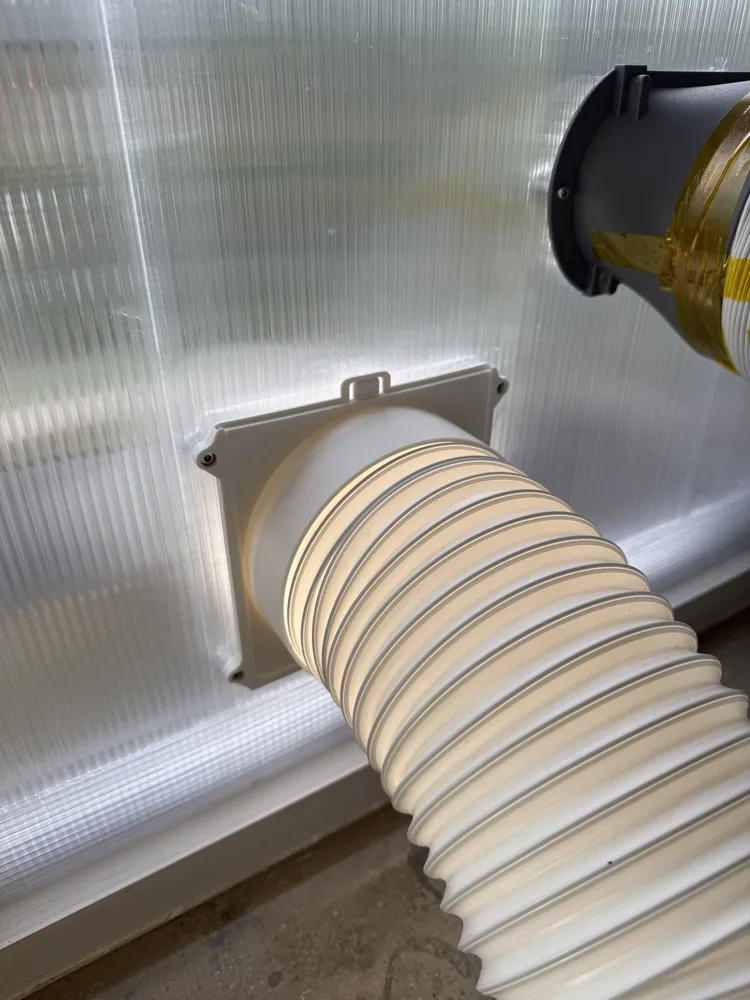

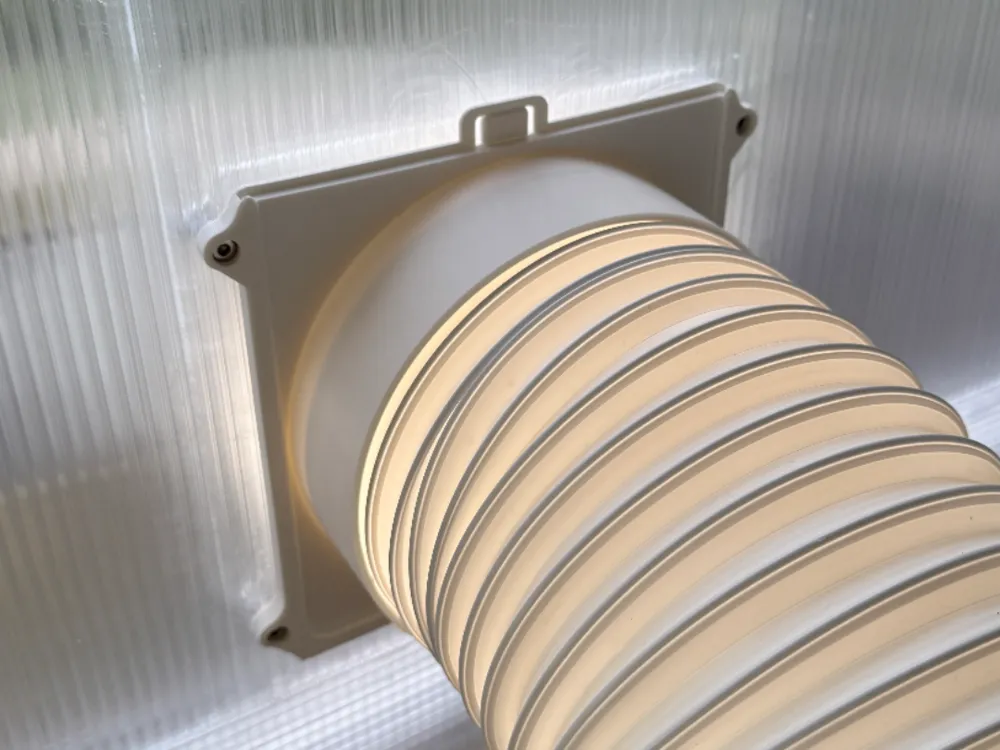

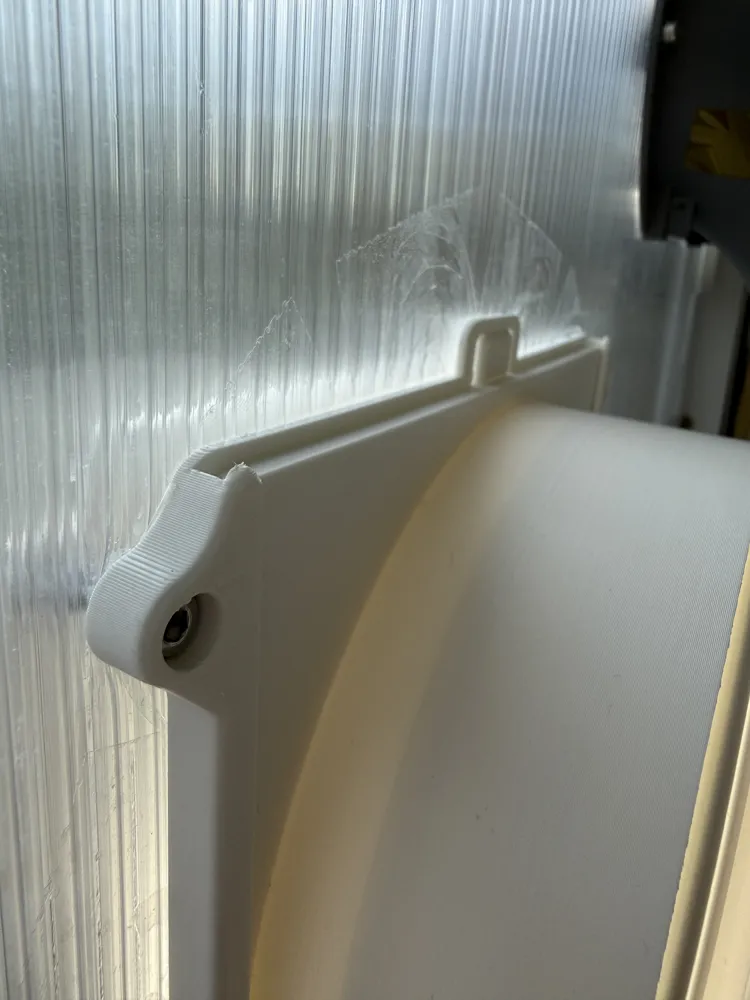

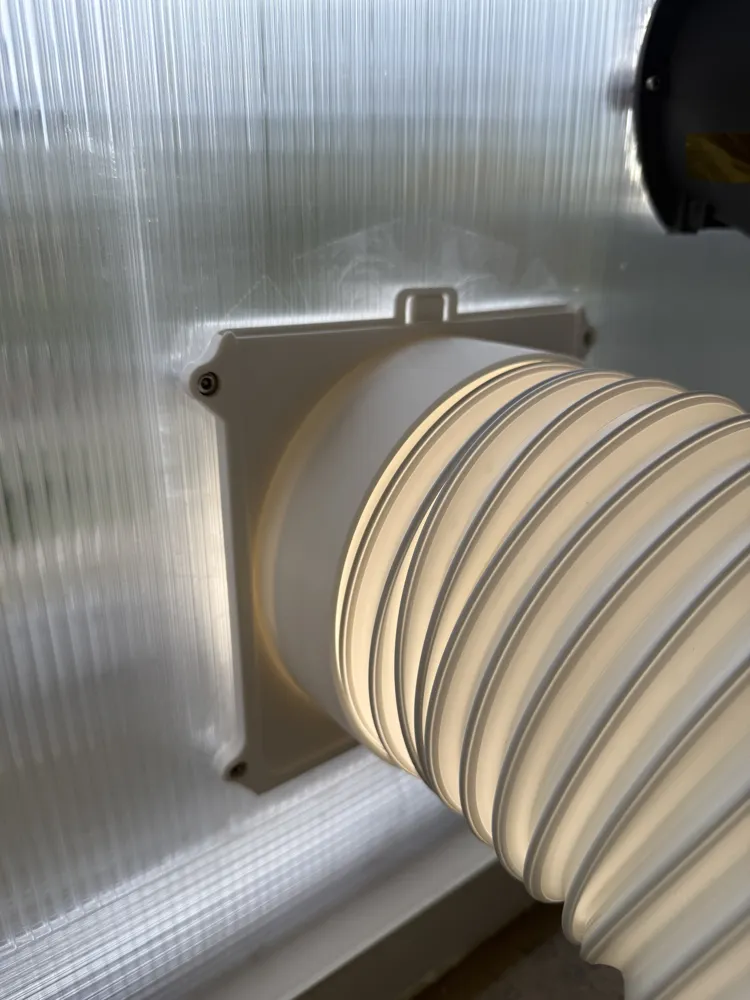

The hose can be pushed into the receptacle from the side (or from the top in my example) and then locks in place. To remove it, the retaining mechanism must be pressed
M4 cylinder head screws were used for fastening
The filter has the same dimensions and can simply be screwed in front of the receptacle
