Bathroom Hairbrush & Comb Wall Organizer

------------------------------------

WELCOME !


Thank you for your time ! I hope my models interest you and help/enjoy you in some way.

------------------------------------------------------------------------

3MF PROFILE IN DOWNLOAD IS OPTIMIZED FOR ELEGOO CENTAURI CARBON

FEEL FREE TO ADD YOURS

• ⚠️ Note: This print profile is optimized for a 0.6mm nozzle."

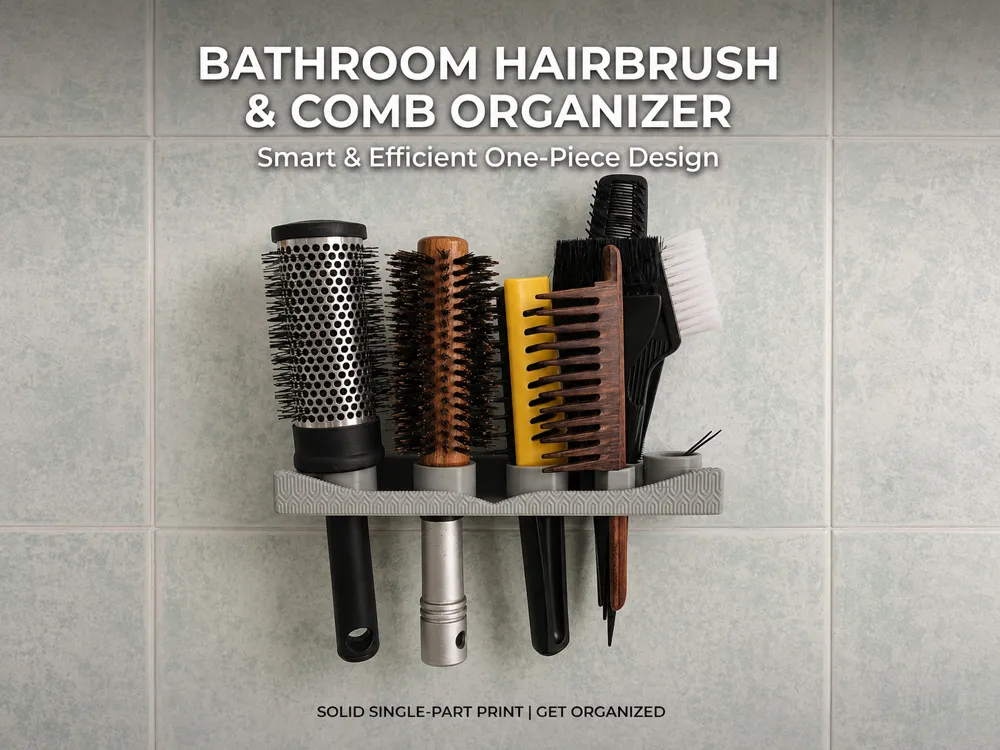

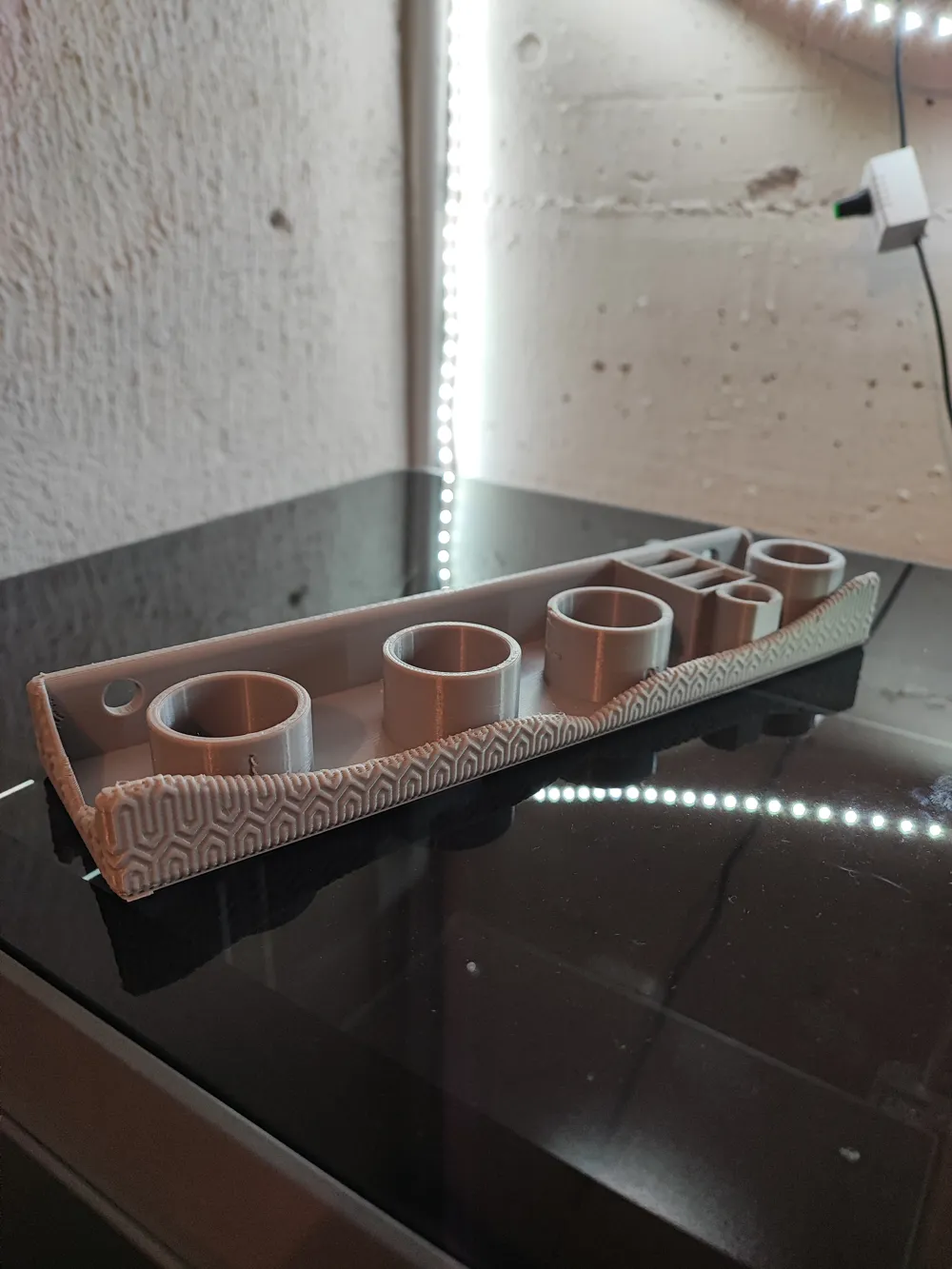

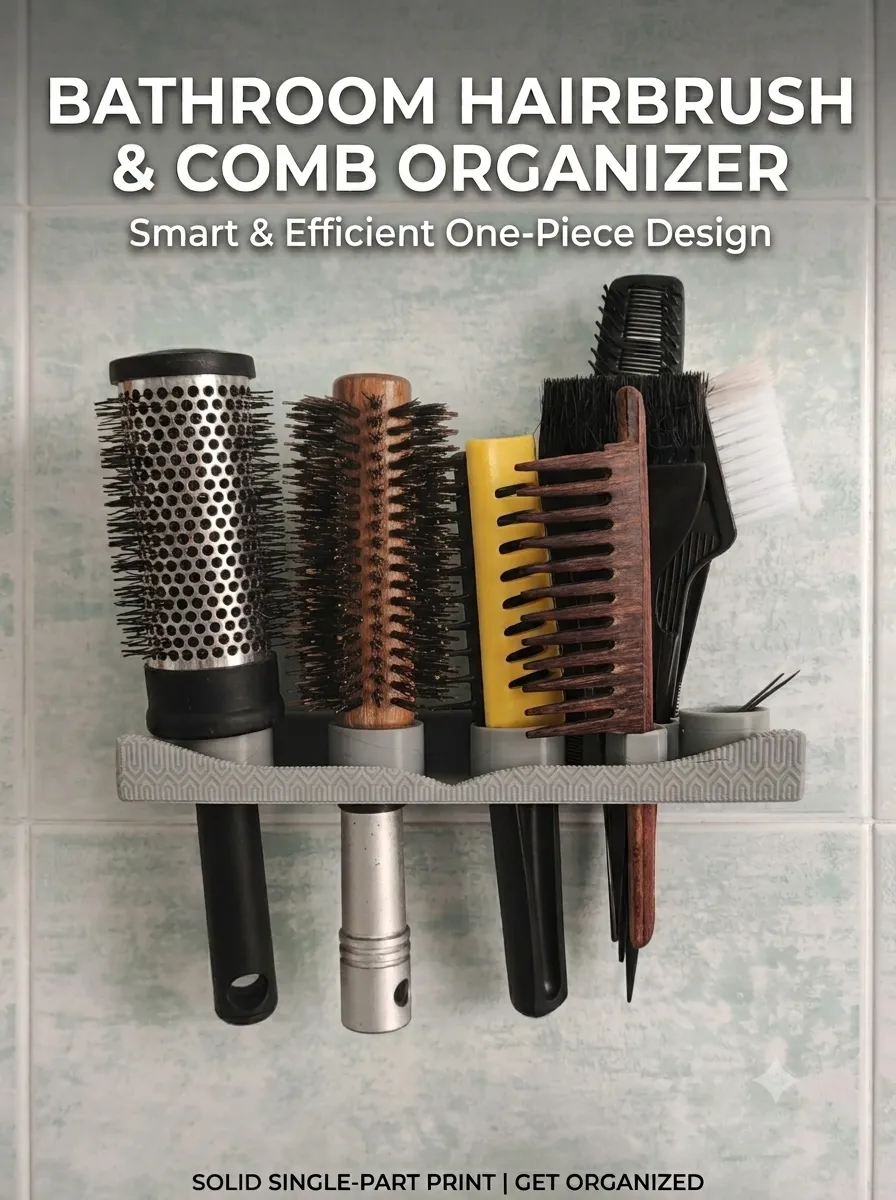

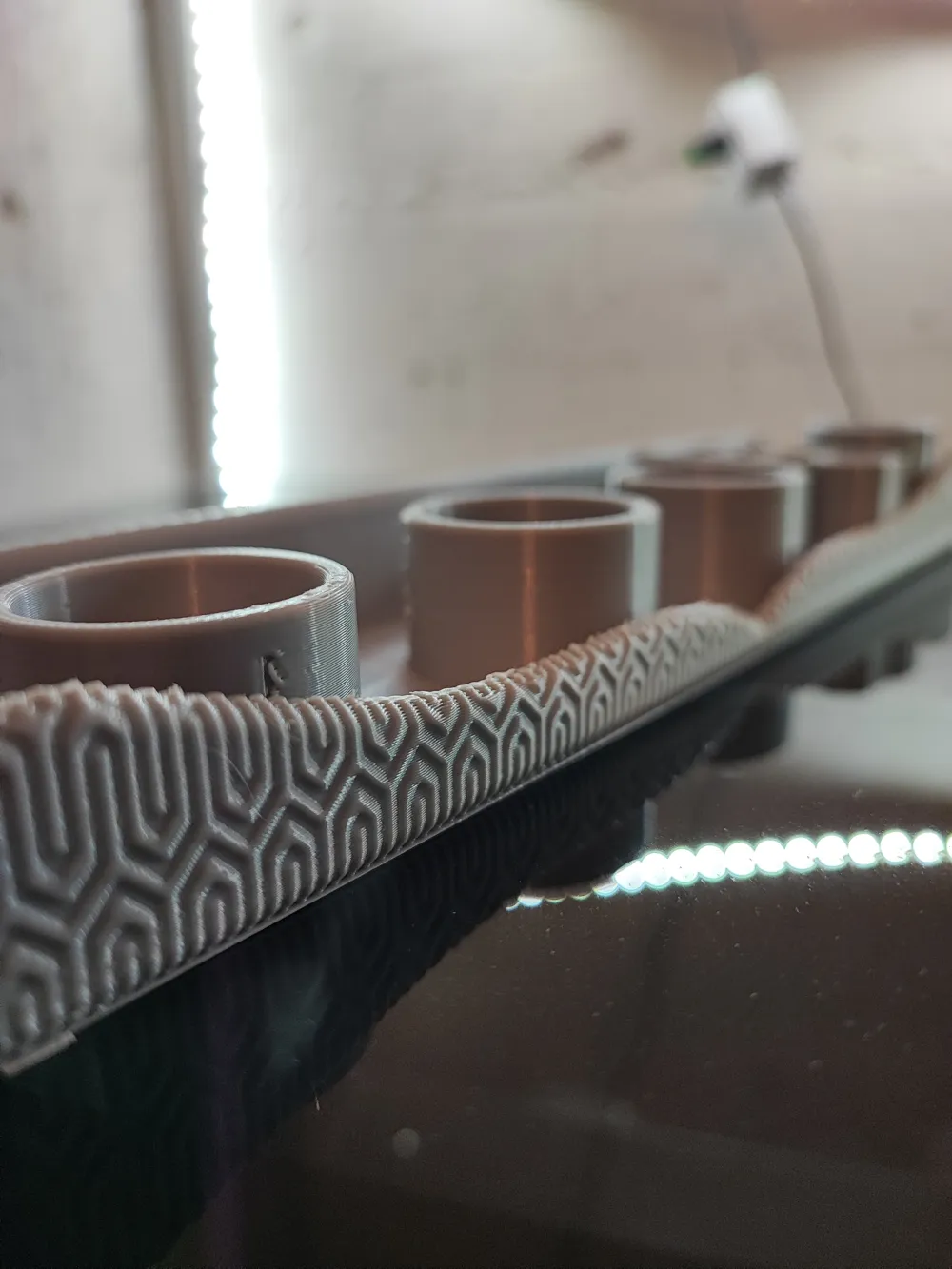

A compact, highly functional wall-mounted organizer designed to keep your bathroom tiles or vanity clear. This holder is engineered specifically to accommodate various hairstyling tools in one neat, space-saving layout. The front boundary features an elegant wavy profile enriched with a modern geometric embossed texture.

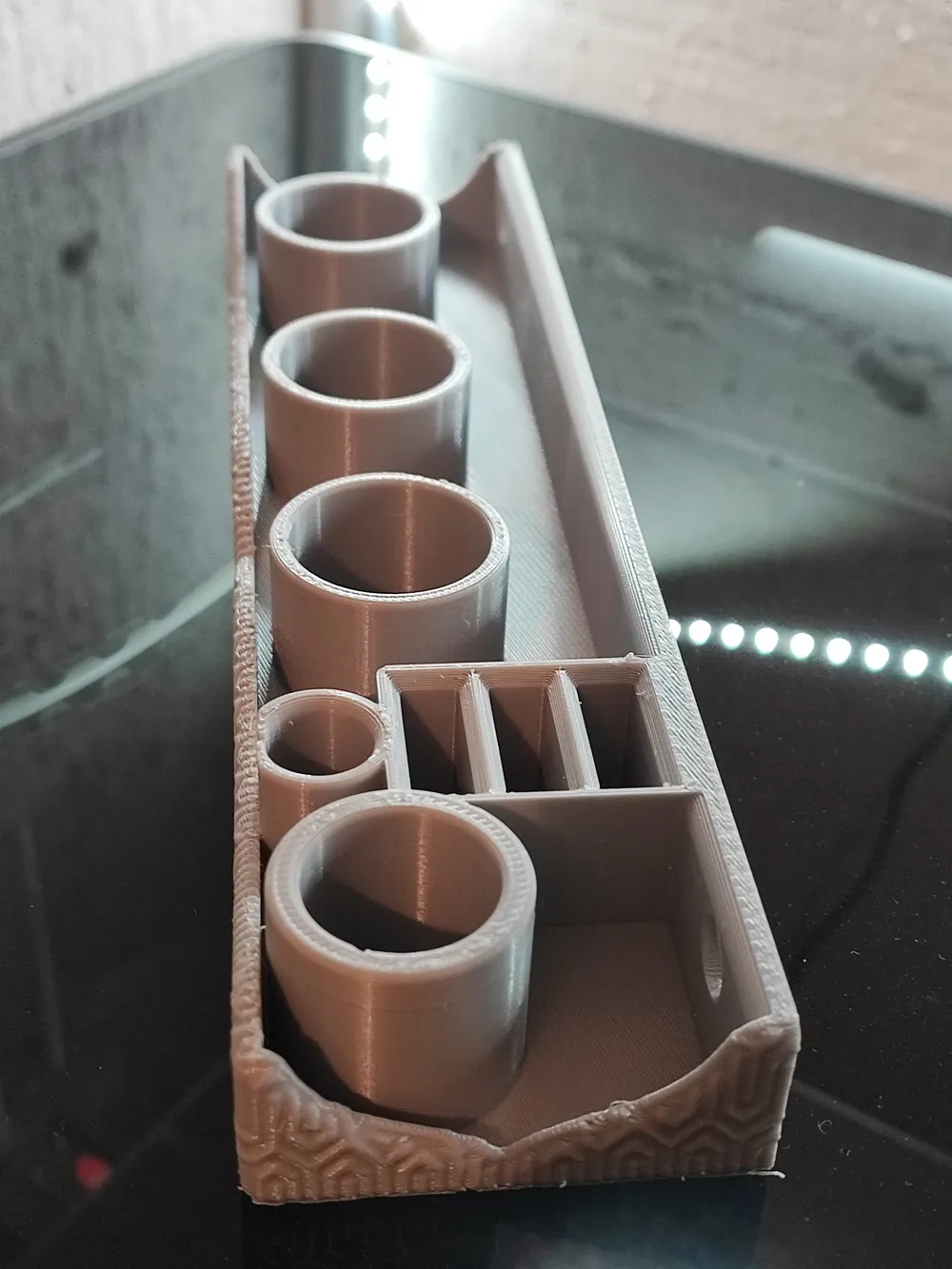

📐 Smart Compartment Layout:

• 3x Large Cylindrical Slots (Open-Bottom): Designed to hold the handles of large round blowout brushes.
• 1x Medium Cylindrical Slot (Open-Bottom): Ideal for standard hairbrushes or secondary styling tools.
• 1x Slotted Rectangular Section: Features vertical dividers to neatly store flat combs, wide-tooth combs, or sectioning clips upright.
• 1x Small Closed-Bottom (Blind) Cylinder: Contrarily to the others, this slot is completely closed at the bottom to safely hold small items like bobby pins, hair ties, hairpins, and clips without them falling through.

🛠️ Mounting Options:

Features two rear positioning holes. It can be mounted traditionally using screws/wall plugs, or attached directly to bathroom tiles using handy suction cups to avoid drilling.

📂 Available Files & Formats

To give you the maximum flexibility, the project includes both textured versions and smooth base models for easy customization:

• 1x 3MF Profile (Full Texture): Ready to print with the geometric wavy texture pre-configured on the front face.

  ⚠️ Note: This print profile is optimized for Elego Centuri Caron  with a 0.6mm nozzle. 0.24 layer, RAPID PETG."



• 1x STL File (Textured): The complete solid single-part model including the embossed geometric pattern.
• 1x STL File (Smooth / No Texture): A clean version without the front texture, perfect if you prefer a sleek, minimalist look or want to apply your own modifier patterns in the slicer.

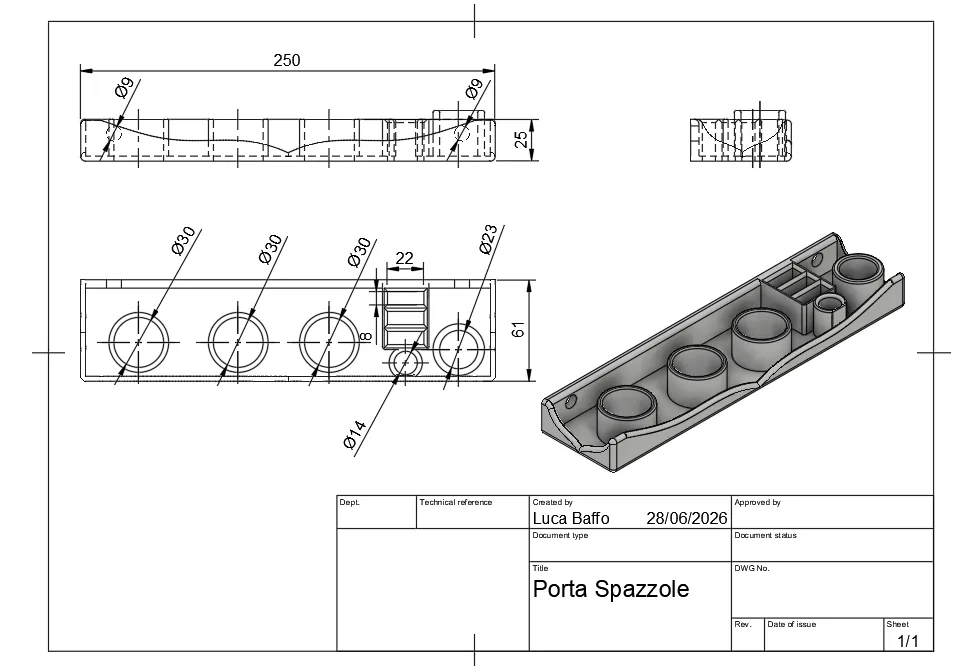

• 1x STEP File (Smooth / No Texture): The clean CAD file, ideal for anyone who wants to easily modify, resize, or customize the design in software like Fusion 360 or MakerLab.

📋 Bill of Materials (BOM) & Hardware Requirements

To install this organizer without drilling into your bathroom tiles, the model features two rear positioning holes specifically designed to integrate a mechanical suction cup system.

• 2x Suction Cups with Threaded Studs and Knurled On-Screw Caps (Compatible with standard 2-piece suction wall mounts).
  • Component Structure: Each anchor point consists of two parts: the main suction cup base with an integrated protruding threaded male stud, and an independent plastic locking ring (thumb nut/cap).

🔧 Mounting Instructions (No-Drill Setup)

1. Surface Prep: Thoroughly clean and degrease both the tile surface and the suction cups to ensure a perfect vacuum seal.
2. Position the Suction Cups: Unscrew and remove the plastic locking caps from the threaded studs. Press the two suction cups firmly against the wall, aligning them perfectly with the center-to-center distance of the organizer's mounting holes.
3. Mount the Organizer: Take the 3D-printed organizer (printed as a single solid piece) and slide the rear holes over the protruding threaded studs of the suction cups. The organizer frame will fit snugly against the flat shoulder of the suction bases.
4. Mechanical Tightening: Hand-tighten the plastic locking caps back onto the threaded studs from inside the organizer's compartments. As you screw them down completely, the cap will fit precisely inside the hole's recessed seat. This tight lock creates a firm mechanical support that distributes weight evenly, preventing the organizer from sagging or slipping even when fully loaded with heavy brushes and styling tools.

-----------------------------------------------------------

🤝 BAMBU LAB USERS & TESTERS 🤝

This model was developed and tested on Elegoo Centauri Carbon.

FEEL FREE TO ADD YOURS

-----------------------------------------------------------

Happy print to all !

----------------------------------------

DON'T FORGET TO UPLOAD A PICTURE OF YOUR PRINT, IT HELPS ME A LOT !
