Oscar 2WD SCT

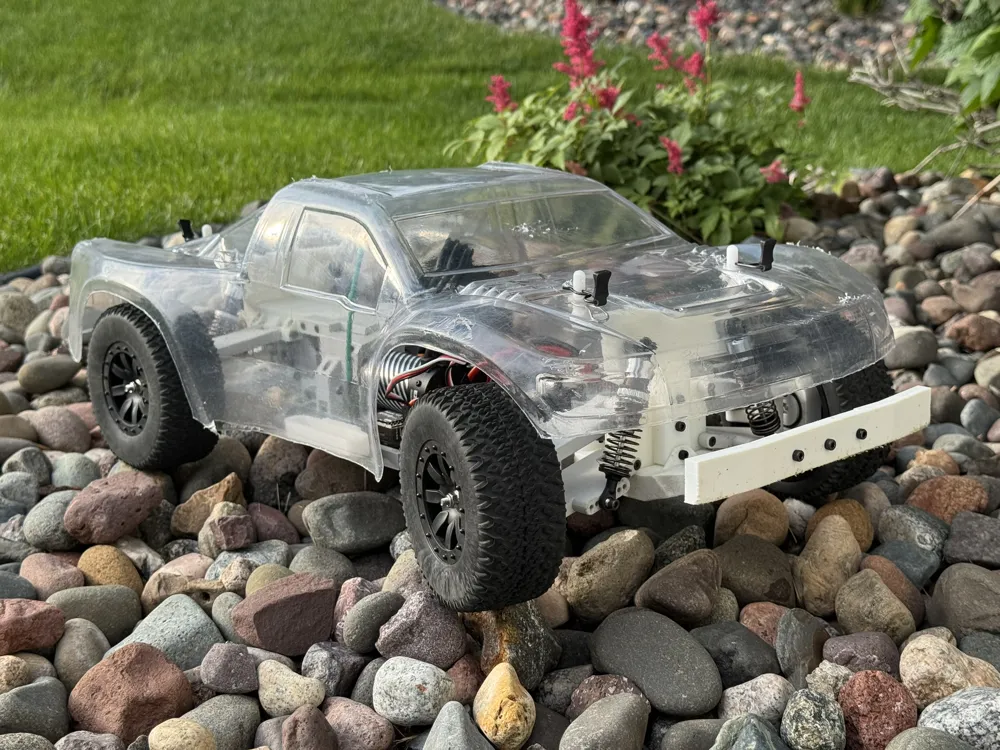

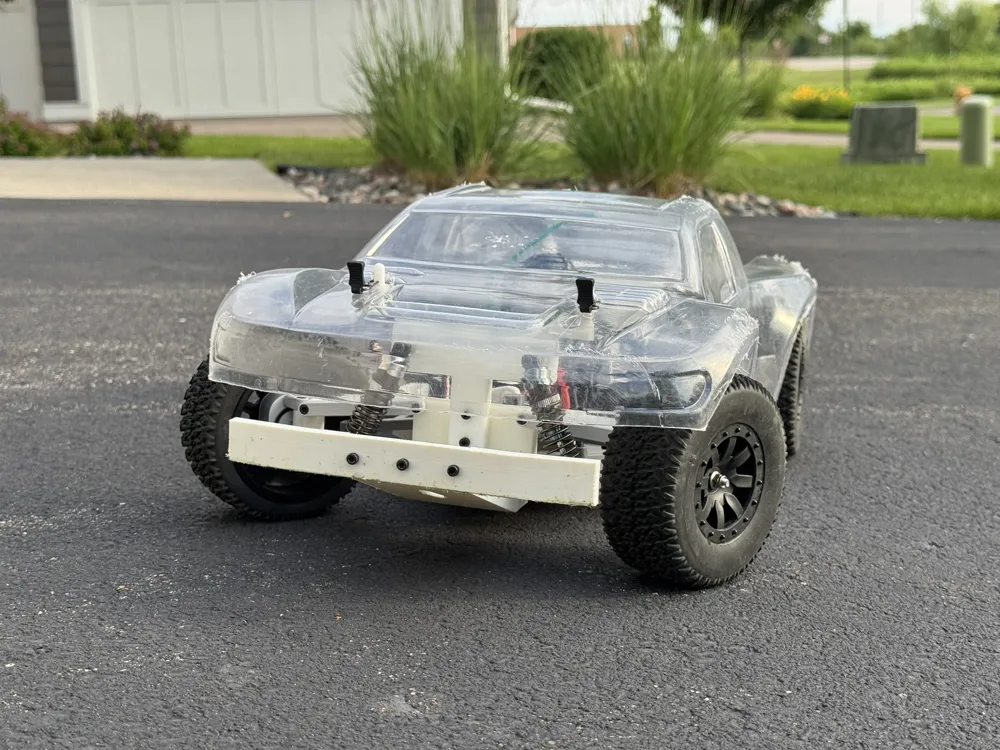

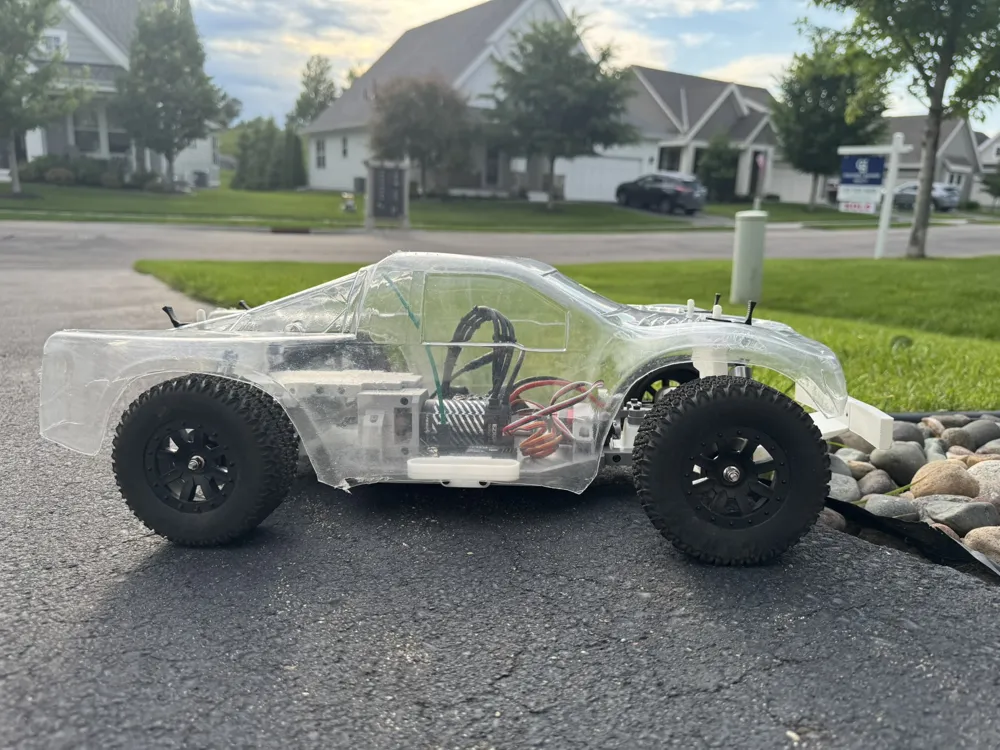

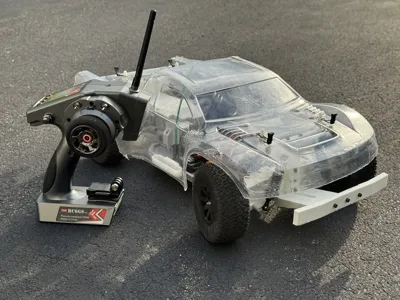

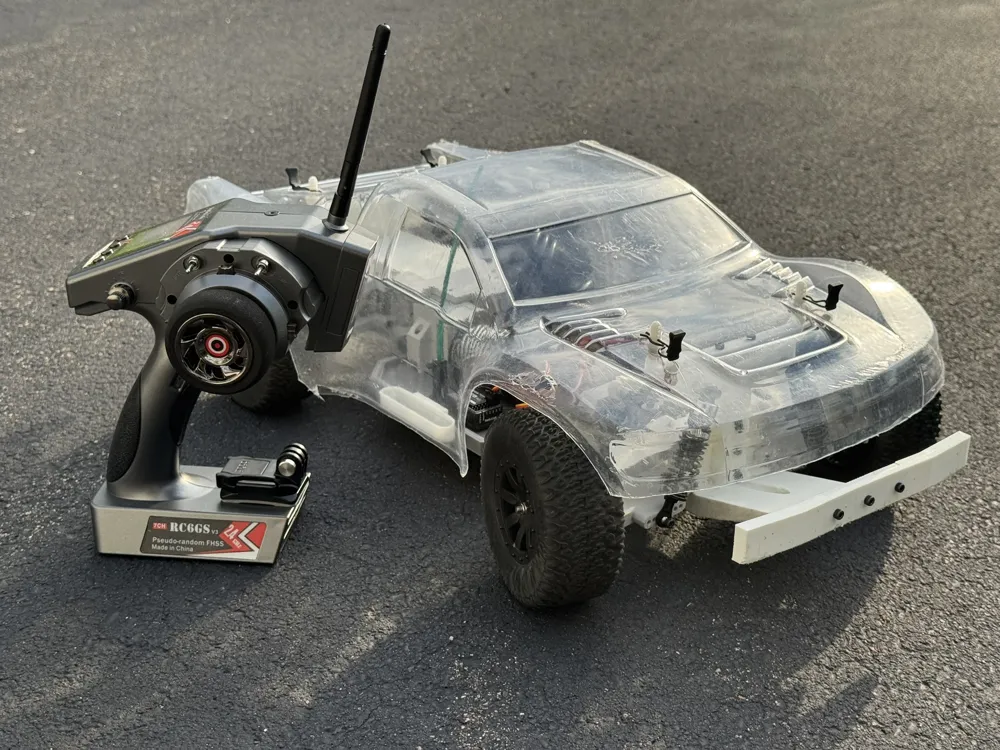

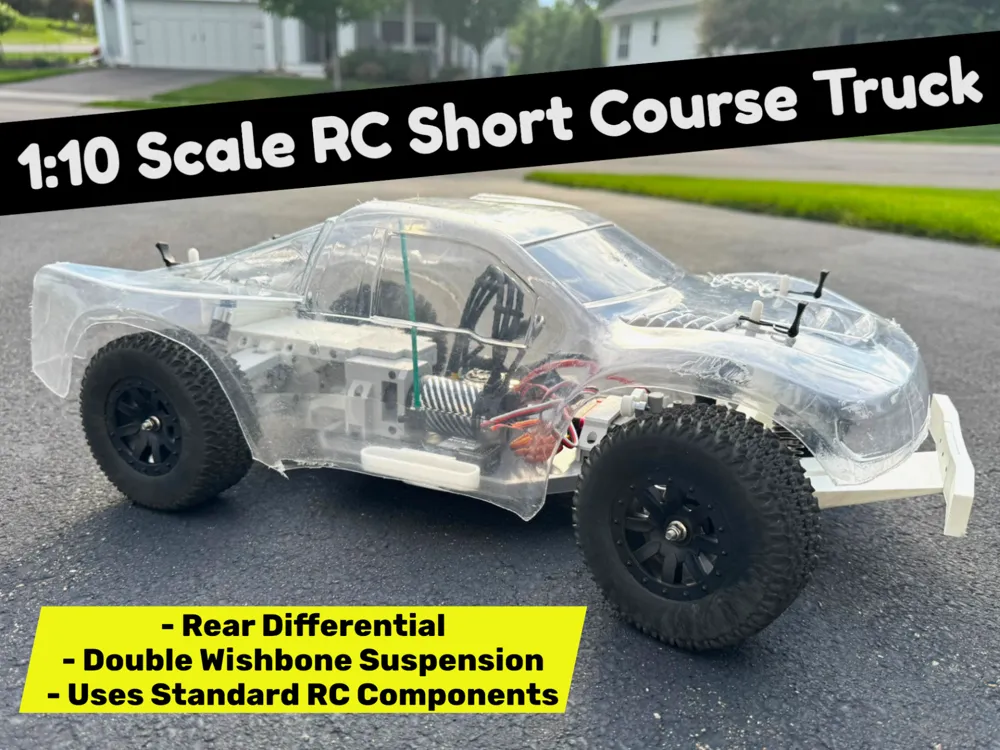

A mostly 3D-Printed, 1:10 Scale, 2WD, RC Short Course Truck.
v0.1 Beta
For more information, help, discussions, troubleshooting, or showing off your build: join the Discord.
Warning
This is a beta project. That means things will break, some geometry is still being refined, and the documentation, while thorough, is still a work in progress. Don’t expect a plug-and-play kit that works perfectly out of the box.
Do not build this project unless you:
- Enjoy Hobby RC
- Enjoy 3D Printing
- Have built RC kits before
- Have a drawer (or two) of spare RC parts lying around
- Are comfortable with reprinting parts, tweaking parts, and troubleshooting
What is Oscar SCT?

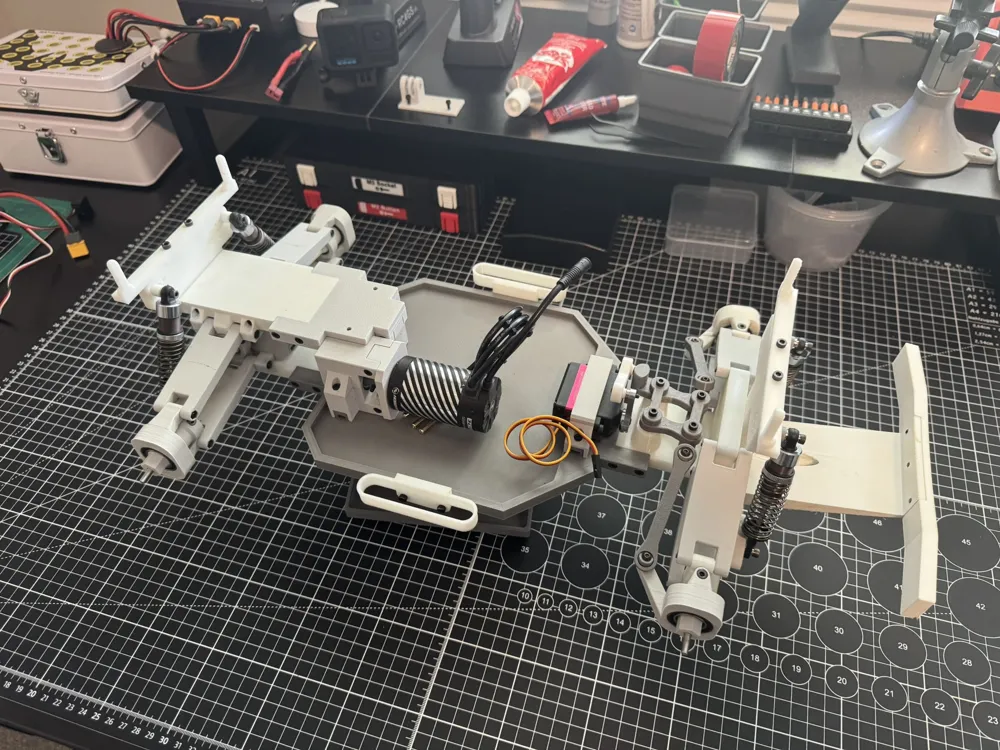

Oscar is my attempt at creating a hobby-grade style 1:10 Scale, 2WD Short Course Truck. It is compatible with most off-the-shelf Short Course Truck bodies and wheels. It is designed to use standard RC electronics for the motor, battery, and steering servo.
What you’ll need
- Various hardware (screws, nuts, bearings, etc.) - please consult the User Manual for a complete list.

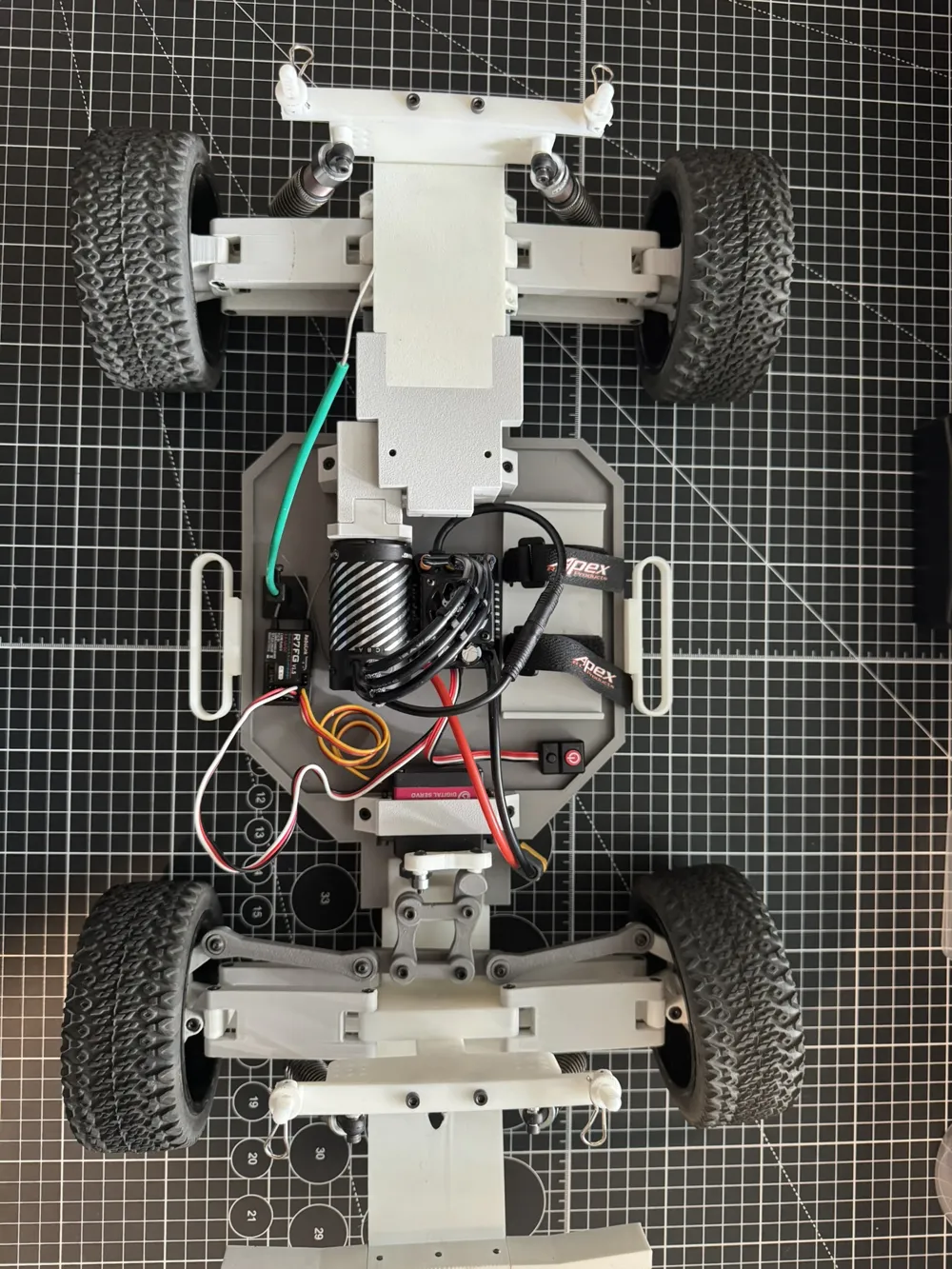

- Electronics:

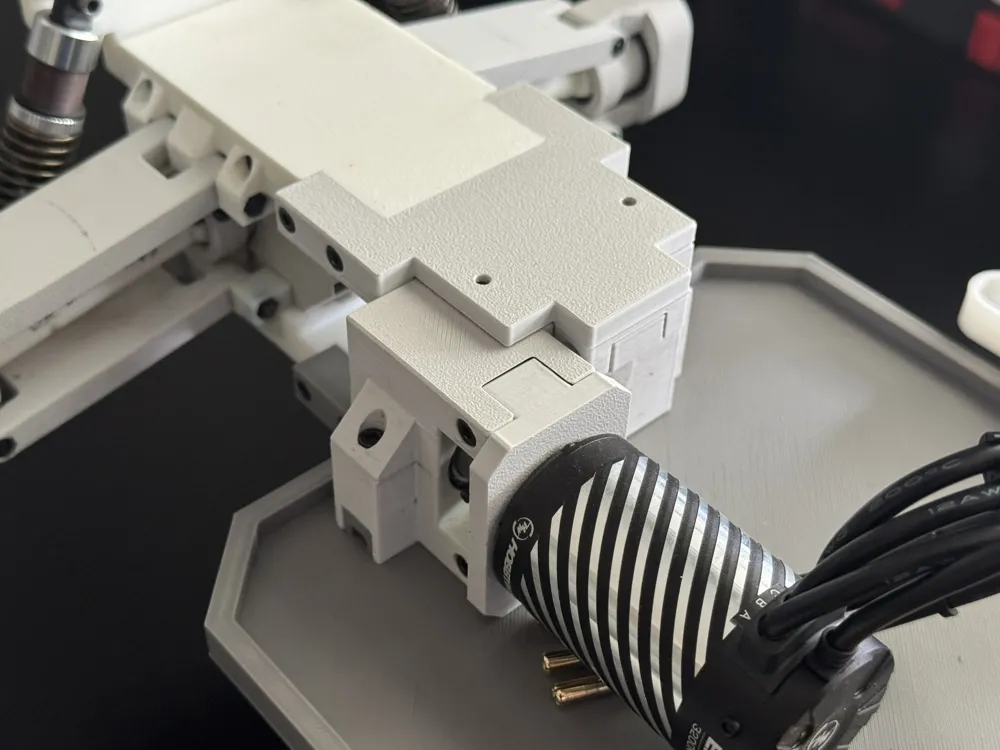

- Motor (540/3650/3665 size): I used: HobbyWing EZRUN 3665 3200kv brushless motor.
- ESC (appropriate for your motor): I used: HobbyWing EZRUN MAX10 G2.
- Battery (appropriate for your motor and ESC): I used: CNHL 2s Shorty Lipo Battery 4900mAh
- Servo: I used: a generic 30KG digital servo from Amazon.
- RX/TX: I used: Radiolink RC4GS V3
- Shocks (~80mm): I used: 1/10 80mm RC Oil filled Shock Absorbers kit for Tamiya TRX4 Axial SCX10
- Short Course Truck Body: I used: JConcepts Illuzion Ford Raptor SVT SCT-R
- Short Course Truck Wheel/Tires (12mm hex drive): I used: generic 2.2" SCT wheels and tires from Amazon.
- Body Clips
- Double-sided tape or Velcro for mounting electronics
- Velcro straps for securing battery to battery tray: I used: Apex 16mm x 300mm Straps
Filament Choices
I used a combination of PLA, PETG, and “TPU for AMS” for this model. CC3D 72D Flexible TPU Filament is a good alternative to “TPU for AMS”. DO NOT use a soft TPU filament.

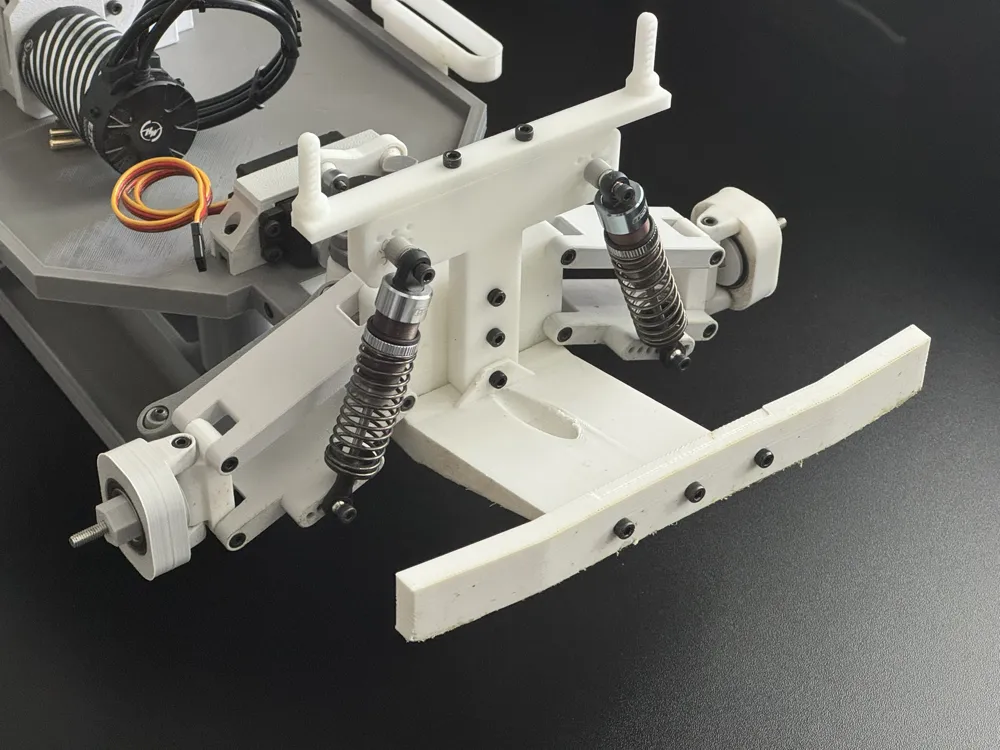

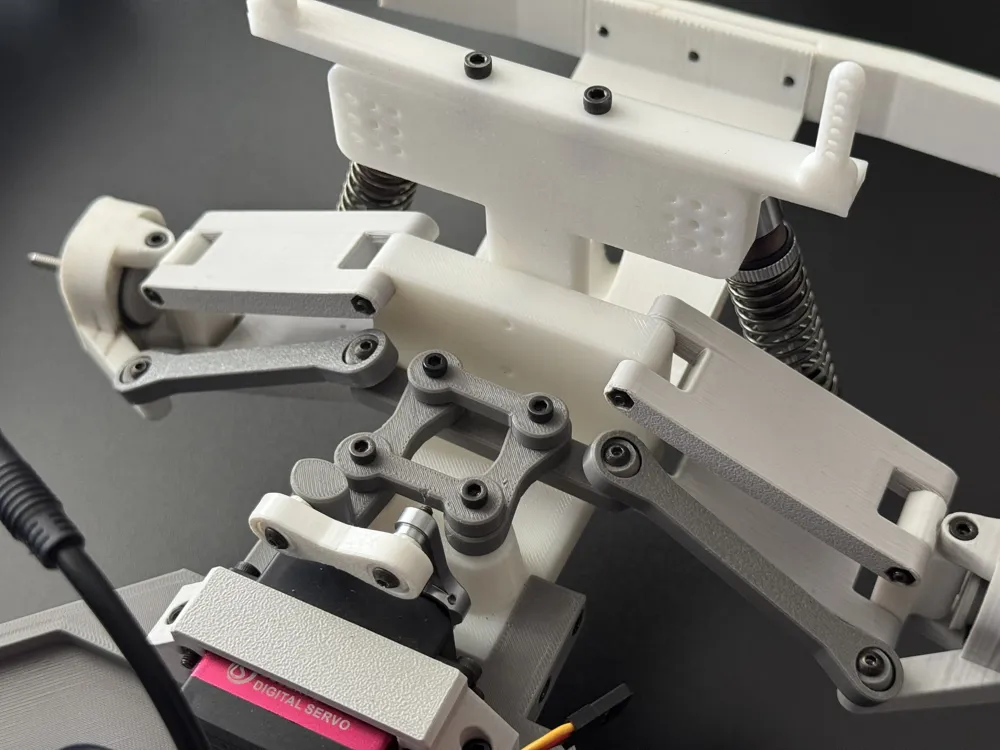

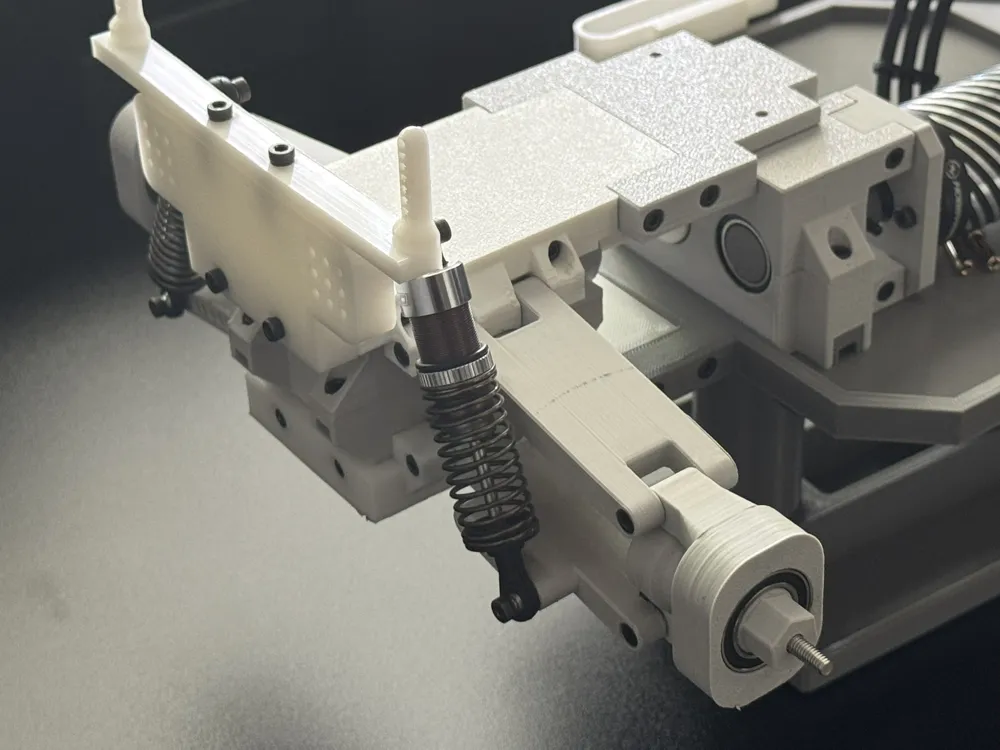

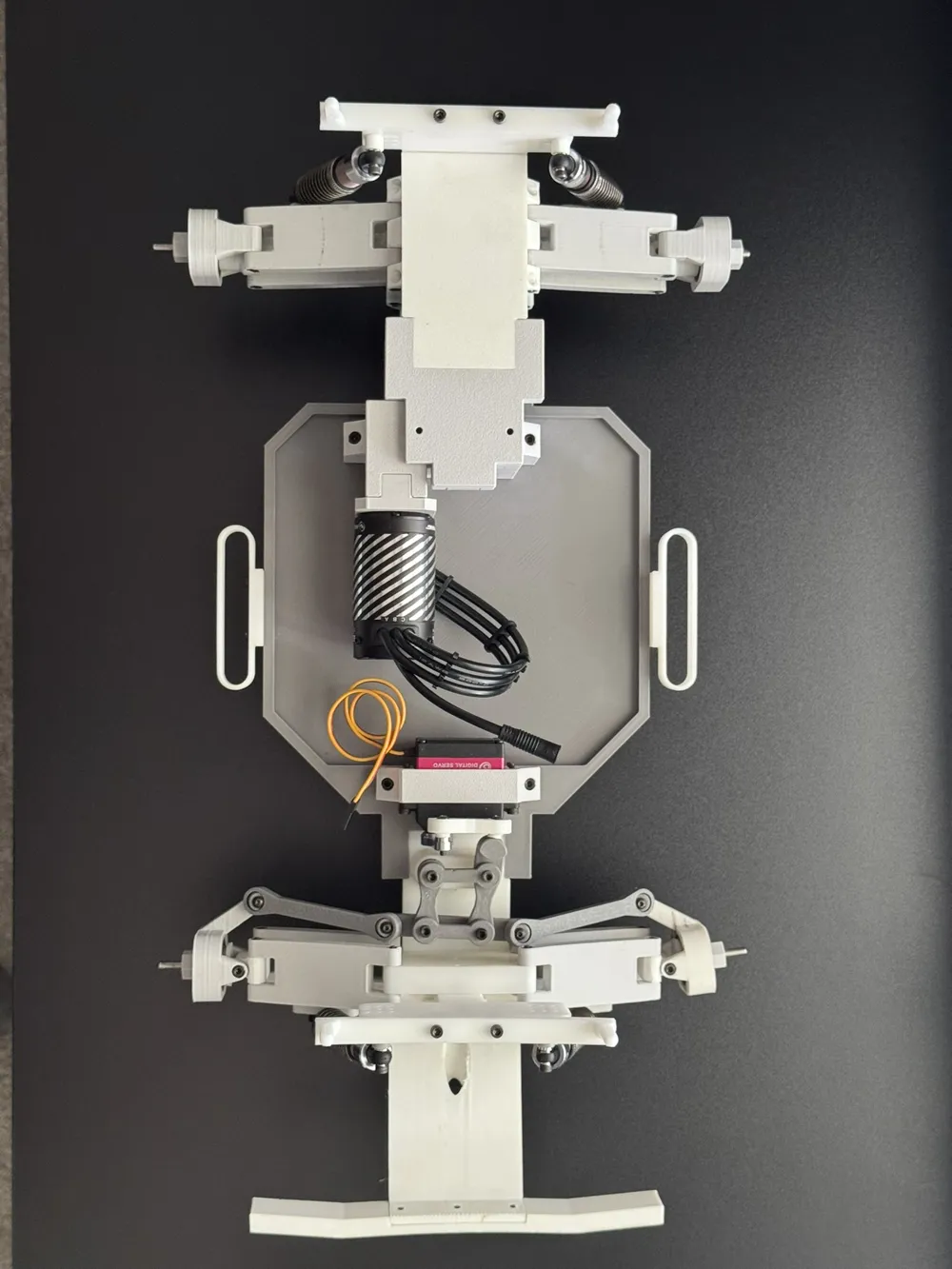

In all of my photos: Light Grey is PLA, Dark Grey is PETG, and White is TPU.
Using PETG for the gears works well, but you can upgrade to PAHT-CF if you want to make the gears more durable.
