Minimalist, Fast Wall Mount for Shelly BLU H&T

This is a sleek, minimalist wall mount specifically designed for the Shelly BLU H&T (Bluetooth Temperature and Humidity Sensor). It's engineered to hold the sensor securely while maintaining a low profile.

The design is optimized for a fast print time (~20 minutes) and uses minimal filament (~8g), making it a great, efficient project. It's very easy to print and requires no support structures.

Key Features

• Custom-Fit: Perfectly sized for the Shelly BLU H&T sensor.
• Fast Print: Complete print in approximately 20 minutes (depending on settings).
• Lightweight: Uses only about 8g of filament.
• Support-Free: The geometry is self-supporting, saving material and cleanup.
• Easy to Print: A simple design that's hard to mess up.
• Dual Mounting: Can be installed with the included 3M adhesive tape or a central screw (hole pre-designed).
• Minimalist Design: Clean look that complements the sensor.

Print Settings & Recommendations:

• Material: Works well with almost any filament (PLA, PETG, ABS, ASA). If mounting in direct sunlight or outdoors, ASA or PETG is recommended for heat and UV resistance!
• Layer Height: 0.20 mm
• Nozzle: 0.4 mm
• Supports: NO SUPPORTS NEEDED. Print with the flat back side on the build plate.
• Print Speed: Use your printer's standard settings.

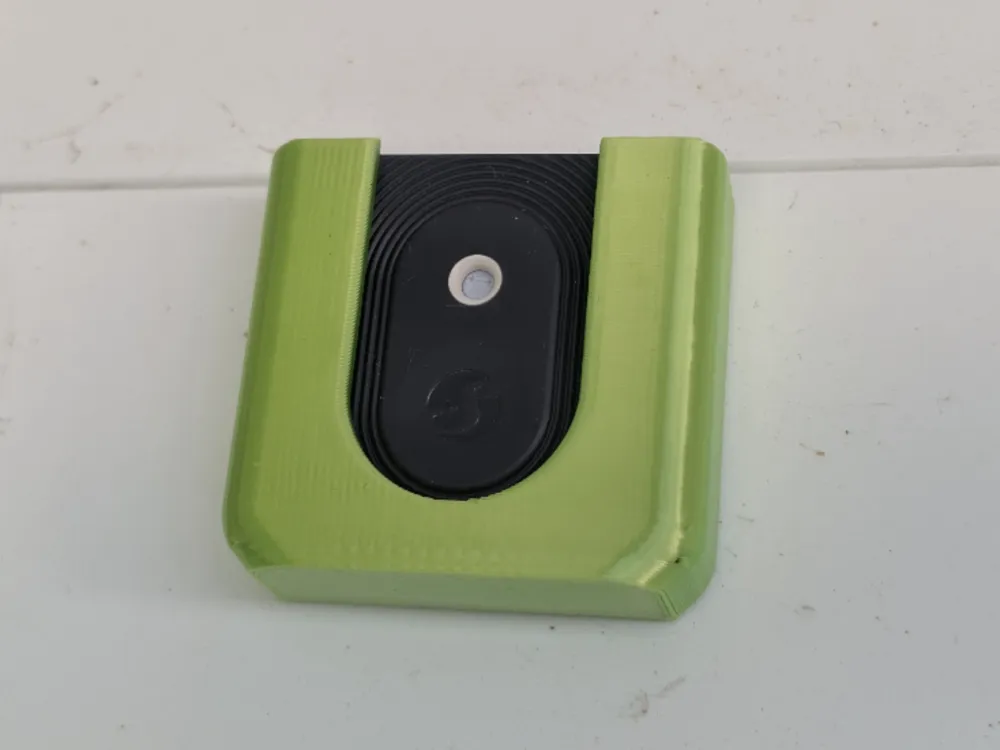

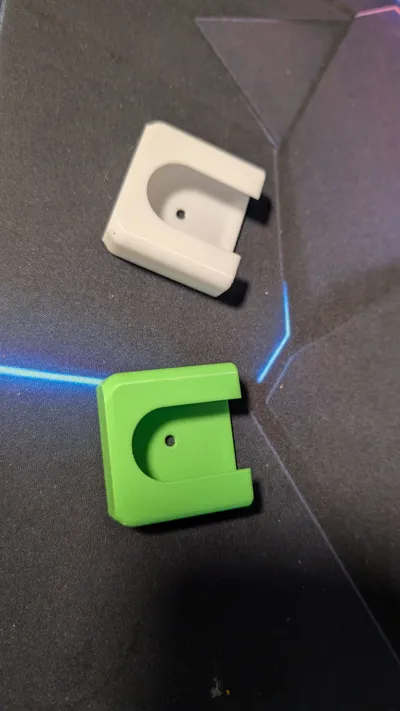

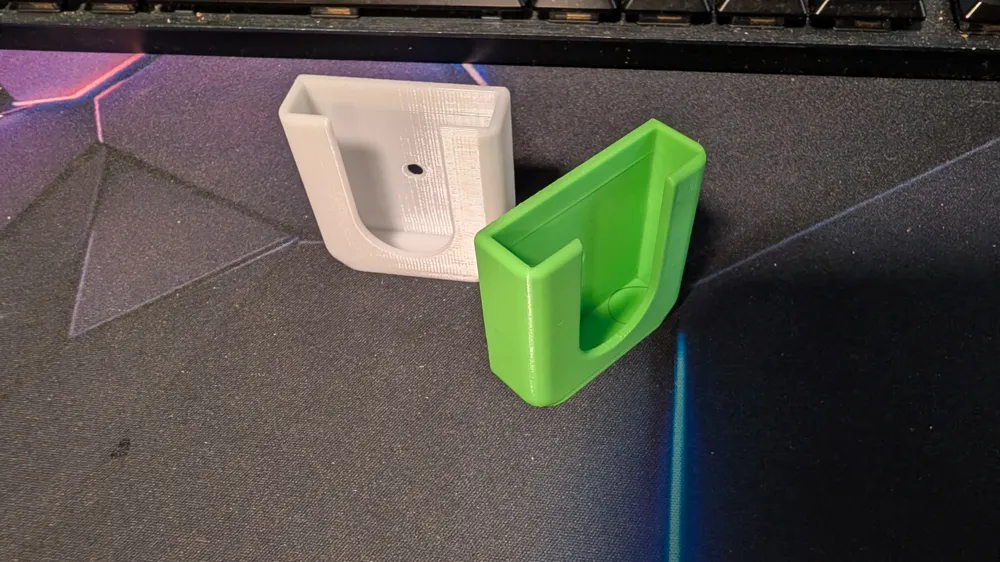

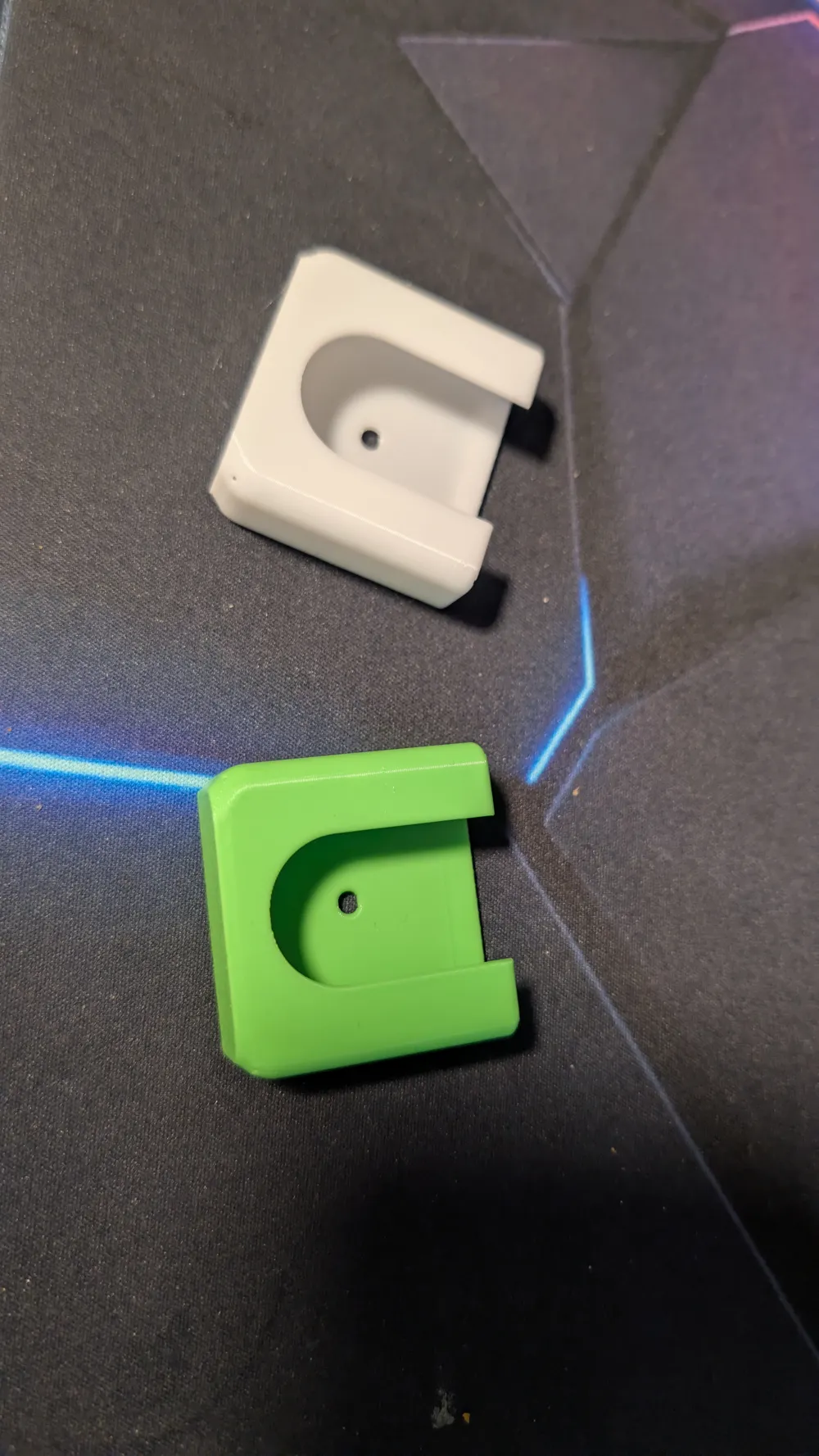

• Visuals: Check out the provided photos to see the print quality in different colors (green and white).

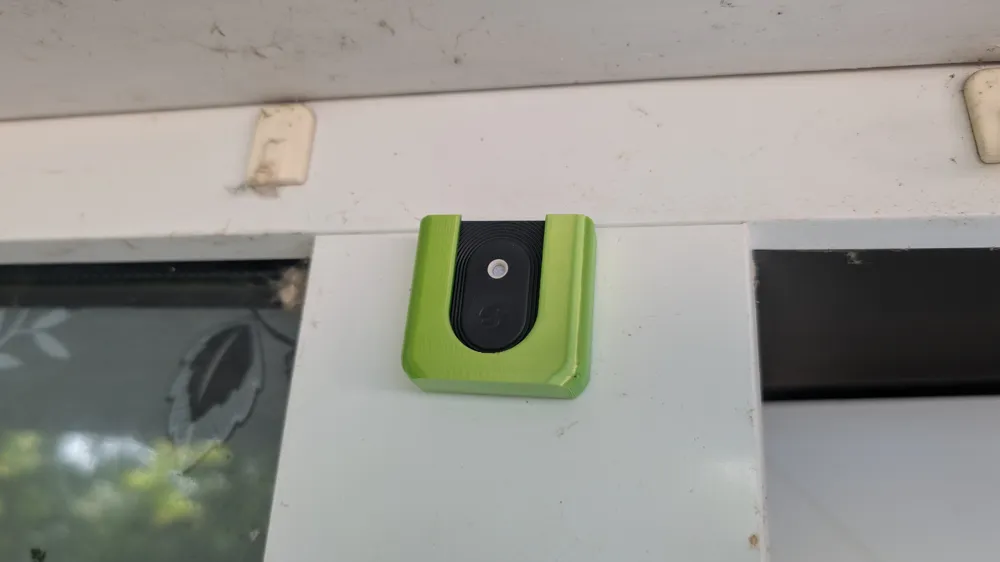

Installation Instructions

This mount gives you two flexible installation options:

1. Adhesive Mount: Use the original double-sided 3M tape provided with your Shelly BLU H&T sensor. Apply it to the clean back surface of the print, then press and hold onto your clean wall surface for a few seconds.

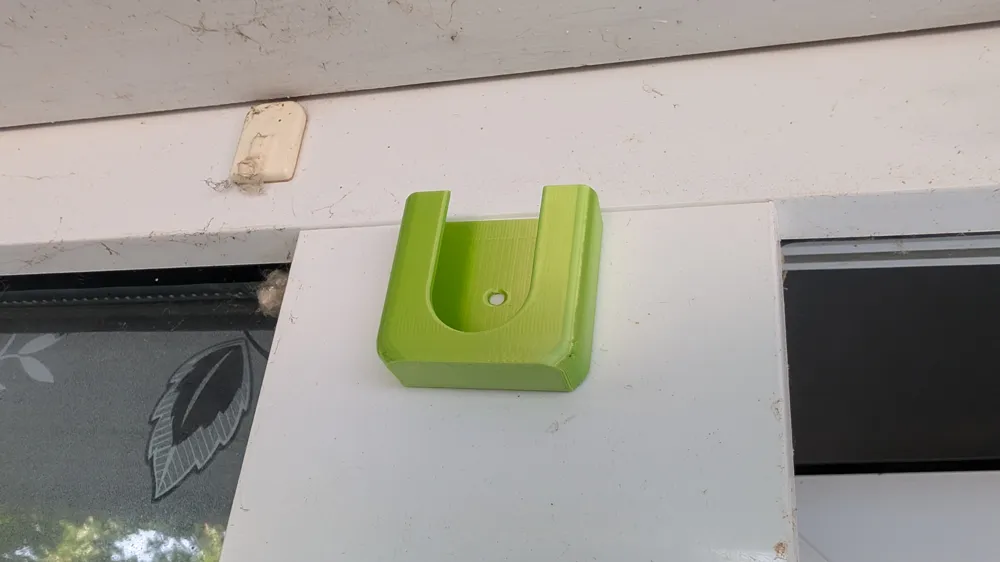

2. Screw Mount: The center of the mount has a pre-designed hole. Use a small screw appropriate for your wall material to fix the mount in place. (Refer to the photos to see the mounting hole).
