Description

Summer cooling / DIY cooling / outdoor family use

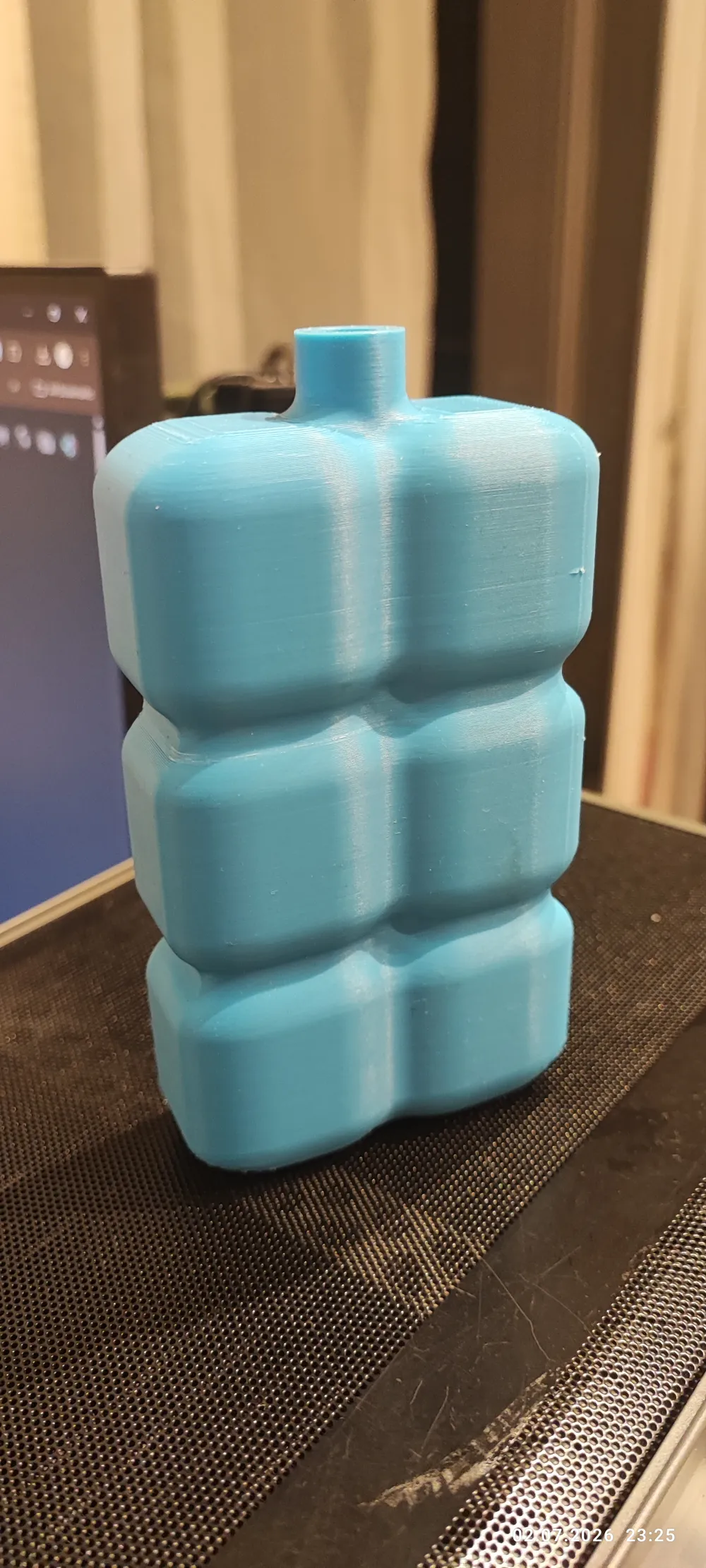

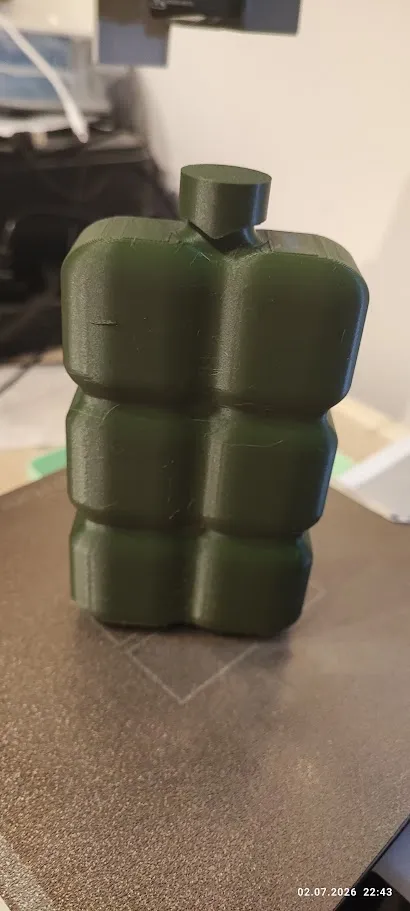

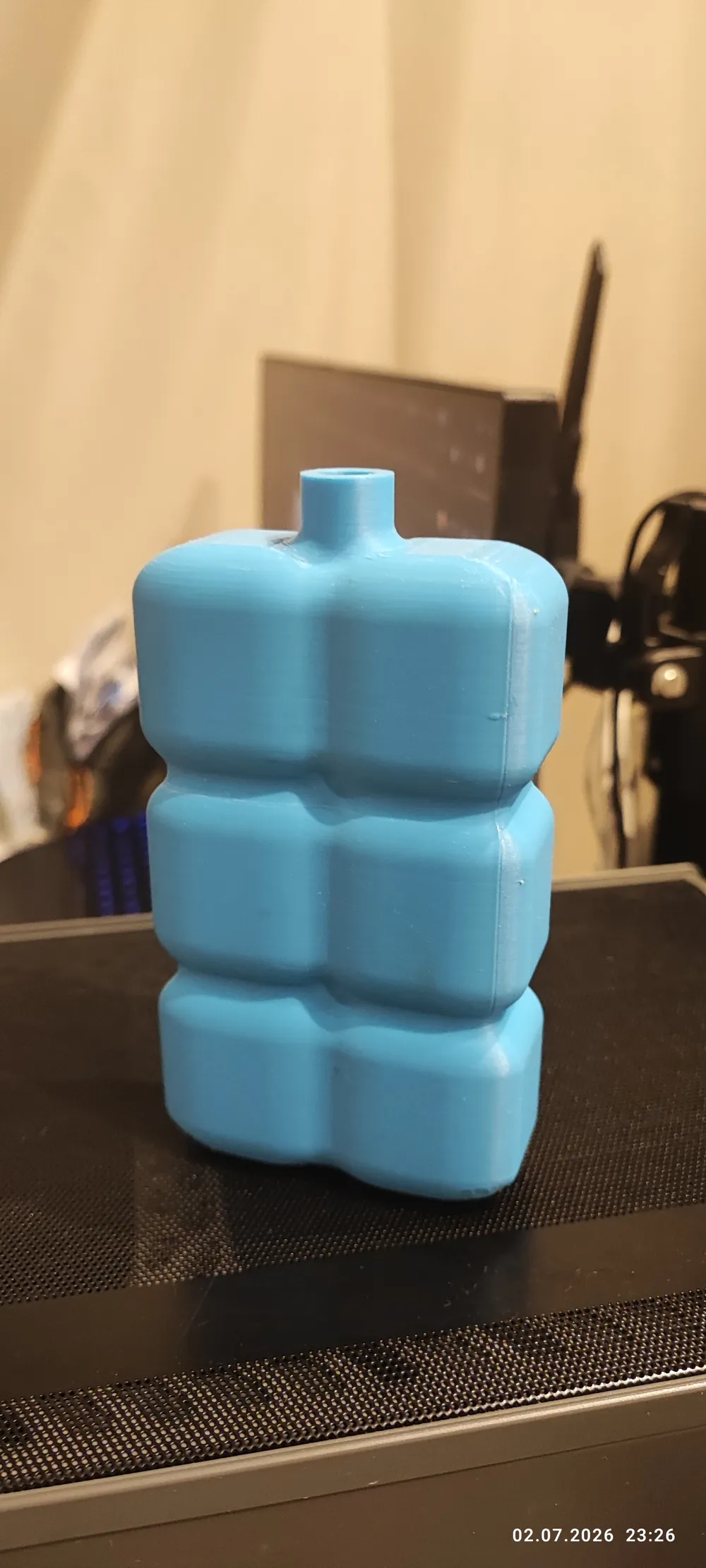

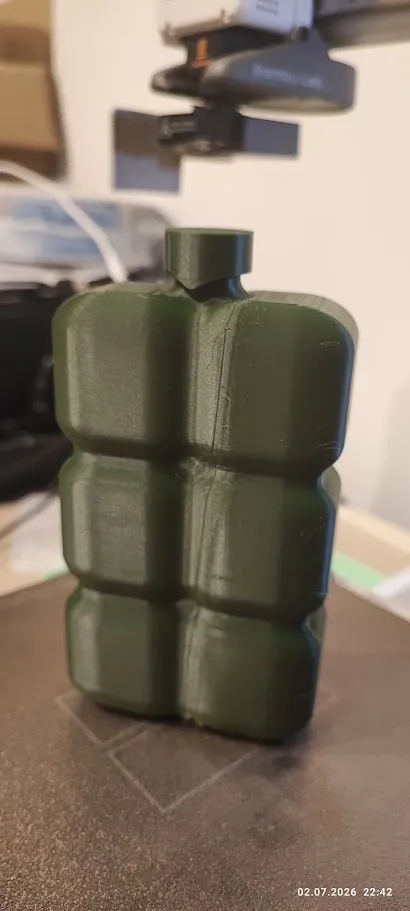

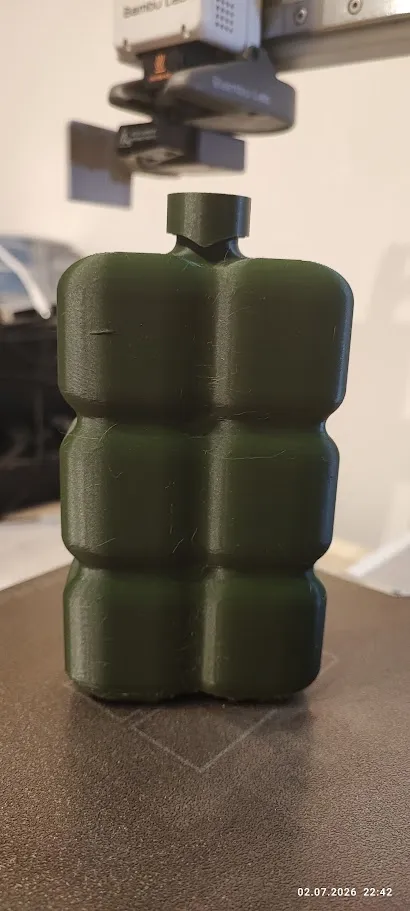

A reusable refillable freezer ice pack designed for portable coolers, lunch bags, temperature-sensitive items, camping, travel, and simple DIY cooling setups.

Fill it with water, leave some empty space for ice expansion, freeze it, and use it as a compact cooling block.

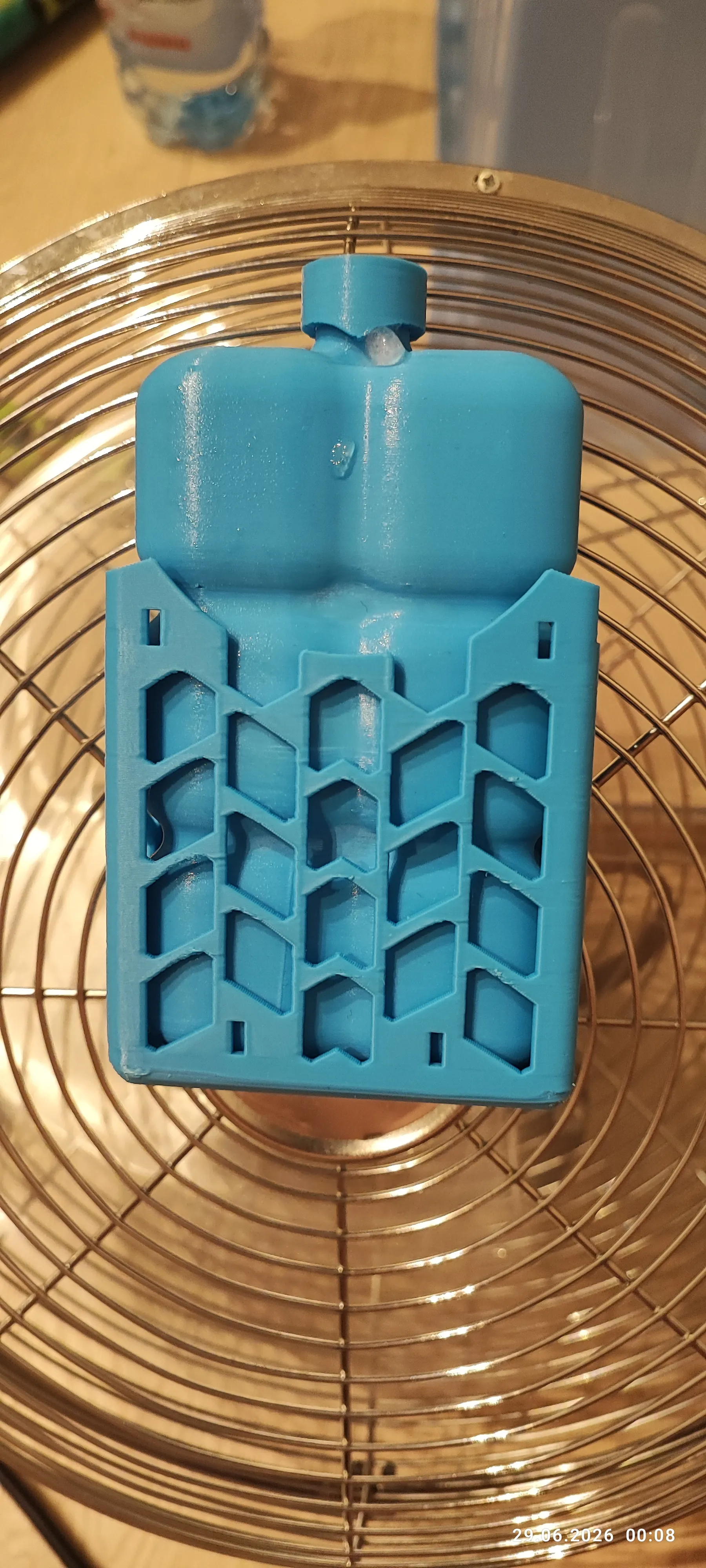

The flat rounded shape makes it easy to place inside a cooler bag or attach near a small fan for a simple cold-air setup.

Tested

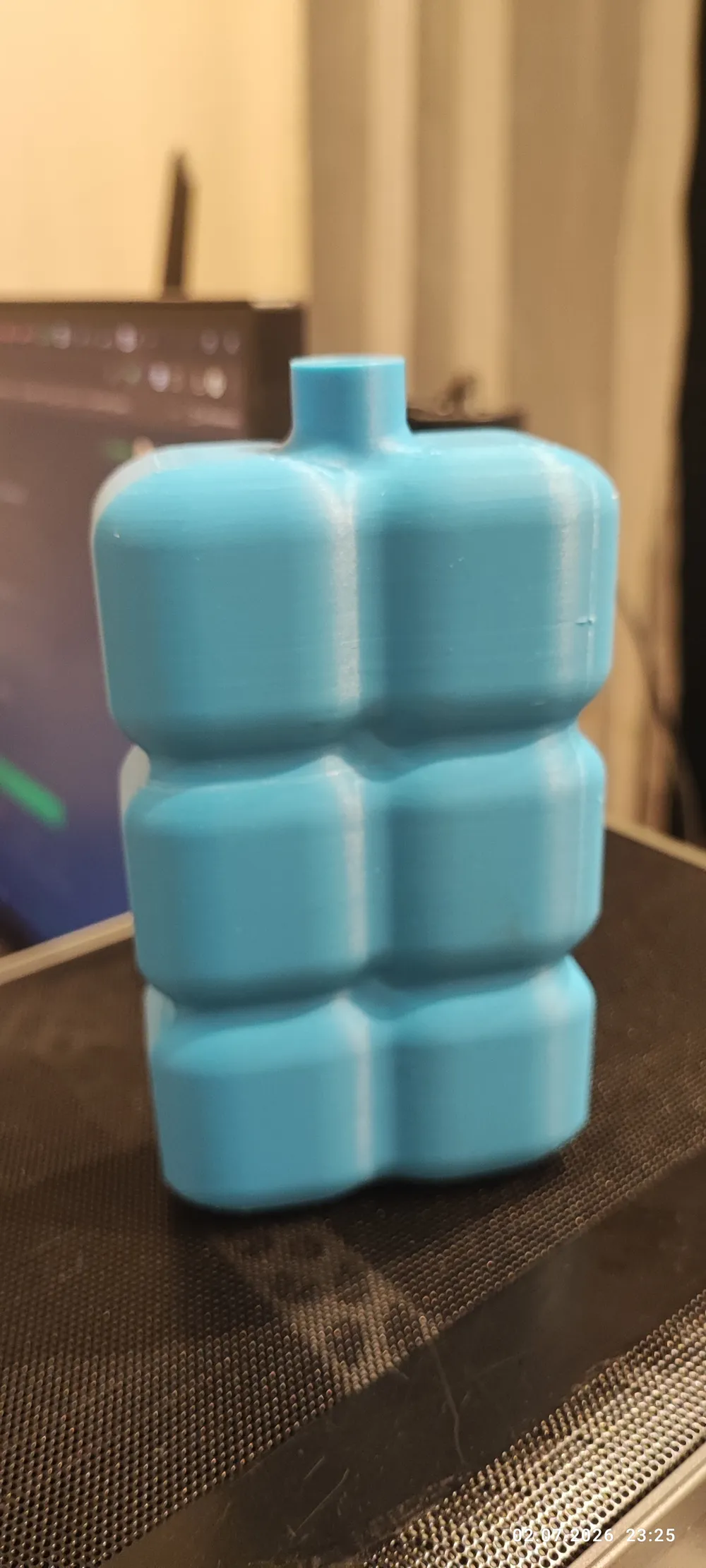

This design has been personally tested using Bambu PLA Tough+ and has successfully completed 6 full freeze-thaw cycles without cracks, leaks, or structural damage.

Please note that results may vary depending on filament quality, printer calibration, print settings, and layer adhesion. Low-quality materials or poor layer bonding may not withstand repeated freezing.

Important

Do not fill completely. Water expands when frozen.
Leave an air gap inside before freezing.
This is a 3D printed container, so always test for leaks before using it near electronics, medicine, or food.

Looking for smaller ice pieces and a fan cooling setup? Check out my companion model:

Slim Ice Stick Tray + Fan Mount

https://makerworld.com/uk/models/2986837-ice-tray-fan-cooling-mount-for-diy-cooling

Flat Refillable Ice Pack | Slim Cooling Block

https://makerworld.com/uk/models/2999041-flat-refillable-ice-pack-slim-cooling-block

Modular Refillable 3-Can IcePack|Expandable Cooler

https://makerworld.com/uk/models/3045734-modular-refillable-3-can-icepack-expandable-cooler

Recommended print settings

Recommended material: PETG for maximum durability and water resistance.

Bambu PLA Tough+ has also been successfully tested and completed 8 freeze-thaw cycles without damage.

0.2 mm layer height
4–5 walls
25–40% infill
5+ top/bottom layers
Slow outer walls for better sealing
No supports required

After printing

Test with water at room temperature first.
Check carefully for leaks.
Do not fill to the top.
Leave an air gap for ice expansion.
Freeze upright for the first test.

Disclaimer

Use at your own risk.

This is not a certified medical cooling device.

For medicine transport, always use an additional sealed bag and monitor the required temperature range.

Do not use directly with electronics unless the container has been leak-tested and adequately protected.

This is not a certified medical cooling device. Always test for leaks before using near electronics, food, or temperature-sensitive items.
