Parametric Chair Leg Plug / End Cap
Print Profile(1)
Description
Parametric Chair Leg Plug / End Cap

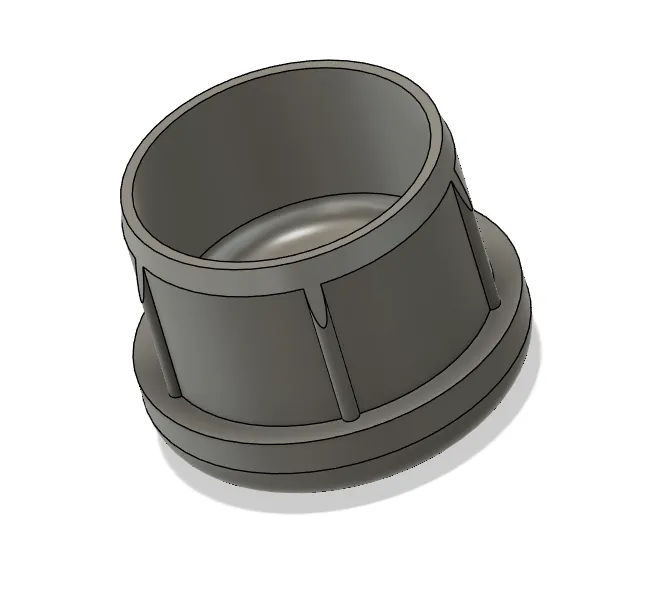

This is a fully parametric chair leg plug designed for round metal chair legs. The model can be easily customized to fit different tube sizes by adjusting the parameters in your CAD software.
The flexible ribs ensure a secure press-fit while allowing easy installation. The rounded base protects floors from scratches and provides a clean, professional appearance.
Features
- Fully parametric design
- Fits round metal chair legs
- Secure press-fit with flexible ribs
- Smooth rounded base
- Easy to customize for different dimensions
- No supports required
- Quick and easy to print
Boost Me (for free)
Recommended Material
For the best durability and flexibility, it is recommended to print this model in:
- ✅ PETG (recommended)
- ✅ ABS or ASA for higher temperature resistance
PLA can be used for indoor applications but is less impact-resistant and may deform over time under load.
Recommended Print Settings
- Layer height: 0.20 mm
- Infill: 20–30%
- Walls: 3–4
- Supports: Not required
- Brim: Optional for better bed adhesion
Adjustable Parameters
- Outer Diameter (OD)
- Inner Diameter (ID)
- Plug Height
- Base Height
- Rib thickness
- Wall thickness
Simply adjust the parameters to match the dimensions of your chair leg.
