GENERATOR for openGrid Walls/Surfaces

First of all: openGrid is a really fantastic organization system, developed by David D., and I'd like to thank him very much for that.

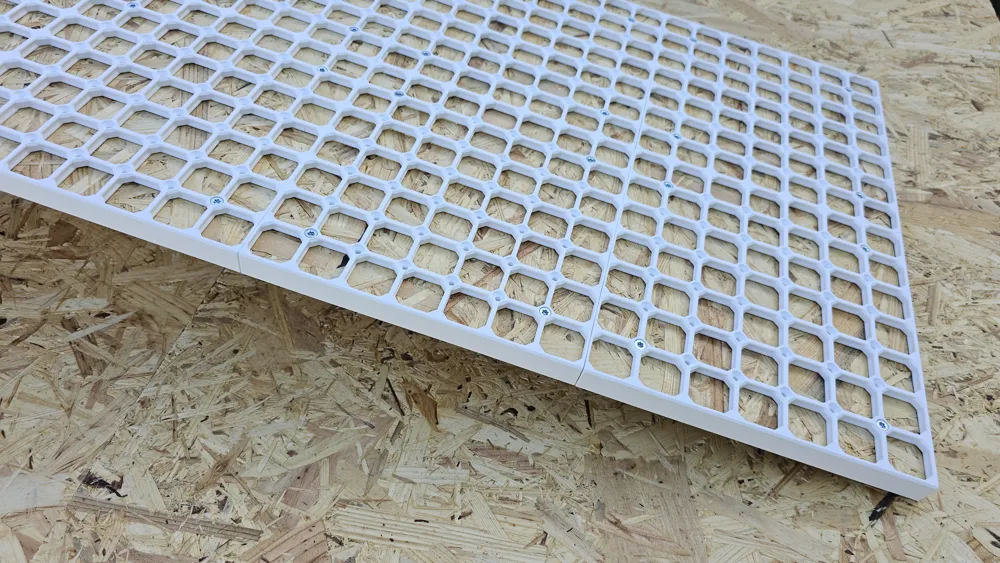

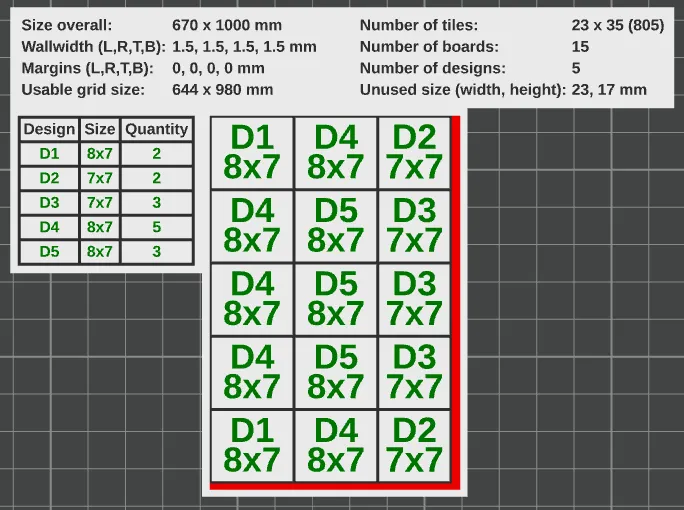

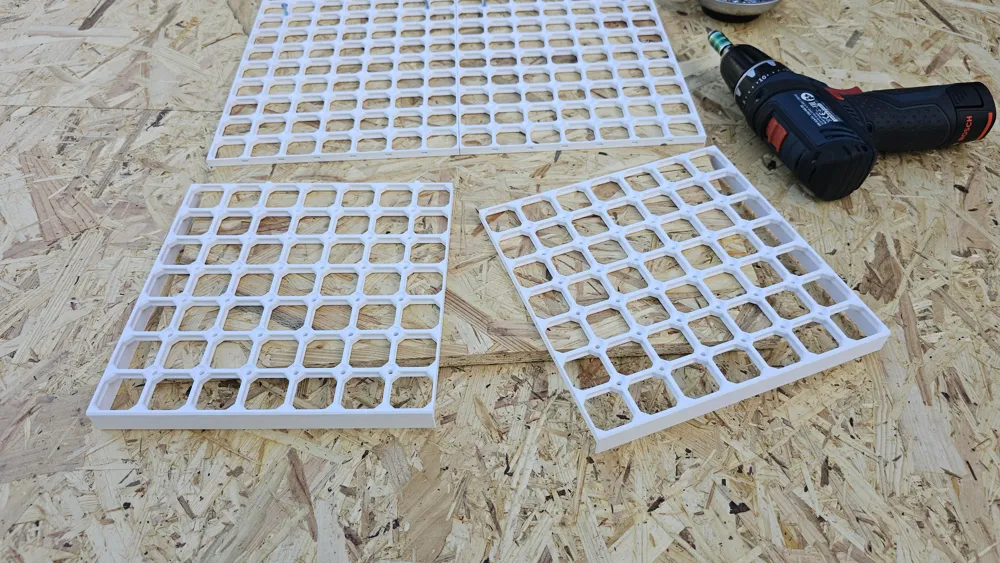

This is an easy-to-use generator for larger openGrid walls or surfaces. Stop thinking in terms of tiles, columns, or rows - just enter your available dimensions, and the GENERATOR for openGrid walls/surfaces will take care of the rest. With this generator you define the size of the available space and than you will get an overview with different board-designs, which are neccesary to create your wall or surface:

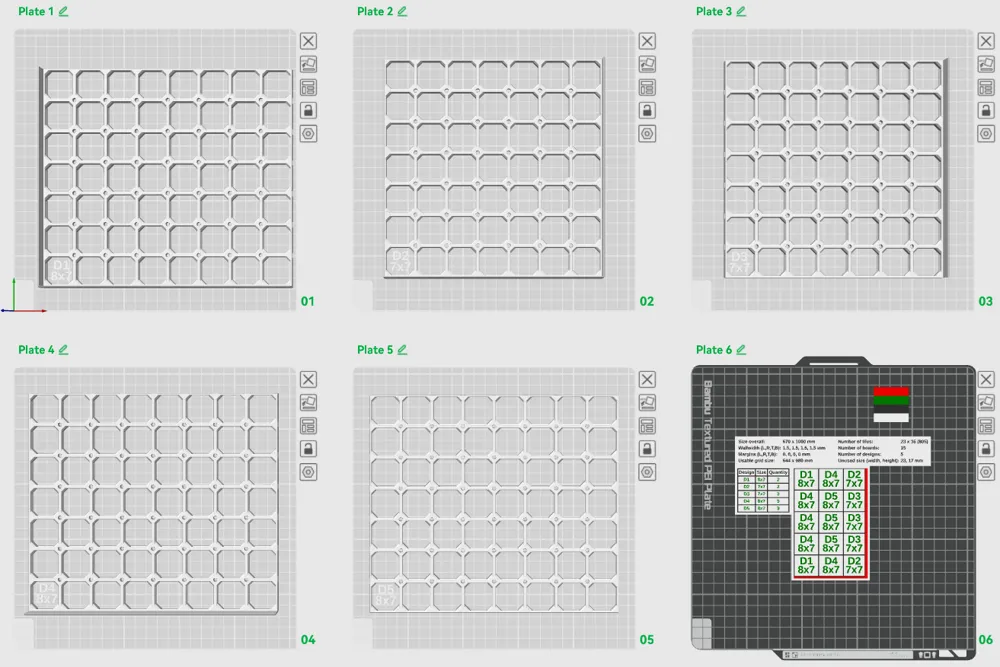

In addition also the different board designs are created on different plates:

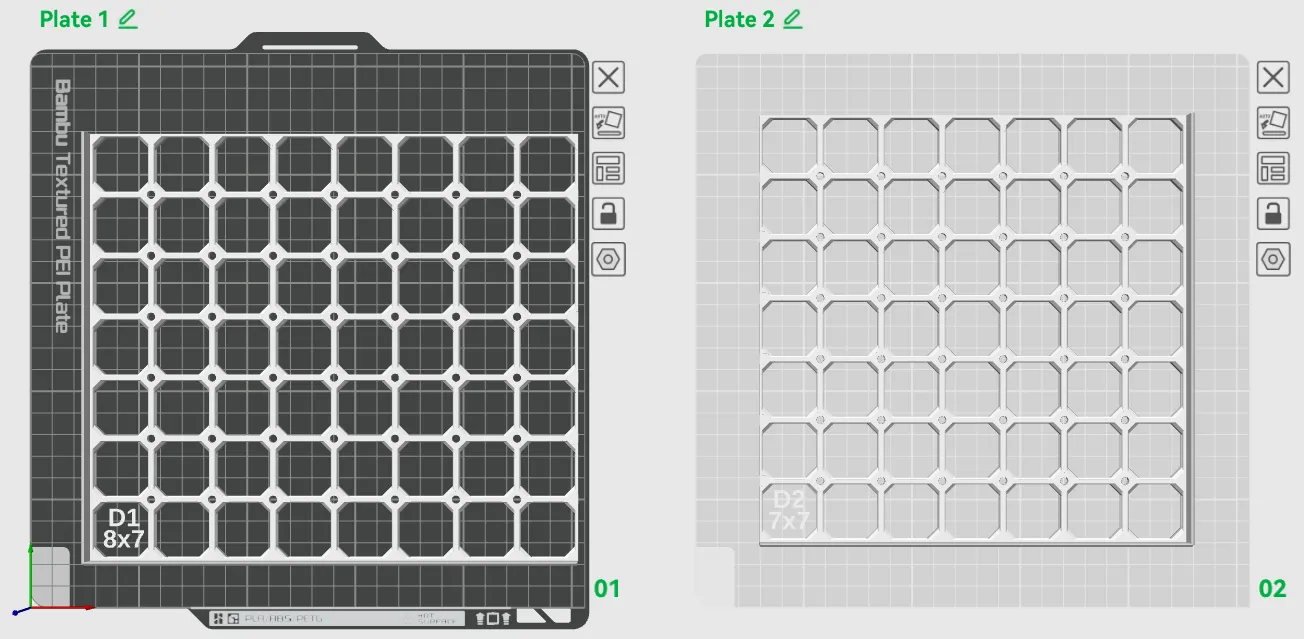

Unfortunately, the Parametric Model Maker's resources are somewhat limited, so when working with larger layouts, the creation process may time out. In such cases, you can split the creation of the various designs: select the first design to be created, and then specify how many designs should be created together—for example, 2 designs starting from D3:

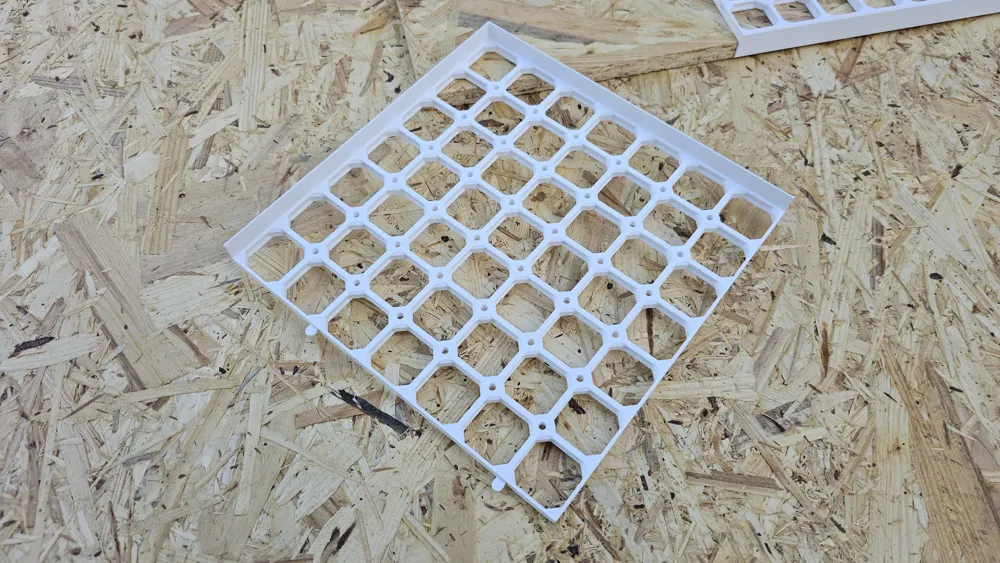

This generator supports both version of openGrid boards: the Full and also the Lite-Version

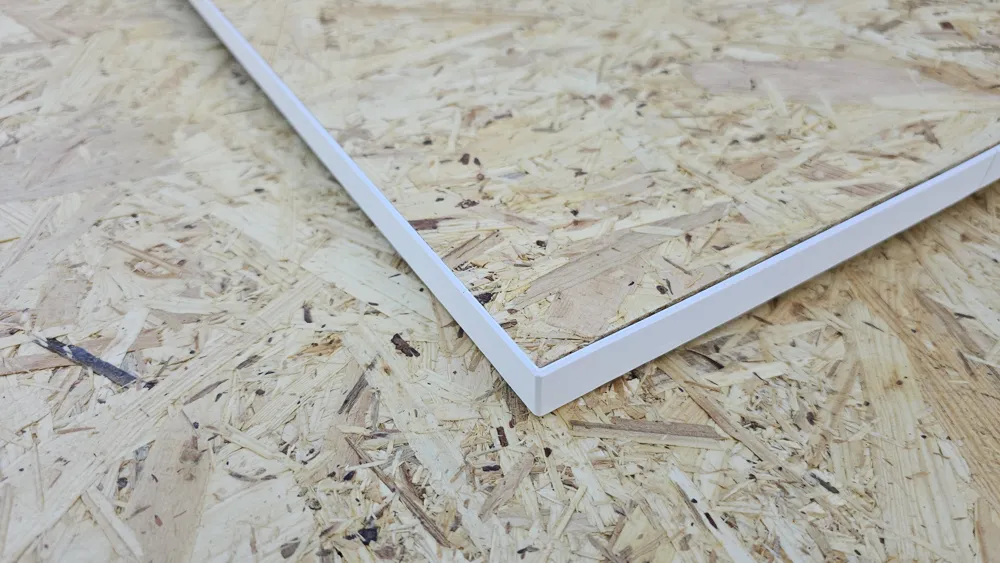

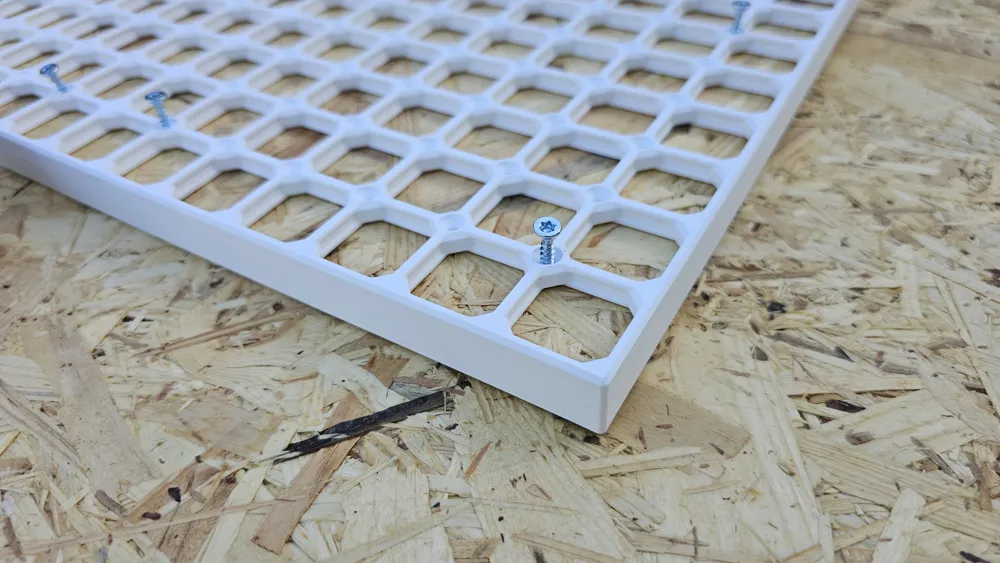

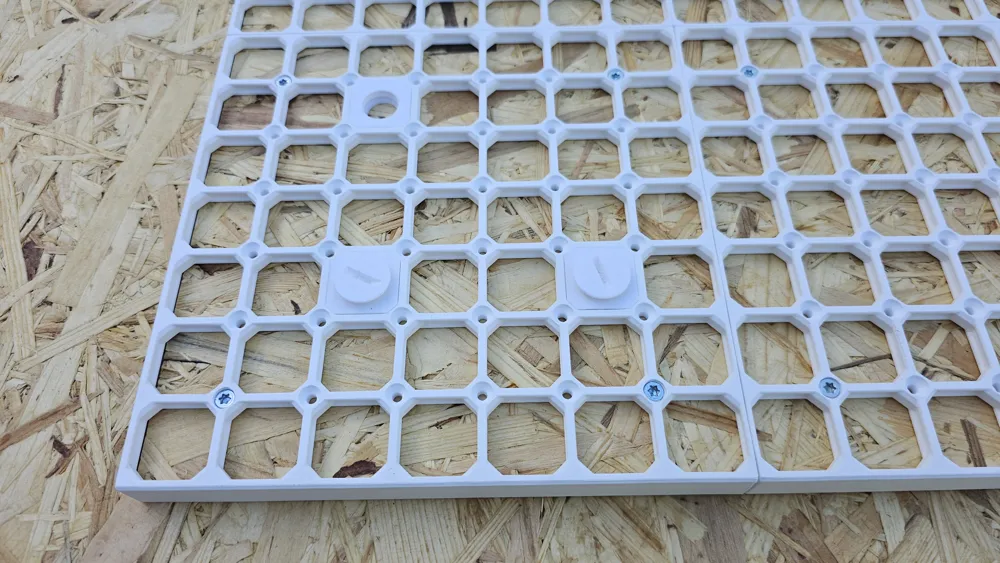

It is also possible to add a borders, margins and holes for screws.

Additional parts and accessories needed for the wall/surface can be found on David's openGrid page or his openGrid collection. It's also possible to search it on makerworld or other 3D model sites.

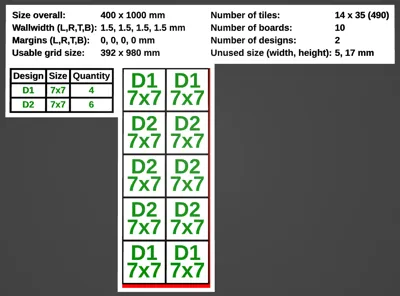

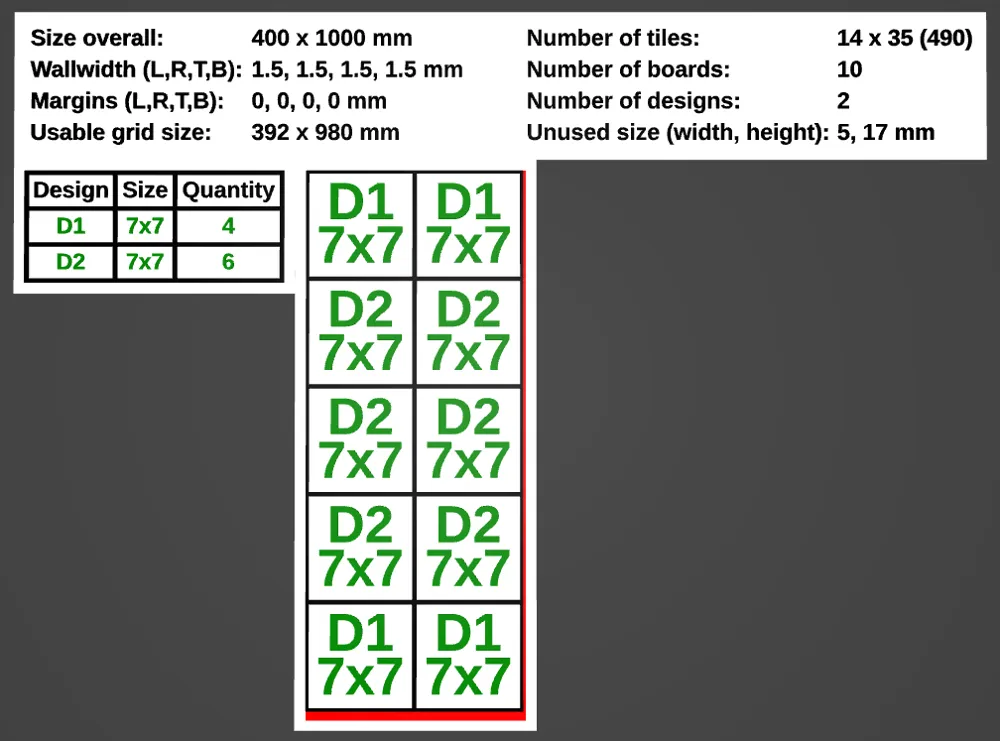

The last plate contains always an overview of your openGrid wall/surface. It is usually not necessary to print this out, but you are welcome to do so if you wish.

Finally:

• Please feel free to contact me if the model does not satisfy your needs. I am confident that we will find a good solution.
• It would be great if you would also check out my other models.
