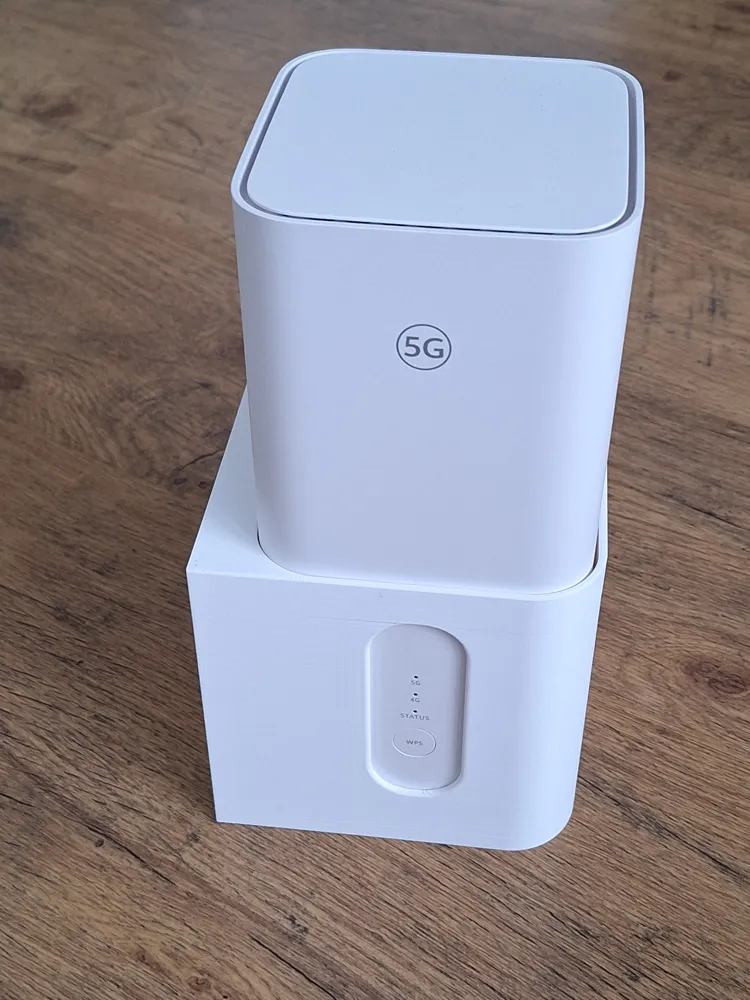

This is a wall mount suitable for following 5G routers:
Huawei H158
Huawei / Ooredoo 5G CPE PRO 5

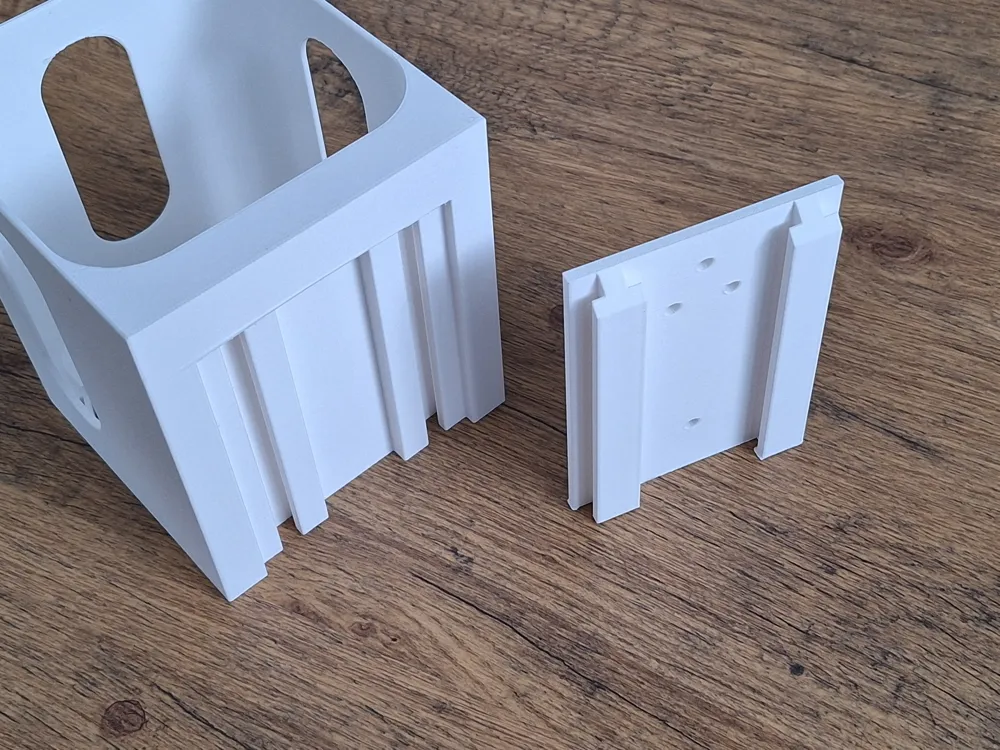

The design features two parts: the main holder and wall-mount bracket.
This can be used to attach the router to the wall, on the side of a cabinet or any other place, so it does not take up usable workspace.

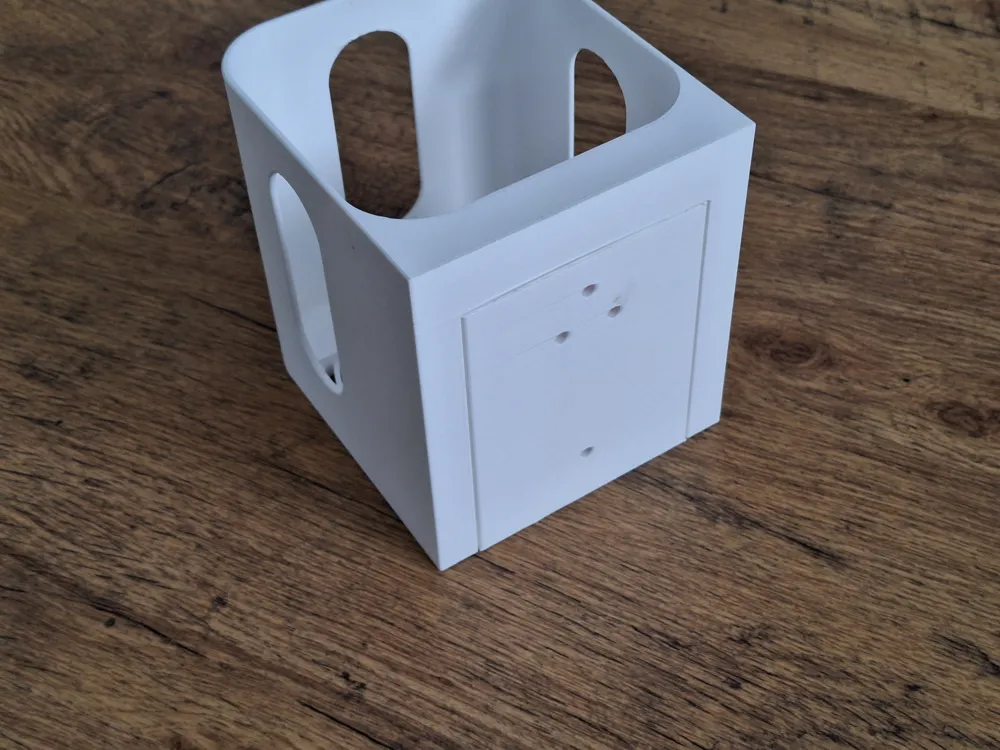

Installation is easy, just attach the bracket to the wall using 2-4 screws (use at least 3-4 screws if attaching it with smaller screws to the side of a MDF panel etc to ensure reliability) and slide the holder on to it. It has a sleek design, no visible mounting hardware after installation.

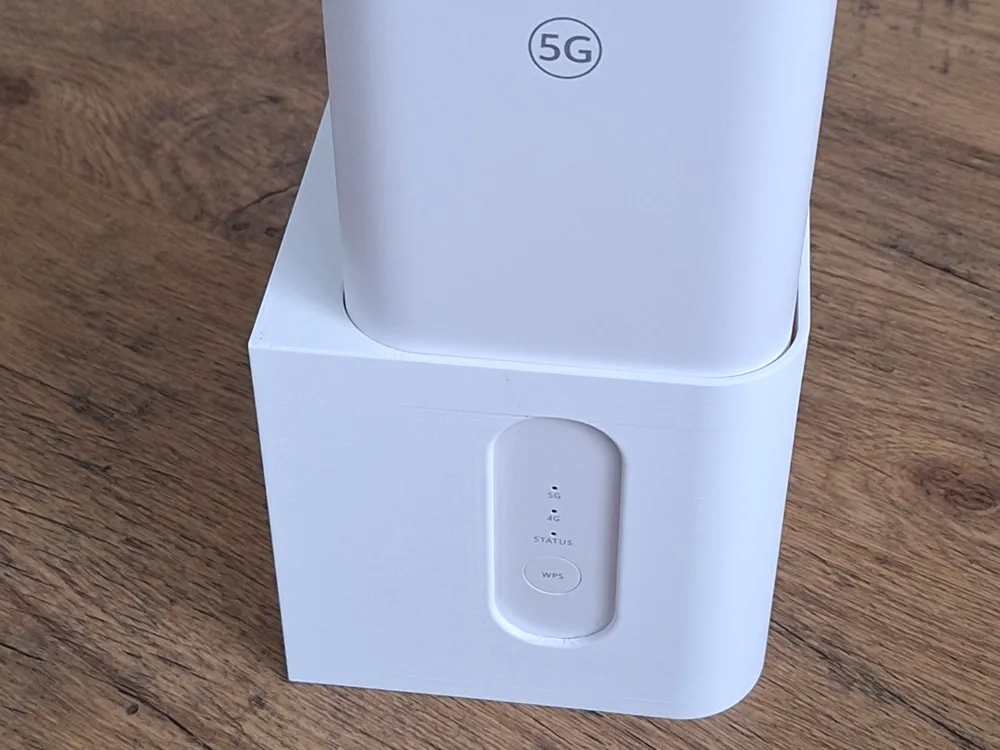

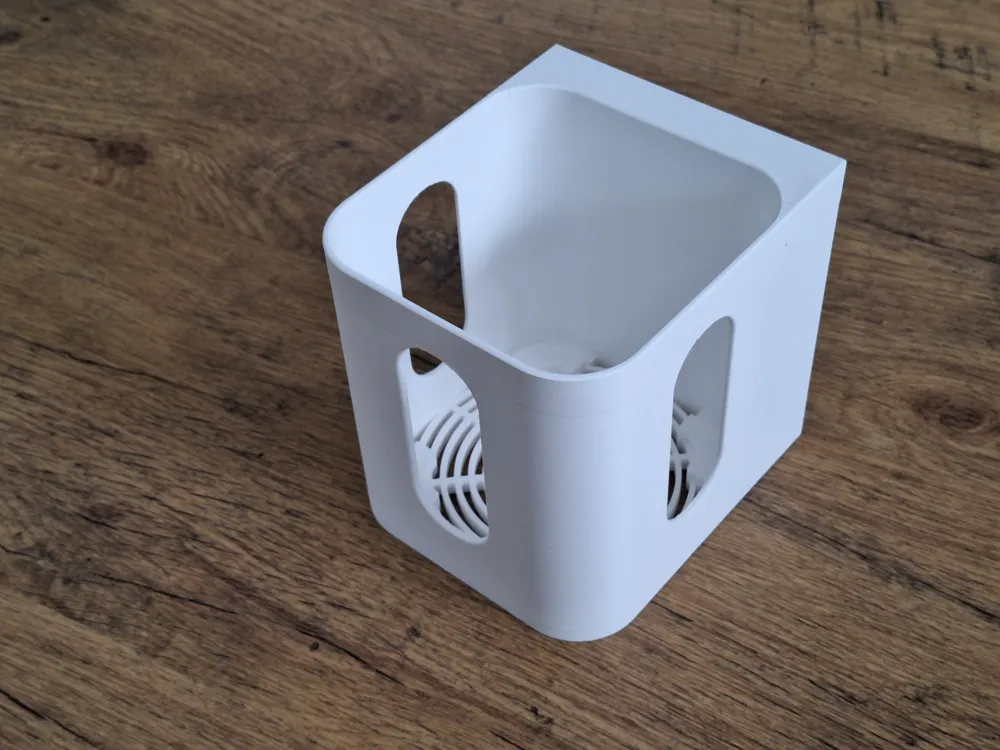

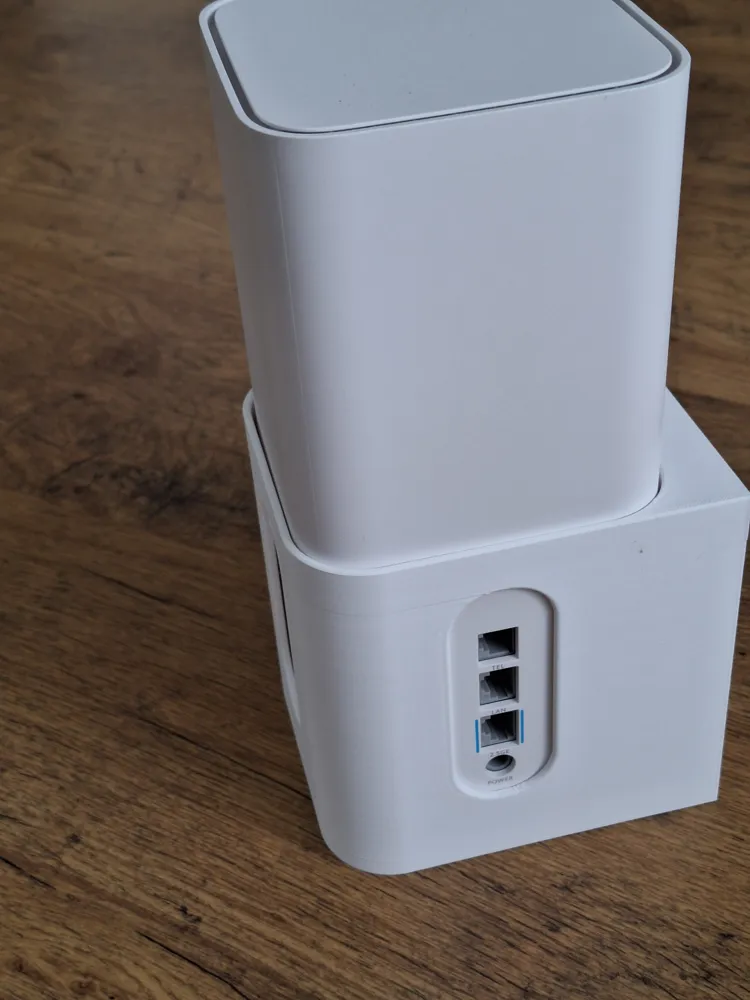

The design futures three opening on the side so the router can be turned in which way is best suitable and the power and LAN connectors are still accessible. If using the opposing side openings the indicator lights and button are also visible and accessible.

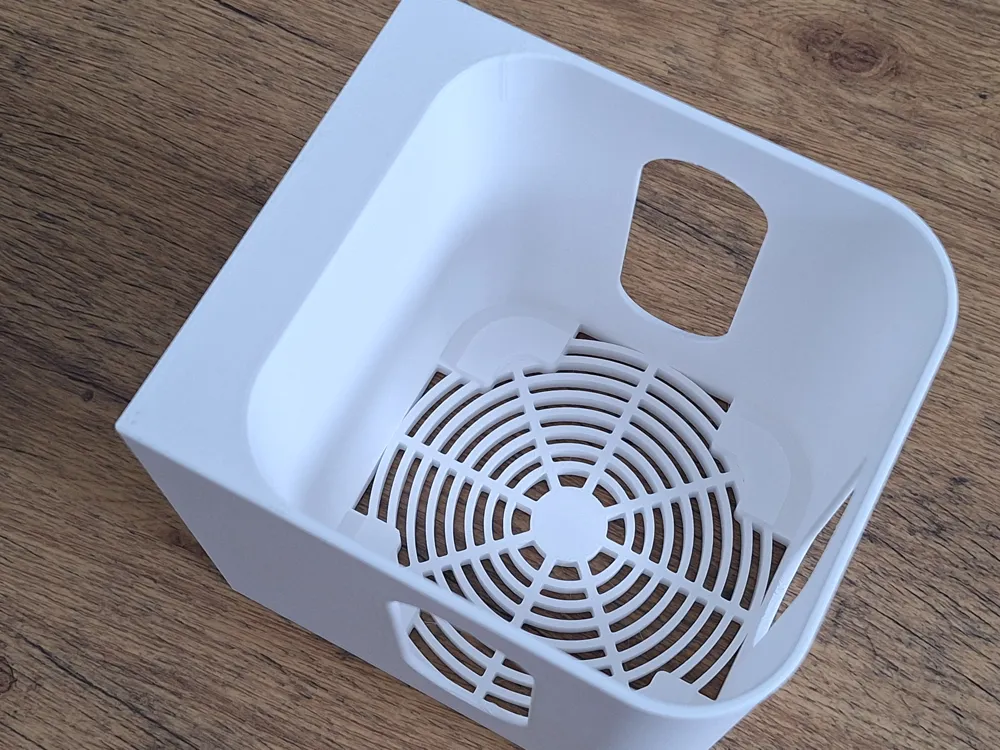

The design also features raisers in the inside corners and an open grill at the bottom to ensure the ventilation is not affected and the device does not overheat.
All parts except the screws are 3d printed and specifically designed to be printed without supports to reduce material waste. The bracket as it is narrow and tall features a brim in the file which may or may not be required. Test at your own risk.
