Pelican Storm im2500 12v case trailer battery box
IP Report
Print Profile(1)
0.24mm layer, 2 walls, 10% infill
Designer
15.3 h
2 plates
Open in Bambu Studio
Boost
1
5
0
0
1
0
Released
Bill of Materials
Bambu Filaments
Select all
List other parts
- CURT 58405 Vehicle-Side 4-pin harness x 1: https://amzn.to/44vCnpA
- White LED rock lights x 2: https://amzn.to/4eFU0rt
- Nilight Heavy Duty 7 way inline trailer plug x 1: https://amzn.to/4xQNfMg
- Nilight 90125E 5 Gang Rocker Panel x 1: https://amzn.to/4eJMKLs
Description

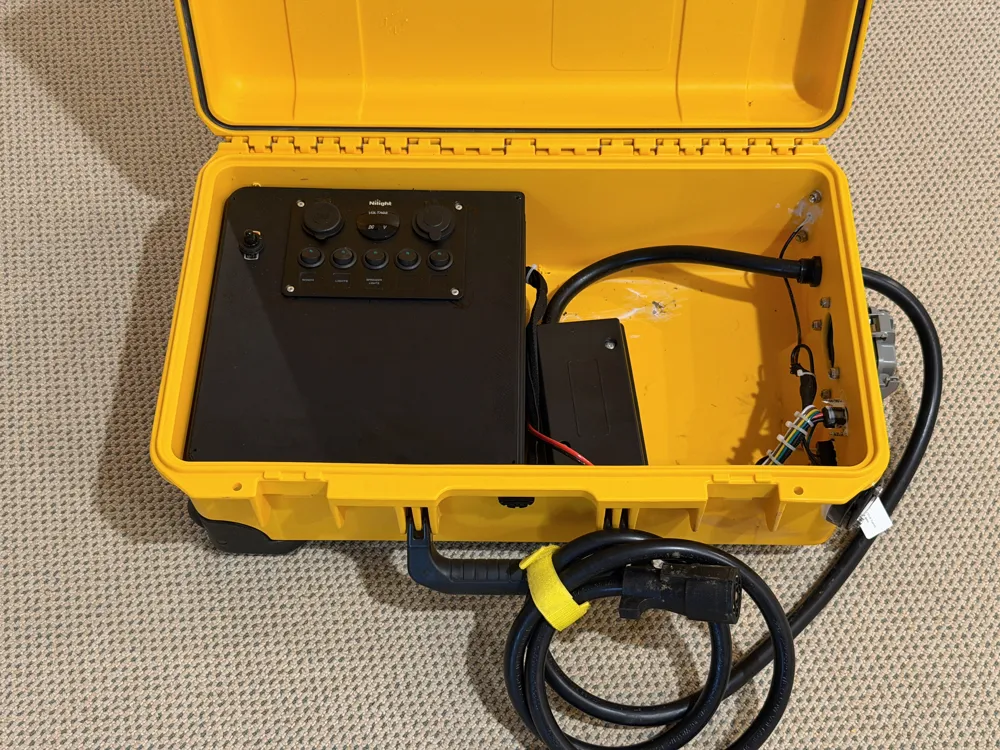

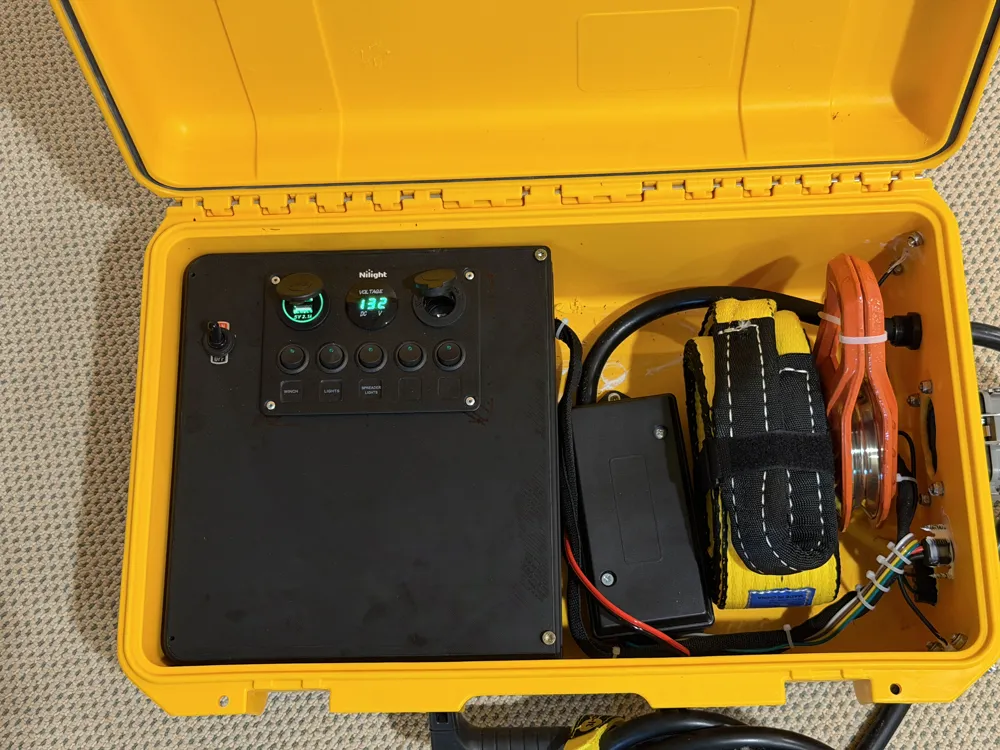

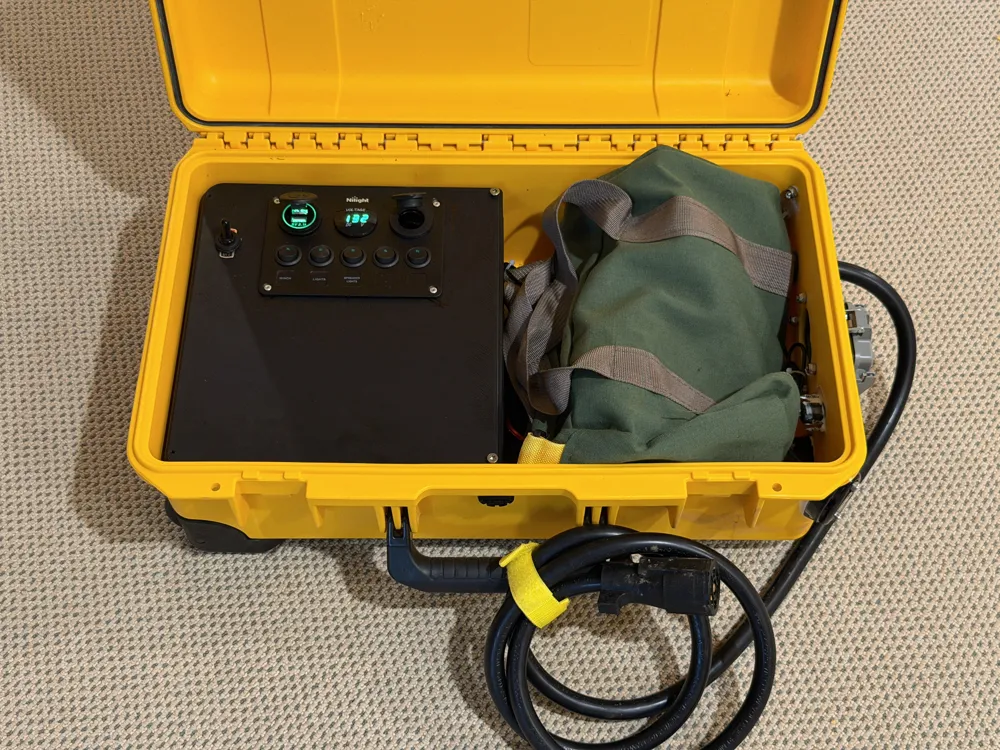

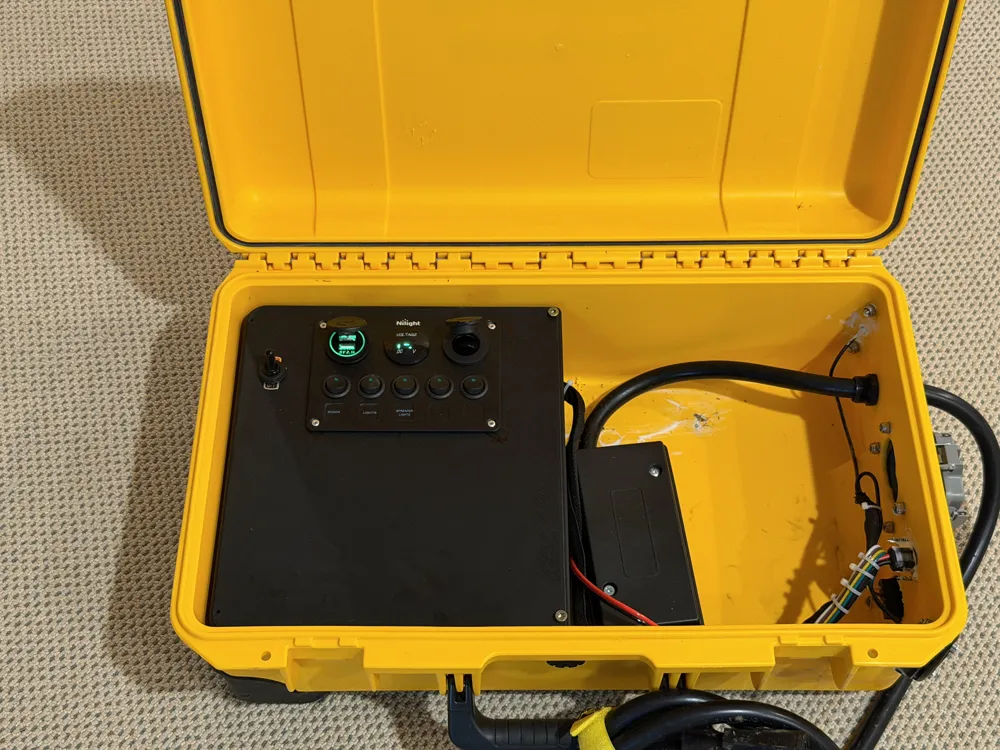

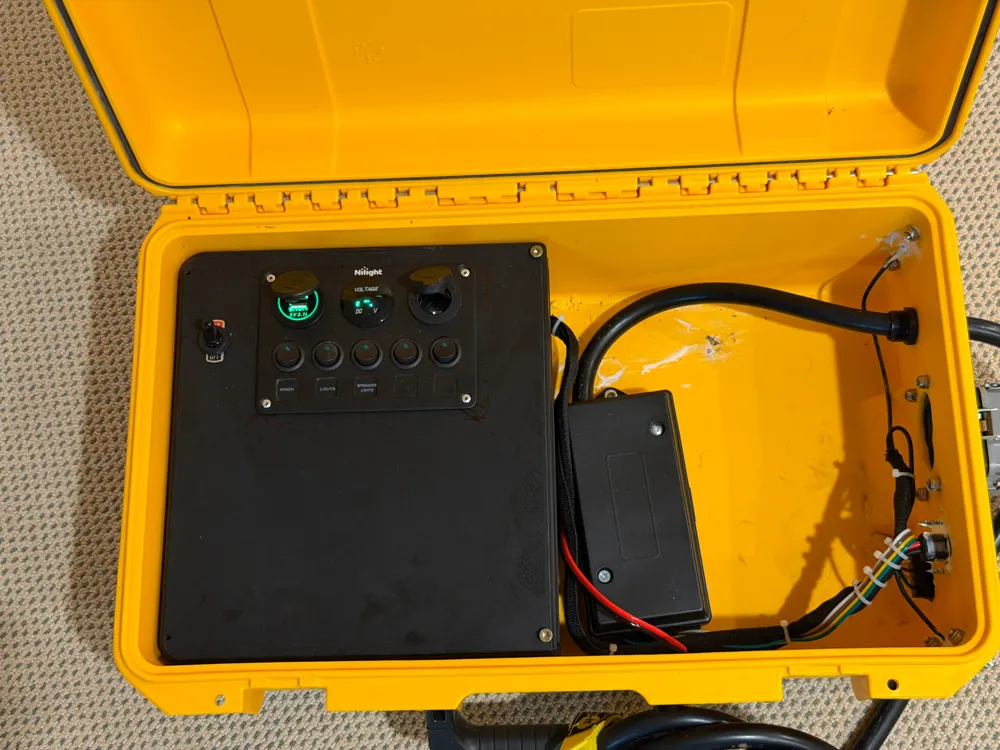

A ruggedized 12V LiFePO4 power station built into a Pelican Storm iM2500 hard case. Switchable outputs, USB charging, voltmeter, and waterproof external connectors.

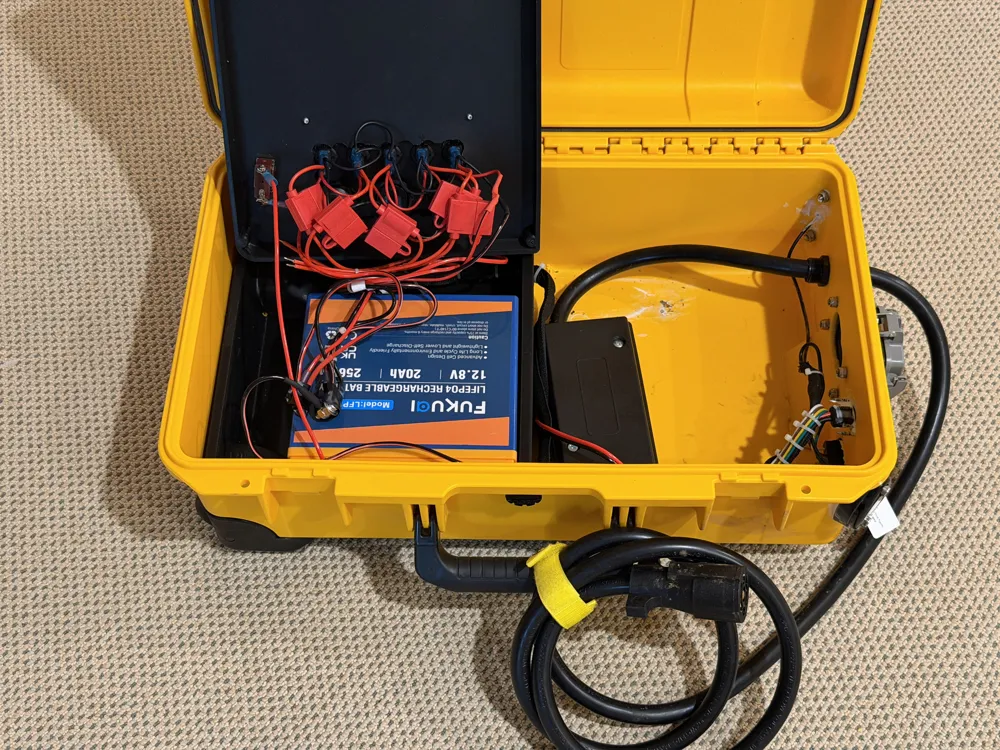

This is a portable 12V power distribution station designed for field operations, off-road recovery, or off-grid work. Built around a Fukuoi 12.8V 20Ah LiFePO4 battery (256Wh), and an Nilight switch panel.

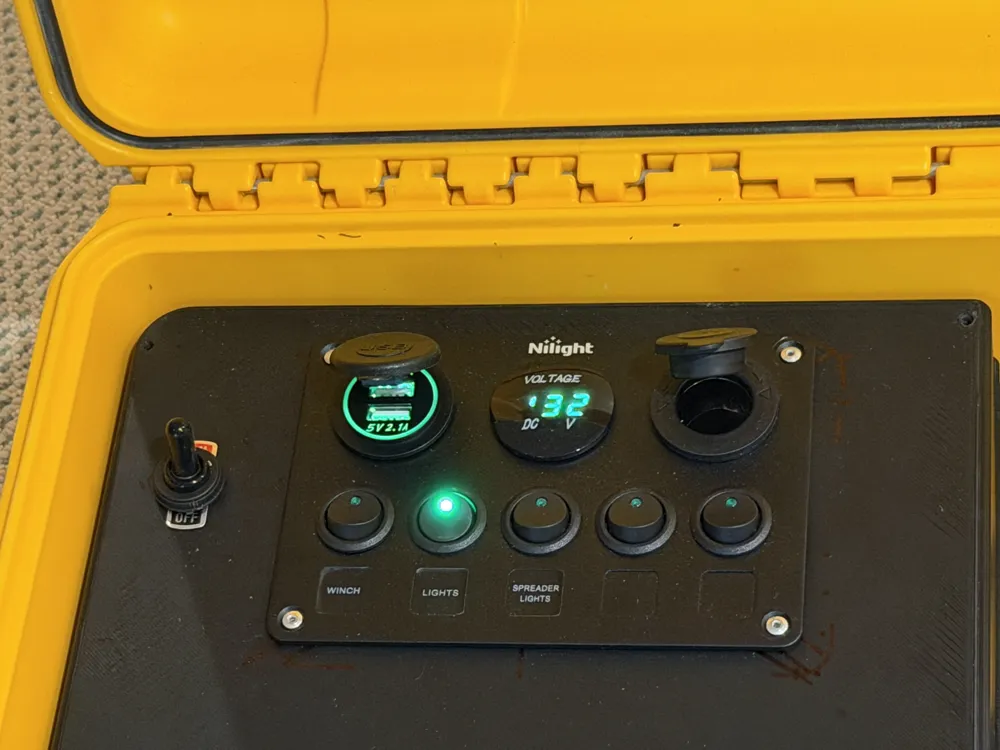

- Dual USB charging port (5V / 2.1A)
- Digital voltmeter display (DC voltage monitoring)
- Toggle master power switch
- 6x labeled rocker switches: Winch, Lights, Spreader Lights + 3 spares
12V accessory socket
Electrical architecture:

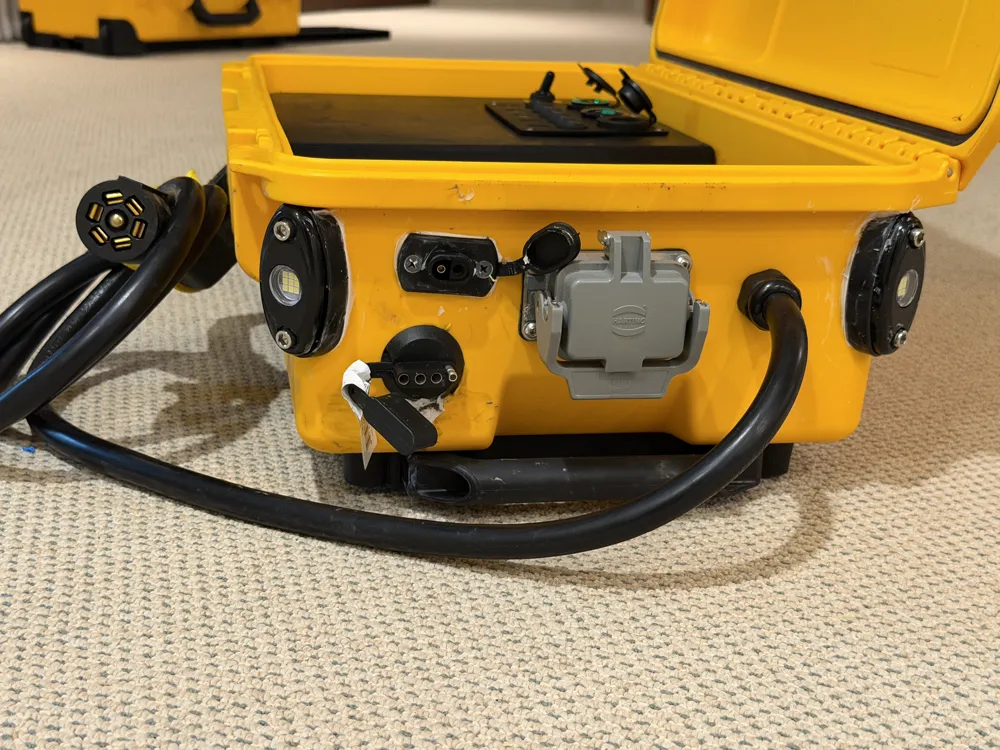

- 7-pin trailer connector for vehicle charging input
- Waterproof Anderson-style connector panel on exterior for winch

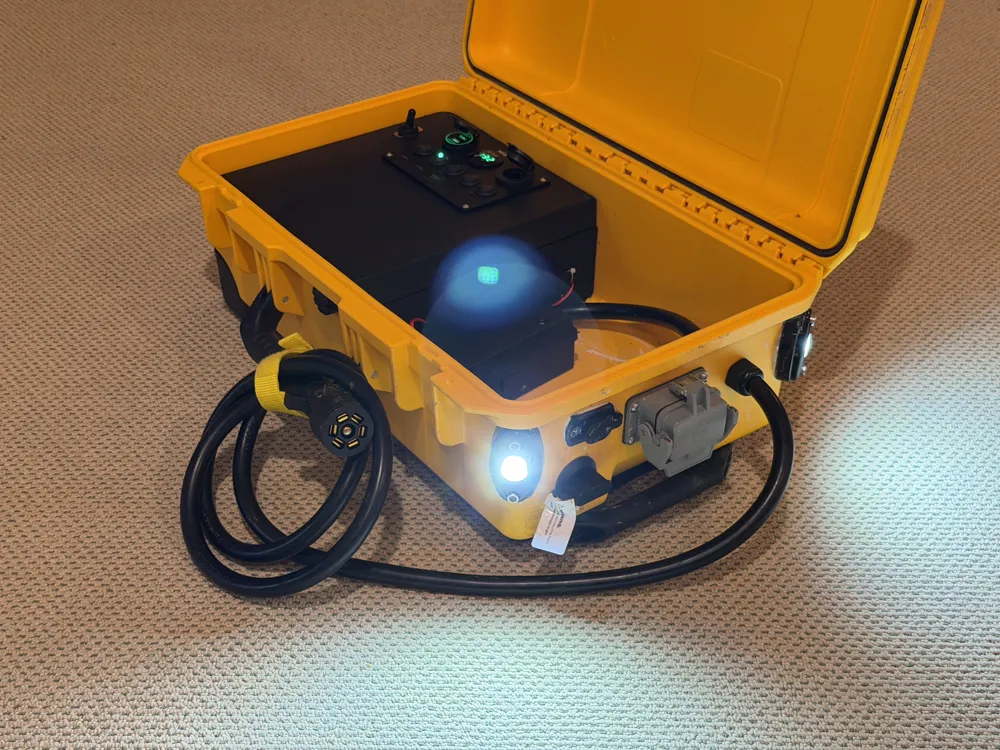

Integrated white work light
