Rainwater diverter with access hatch
Print Profile(1)
0.2mm layer, 3 walls, 7% infill
Designer
5.6 h
1 plate
Open in Bambu Studio
Boost
6
30
0
0
10
2
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description

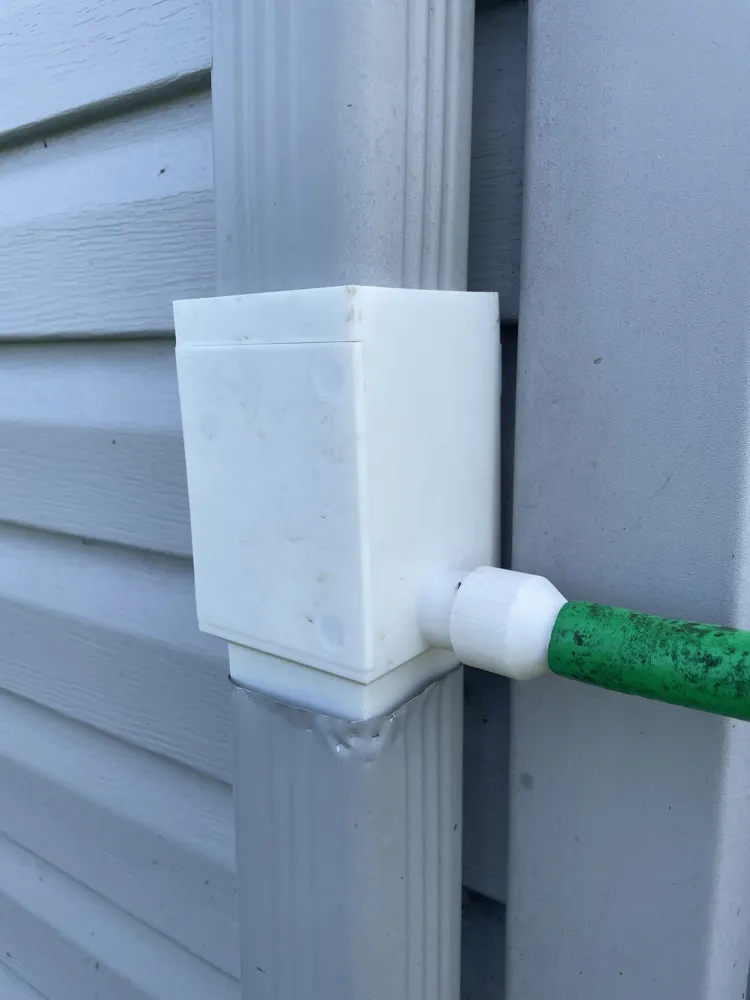

This rainwater diverter is designed for use with 3x3" downspouts. It is designed to collect the majority of the water up to the limit of the hose or your barrel.

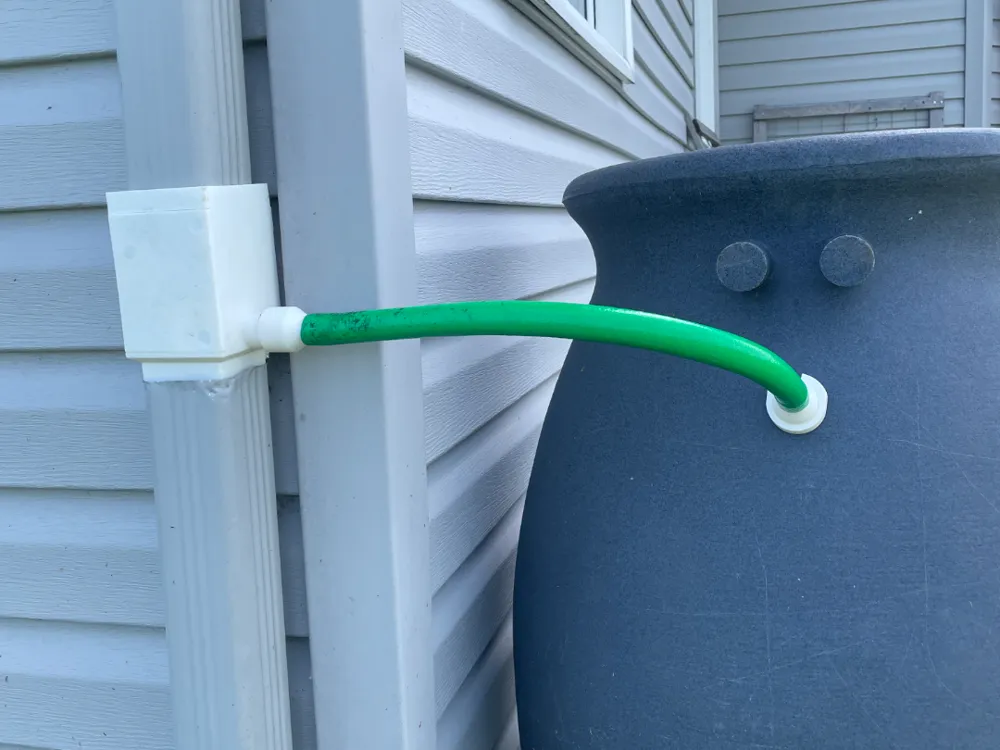

I recommend mounting the diverter just below the height of the top of your barrel (as pictured). When the barrel is full, the back pressure up the hose will direct excess water out the downspout. This prevents your barrel from over-flowing!

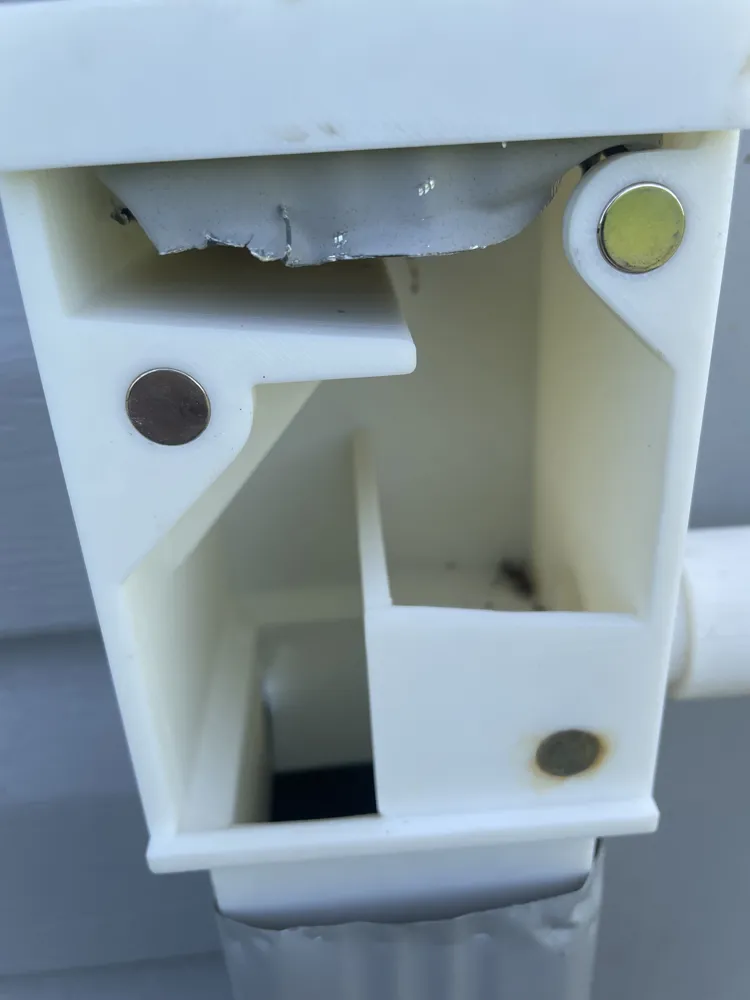

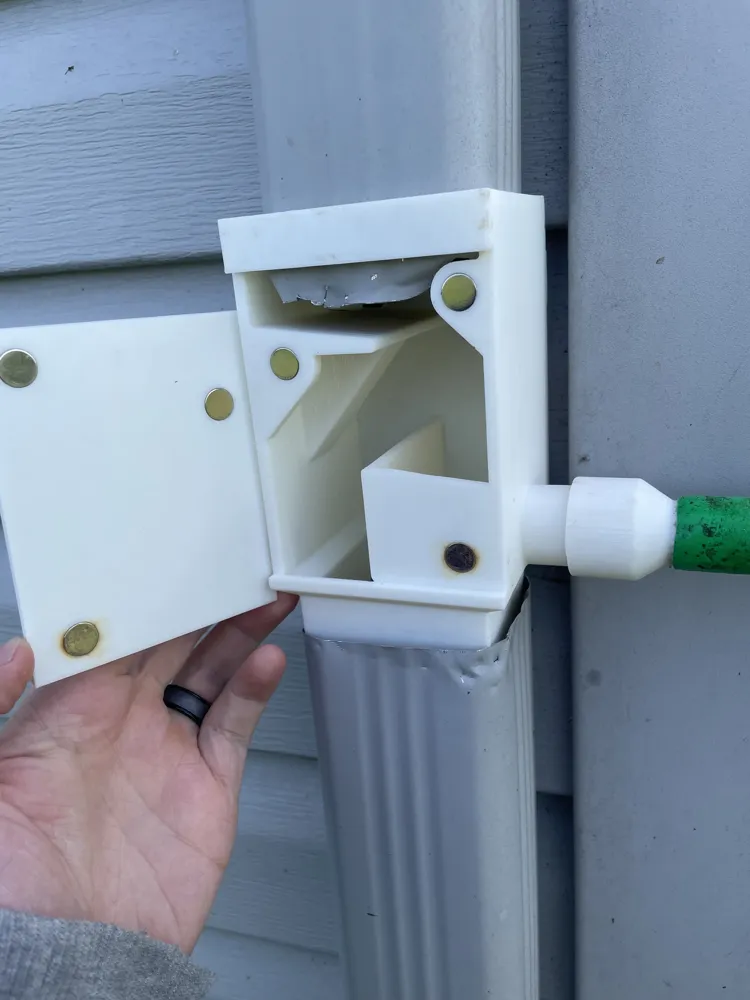

The access hatch requires 6 magnets of 10x3mm size.
