Modular Side Tables – 4 Sizes + Dolphin

Modular Side Tables – 4 Sizes + Dolphin

(Accessory for Modular Umbrella & Pole Organizer)

These small modular side tables are designed as dedicated accessories for the Modular Pole Organizer system  and use the same dovetail connection as the other components in the collection.

They can be mounted on compatible umbrellas, poles, rods, and supports, creating a practical horizontal surface for small items when used at the beach, in the garden, on the balcony, camping, in the workshop, or on a boat.

The raised edge along the perimeter helps keep items on the surface.

Publication Content

The publication includes five models, with maximum dimensions L × W × H:

• Compact Table — 130,00 × 119,87 × 32,98 mm

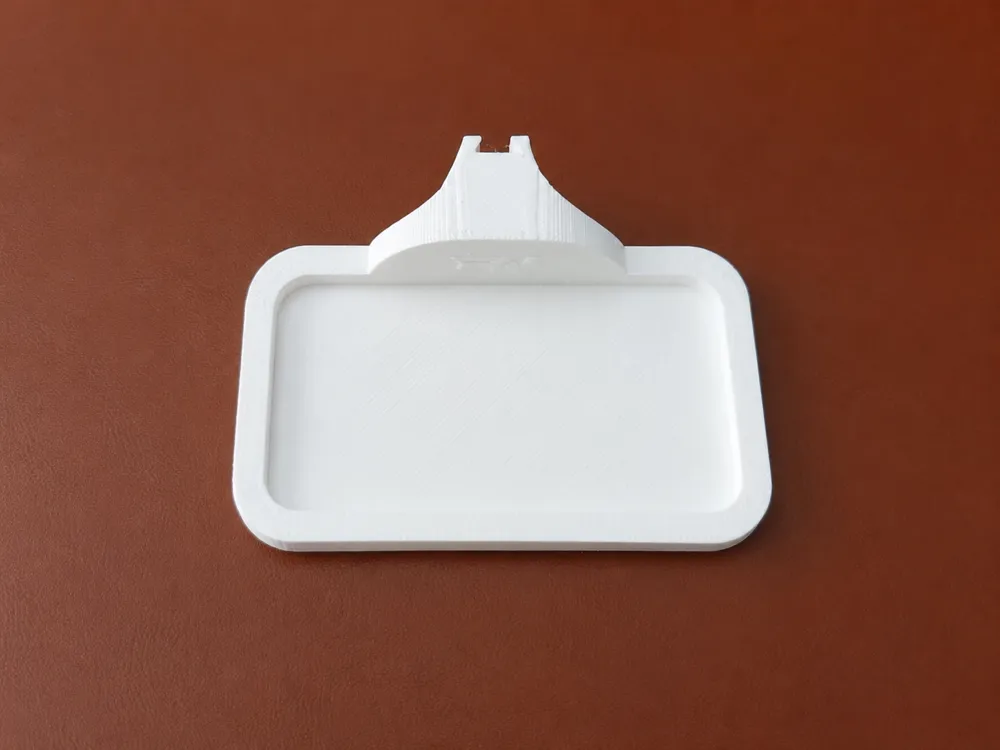

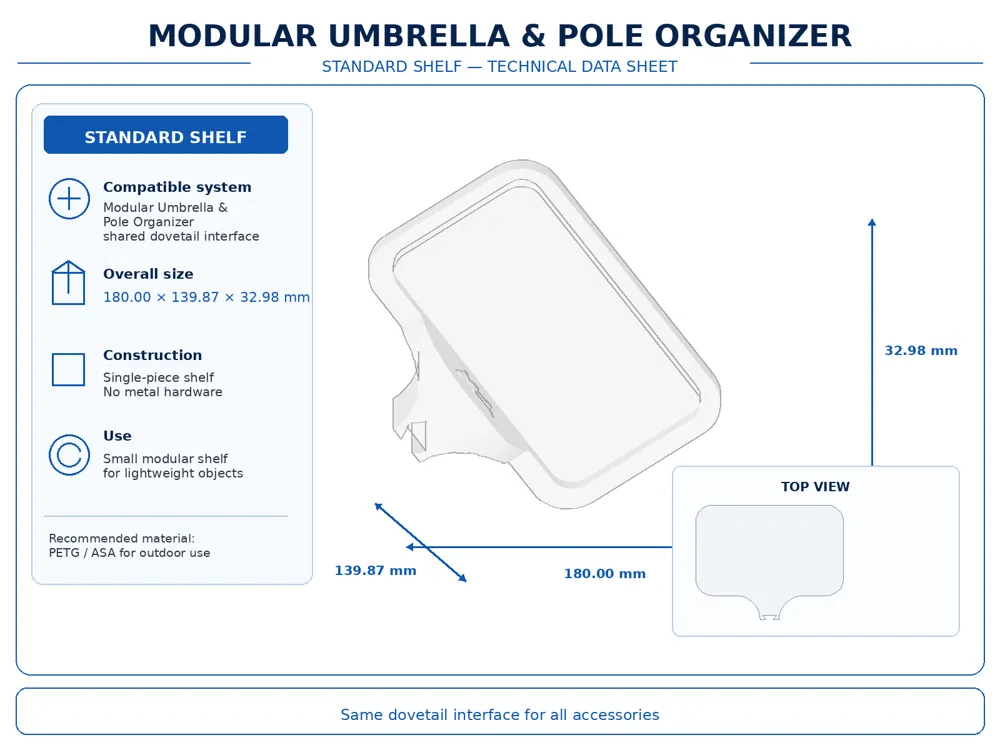

• Standard Table — 180,00 × 139,87 × 32,98 mm

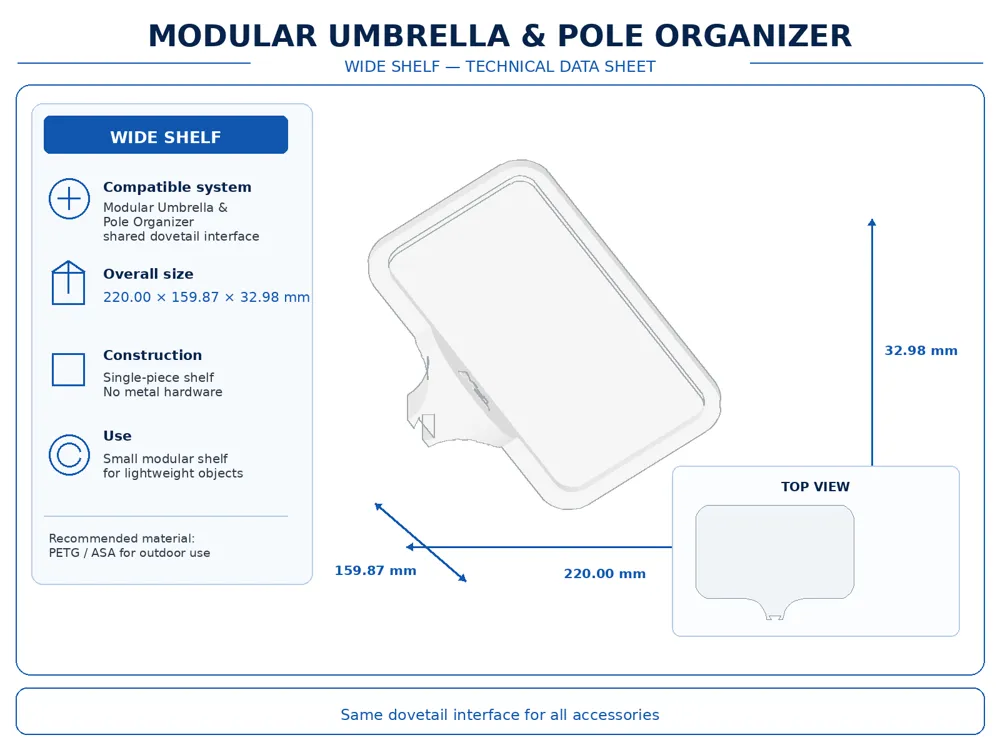

• Wide Table — 220,00 × 159,87 × 32,98 mm

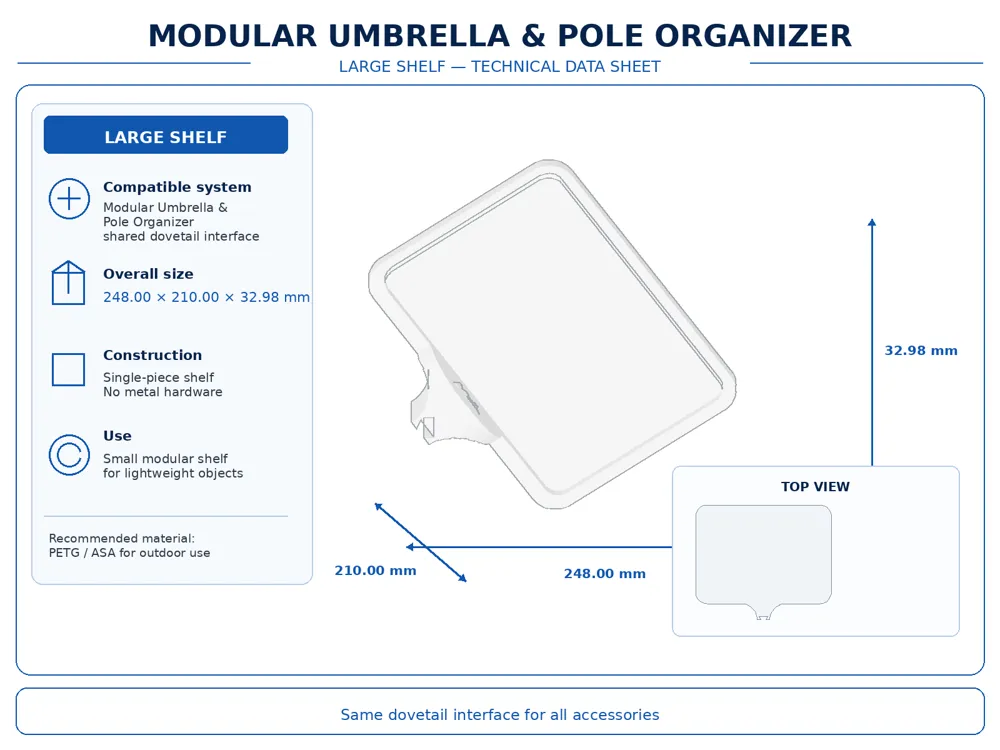

• Large Table — 248,00 × 210,00 × 32,98 mm

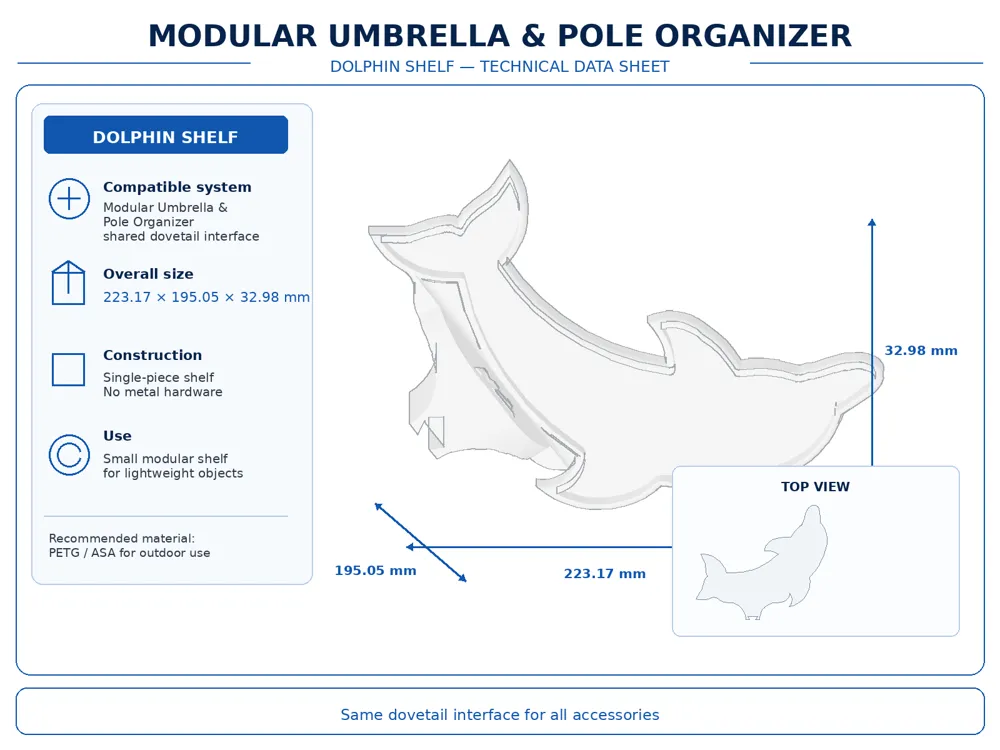

• Dolphin Table — 223,17 × 195,05 × 32,98 mm

The four rectangular versions allow you to choose the most suitable surface for the available space and the items to be placed.

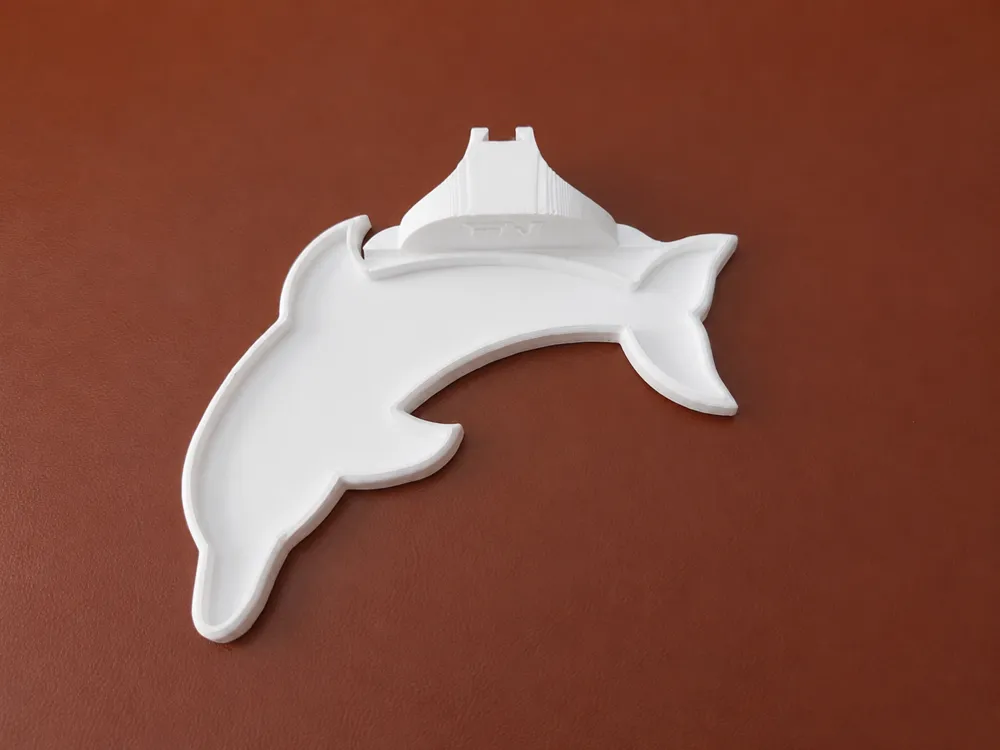

The Dolphin Table version maintains the same function as the rectangular versions, adding a decorative shape inspired by the sea.

Refer to the technical sheets in the publication images to verify the exact dimensions of each model before printing.

Required Main System

These models are accessories only.

To use them, you need to print one of the bases available in the main publication:

Modular Pole Organizer

The modular base for attachment to the umbrella, pole, or rod is not included in this publication.

Main Features

• Accessories compatible with the Modular Umbrella & Pole Organizer system
• Five table surfaces included
• Four rectangular sizes
• Decorative dolphin-shaped version
• Raised edge along the perimeter
• Single-piece printed structure
• Assembly via modular dovetail connection
• Compatible with both sizes of the main base
• No screws or metal components needed
• Quick assembly and removal
• Usable with other accessories from the collection
• Designed for compatible umbrellas, poles, rods, and supports

Assembly

Insert the dovetail attachment of the side table into its corresponding guide on the base of the Modular Pole Organizer

Gradually slide the piece until it is fully inserted, ensuring that the attachment is correctly aligned and completely seated in the guide.

Do not force the piece sideways during assembly.

If the insertion is initially slightly tight, check for residual threads, impurities, or small surface irregularities produced during 3D printing.

After a few insertions, the contact surfaces may settle, making it easier to assemble and remove the accessory.

Use of the Table Surfaces

The side tables can be used to hold small items, for example:

• phone
• glasses
• keys
• sunscreens
• small containers
• fishing accessories
• personal items
• small tools
• light camping or boat accessories

The Compact version is suitable for small items and limited spaces.

The Standard, Wide, and Large versions offer progressively larger surfaces.

The Dolphin Table is conceived as a decorative alternative, particularly suitable for marine environments, beach, pool, and boat.

Would you like a table surface with a different shape? You can request it: I will gladly create new variants to expand the collection.

Warnings

The side tables are designed to support only small, light objects.

Larger versions create more leverage on the modular base. Before use, always ensure that the clamp is properly tightened and cannot rotate on the pole.

Do not use the table surfaces to support heavy objects.

In strong winds or while sailing, do not leave objects on the surfaces without an additional security system.

Actual capacity depends on the material used, print settings, pole diameter, and proper tightening of the main base.
