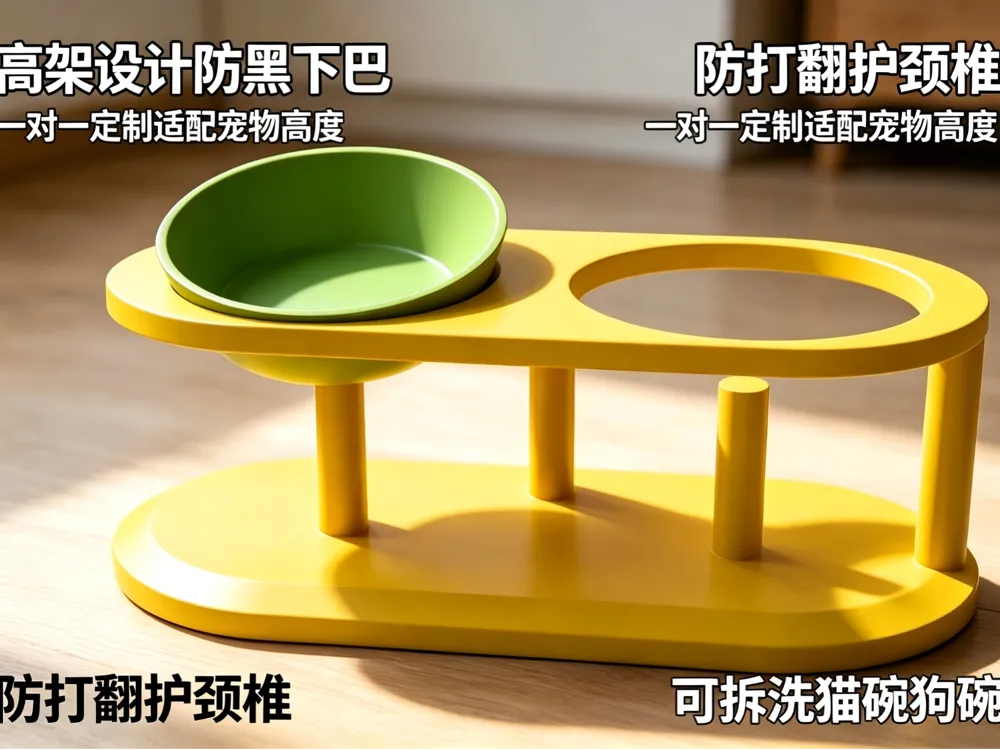

Parametric Pet Feeder Elevated Design Anti-Black Chin Fully customized to pet's height | Anti-tip Neck Protection Removable and Washable Cat and Dog Bowls

✨ [Product Highlights]

✅ Elevated design: Reduces the extent to which cats/small dogs lower their heads, protects cervical spine, and prevents chin acne

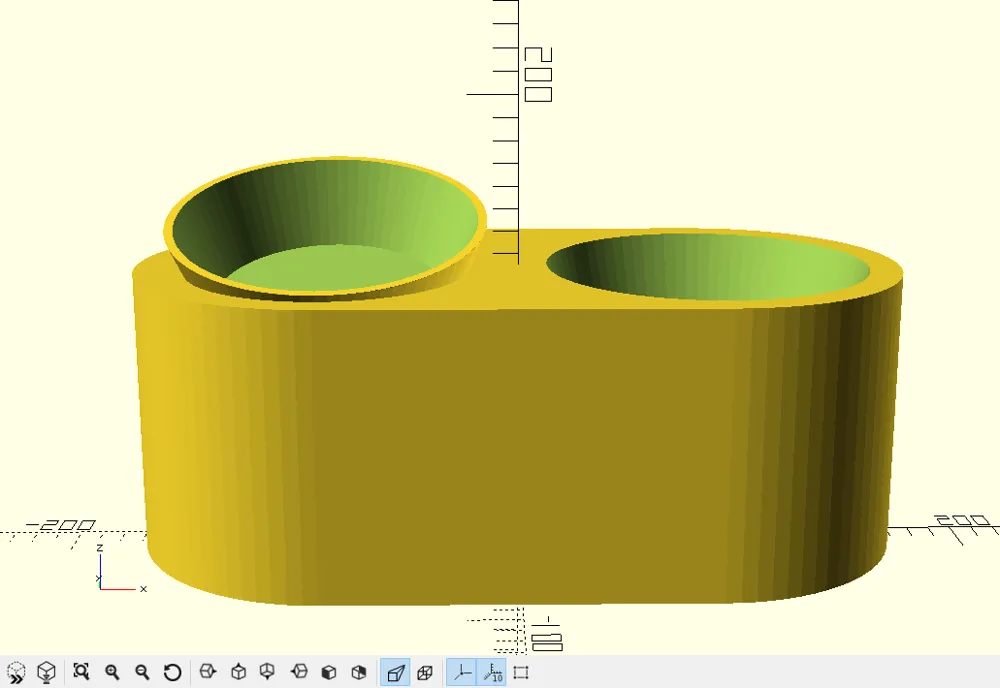

✅ Integrated double bowls: One side for food, one side for water, making feeding and drinking convenient

✅ Removable and washable bowl inserts: Bowls can be taken out for thorough cleaning, preventing bacterial growth

✅ Stable and anti-tip: Widened base + pillar support, preventing shaking even if cats paw at it

✅ PETG material: Waterproof and durable, more suitable for pet supplies than PLA

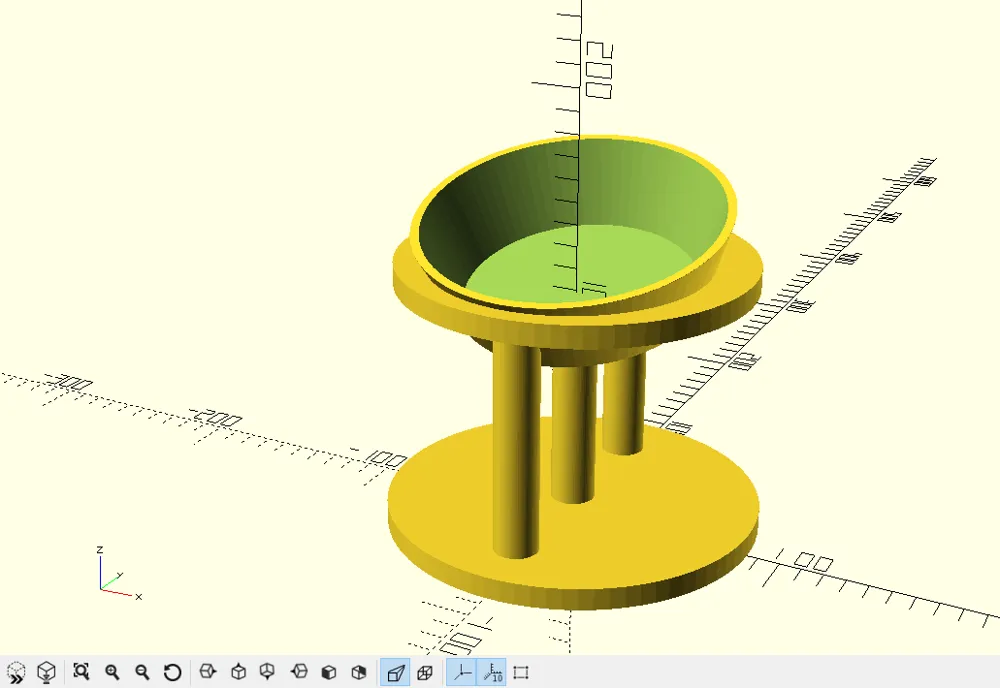

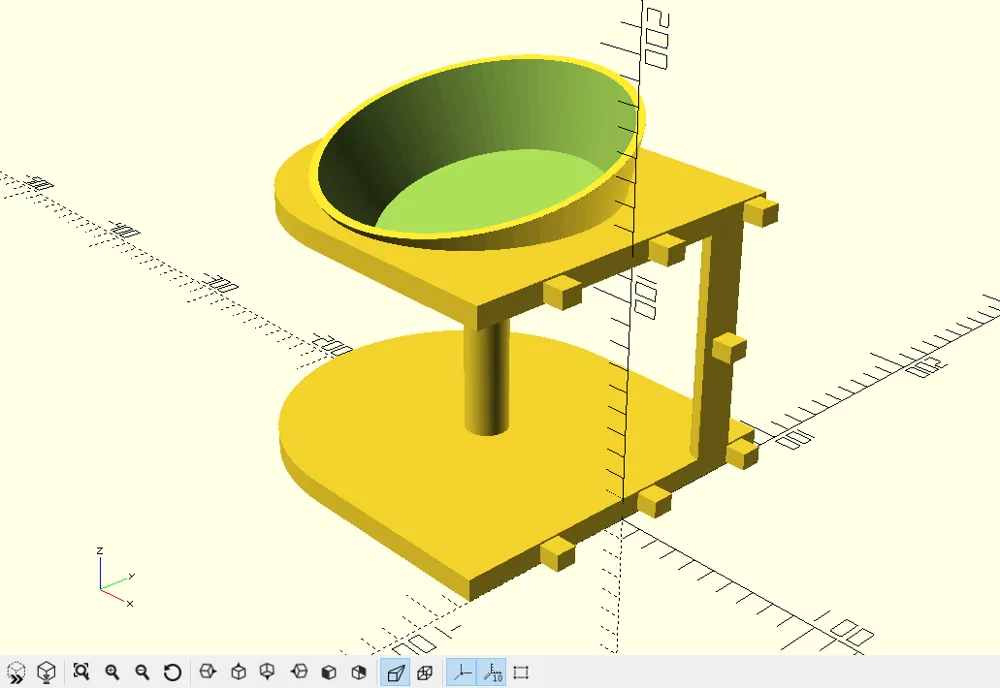

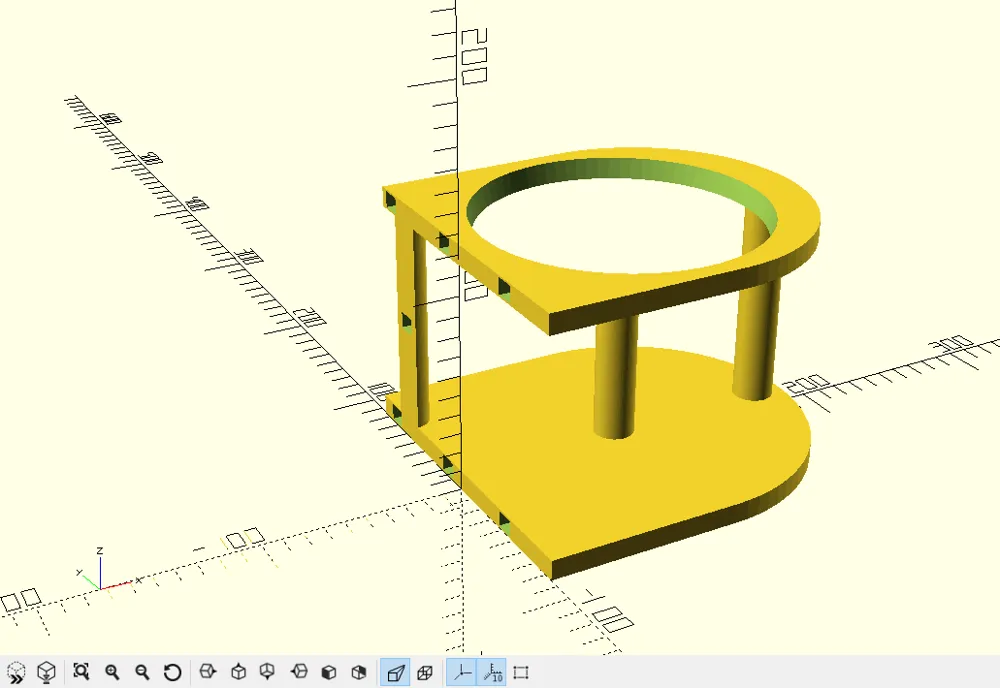

✅ Various models are all built-in, including single bowls, multi-bowls, stands, and solid versions available for download. If there's no suitable one, you can contact me for free assistance in generating STL files. For larger pets, components can be separated.

🖨️ [Printing Recommendations]

• Recommended models: Bambu Lab P1P/X1/A1/P2S (compatible with all models)
• Recommended filament: PETG (waterproof and durable, less prone to mold with long-term water contact) / PLA can also be printed
• Layer height: 0.2mm (balances speed and detail)
• Supports: Solid food bowls require no supports, for stand-type food bowls, fine supports are recommended.
• Infill: You can choose for yourself; I tested and lightning infill works for small dogs.
• Print time: 10+

📌 [Instructions for Use]

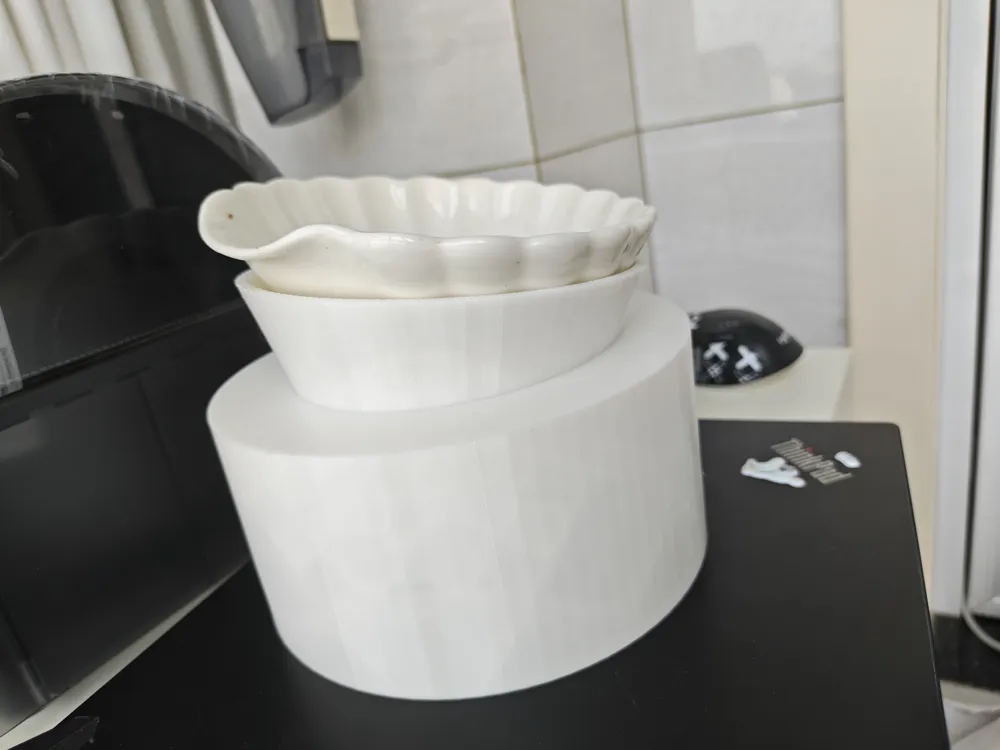

1. After printing, you can place the cat/dog bowl inside
2. It is recommended to remove and clean the bowl regularly to maintain hygiene
3. If the bowl size does not fit, you can contact me, and I can help generate STL files for free when I have time.
4. For customization, please provide your pet's height to generate a size that better suits your furry friend. (Cat or dog, for cats: ground to chin height in a standing posture; for dogs: shoulder height in a standing posture, long snout, short snout, or standard). Also, specify the required type: stand OR solid; outer diameter of the bowl rim, outer diameter of the bowl base, and bowl depth.

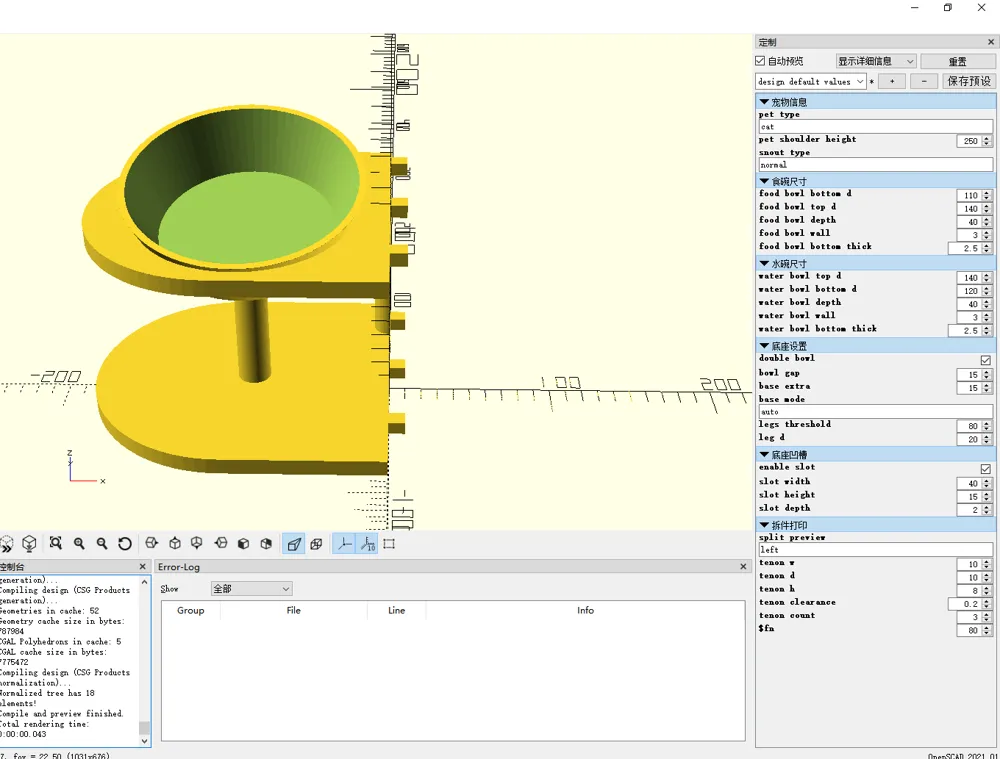

PS: I heard Bambu Lab can upload parametric models now, but I haven't learned how. If anyone knows how, please teach me. This way, users can directly customize and generate their own.

💡 [Small Tips]

• It is recommended to print with white/light-colored PETG, as it is stain-resistant and easy to observe cleanliness.
• If your cat likes to paw at things, you can attach anti-slip pads to the base to further enhance stability.
• Even food-grade filaments can have tiny plastic particles, so it's recommended to use them with a food bowl insert. Avoid direct contact with the stand to prolong its lifespan.

[For those with modeling skills, you can refer to the following standards to design food bowls]

[Categorized Calculation Models]

🐱 Feline Custom Models

• Basic Formula: Bowl Height = Chin Height when Standing Naturally
• Alternative Reference: Elbow Joint Height
• Tiered Adjustments:
  • Standard Adult Cats: 6-8 cm
  • Large/Senior Cats: 15-17 cm
  • Munchkin Cats: Not exceeding chin height, typically 3-4 cm
• Posture Requirement: Neck and back should remain in a horizontal line, avoiding excessive lowering or raising of the head

🐶 Canine Custom Models

• Core Formula: Bowl Height = Shoulder Height - 15~18 cm
• Position Verification: The top of the food bowl should be level with the bottom of the chest
• Size Classification:
  • Miniature Dogs (shoulder height < 25cm): 5-6 cm
  • Small Dogs (shoulder height 25-40cm): 8-12 cm
  • Medium Dogs (shoulder height 40-60cm): 25-35 cm
  • Large Dogs (shoulder height > 60cm): 40-45 cm
• Special Alert: Deep-chested dog breeds (e.g., Great Danes) require strict height control to avoid the risk of gastric torsion

[Health Risk Assessment System]

• Too Low Risk: Spinal strain, acid reflux, underdeveloped sternum
• Too High Risk: Gastric dilatation-volvulus (GDV), neck compression, difficulty swallowing
• Safety Threshold:
  • Cats: Maximum not exceeding 10 cm
  • Dogs: Not exceeding a 20% increase in shoulder height

[Dynamic Adjustment Mechanism]

1. Growth Monitoring: Measure and adjust monthly during puppy/kittenhood, check quarterly during adulthood
2. Behavioral Observation Indicators:
   • Abnormal signs: Head shaking, neck trembling, refusing to eat
   • Comfortable signs: Natural head lowering, steady eating, no backing away
3. Life Cycle Adaptation:
   • Puppy/Kittenhood: Slightly below standard height to accommodate rapid growth
   • Senior Years: Appropriately increase height to reduce joint burden
   • Pregnancy: Dynamically adjust according to changes in abdominal size
