Air Conditioner Vent Outlet for Window
Print Profile(4)
Description

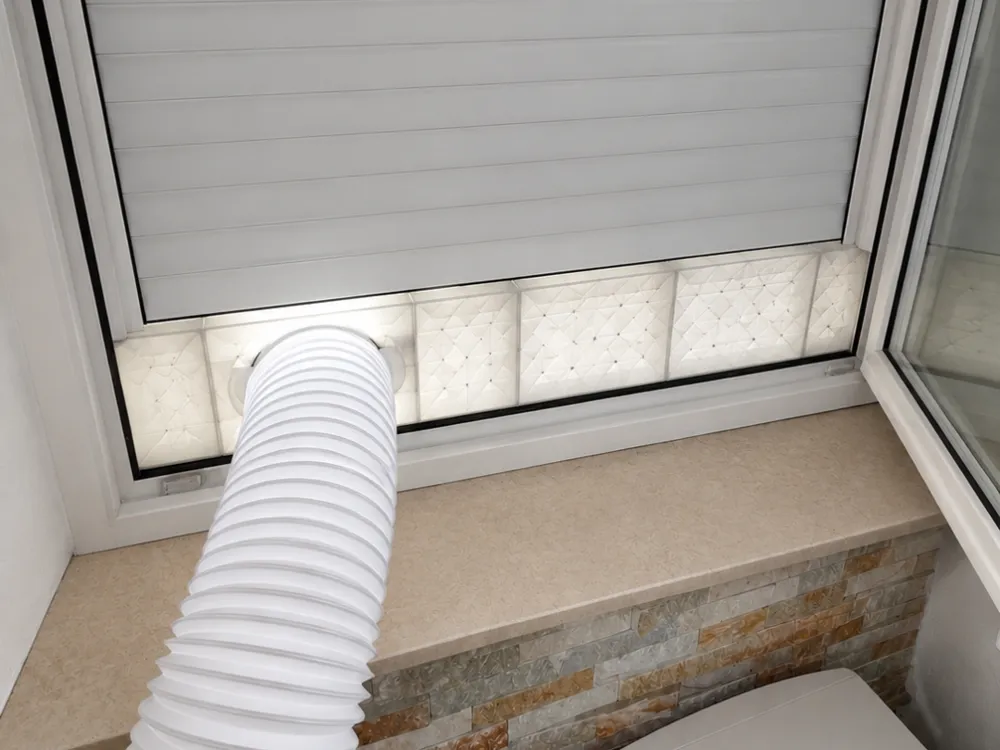

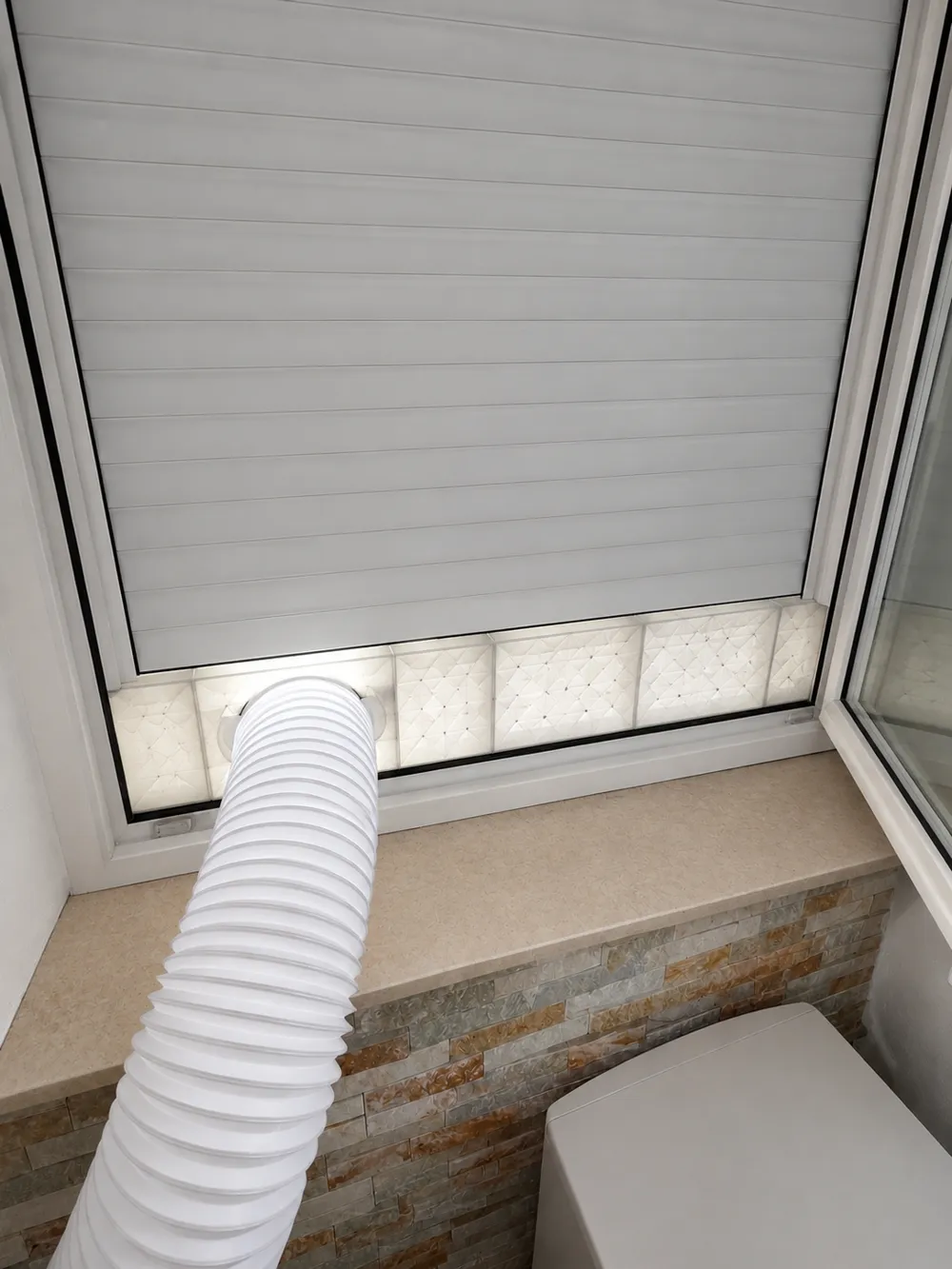

Air Conditioner Vent Outlet for the Window
I have designed a model with which you can easily seal the window without much effort. I highly recommend printing it from PETG due to the temperatures.

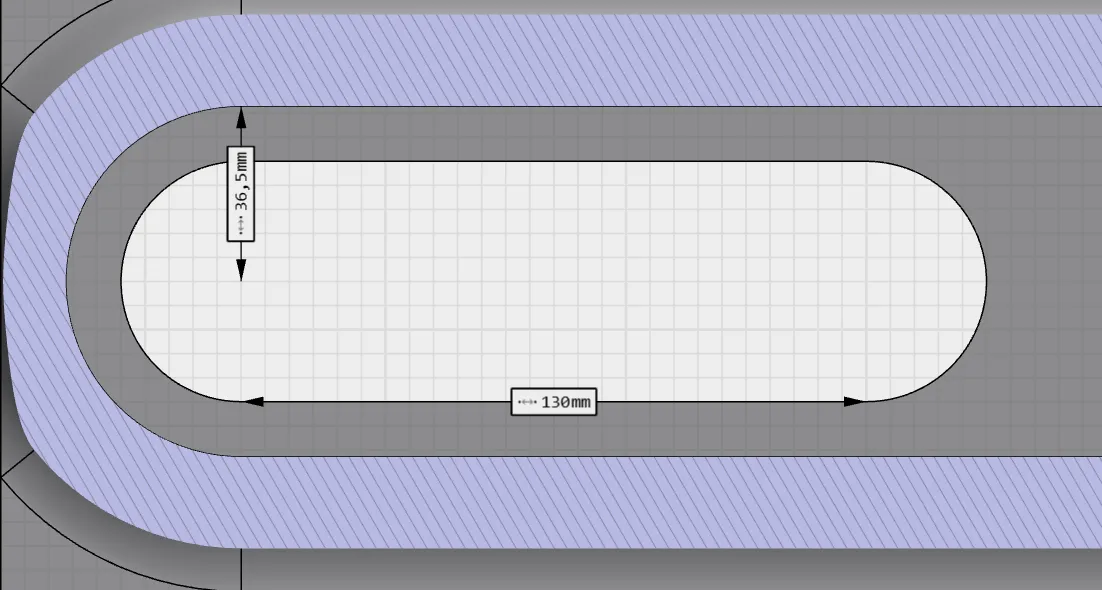

Currently, it only works with an adapter on the hose, but I will also create a model for that in the coming days. However, if your adapter has the dimensions shown in the picture below, it will fit.
The adapter must have a height of approx. 73mm, a width of 203mm, and a depth of 10mm.

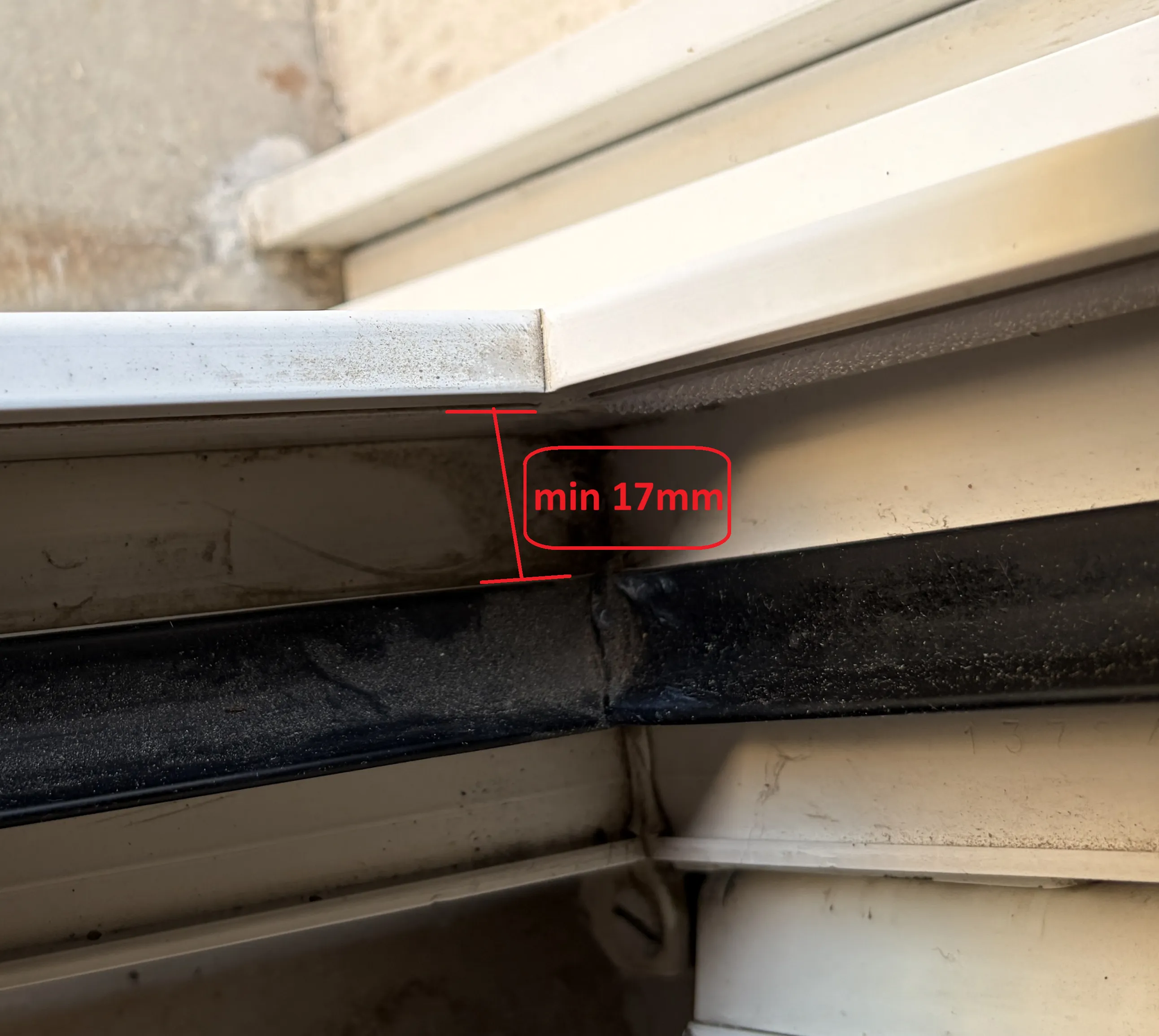

The inner window frame must be at least 17mm for the parts to be slid in.

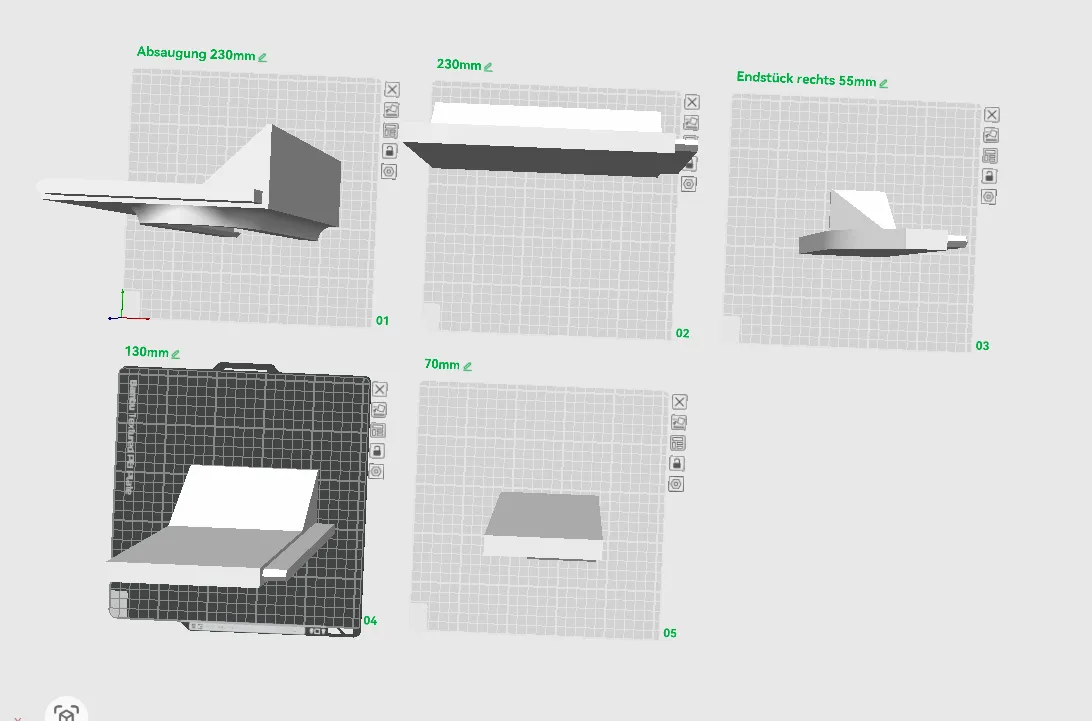

For all parts, I have named the plate according to the width of the parts. This always refers to the inner width without the plug connection, which is an additional 20mm and must be subtracted when adapting the model to fit your window. Please print one of the two end pieces first to ensure that the window fits and the roller blind closes perfectly.

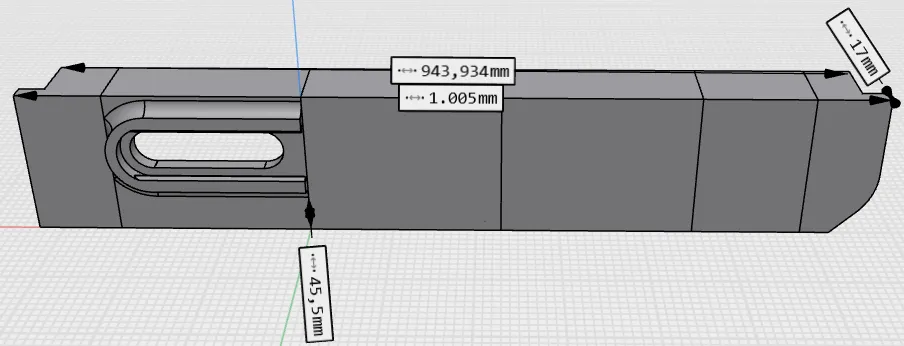

In the next picture, you can see from where measurements are always taken.
I wish you great success with printing and would greatly appreciate a review.
