Customizable 19" Keystone Panel

A fully customizable

19" Rackmount Keystone Panel

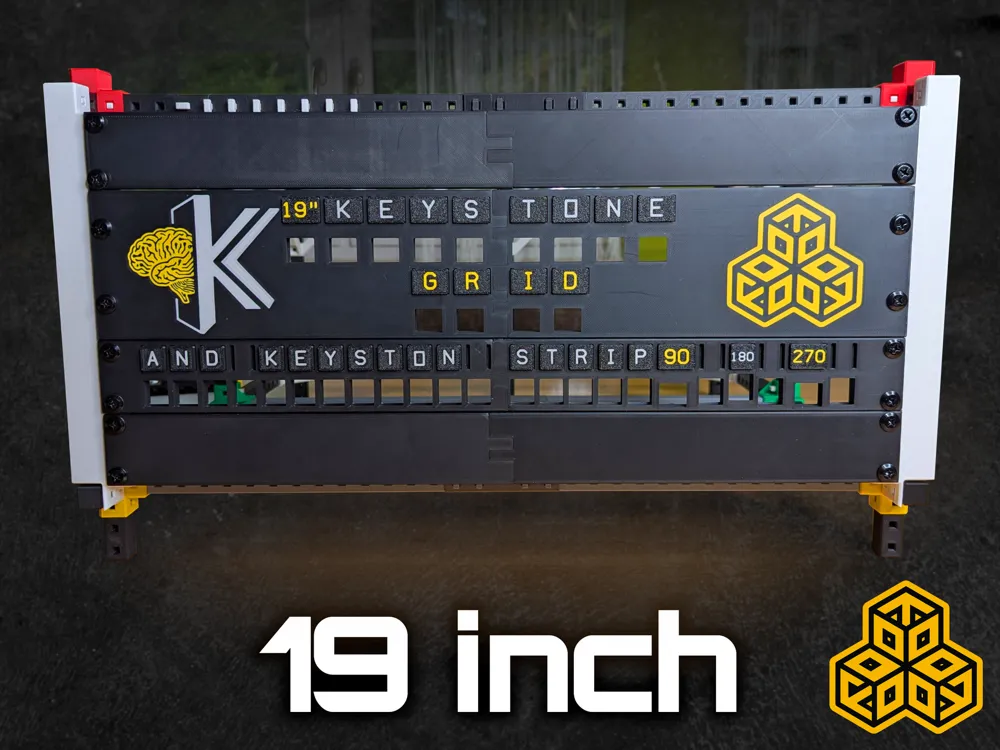

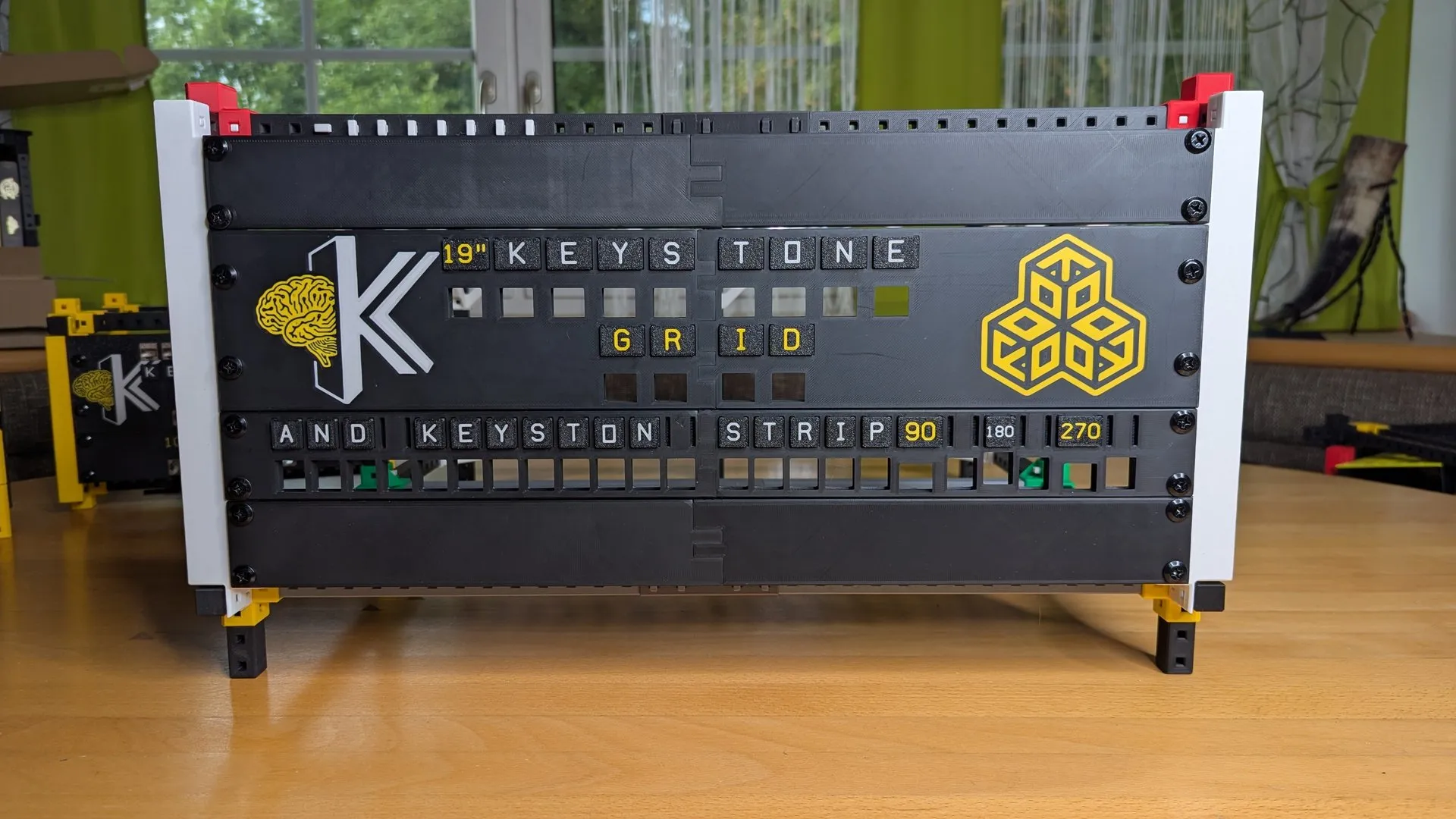

Snap your keystone jacks (RJ45, HDMI, USB, blanks, you name it) into a tidy 19" (482.6 mm) rack panel. Design a single row or a multi-row grid, mix rotations and labels, and the panel sizes itself in whole rack U.

• 🔌 Any keystone jack: standard footprint; tune the fit with one tolerance knob
• 🧱 Strip or Grid: one row, or up to four independently configured rows
• 📐 Auto-height: describe the rows, the panel grows to the smallest rack U that fits
• 🧩 Prints in two halves: joined by a snap-in lock pin, so a full 19" panel fits your bed

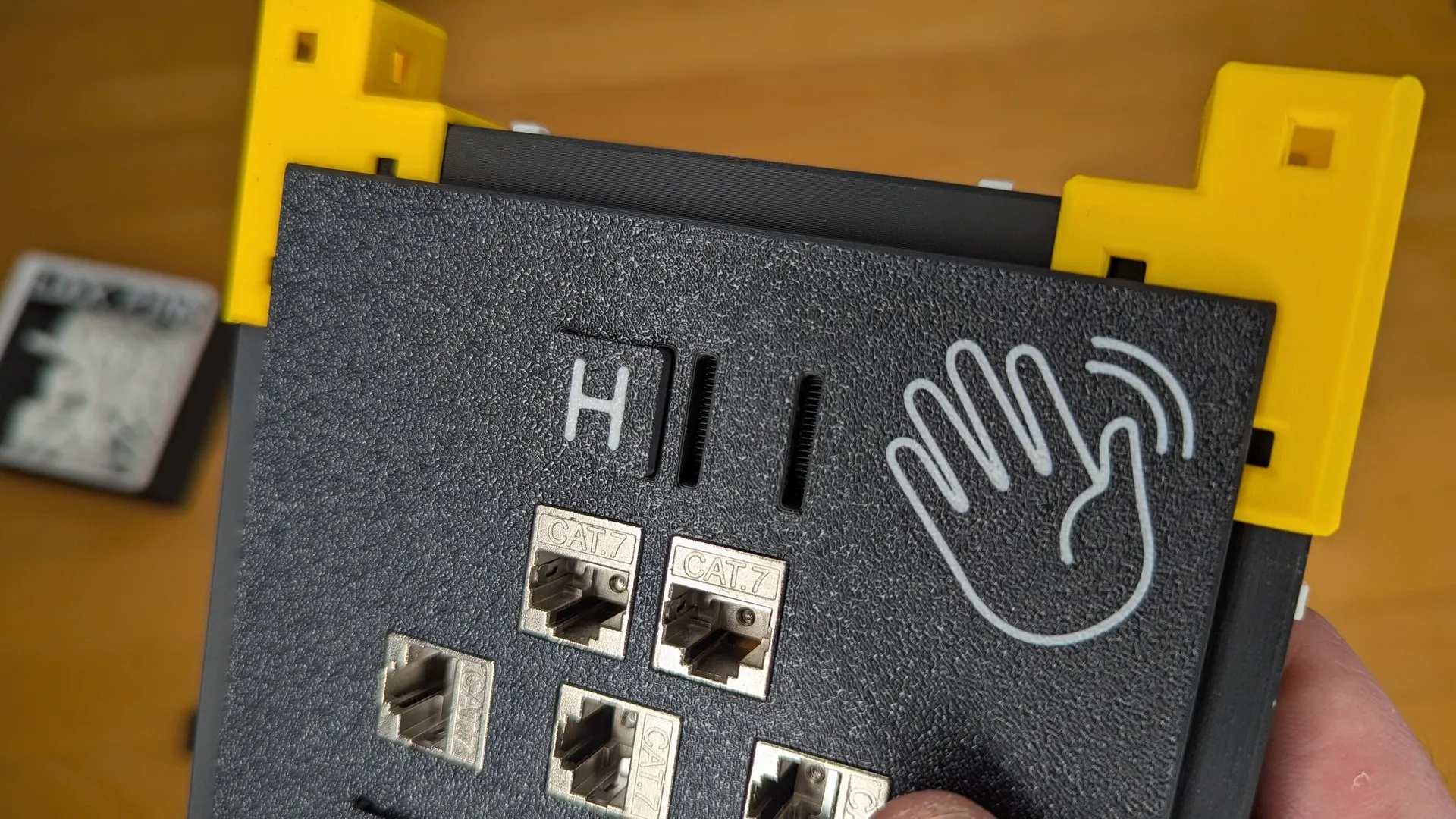

• 🏷️ Snap-in labels: printable label plates click in beside each port

🛠️ How It Works

Pick Strip for a single row or Grid for up to four. Tell it how many keystones, which way they face, and where the labels go, and the panel auto-fits the rows in whole rack U and bolts into any standard 19" rack.

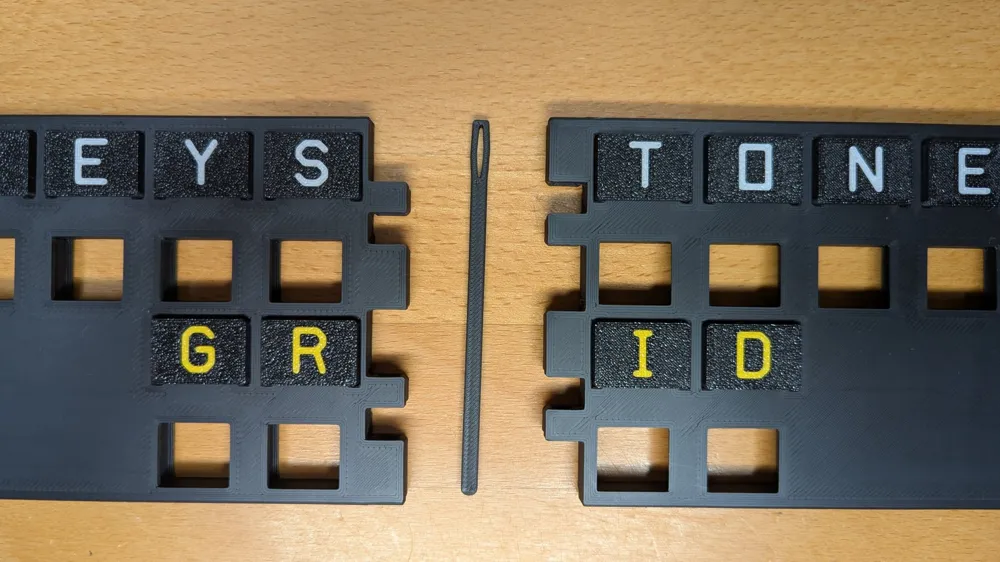

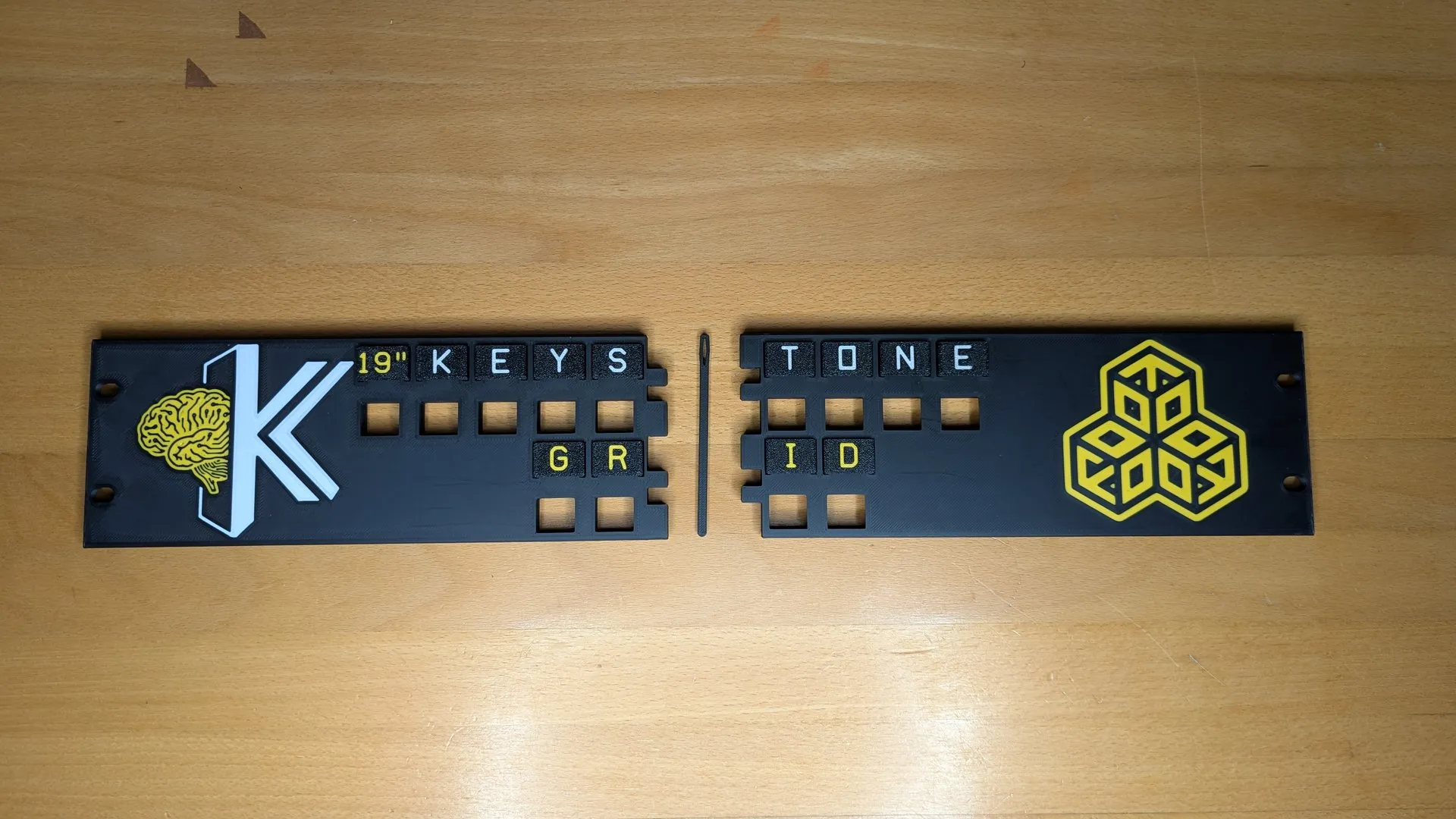

Because a full 19" panel is wider than most print beds, it prints as two halves that clip together with a split lock pin down the centre seam. The jacks align from the seam outward so the assembled panel reads as one continuous row.

It's also intentionally beefier than the 10": an opinionated 4 mm panel (vs 2 mm) with back braces for stability, so a full-width rack panel doesn't flex.

Jacks press in from the back and catch on their own clips; the optional snap-in label plates print separately.

📦 What's in the Download

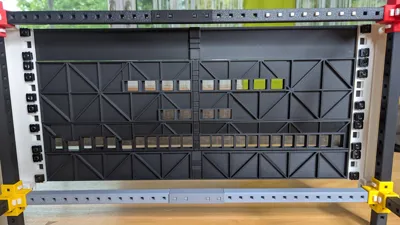

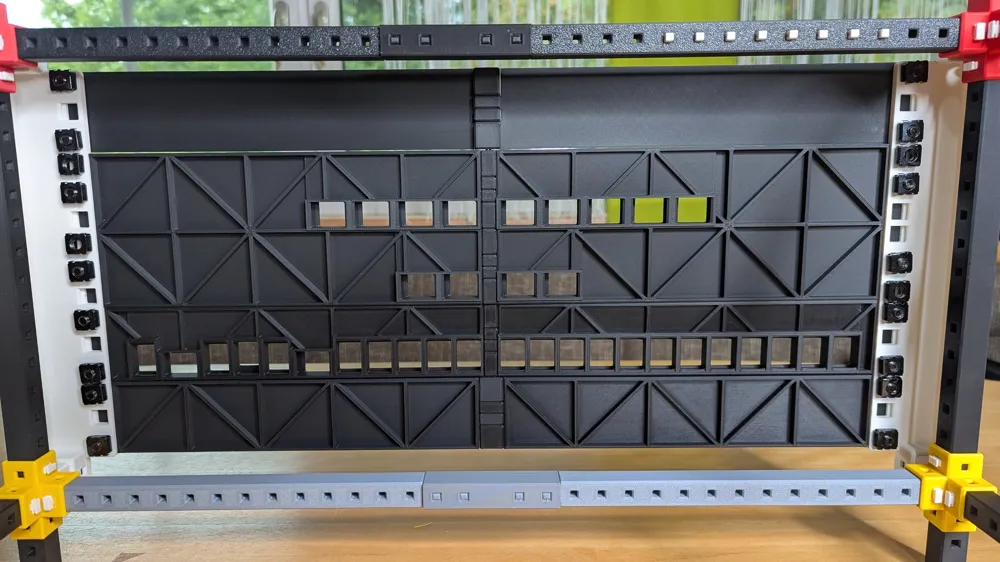

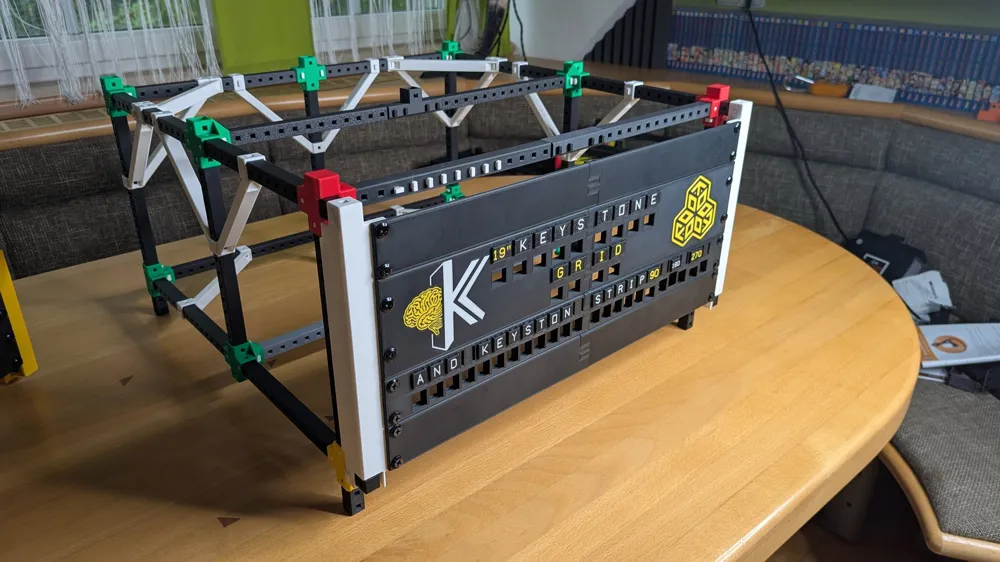

The bundled print profile holds the showcase panels only. For your own layout, start the customizer. The rack frame isn't included, but HomeRacker has you covered there too: build a full 19" rack with the Modular 19" Server Rack and mount your keystone panels right in.

💡 No rack at all? Skip the rackmount and go HomeRacker-native instead. The same keystone panel, mounted straight into any HomeRacker frame for maximum flexibility.

📐 Customization Guide

Every parameter, plus how to print and join the split halves (and a pin-insertion tip that genuinely helps), is covered in the attached Customization Guide PDF (shared with the 10" version).

🧩 The Keystone Panel Family

Same snap-in keystone system, three mounts. Pick what you need:

• 🏠 HomeRacker-native: mounts into any HomeRacker frame
• 🗄️ 10" rackmount: bolts into any standard 10" rack
• 🗄️ 19" rackmount, this model

🏡 What is HomeRacker?

HomeRacker is a universal modular rack building system. It's based on an open specification. Find out more here:

HomeRacker - Core on MakerWorld

or visit https://homeracker.org/

🗂️ KellerLab Essentials

These keystone rack panels fit any standard EIA rack (they're not HomeRacker-specific), so you'll find them in KellerLab Essentials, my collection of models for building out a homelab.

🤝 Community Driven

I created HomeRacker - Core as an open specification. Anyone can create and share their own extensions and models based on it without licensing restrictions. All I ask for is attribution!

🧑💻 For Designers

Have an idea and the skills? Go ahead, I'd be happy to link and feature your creations in the catalog.

💭 For Idea-Generators

Not familiar with CAD? Pitch your idea to me with as much detail as possible!

Check out the Community Catalog

Pitch ideas or vote for them here on GitHub!
