<ul><li>Layer Height: 0.2 mm</li><li>Supports: Not required</li><li>Walls: 3–4</li><li>Infill: 20%-25%</li></ul>

0.2mm layer, 4 walls, 25% infill

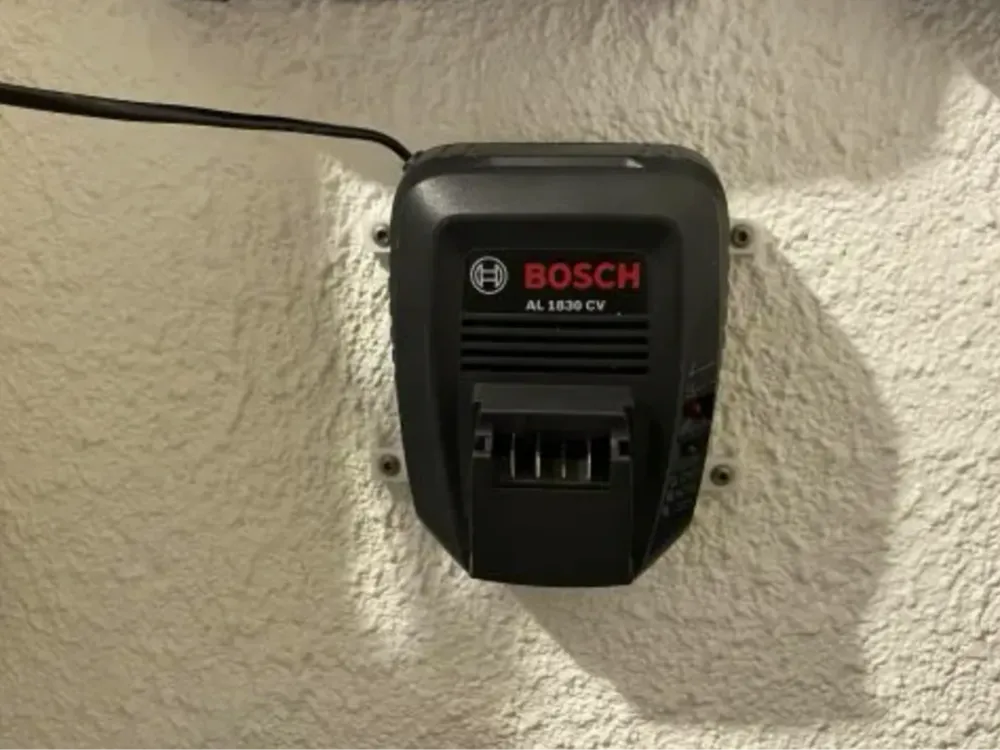

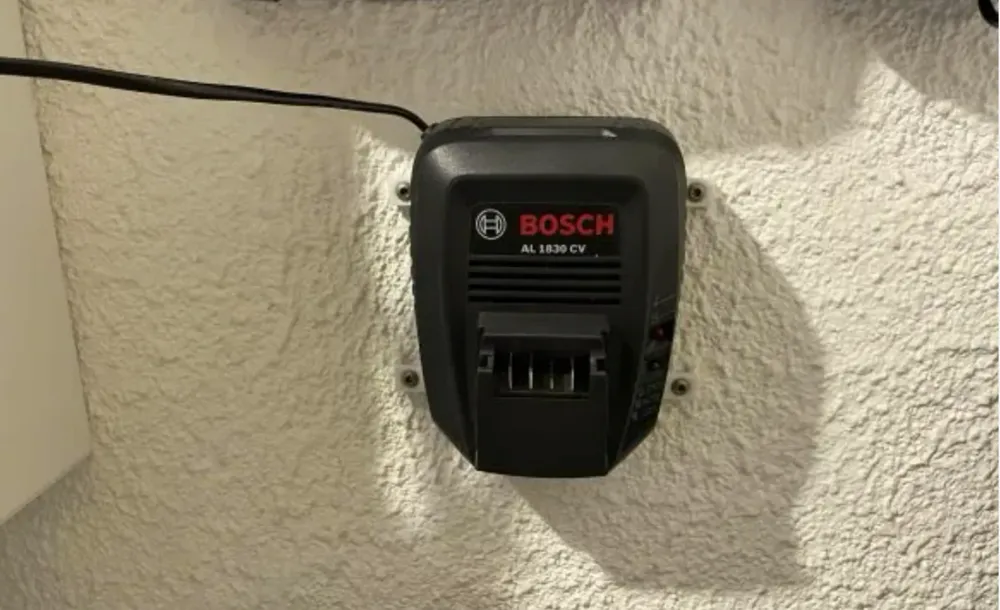

<h2>🇩🇪 Deutsch</h2><h3>Bosch AL 1830 CV Wandhalterung</h3><p>Inspiriert von der Wandhalterung <strong>„Wallmount / Wandhalterung Bosch AL 1830 CV Charger“</strong> von vinyli habe ich den Halter zunächst neu konstruiert, da ich meine Modelle bevorzugt in Fusion erstelle.</p><p>Anschließend habe ich die Befestigungslöcher um wenige Millimeter nach außen versetzt, damit die Halterung optimal zu meinem Ladegerät passt. Während der Tests stellte sich heraus, dass sich die Halterung in der Mitte leicht durchdrückte. Daher wurden zusätzliche Abstandshalter integriert, um die Stabilität zu erhöhen und einen sicheren Sitz zu gewährleisten.</p><p>Für die Montage der Halterung am Ladegerät werden <strong>M3x20 mm Schrauben</strong> benötigt.</p><p>Die <strong>Befestigungslöcher für die Wandmontage haben einen Durchmesser von 5 mm</strong>.</p><h2>🇬🇧 English</h2><h3>Bosch AL 1830 CV Wall Mount</h3><p>Inspired by the <strong>“Wallmount / Wandhalterung Bosch AL 1830 CV Charger”</strong> by vinyli, I first redesigned the mount from scratch, as I prefer to create my models in Fusion.</p><p>Afterwards, I moved the mounting holes a few millimeters outward to better fit my charger. During testing, I noticed that the mount flexed slightly in the center, so I added additional spacers to improve stability and ensure a secure fit.</p><p><strong>M3x20 mm screws</strong> are required to attach the mount to the charger.</p><p>The <strong>wall mounting holes have a diameter of 5 mm</strong>.</p>

<h2>🇩🇪 German</h2><h3>Bosch AL 1830 CV Wall Mount</h3><p>Inspired by the wall mount <strong>"Wallmount / Wall Mount Bosch AL 1830 CV Charger"</strong> by vinyli, I first redesigned the holder from scratch, as I prefer to create my models in Fusion.</p><p>Then I offset the mounting holes by a few millimeters outwards so that the holder fits my charger perfectly. During testing, it turned out that the holder flexed slightly in the middle. Therefore, additional spacers were integrated to increase stability and ensure a secure fit.</p><p><strong>M3x20 mm screws</strong> are required for mounting the holder on the charger.</p><p>The <strong>mounting holes for wall mounting have a diameter of 5 mm</strong>.</p><h2>🇬🇧 English</h2><h3>Bosch AL 1830 CV Wall Mount</h3><p>Inspired by the <strong>“Wallmount / Wandhalterung Bosch AL 1830 CV Charger”</strong> by vinyli, I first redesigned the mount from scratch, as I prefer to create my models in Fusion.</p><p>Afterwards, I moved the mounting holes a few millimeters outward to better fit my charger. During testing, I noticed that the mount flexed slightly in the center, so I added additional spacers to improve stability and ensure a secure fit.</p><p><strong>M3x20 mm screws</strong> are required to attach the mount to the charger.</p><p>The <strong>wall mounting holes have a diameter of 5 mm</strong>.</p>
