Standard Type 86 Switch Panel - Your best design reference!

           Participating in the switch panel decorative model design contest but struggling without a real Type 86 switch as a base model? This model is for you!

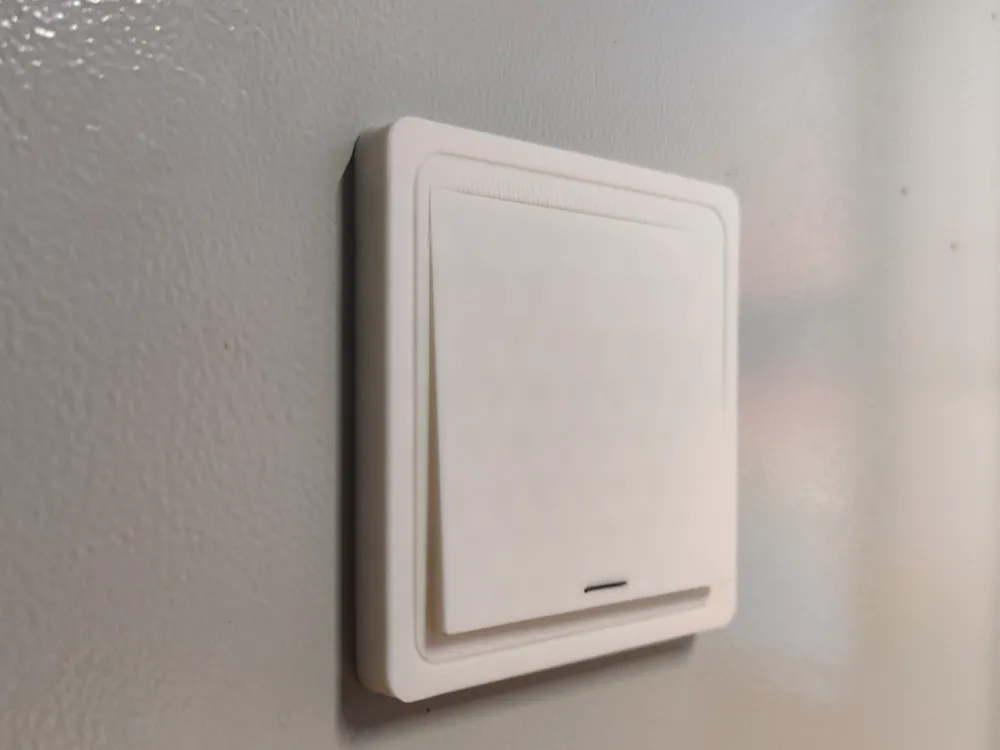

It precisely replicates the physical dimensions of the national standard Type 86 switch panel. You can print it directly and fix it to your wall, serving as a physical reference when designing decorative covers. Without having to remove your old switch at home, you can visually test whether your creative design fits perfectly and whether it interferes with the buttons.

Design Highlights:

• True-to-size Reference: Adheres to the 86mm x 86mm standard panel dimensions, with the button area, recessed edges, and indicator light slot positions all modeled to true proportions.

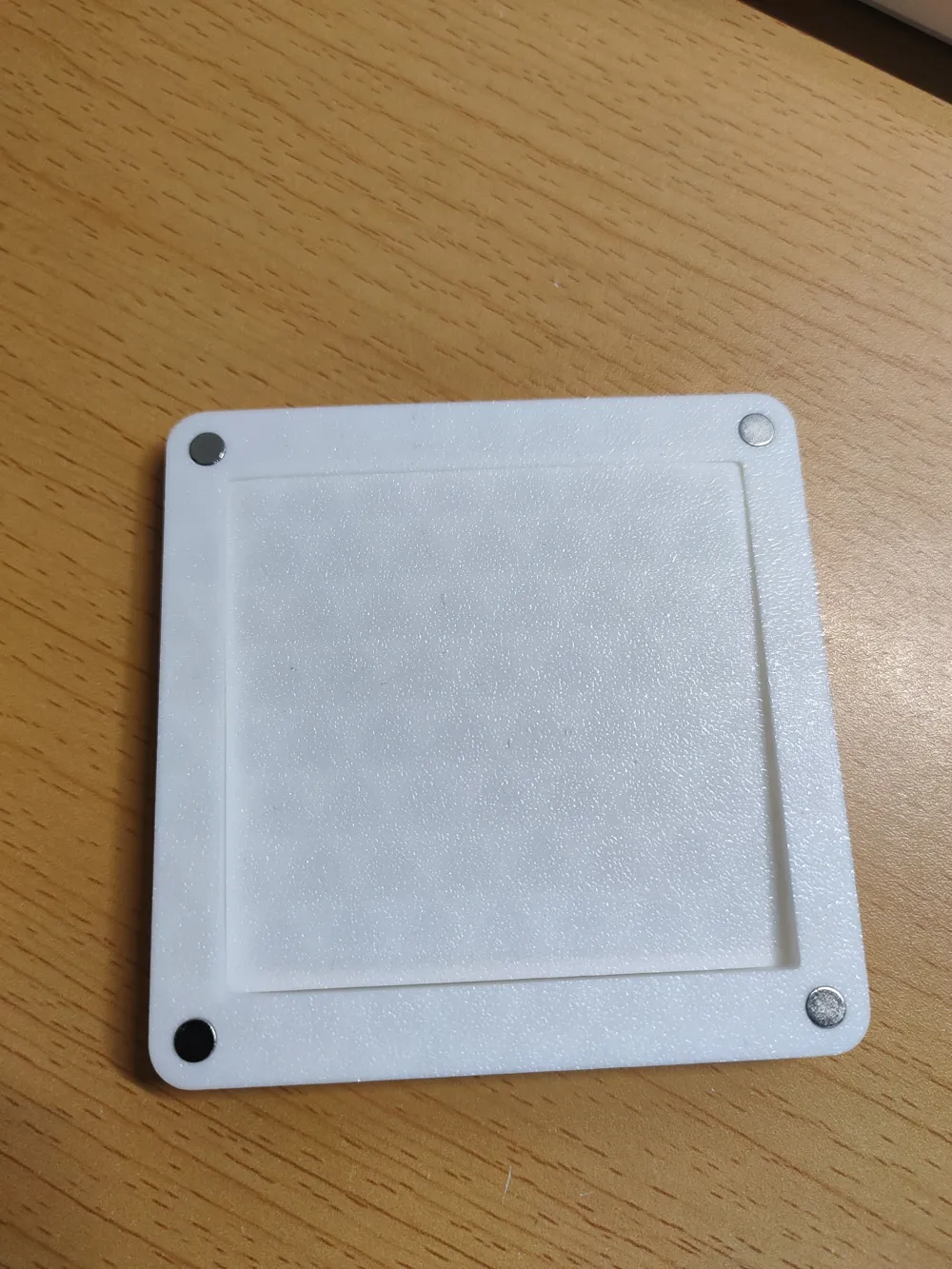

• Practical Adhesive Design: Four magnet holes are reserved on the back corners (as shown in Figure 1). You can insert magnets with a diameter of 5mm and a height of 1.8mm to directly attach it to a magnetic refrigerator/security door, or simply use double-sided tape to stick it on wood or tile walls for easy placement and removal.
• Design Intent: To provide all participating creators with a 1:1 physical reference benchmark. Everyone can use this model as a ruler to precisely design miniature wall switch panels, ensuring realistic home decor scene details, harmonious proportions, and a perfect fit for minimalist home decor themes.
• Printing Instructions: Directly printable on an FDM 3D printer, no supports. White filament can restore the minimalist home decor style. The magnetic structure is easy to assemble, and the printed product is visually highly consistent with a real household switch.

• Applicable Scenarios: Switch panel decorative model design, miniature whole-house home decor models, wall detail components, indoor scene door, window, and utility accessories design, adapting to the scene creation needs of this minimalist home decor kingdom.

       🎁 Instructions for use:
  This model is completely free and open source! We hope everyone can print one and place it on their desk to compare dimensions at any time. Let's create excellent works that are both beautiful and practical in this contest! 🚀

  If you print it and use it in your design, feel free to share your work in the comments section! Good luck to everyone in the contest! 🏆
