Gridfinity (+pin) Klein RG45 tool holder

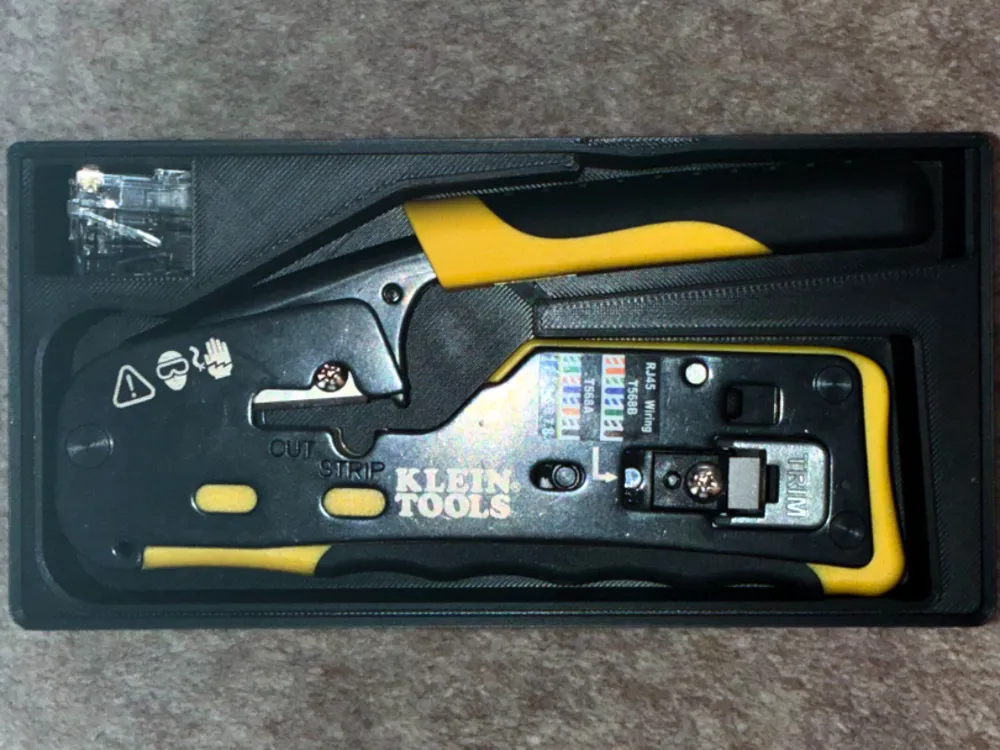

A remix of a nice gridfinity bin for Klein RJ45 crimp tool holder to add the base from gridfinity with pin (a great twist on this organisation system) , whilst they are compatible with normal gridfinity they are now also compatible with gridfinity with pin allowing them to click into place without the need for any magnets. This gives you more flexibility and when clicked into a base in your toolbox are very solid.

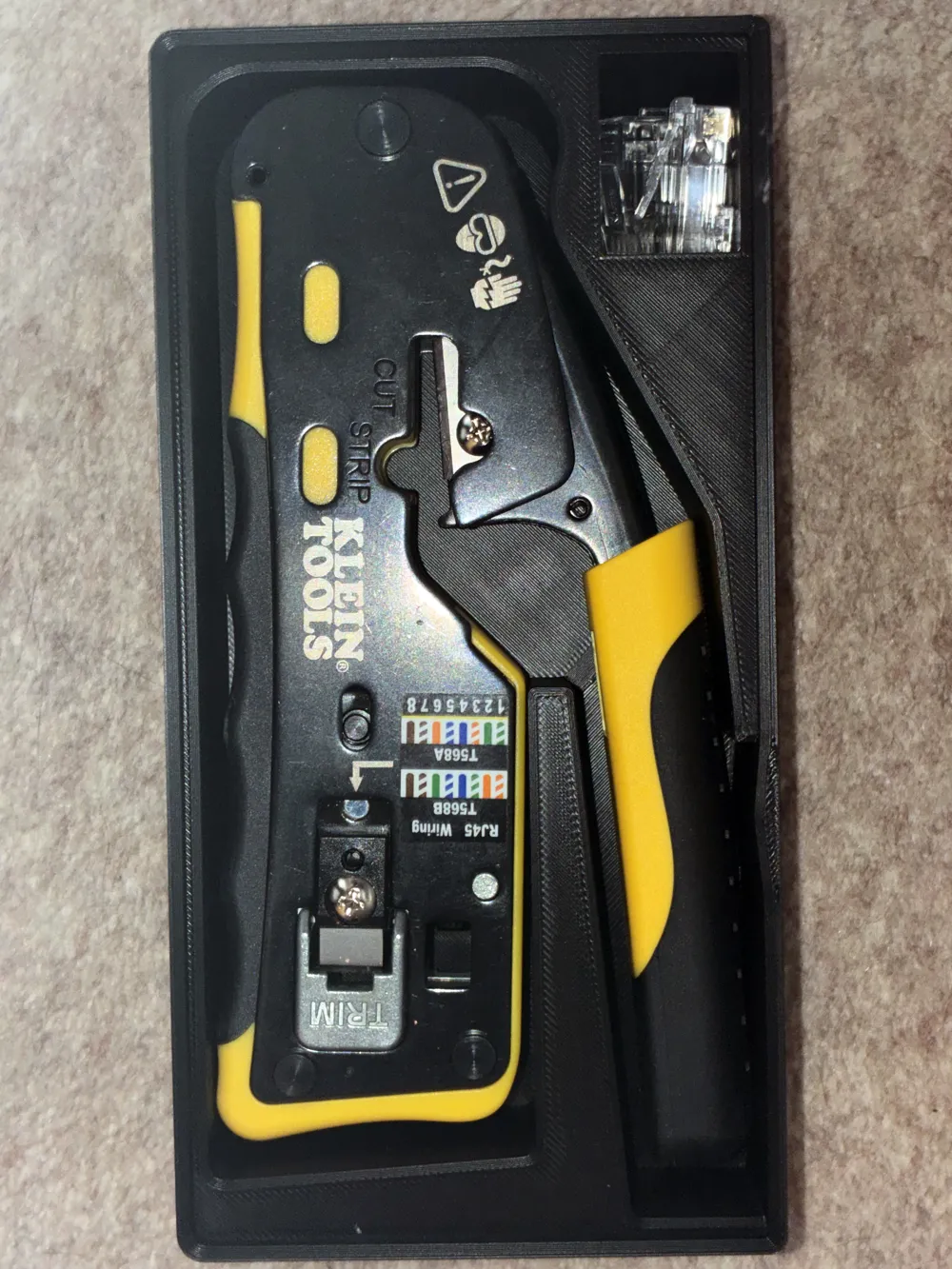

I also added a little recess to drop a few plugs in as well, it won't store many but handy to have a couple with it for quick use.

Gridfinity with pin

• For the bases click here
• For standard gridfinity with pin bins for this system click here
• A nice collection of gridfinity designs which are also compatible with this system which is here

A link to the original designers show which has some interesting stuff to check out

https://www.instagram.com/mattia.confalonieri/

I printed this in Bambu PLA which works well. If you have supports turned on, it will fill the recesses for the pin which will need removing, it is really not necessary to have them turned on, it prints perfectly without and will save you a job.

My other toolbox gridfinity organisers are:

• Gridfinity Halfords 1/2" Drive Deep Impact Socket Set
• Crowfoot Halfords 3/8" Gridfinity holder
• 12 piece watch screwdriver set
• Dremel cutting disc tray
• Grinding pad/disc holder
• 4x1 long bit holder
• Vertical mini plier holder x6
• Compact allen key holder
• Utility blade holder
• Wiha electrical screwdriver holder
• Kreg jig holder
• 125mm disc holder
• Dremel bit holder
• Generic socket rail holder
• Wixey angle gauge holder
• Wrench holder
• Spade bit holder
• Step drill holder
• Halfords precision Torx set holder
• Router bit trays
• Allen key storage
• Screwdriver storage
• Drill bit storage
• Dremel bit storage

Print Instructions

• Filament : PLA works really well I've not found a need for stronger, but you could use anything
• Infill: As per profile works great but you can easily reduce it by a few percent as nothing is under stress with this
• Drying: Always well worth drying your filament whatever it is, you will get better results with dry filament!
